Wallenstein
ID # 39462217
Wallenstein FX40 Steel Cable
Call for Price
Overview
Specifications
features
available colours
Videos

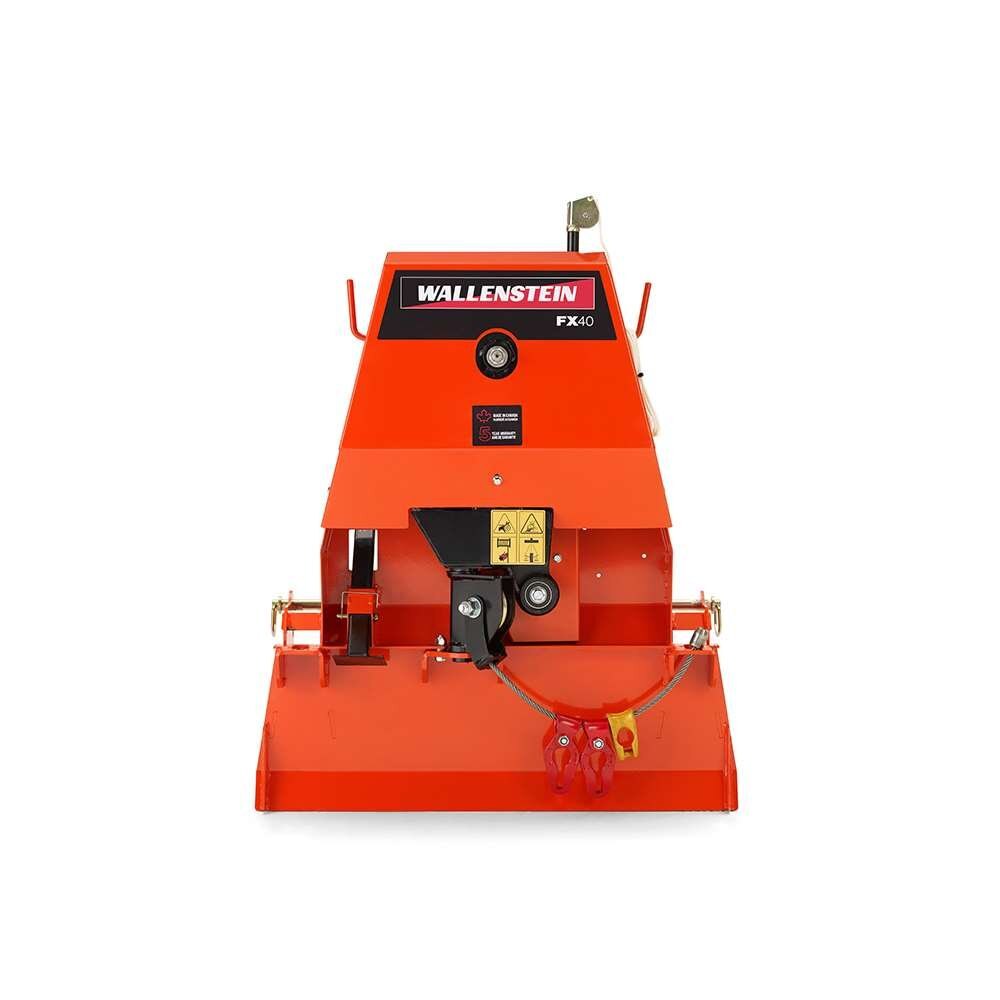

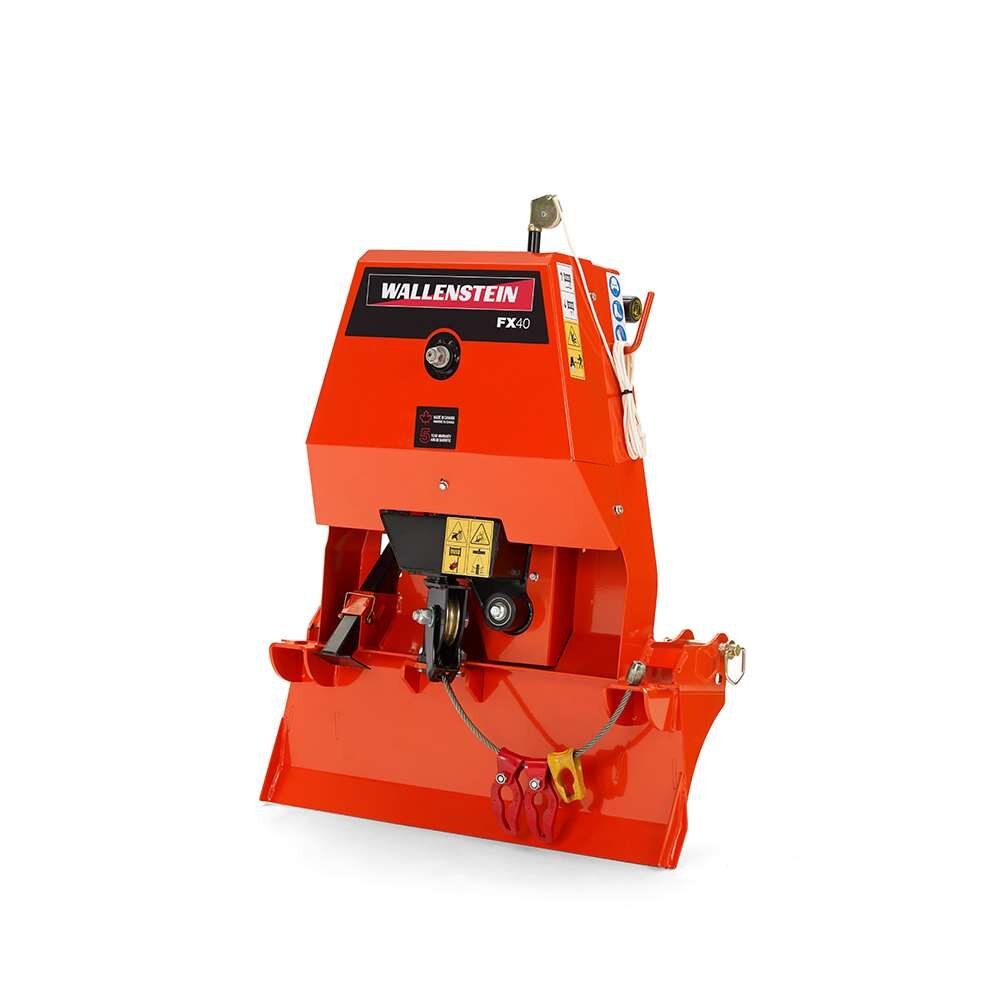

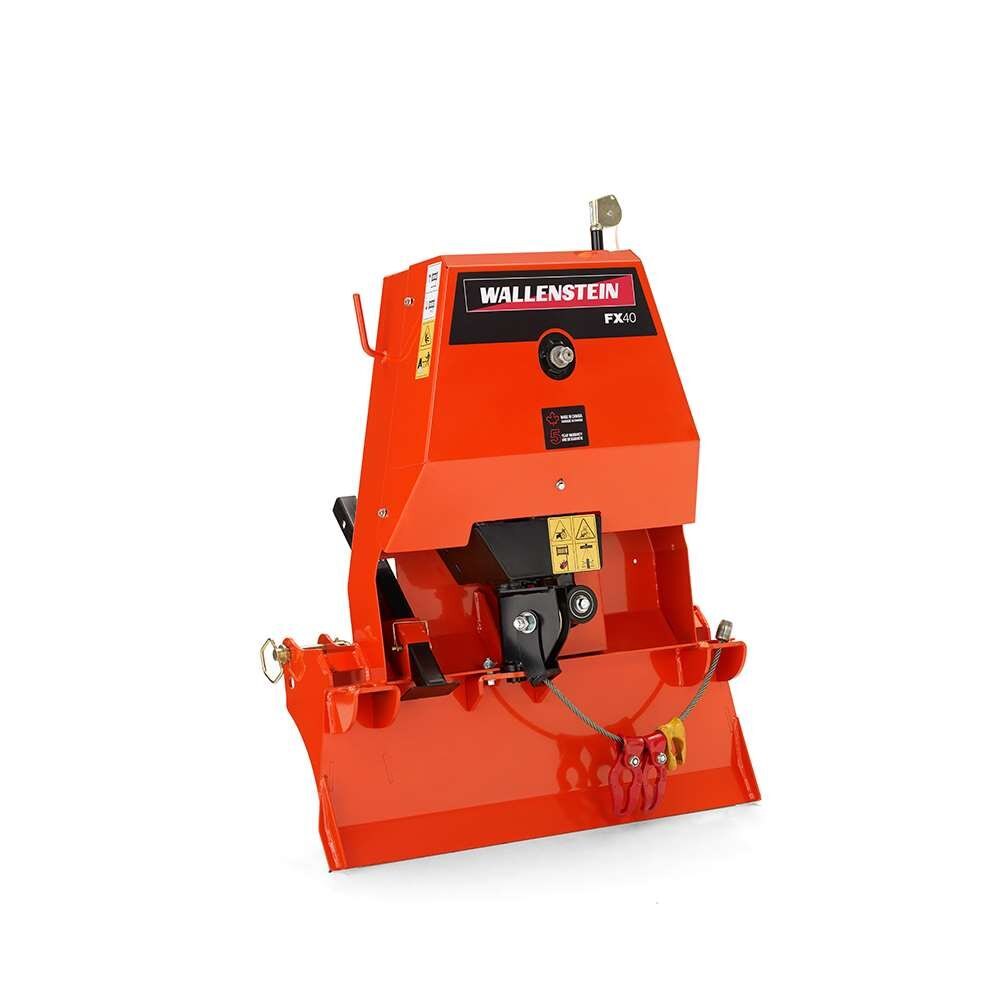

4000 lbs pulling capacity, the FX40 PTO driven skidding winch is perfect for managing your woodlot. Reach the trees you need to pull, even on steep hills or swampland with ease.
Model
FX40
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Cable Type
Steel
Line Speed
103 - 290 ft/min (31 - 88 m/min)
PTO Height
16" (41 cm)
Winch Type
Mechanical, Dry Disc Clutch
Choker Chains
2
Cable Length
165' (50 m)
Total Weight
280 lb (127 kg)
Cable Diameter
3/8" (10 mm)
Engine HP Range
12 - 30
Mounting System
Cat I
PTO Input Speed
540 rpm
Pulling Capacity
4000 lb (1814 kg)
Dimensions (LxWxH)
17" x 36" x 45" (43 cm x 91 cm x 114 cm)
Features
|
Pull an additional two logs with the included steel choker chains. |
|
Coupled with the included choker chains, pull an additional two logs. |
|
Easily service your winch with the removable clutch. |
|
|
|
Move on from a power spike by simply replacing a single shear bolt. |
|
Adjust the pull angle for maximum stability in all pulling situations. |
|
Complete with keyhole slots to hook up choker chains for skidding logs out of the bush. |
Available Colours
 |
Videos
Model
FX40
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Quantity
0
Cable Type
Steel
Line Speed
103 - 290 ft/min (31 - 88 m/min)
PTO Height
16" (41 cm)
