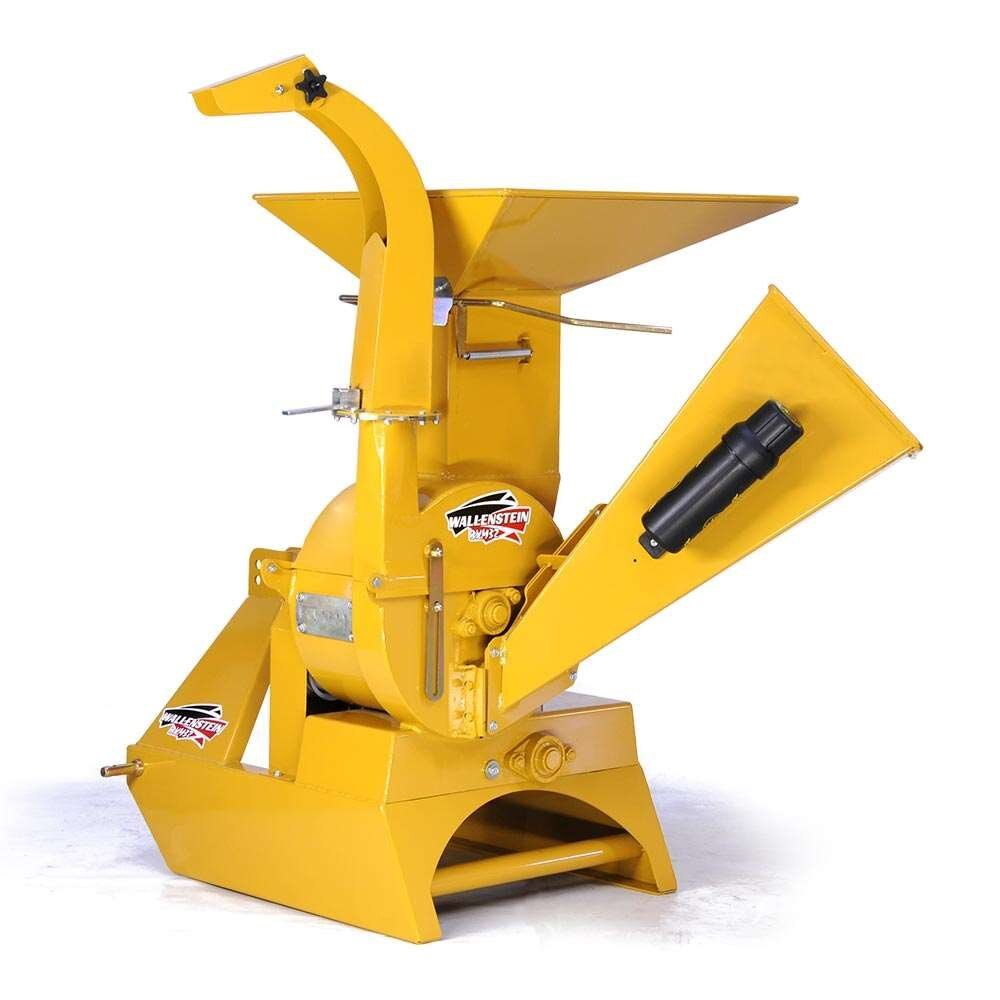

Wallenstein BXM32 Gravity Feed

  • Wallenstein BXM32 Gravity Feed
  • Wallenstein BXM32 Gravity Feed
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

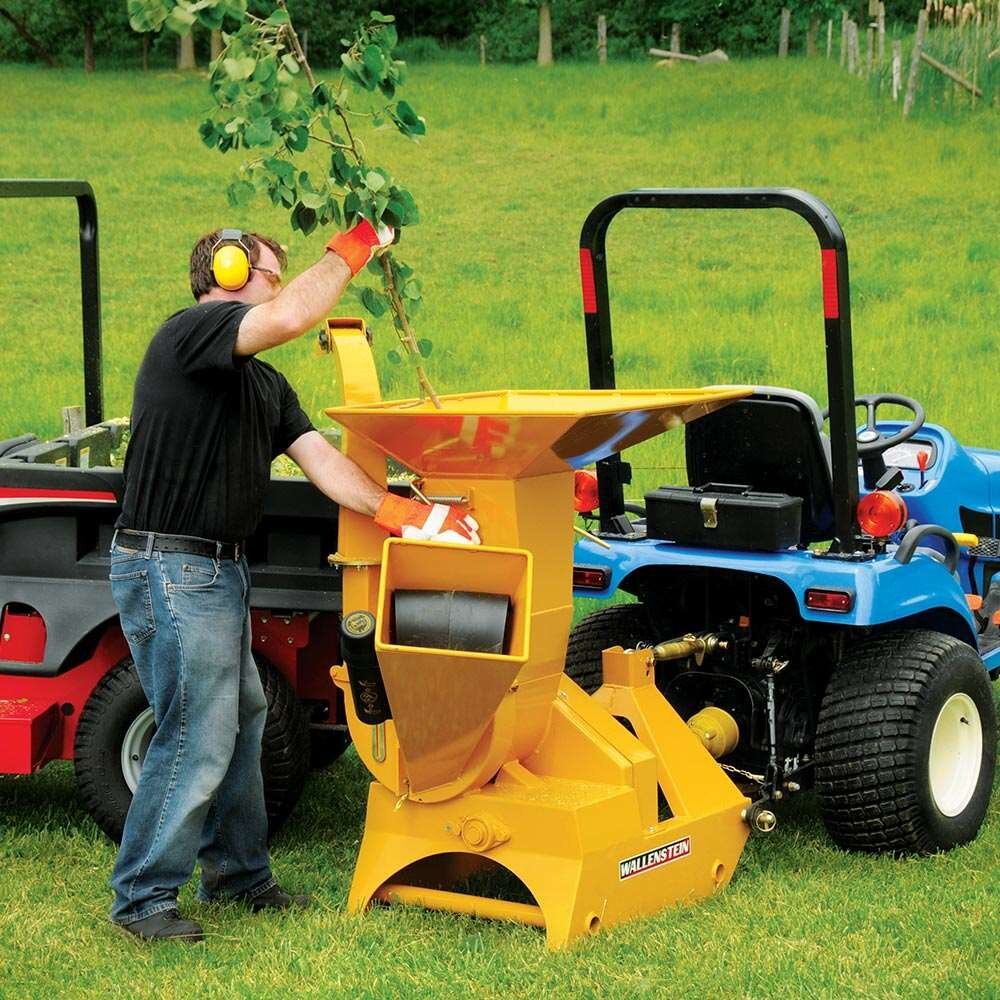

3" chipping capacity and 1" shredding capacity, the BXM32 PTO driven chipper/shredder will handle all your rural and fence line property projects. The gravity infeed for both the chipper and shredder, allows the branches to easily slide into the chipping chamber where the oversized heavy duty rotor breaks it down into small, manageable wood chips.

Specifications
Model
BXM32
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Wallenstein
Feed System
Gravity
Rotor Speed
1600
Chipper Type
Disc
Drive System
PTO Belt Drive
PTO Height
11" (27 cm)
Rotor Weight
70 lbs (32 kg)
Total Weight
445 lbs (202 kg)
Shredder Type
Hammer Mill
Rotor Diameter
18" (45 cm)
Chipping Capacity
3" (8 cm)
Engine HP Range
12 - 35
Mounting System
Cat I, iMatch™ & Quick Hitch Compatible
Dimensions (LxWxH)
54" x 36" x 60" (137 cm x 91 cm x 152 cm)
Shredding Capacity
1" (2.5 cm)
Chipper Hopper Opening
10" x 13" (25 cm x 33 cm)
Chipper Infeed Opening
3" x 6" (8 cm x 15 cm)
Shredder Hopper Opening
28" x 30" (71 cm x 76 cm)
Number Of Chipper Knives
2
Shredder Housing Opening
10" x 10" (25 cm x 25 cm)
Number Of Shredder Knives
27
features

Wallenstein BXM32 Gravity Feed Chop-Block Technology

Provides a counter-ledge for shredder knives to efficiently chop material against.

Wallenstein BXM32 Gravity Feed Reversible Chipping Blades

Standard reversible rotor knives double the longevity of your knives.

https://www.wallensteinequipment.com/file.aspx?id=8040a3f2-072d-49a0-a021-1806ea5032ec&h=500&w=500 Adjustable Discharge Chute

Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.

https://www.wallensteinequipment.com/file.aspx?id=55b5c6ae-f47e-48a4-9067-ccb70cf5d80d&h=500&w=500 Oversized Heavy Duty Rotor

Extra large chipper intake backed up by extra large rotor spinning with high momentum.

Wallenstein BXM32 Gravity Feed Positional Discharge Deflector

The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.

Wallenstein BXM32 Gravity Feed Shearbolt Protected PTO Drivetrain Included

Move on from a power spike by simply replacing a single shear bolt.

Wallenstein BXM32 Gravity Feed Integrated Shredder Hopper

After chipping larger branches, efficiently feed twigs and leaves through the shredder intake.
