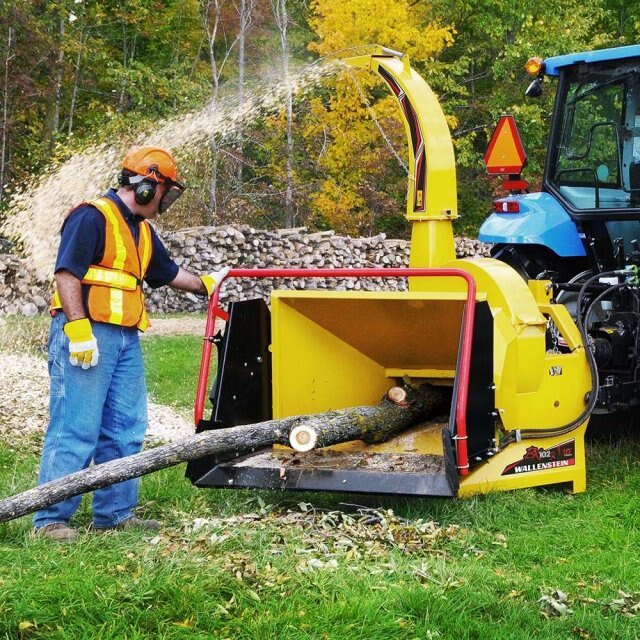

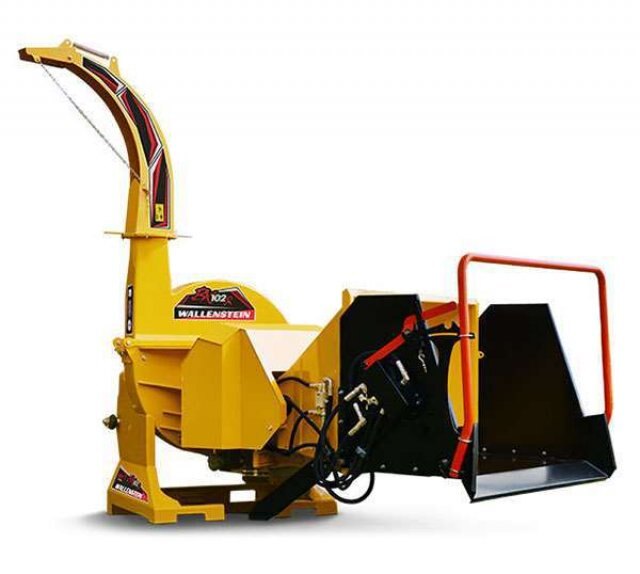

Wallenstein BX102RI Wood Chipper

  • Wallenstein BX102RI Wood Chipper
  • Wallenstein BX102RI Wood Chipper
  • Wallenstein BX102RI Wood Chipper
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

With a PTO powered rotor and hydraulic feed hopper, branches, limbs and brush up to 10" in diameter are control fed for continuous chipping at maximum capacity.
  Features

http://www.wallensteinequipment.com/file.ashx?id=9a680524-f773-4c89-b294-2de3bc22c015&h=600&w=600

Oversized Chipping Rotor

http://www.wallensteinequipment.com/file.ashx?id=fd1c4c9f-dd74-44e6-ac4d-d50f1c53efd9&h=600&w=600

Reversible Chipping Blades

http://www.wallensteinequipment.com/file.ashx?id=fc92caf3-77f9-4cd3-85cc-2de8bc2f6d19&h=600&w=600

Adjustable Chute

http://www.wallensteinequipment.com/file.ashx?id=f411d035-4e37-4101-8d4b-1b7028f0c780&h=600&w=600

Hydraulic Feeding Hopper

http://www.wallensteinequipment.com/file.ashx?id=a2bd493a-b556-49dd-91c4-7711a37b900a&h=600&w=600

PTO Drivetrain, Shearbolt protected

http://www.wallensteinequipment.com/file.ashx?id=027a2f8c-623c-4104-b24f-368870836b3b&h=600&w=600

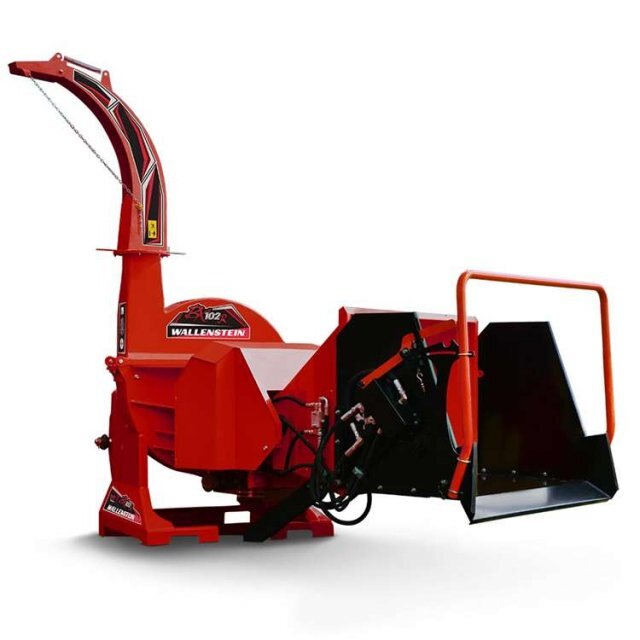

Pick Your Colour

http://www.wallensteinequipment.com/file.ashx?id=18eb3c0f-10be-4f0f-99ac-716e941c8a68&h=600&w=600

Slab Style Opening

http://www.wallensteinequipment.com/file.ashx?id=9c6e2568-27e0-4859-9323-18a564f47fc0&h=600&w=600iMatch Quick Hitch Compatible

http://www.wallensteinequipment.com/file.ashx?id=8b4b551d-6baa-4111-97ce-a758b1f095cc&h=600&w=600

Dual Active Rollers

http://www.wallensteinequipment.com/file.ashx?id=5daeec92-c625-492c-b78e-ead79cd74a60&h=600&w=600

Safety Control Bar

http://www.wallensteinequipment.com/file.ashx?id=13c95fad-8871-41df-94a7-33b5f3f5c740&h=600&w=600

Intellifeed Electronic Control System



Specifications
Model
BX102RI Wood Chipper
Category Name
Agriculture
Year
2019
Sale Type
New
Manufacturer
Wallenstein
Drive System
PTO Direct Drive
HP Requirements For Maximum Capacity
90 -120
HP Range
65 - 150
Number Of Rotor Knives
4
Hopper Opening
30'' x 42'' (76 cm x 107 cm)
Discharge Hood Rotation
360°
Discharge Hood Height
100'' (253 cm)
Rated RPM
540 - 1000
Chipping Capacity:
10'' (25 cm)
Chipper Type:
Disc
Minimum Required Hydraulic Flow:
4 - 8 gpm (15 - 30 lpm)
Housing Opening:
10'' x 17'' (25 cm x 43 cm)
Rotor Diameter:
36'' (92 cm)
Rotor Weight:
425 lbs (193 kg)
Dimensions Open (LxWxH):
108'' x 85'' x 100'' (273 cm x 215 cm x 253 cm)
Dimensions Closed (LxWxH):
85'' x 71'' x 100'' (215 cm x 180 cm x 253 cm)
Total Weight:
1950 lbs (885 kg)
PTO Height:
34'' (86 cm)
Mounting System:
Cat II, iMatch™ & Quick Hitch Compatible
Feed System:
Dual Hydraulic Roller Feed
