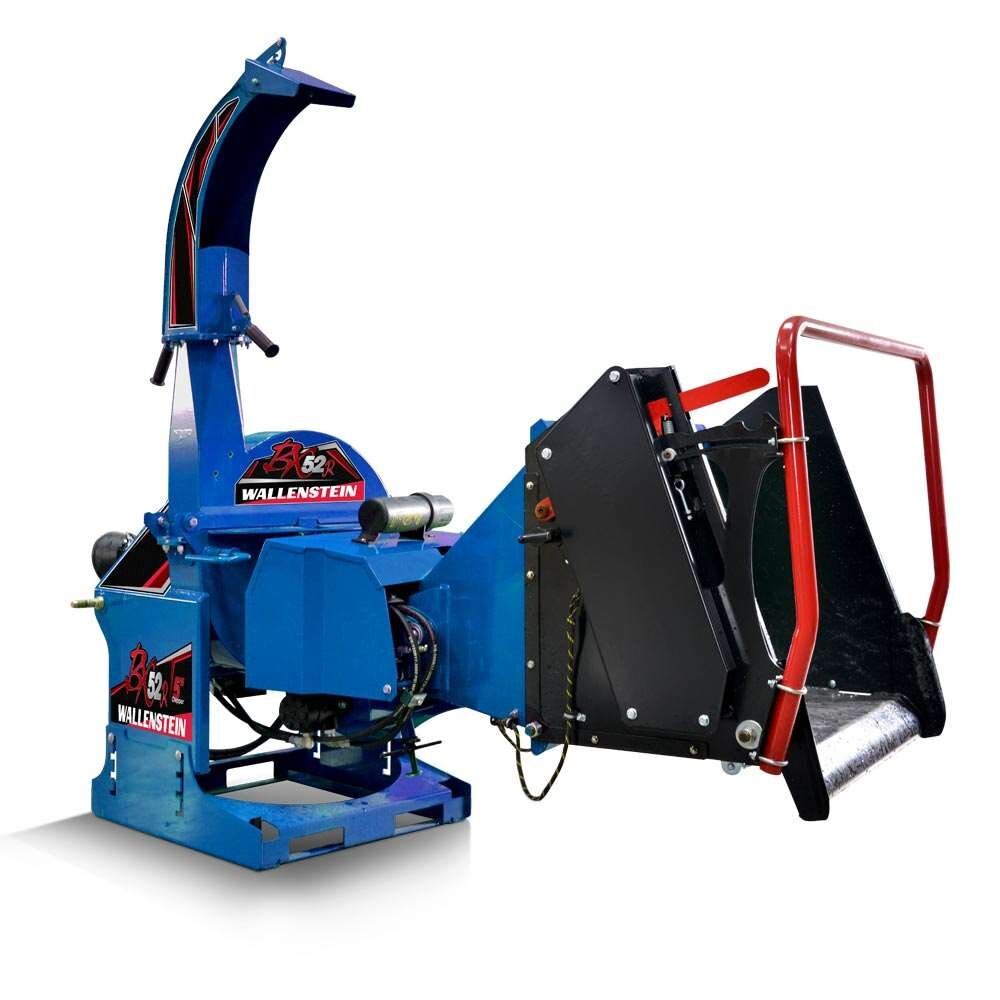

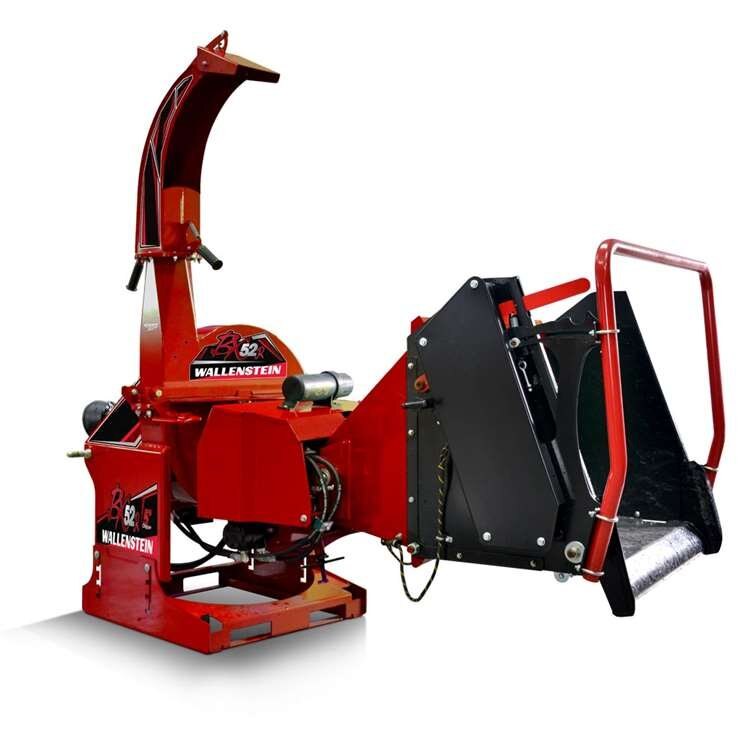

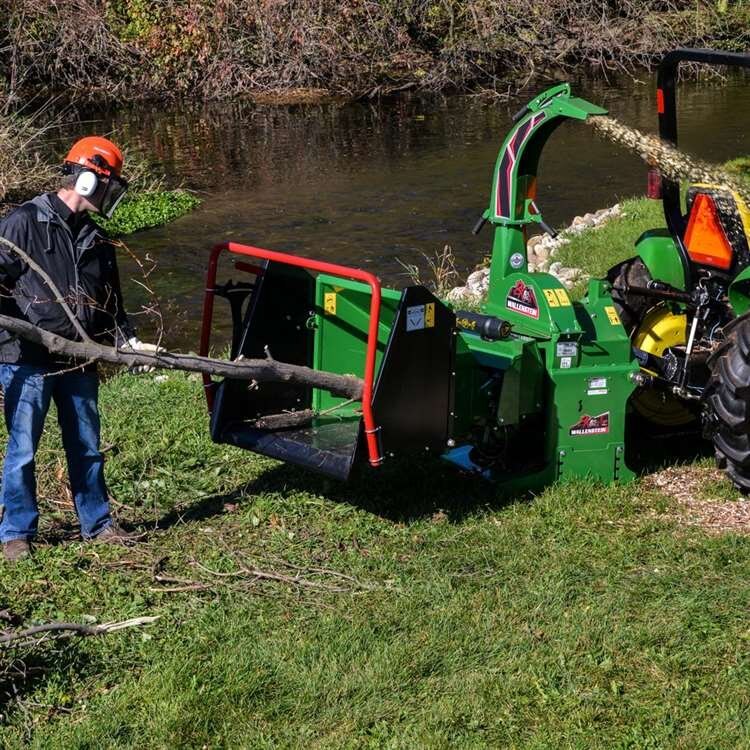

Wallenstein BX52R Wood Chipper

  • Wallenstein BX52R Wood Chipper
  • Wallenstein BX52R Wood Chipper
  • Wallenstein BX52R Wood Chipper
  • Wallenstein BX52R Wood Chipper
  • Wallenstein BX52R Wood Chipper
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

With a PTO powered rotor and hydraulic feed hopper, branches, limbs and brush up to 5" in diameter are control fed for continuous chipping at maximum capacity.
  Features

http://www.wallensteinequipment.com/file.ashx?id=9a680524-f773-4c89-b294-2de3bc22c015&h=600&w=600

Oversized Chipping Rotor

http://www.wallensteinequipment.com/file.ashx?id=fd1c4c9f-dd74-44e6-ac4d-d50f1c53efd9&h=600&w=600

Reversible Chipping Blades

http://www.wallensteinequipment.com/file.ashx?id=fc92caf3-77f9-4cd3-85cc-2de8bc2f6d19&h=600&w=600

Adjustable Chute

http://www.wallensteinequipment.com/file.ashx?id=f411d035-4e37-4101-8d4b-1b7028f0c780&h=600&w=600

Hydraulic Feeding Hopper

http://www.wallensteinequipment.com/file.ashx?id=a7d28db8-e9ed-4903-a8ed-693dfc4539bc&h=600&w=600

iMatch Quick Hitch Compatible

http://www.wallensteinequipment.com/file.ashx?id=a2bd493a-b556-49dd-91c4-7711a37b900a&h=600&w=600

PTO Drivetrain, Shearbolt protected

http://www.wallensteinequipment.com/file.ashx?id=027a2f8c-623c-4104-b24f-368870836b3b&h=600&w=600

Pick Your Colour

http://www.wallensteinequipment.com/file.ashx?id=18eb3c0f-10be-4f0f-99ac-716e941c8a68&h=600&w=600

Slab Style Opening

http://www.wallensteinequipment.com/file.ashx?id=8b4b551d-6baa-4111-97ce-a758b1f095cc&h=600&w=600

Dual Active Rollers

http://www.wallensteinequipment.com/file.ashx?id=5daeec92-c625-492c-b78e-ead79cd74a60&h=600&w=600

Safety Control Bar

http://www.wallensteinequipment.com/file.ashx?id=d84543c2-3d79-447e-b1ea-c6ed27dd1d3c&h=600&w=600

Adjustable Ski Base

  Colours:
File Black
File Blue
File Orange
File Gray
File Red
File Yellow
File Green
Specifications
Model
BX52R Wood Chipper
Category Name
Agriculture
Year
2019
Sale Type
New
Manufacturer
Wallenstein
Drive System
PTO Direct Drive
HP Requirements For Maximum Capacity
40 - 45
HP Range
18 - 50
Number Of Rotor Knives
4
Hopper Opening
35'' x 30'' (89 cm x 76 cm)
Discharge Hood Rotation
360°
Discharge Hood Height
74'' (188 cm)
Rated RPM
540 - 1000
Chipping Capacity:
5'' (13 cm)
Chipper Type:
Disc
Minimum Required Hydraulic Flow:
3 - 6 gpm (12 - 23 lpm)
Housing Opening:
5'' x 10'' (13 cm x 26 cm)
Rotor Diameter:
25'' (63 cm)
Rotor Weight:
125 lbs (57 kg)
Dimensions Open (LxWxH):
80'' x 67'' x 74'' (204 cm x 171 cm x 188 cm)
Dimensions Closed (LxWxH):
62'' x 61'' x 74'' (158 cm x 155 cm x 188 cm)
Total Weight:
845 lbs (384 kg)
PTO Height:
22'' - 27'' (55 cm - 69 cm)
Mounting System:
Cat I, iMatch™ & Quick Hitch Compatible
Feed System:
Dual Hydraulic Roller Feed
