ID # 13497196

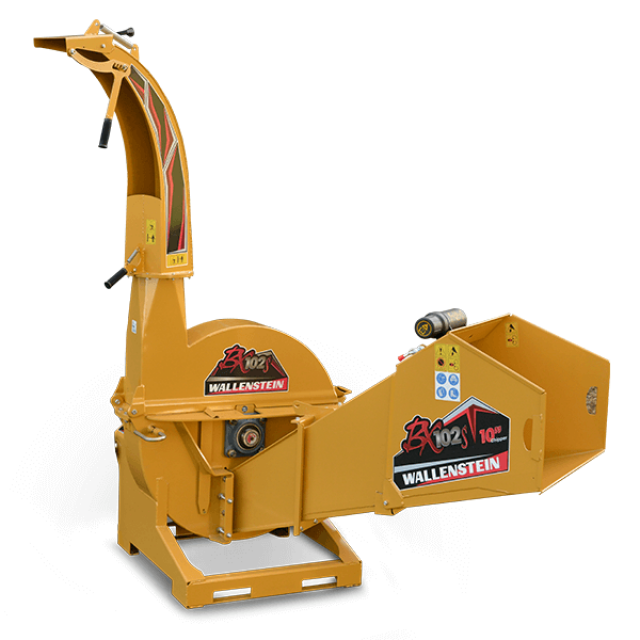

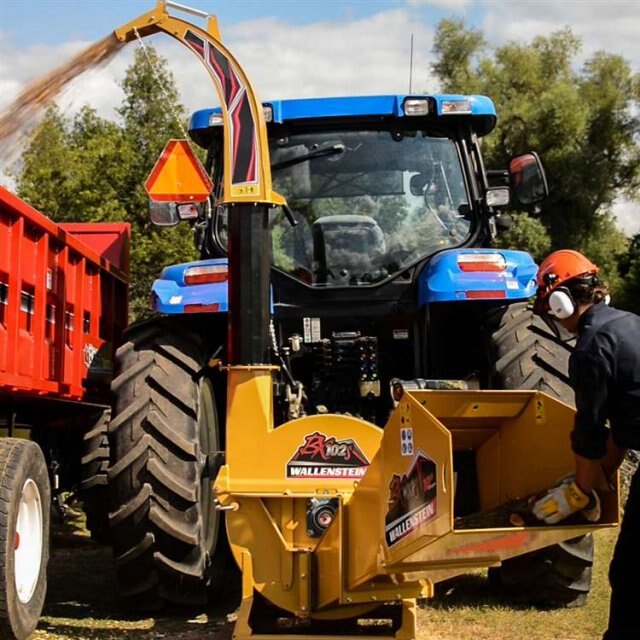

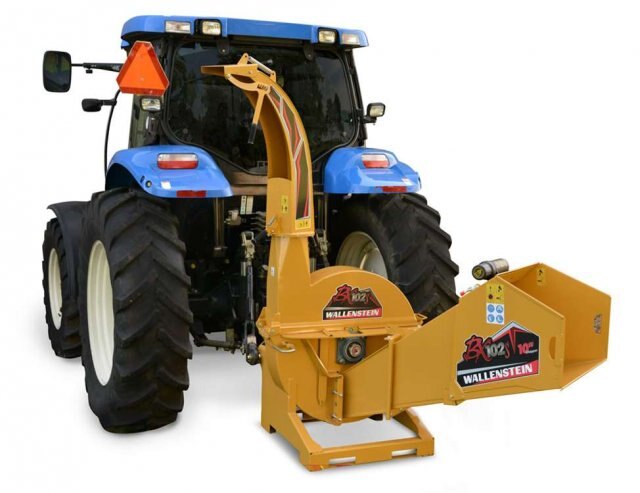

Wallenstein BX102S Wood Chipper

  • Wallenstein BX102S Wood Chipper
  • Wallenstein BX102S Wood Chipper
  • Wallenstein BX102S Wood Chipper
  • Wallenstein BX102S Wood Chipper
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The self feeding chipper automatically pulls in limbs and branches up to 10” in diameter. Chipping action is powered directly from your tractor’s PTO. Easily fold up the hopper for compact transportation.
  Features

http://www.wallensteinequipment.com/file.ashx?id=9a680524-f773-4c89-b294-2de3bc22c015&h=600&w=600

Oversized Chipping Rotor

http://www.wallensteinequipment.com/file.ashx?id=57f18e57-5544-4301-8420-4399bca3d499&h=600&w=600

Self Feeding Hopper

http://www.wallensteinequipment.com/file.ashx?id=fc92caf3-77f9-4cd3-85cc-2de8bc2f6d19&h=600&w=600

Adjustable Chute

http://www.wallensteinequipment.com/file.ashx?id=73d559ab-9528-4eb1-b487-a2d111773922&h=600&w=600

Reversible Chipping Blades

http://www.wallensteinequipment.com/file.ashx?id=a7d28db8-e9ed-4903-a8ed-693dfc4539bc&h=600&w=600

iMatch Quick Hitch Compatible

http://www.wallensteinequipment.com/file.ashx?id=a2bd493a-b556-49dd-91c4-7711a37b900a&h=600&w=600

PTO Drivetrain, Shearbolt protected

http://www.wallensteinequipment.com/file.ashx?id=027a2f8c-623c-4104-b24f-368870836b3b&h=600&w=600

Pick Your Colour

http://www.wallensteinequipment.com/file.ashx?id=a2297f5c-5011-482a-a462-674d952f085e&h=600&w=600

Fold Up Feed Hopper - No Tools

http://www.wallensteinequipment.com/file.ashx?id=17cb5b41-9e06-4443-9ad7-84964dba0596&h=600&w=600

Bearing Plate Protection

  Colours
File Black
File Blue
File Orange
File Red
File Yellow
File Gray
File Green
Specifications
Model
BX102S Wood Chipper
Category Name
Agriculture
Year
2019
Sale Type
New
Manufacturer
Wallenstein
Drive System
PTO Direct Drive
HP Requirements For Maximum Capacity
90 - 120
HP Range
65 - 150
Number Of Rotor Knives
4
Rotor Weight
400 lbs (181 kg)
Hopper Opening
25'' x 26'' (63 cm x 65 cm)
Discharge Hood Rotation
360°
Discharge Hood Height
89'' (226 cm)
Rated RPM
540 - 1000
Chipping Capacity:
10''(25 cm)
Chipper Type:
Disc
Housing Opening:
10'' x 15'' (25 cm x 38 cm)
Rotor Diameter:
36'' (91 cm)
Dimensions (LxWxH):
71'' x 71'' x 89'' (180 cm x 180 cm x 226 cm)
Total Weight:
1143 lbs (519 kg)
PTO Height:
23'' (58 cm)
Mounting System:
Cat II, iMatch™ & Quick Hitch Compatible
Feed System:
Gravity / Self Feed
