ID # 13222059

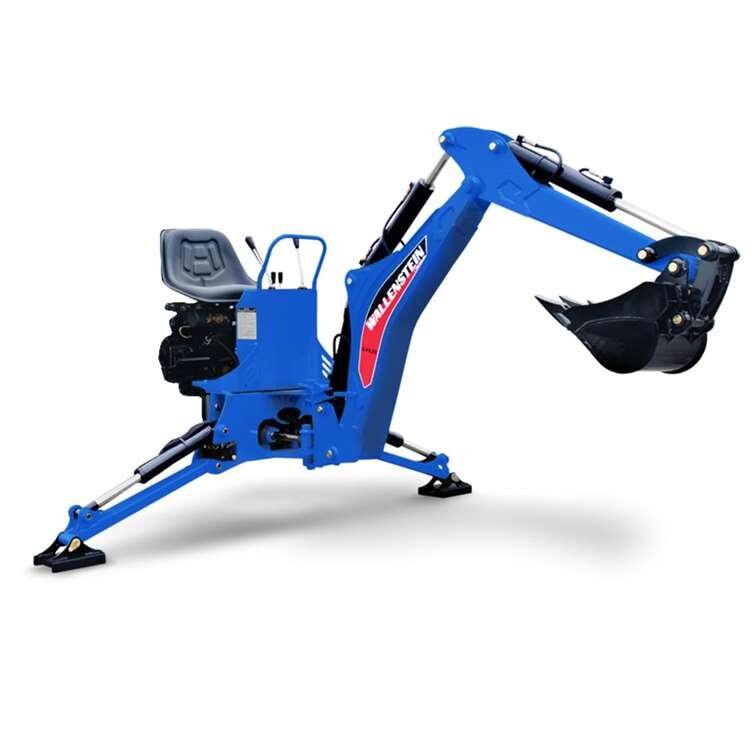

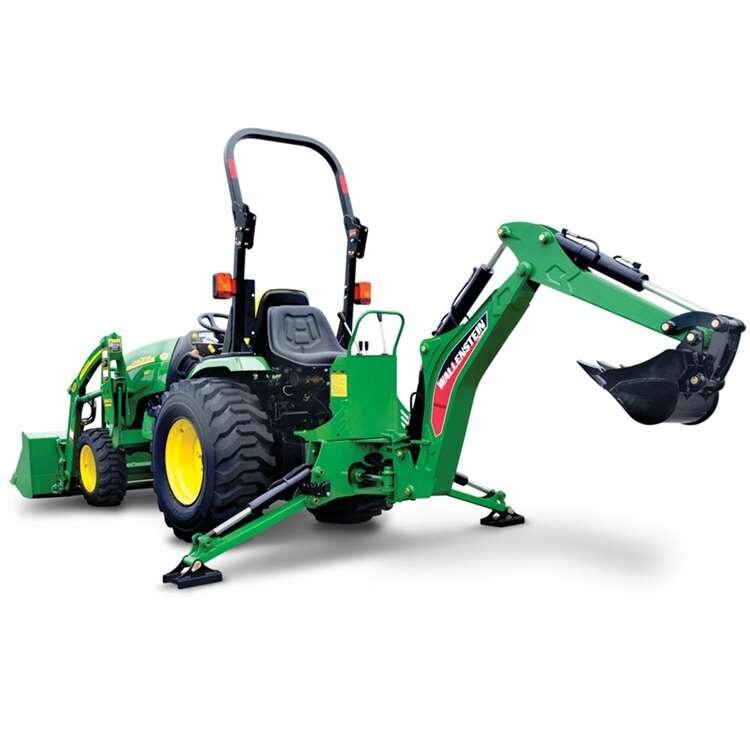

Wallenstein GX620 Backhoes

  • Wallenstein GX620 Backhoes
  • Wallenstein GX620 Backhoes
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  Features
Three Row Spike Drag Harrow
Curved Boom

Swing cushioning
Three Row Spike Drag Harrow

Three Row Spike Drag Harrow
Dual Cylinder Boom Pivot

Three Row Spike Drag Harrow Greasable Pins

Three Row Spike Drag Harrow

Stabilizers

Three Row Spike Drag Harrow
Pick your Colour

Three Row Spike Drag Harrow
Replaceable Teeth

Three Row Spike Drag Harrow
Subframe Mounting
Three Row Spike Drag Harrow
3-Point Hitch Mount
Three Row Spike Drag Harrow
Skidsteer Mount




Specifications
Model
GX620
Category Name
Equipment
Year
2019
Sale Type
New
Manufacturer
Wallenstein
Digging Depth:
6' 4'' (193 cm)
Reach From Swing Post :
100'' (254 cm)
HP Range (Tractor):
18 - 28
HP Range (Skidsteer):
20 - 48 Mini Skidsteer
Minimum Required Hydraulic Flow:
5 - 7 gpm (19 - 27 lpm)
Bucket Rotation:
180°
Swing Arc:
180°
SAE* Dipper Boom Digging Force:
1250 lbs (567 kg)
SAE* Bucket Digging Force:
2600 lbs (1179 kg)
Operating Pressure:
1800 psi (12411 kPa)
Boom Lift Capacity:
385 lbs (175 kg)
Ground Clearance:
10.5
Transport Dimensions (LxWxH):
68'' x 40'' x 63'' (173 cm x 102 cm x 160 cm)
Loading Height:
62'' (158 cm)
Stabilizer Width (Spread) :
74'' (188 cm)
Overall Operating Height (Fully Raised):
92'' (234 cm)
Main Boom Cylinder Diameter :
2.5'' (64 mm)
Dipper Cylinder Diameter :
2.25'' (57 mm)
Bucket Cylinder Diameter:
2.25'' (57 mm)
Swing Cylinder Diameter:
2'' (51 mm)
Stabilizer Cylinder Diameter:
2'' (51 mm)
Total Weight :
575 lbs (261 kg)
Mounting Options:
Subframe, Mini Skidsteer Universal Plate, PT300 (Cat I)
