ID # 17384097

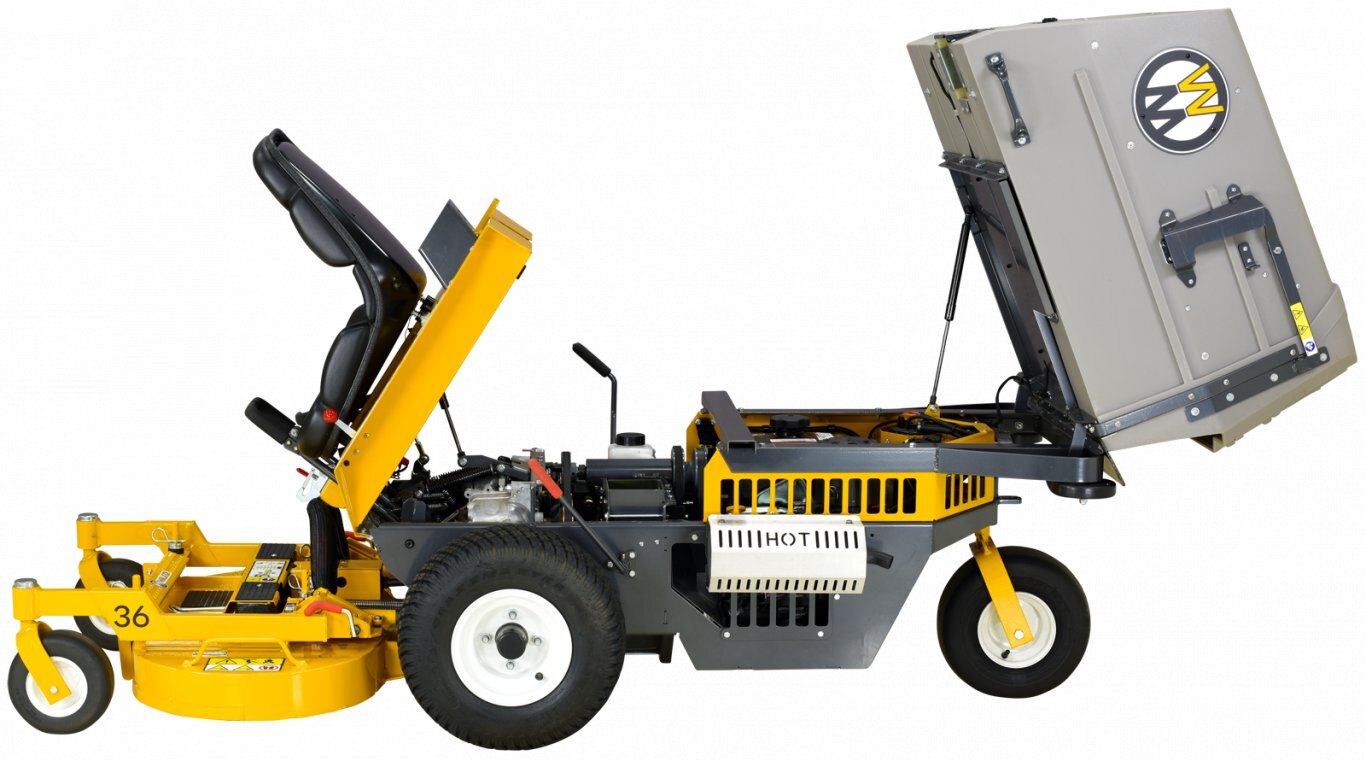

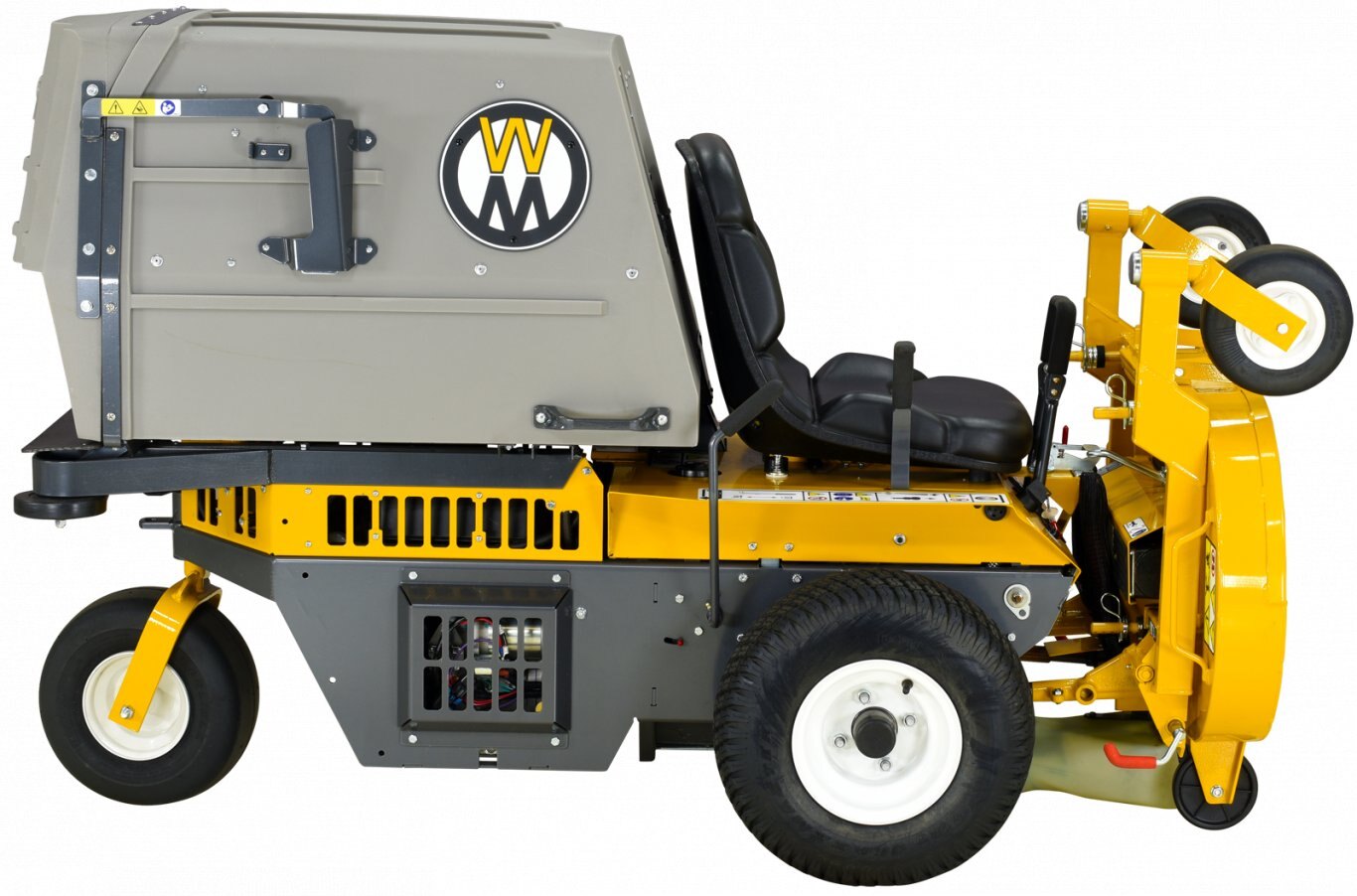

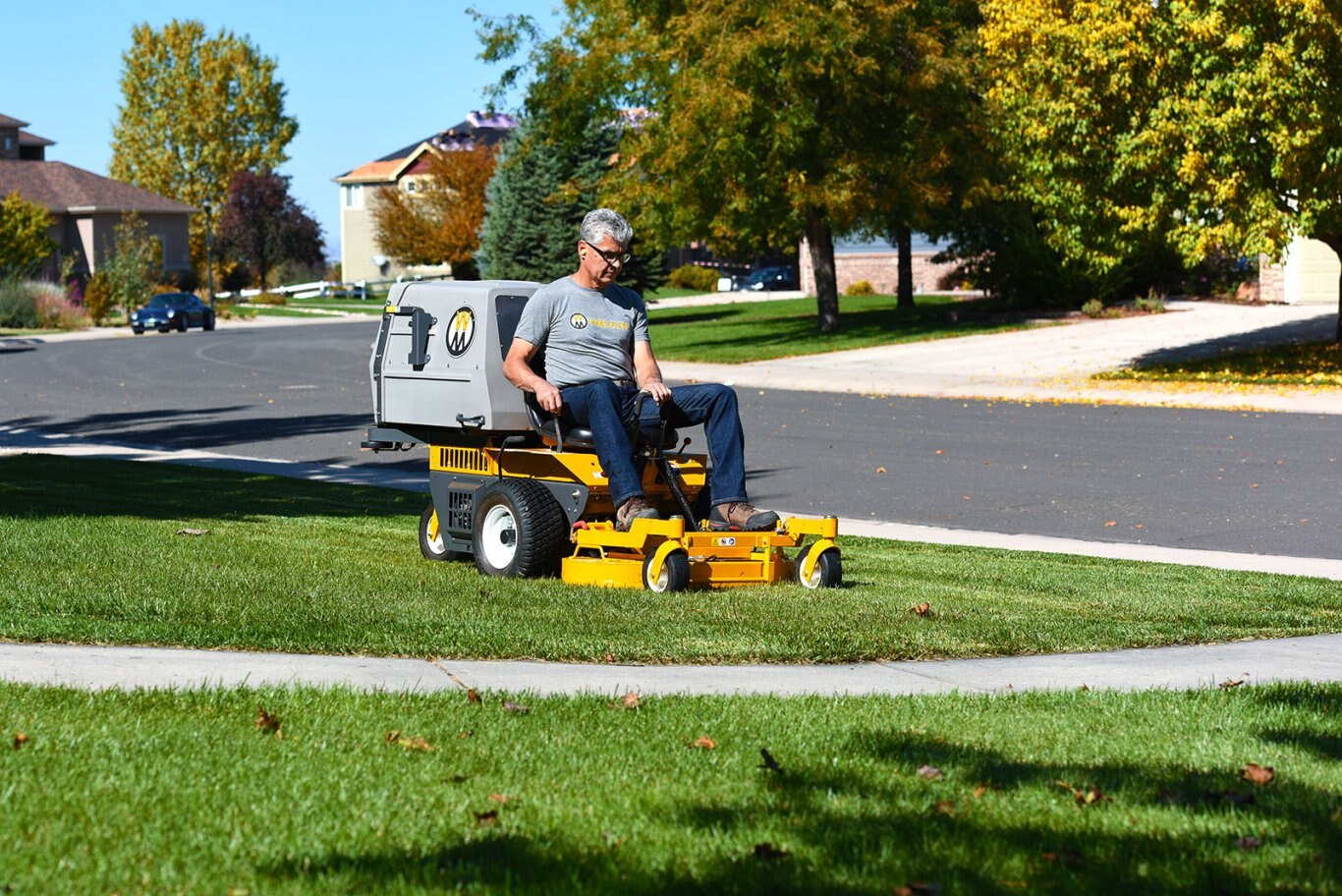

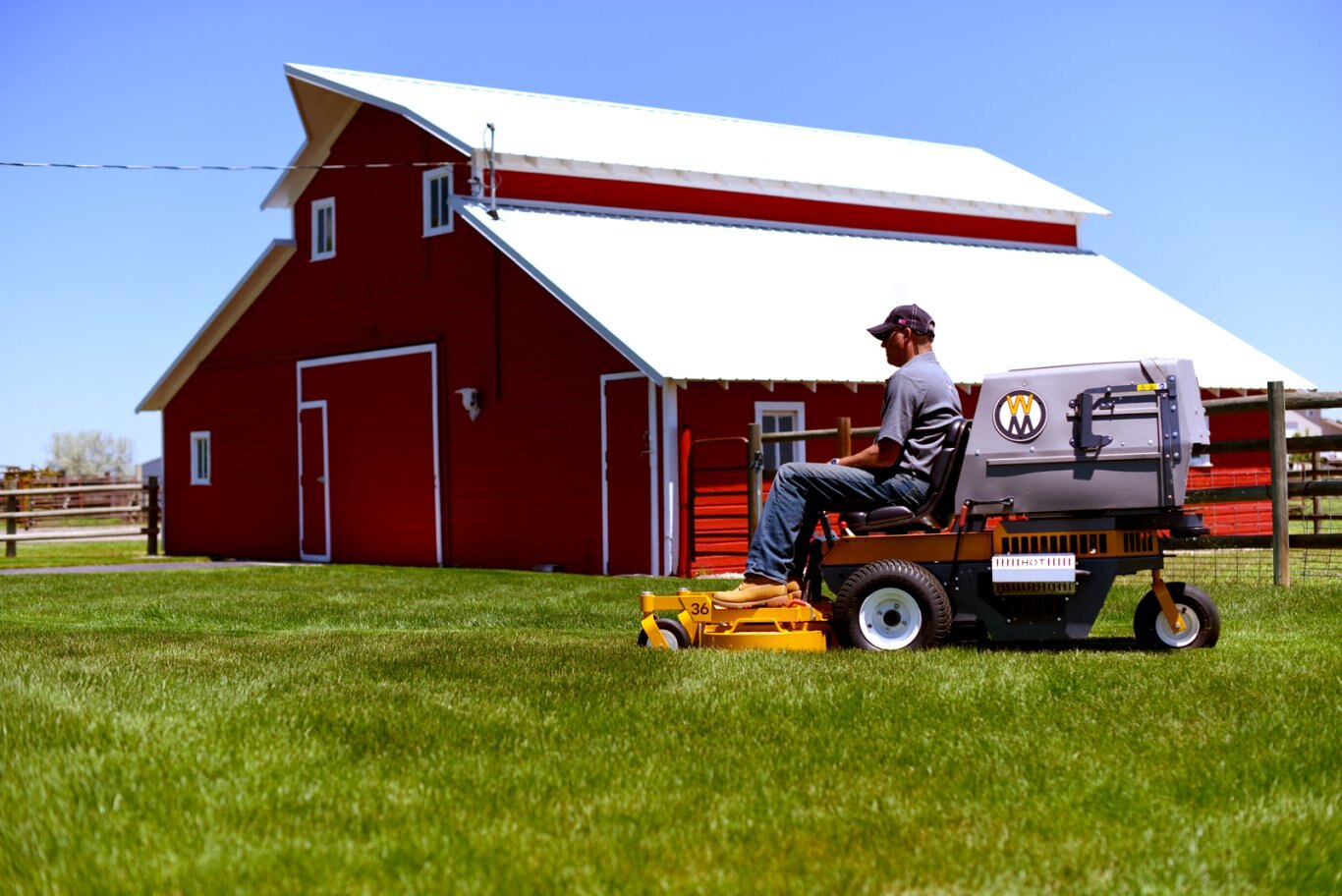

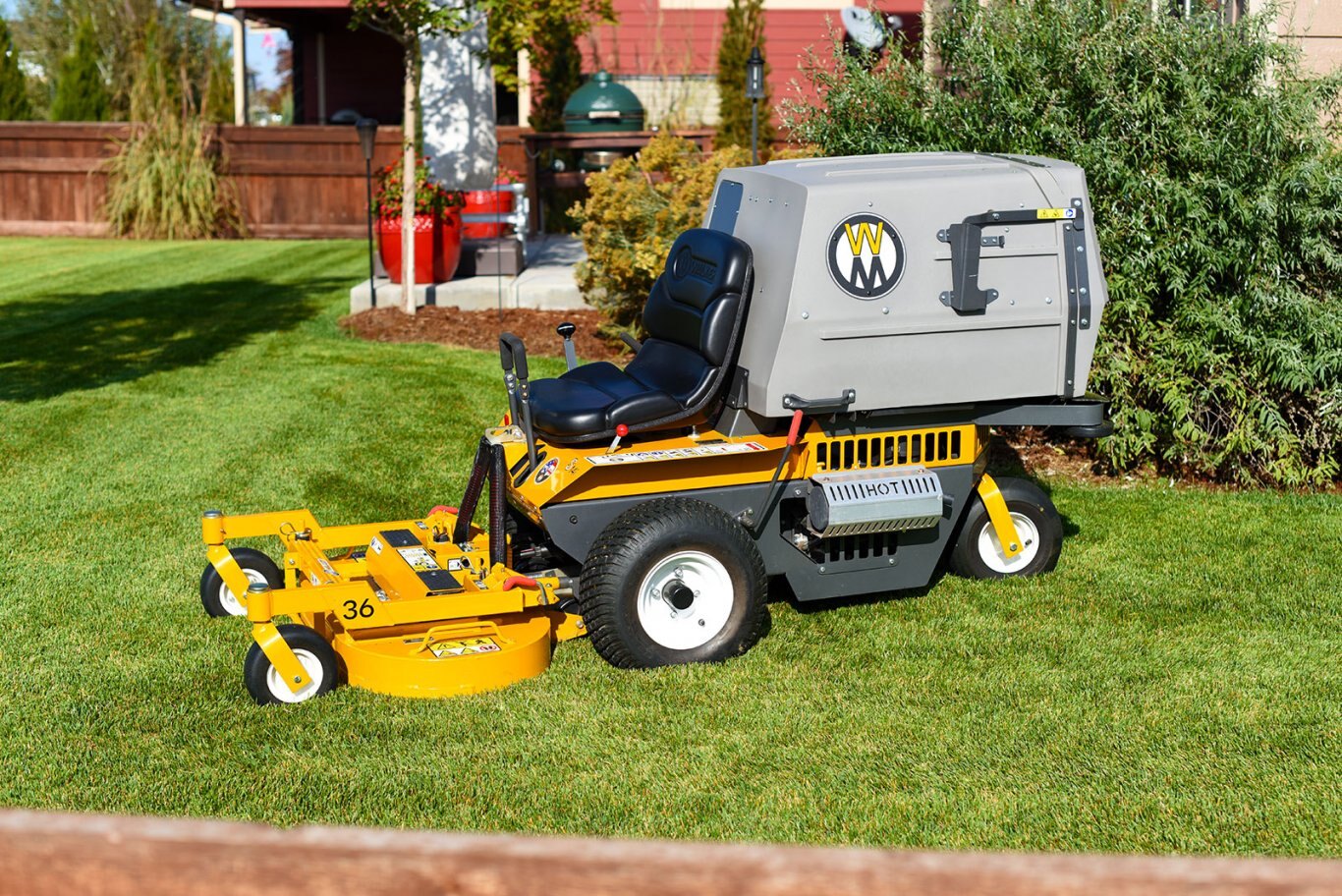

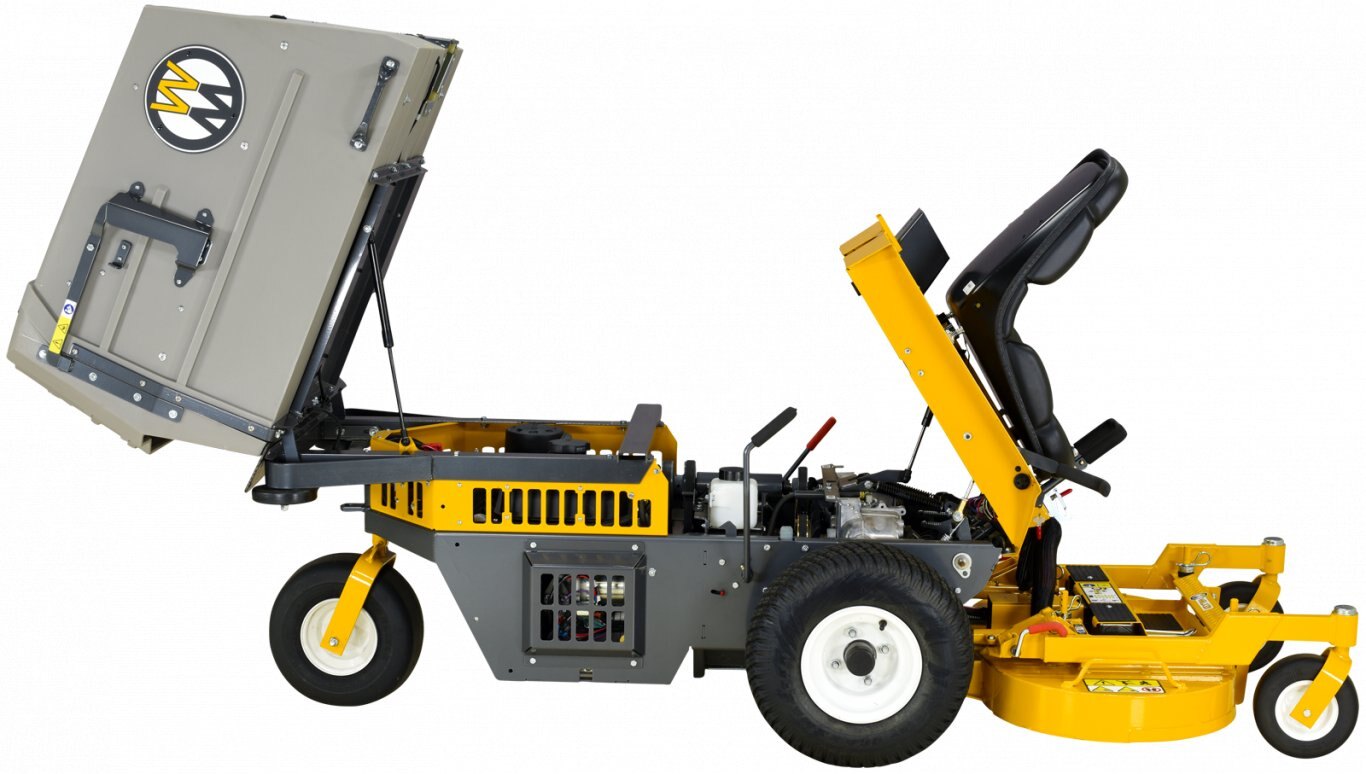

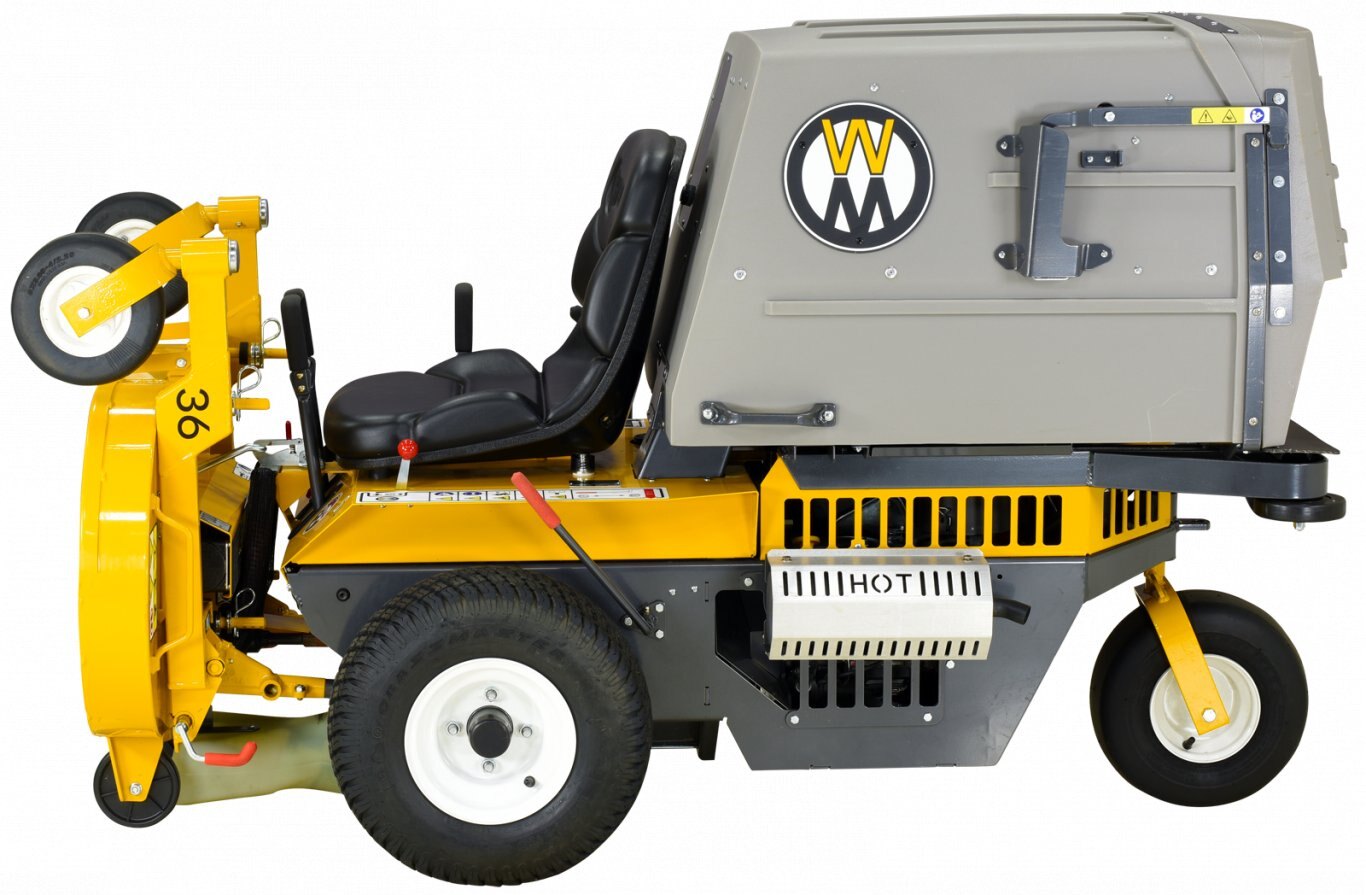

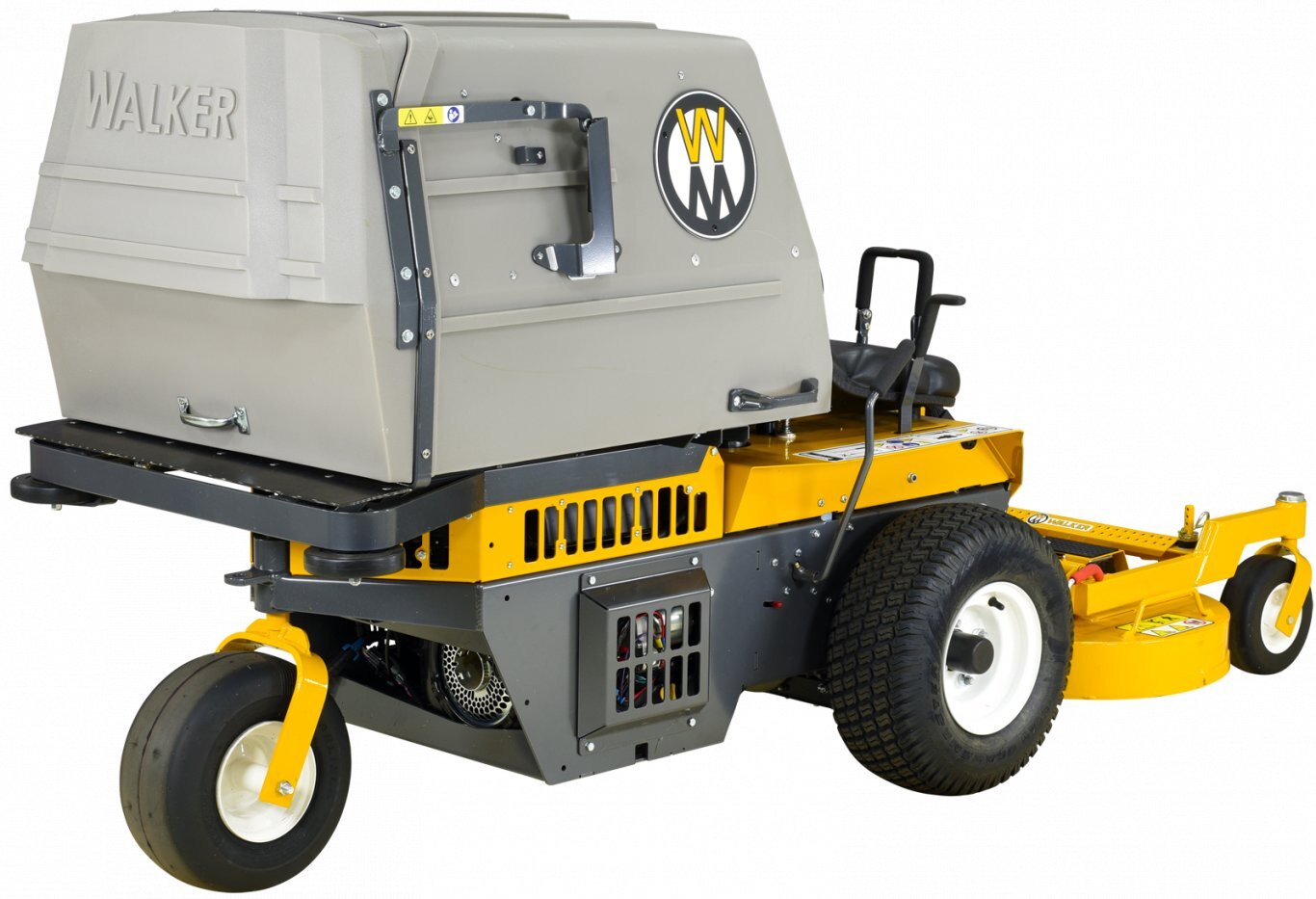

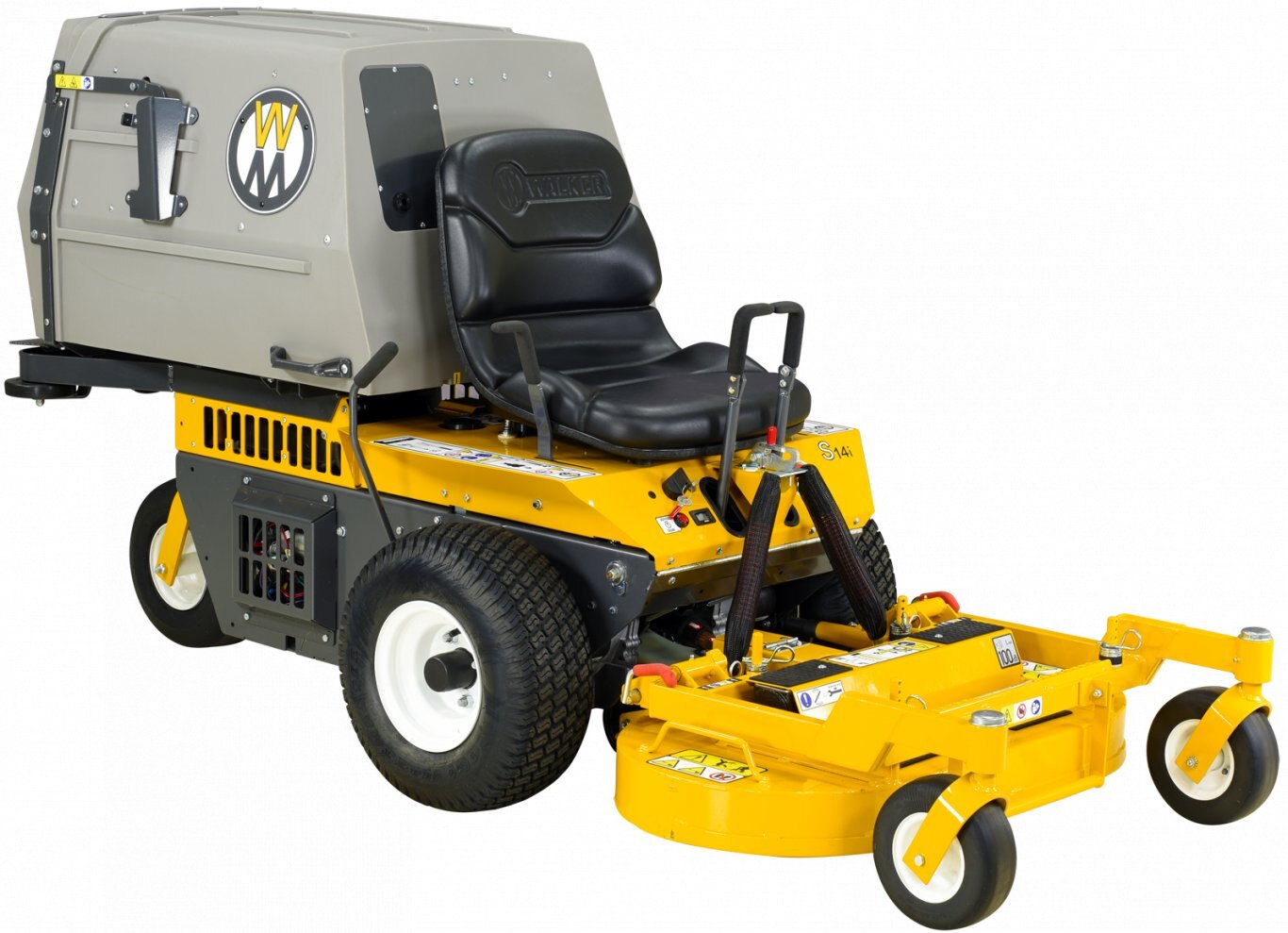

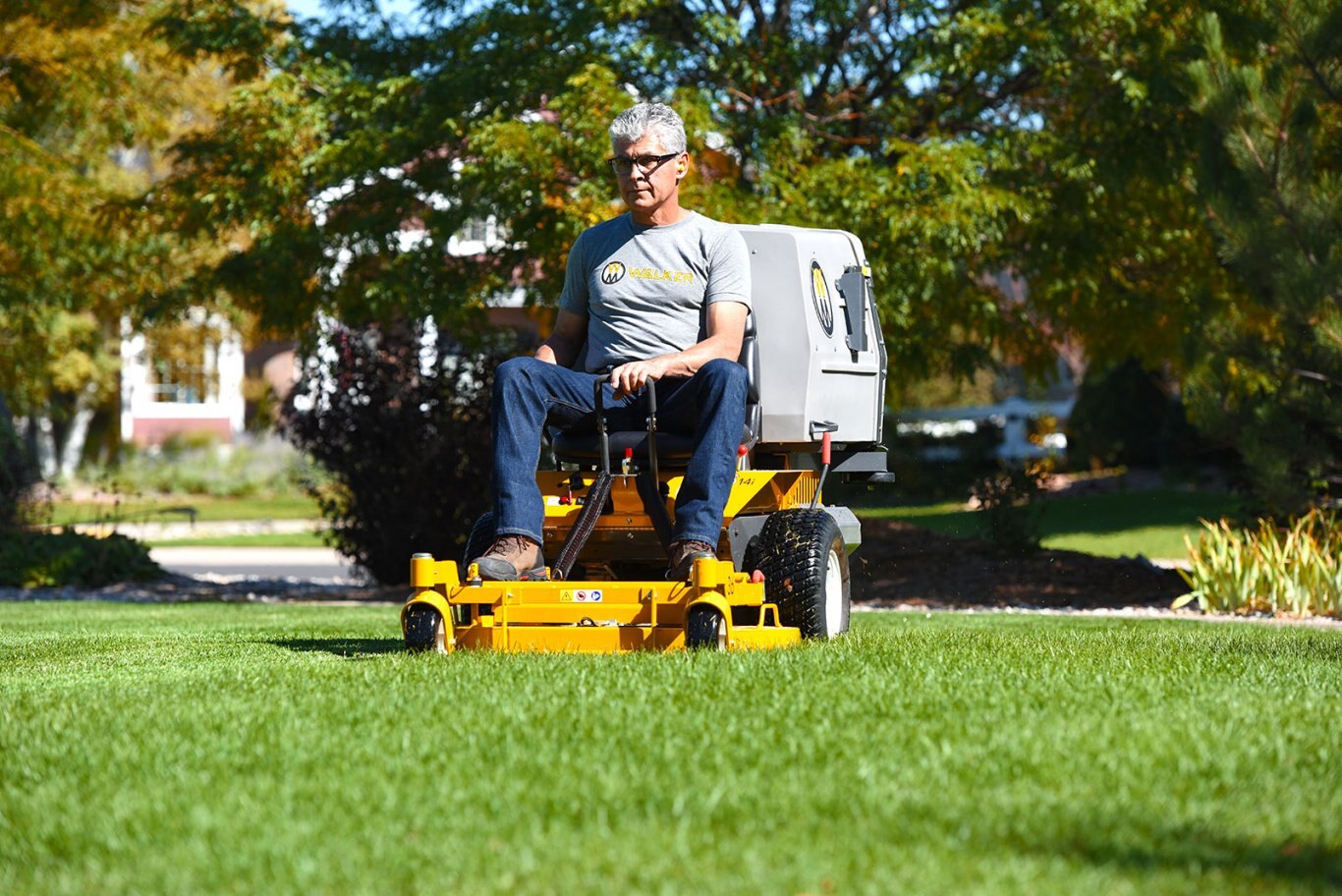

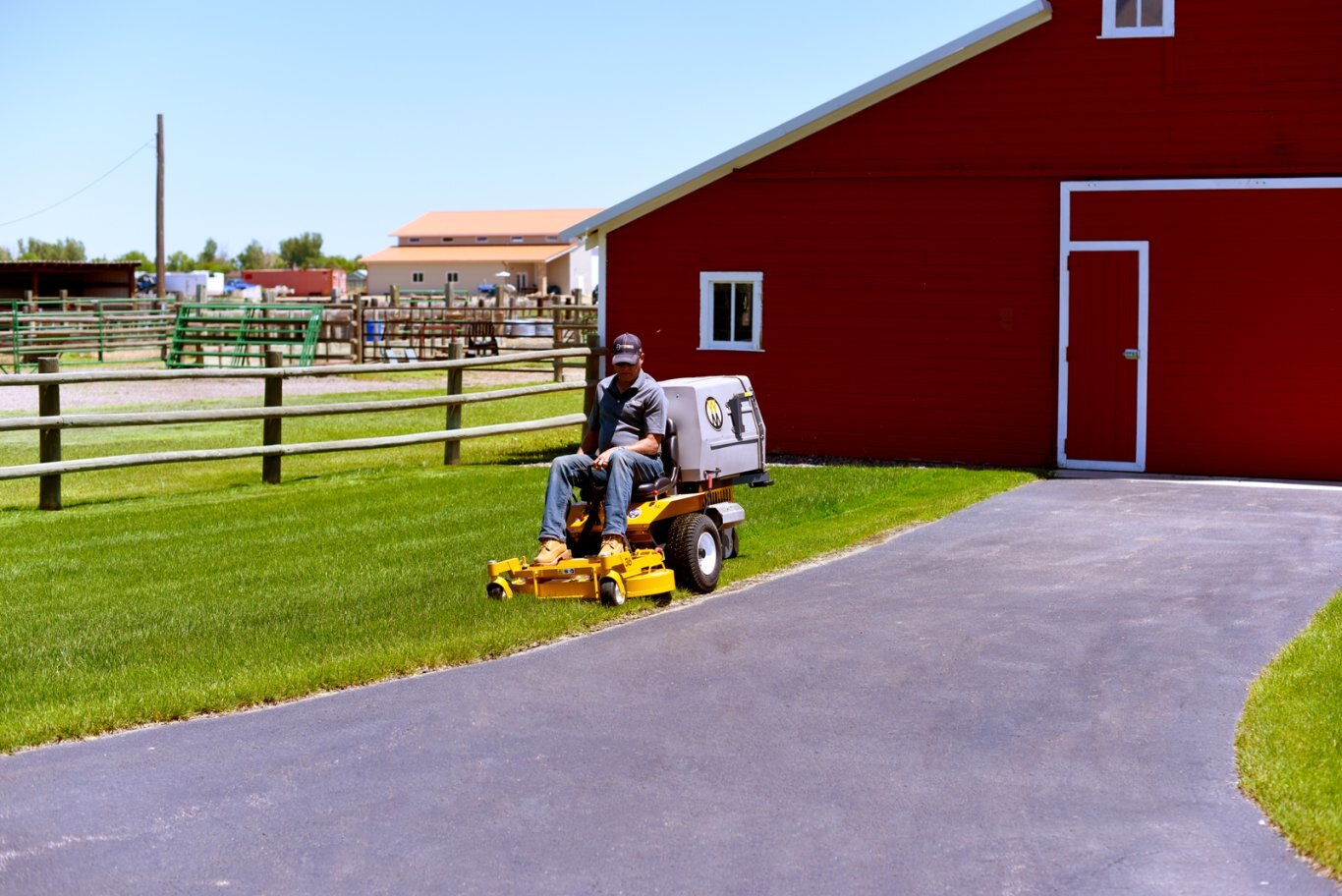

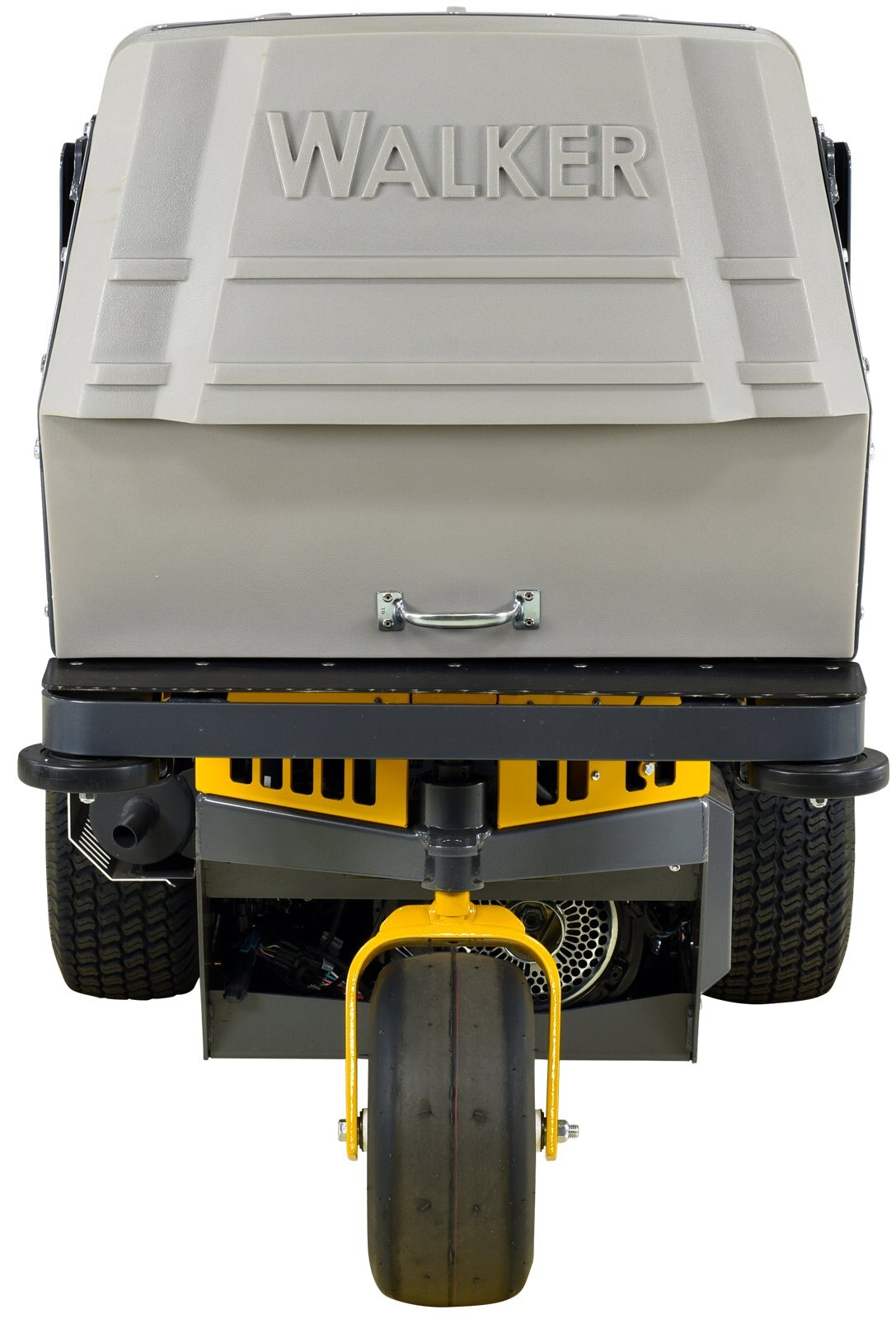

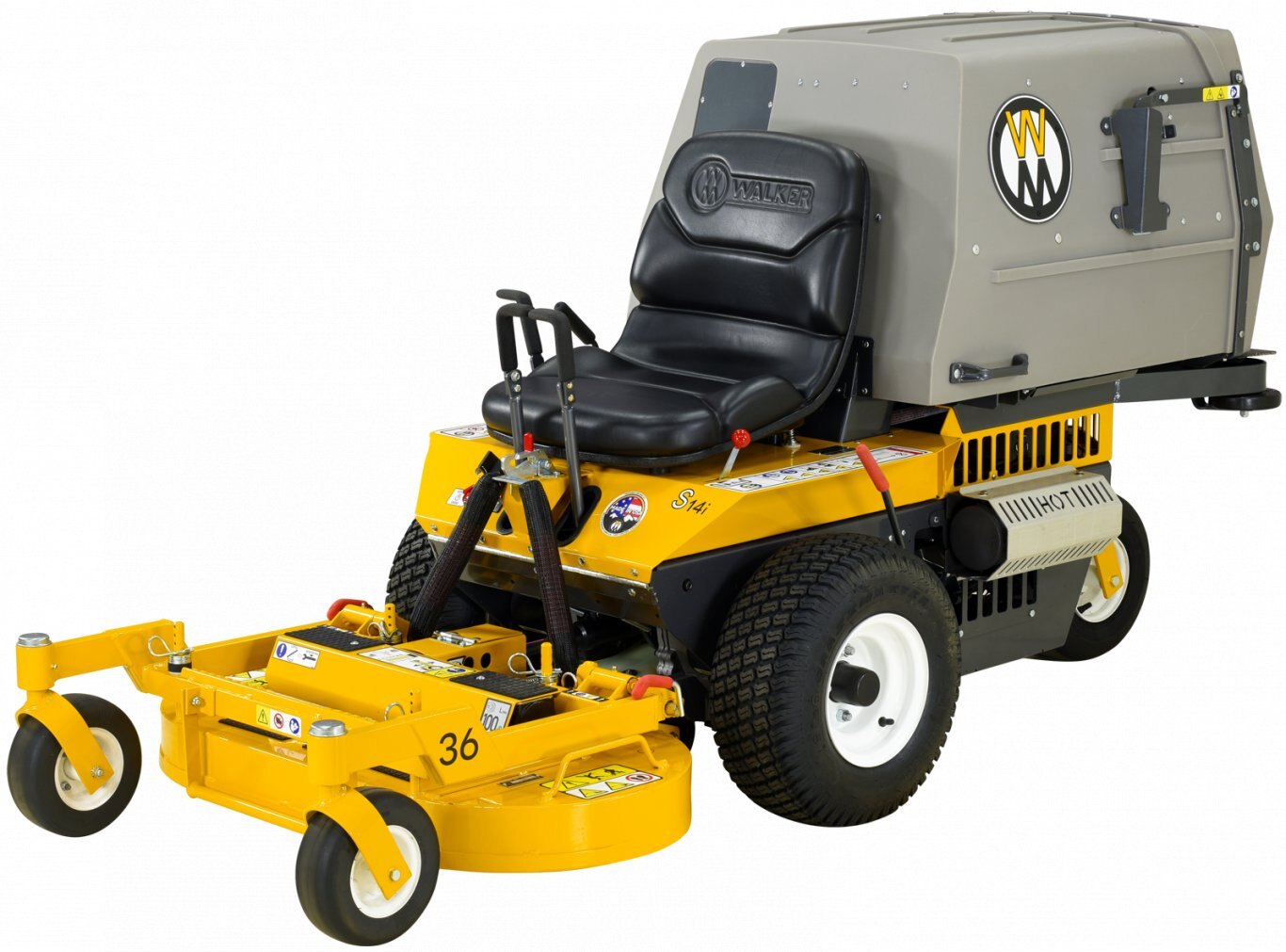

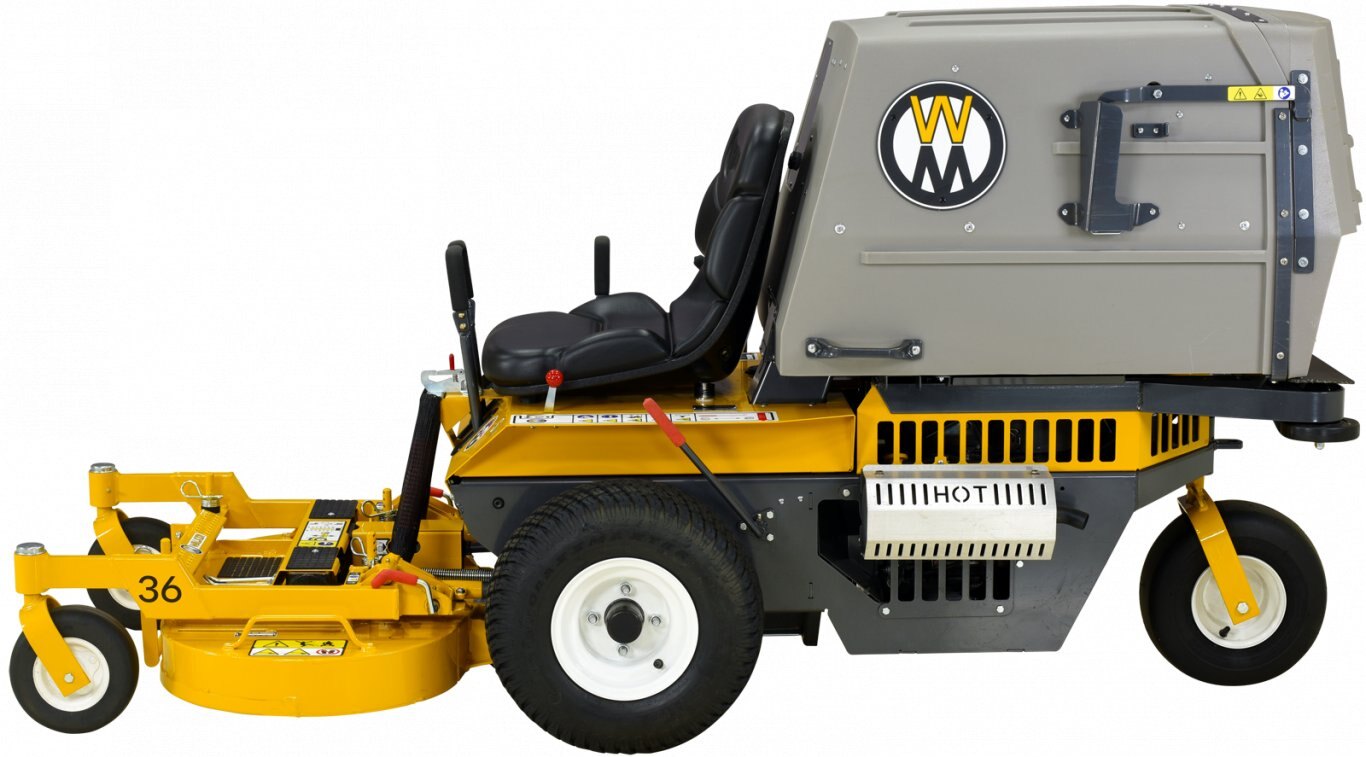

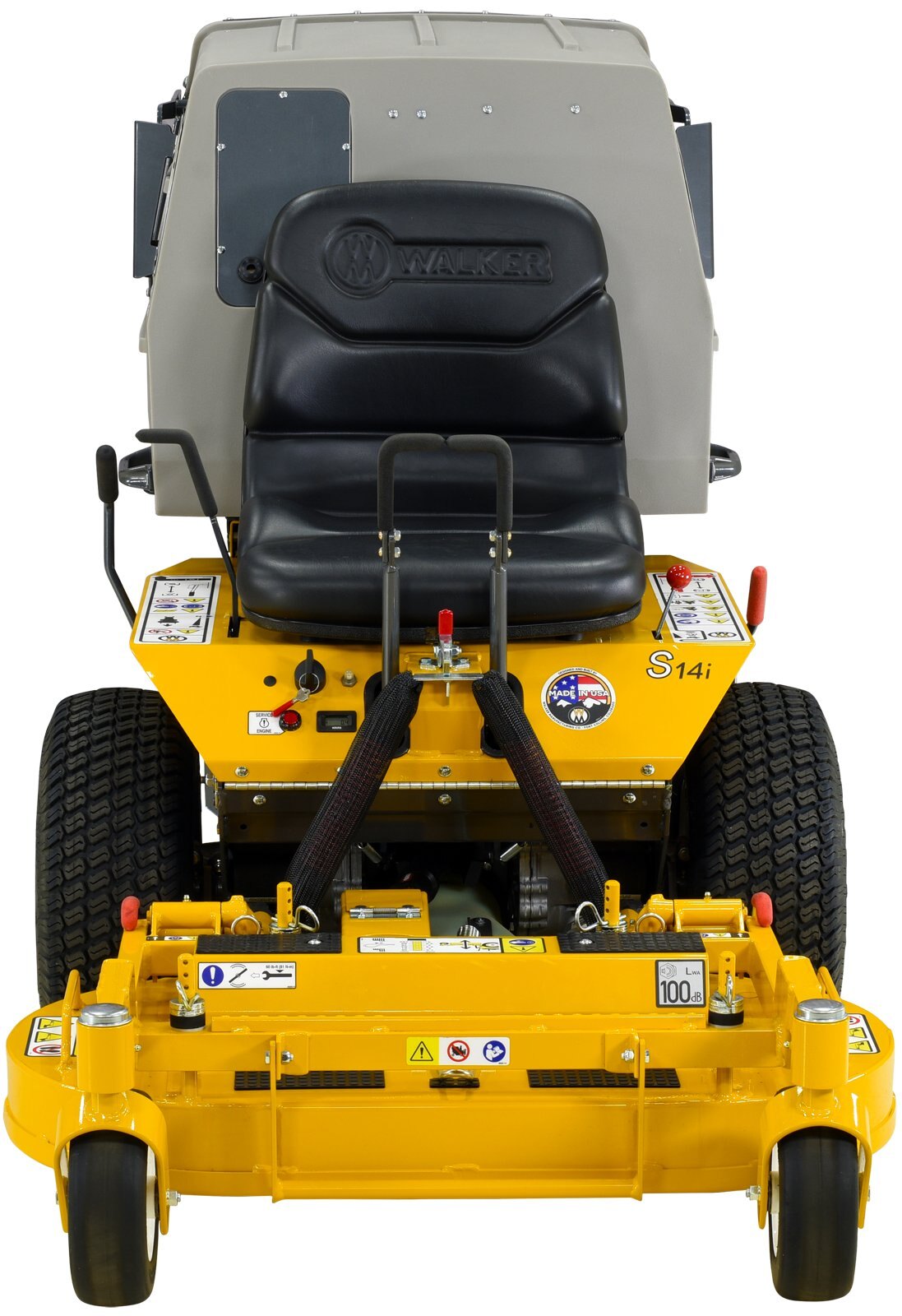

Walker Mowers S14i

  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Walker Mowers S14i
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  The S14i features the Kohler Command Pro, ECH440. With an upgraded starter and fuel injection, the S14i has improved startability with lower operating fuel consumption. The patented Walker GHS Blower with Thru-Shaft PTO and commercial grade components makes the S14i a serious, entry-level commercial mower designed for residential properties.



Specifications
Model
S14i
Category Name
Lawn / Garden
Year
2021
Sale Type
New
Manufacturer
Walker Mowers
deck
Cutting Height
1 to 4 in (2.5 to 10 cm) in 1/2 in (1 cm) Increments
Deck Suspension
Torsion-Flex Frame with Caster Wheels and Counterweight Springs
Recommended Cut Width
36 or 42 in. (91 or 107 cm) (Collection, SD, Mulch)
tires
Drive
18 x 7.00-8 (pneumatic 4-ply, standard) 18 x 8.5-10 (pneumatic, 4-ply, optional low-profile)
Tailwheel
13 x 6.50-6 (pneumatic 4-ply)
Deck Caster
8 x 3.00-4 (Foamed rubber standard, optional pneumatic)
engine
Fuel
Regular grade unleaded gasoline (87 octane minimum, 10% ethanol maximum)
Model
ECH440
Max Power
14 HP @ 3600 RPM
Max Torque
22.7 ft-lbs
Displacement
429 cc (24.7 cu. in.)
Manufacturer
Kohler
Fuel Capacity
1.9 gal (7.2 liter)
Cooling System
Air
electrical
Battery
12V, 300CCA
Charging Output
13 Amp DC (Regulated)
Charging System
Flywheel Alternator
blade drive
PTO Shaft
Sliding Spline Shaft with Two (2) High-Speed U-Joints
Blade Drive Clutch And Brake
Manual Belt Tightener Clutch and Band Brake (stops blades within 5 seconds of disengagement)
transmission
Neutral
Transaxle Release by Manual Dump Valve
Steering
Hand Lever Control, Individual Wheel
Parking Brake
Internal Mechanical Cog Lock for each Transaxle (Single Lever Control)
Forward MPH (km/h)
0-6.5 MPH (0-10.5 km/h) Infinitely Variable
Manufacturer/Model
Dual, Independent Hydro-Gear® ZT3100 Integrated Transaxles
Forward Speed Control
Precision Friction Lock Lever, Cruise Control, with Neutral-Park Position
grass handling
Blower
12.75 in. Diameter, Three-Blade Wheel, Integrated Thru-Shaft PTO
Powerfil®
Oscillating Delivery Spout Driven by 12 Volt Electric Gearmotor Spreads Material throughout Interior of Catcher @ 35 Cycles/Min
Full Signal
Grass-Pak® full signal alerts operator when catcher box is full
Max. Blower RPM
2900 RPM
Grass Catcher Capacity
65 Gal / 7.0 Bu / 246 L
size and weight

LENGTH

  • Tractor Only: 65 in (165 cm)
  • Tractor with C36 deck: 87 in (221 cm)
  • Tractor with C42 deck: 89.25 in (226.5 cm)
  • Tractor with deck tilted: 77 in (196 cm)
  • Tractor wheel base: 42.25 in (107 cm)

WIDTH

  • Tractor Only (Outside Tire): 36.25 in (92 cm)
  • Tractor with C36 deck: 37.25 in (95 cm)
  • Tractor with C42 deck: 43.25 in (110 cm)

HEIGHT

  • Tractor: 46.5 in (118 cm)

WEIGHT

  • Tractor Only: 596 lbs (270 kg)
  • Tractor with C36 deck: 767 lbs (348 kg)
  • Tractor with C42 deck: 787 lbs (358 kg)
