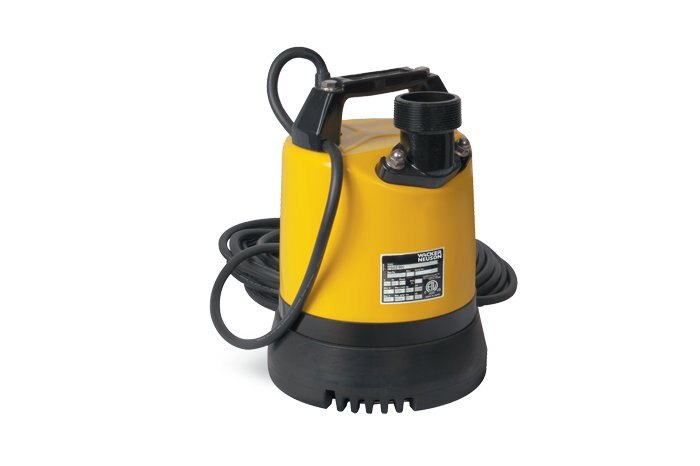

Wacker Neuson Single-phase Submersible Pumps-Low Level

Call for Price
Overview

These high performance single-phase submersible pumps are ideal for job sites needing fast, dependable, low level water pumping. Pump can start in less than 1/4-inch of water when it is primed through the discharge port. No matter how large or small the job. Wacker Neuson submersible pumps offer the versatility and durability contractors need for light dewatering. Suitable for most 110V outlets, these pumps offer big pump features for small pump investment.

  • Pumps feature a top discharge for efficient motor cooling and continuous operation, even when pumping at low water levels.
  • Miniature thermal motor protector prevents overheating and dry run conditions.
  • Multi-directional discharge coupling for vertical and horizontal hose run without kinking.

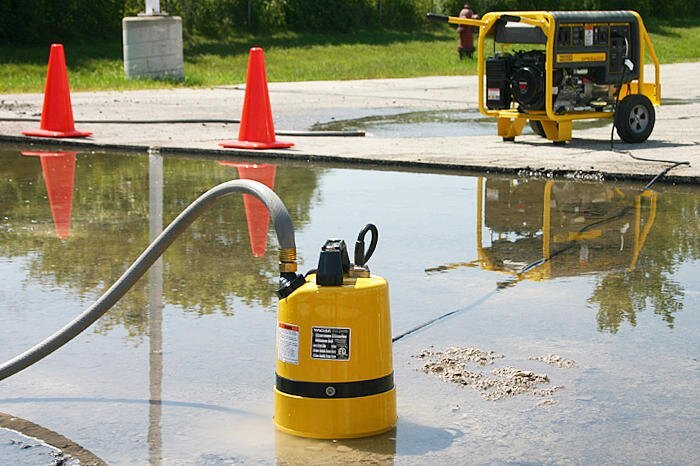

  • PSG2 500 is ideally suited for low pump applications with minimal solids present. It can pump a reasonable flow sitting on the surface.

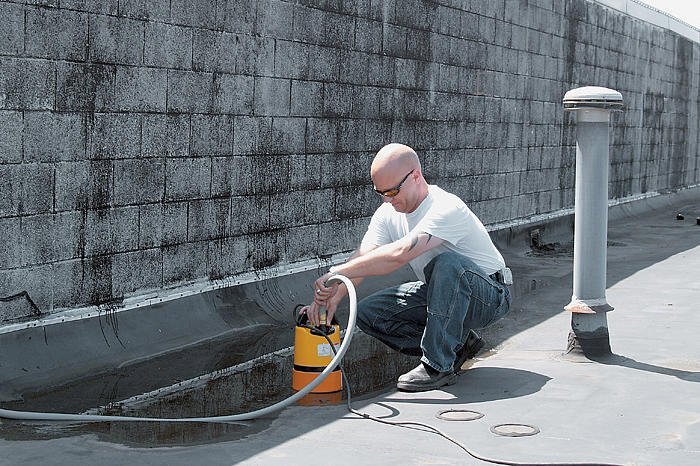

  • PSR1 500 is ideal for dewatering of flat concrete, like basement and factory floors. For use where a sump pump cannot be installed and water must be almost completely removed.
  Technical specifications

  PSR1 500 PSG2 500

Dimensions

L x W x H  mm 196 x 196 x 316 210 x 210 x 285
L x W x H Shipping mm 380 x 247 x 232 380 x 247 x 247
Diameter Discharge mm 19.5 50
Operating weight  kg 12 10.5
Shipping weight  kg 15.4 13.2
Cable length  m 10 12
Cable Size  mm² 1.25 1.25
Operating height Min. Running Water Level mm 1 5

Operating data

Total head  m 12 12
Discharge capacity  l/min 170.4 236.3
Solids diameter  mm 6 6
Engine / Motor type  60 Hz Single ~ 60 Hz Single ~
Impeller Type  Semi-Vortex Urethane Rubber Semi-Vortex Urethane Rubber
Operating voltage  V 110 110
Current Full Load with 110V A 6.1 6.1
Current Start with 110V A 12.5 12.5
at rpm  rpm 3,255 3,255



Specifications
Model
Single-phase Submersible Pumps-Low Level
Category Name
Generators
Year
2018
Sale Type
New
Manufacturer
Wacker Neuson
