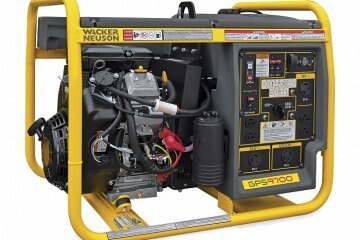

Wacker Neuson GPS 9700V

Call for Price
Overview

Portable power, when and where you need it

High performance portable generator to fit your job and budget. This Wacker Neuson generator is built for general construction, industrial, commercial, domestic and agricultural applications. It features an heavy-duty lightweight compact frame that provides job site protection while reducing storage space requirements. An integrated lifting eye to accommodate a 3-inch hook allows for easy transport.

  • Oversized fuel tank for long, uninterrupted operation also features an easy to read fuel gauge. A super quiet muffler allows for operation under all conditions.
  • An auto-idle control with time delay automatically reduces the engine to a low speed decreasing fuel consumption, noise and wear on connected electrical loads.
  • Premium grade ground fault interrupter (GFI) for weather resistance and increased durability. The 120-volt duplex receptacles break circuit due to a ground fault condition.
  • Units feature a 120/240-volt power switch providing full 120-volt power or shared power from both 120 and 240-volt receptacles.
  • Overhead valve engine with automatic decompression and maintenance-free electronic ignition system provide consistent and easy starting.

Technical specifications

Portable Premium Generators

Dimensions

L x W x H Overall 800 x 638 x 631 mm
L x W x H Shipping 826 x 648 x 641 mm
Weight Dry 118 kg
Shipping weight without Fuel 148 kg

Operating data

Operating weight with Fuel 141 kg
Circuit breaker AC - 1 Phase 2 Pole 39 A
Receptacles AC Outlet (2) 120V, 20A Duplex
Receptacles AC Outlet 120V, 30A Twist Lock L5-30R
Receptacles AC Outlet 240V, 20A Twist Lock L6-20R
Receptacles AC Outlet 120/ 240V, 30A Twist Lock L14-30R

Electrical system

Electrical power Max. Output 9,700 W
Electrical power Continuous Power 9,300 W
Voltage AC - 1 Phase 120/ 240 V
Current AC - 1 Phase 80.8/ 40.4 A
Frequency  60 Hz
Generator model  AVR With Brushes
Generator insulation (class) Class H
Power Rating Specification  SAE J1940

Engine / Motor

Engine / Motor  B&S Vangaurd
Engine / Motor manufacturer  356447
Cylinder  2
Displacement  570 cm³
Operating performance  13.4 kW
RPM / speed Operating 3,600 rpm
Tank capacity Oil 1.65 l
Tank capacity Fuel 23 l
Fuel type  Gasoline
Fuel consumption  6.2 l/h
Runtime  - Max Load 3.7 h






Specifications
Model
GPS 9700V
Category Name
Generators
Year
2018
Sale Type
New
Manufacturer
Wacker Neuson
