Brabus

ID # 13793480

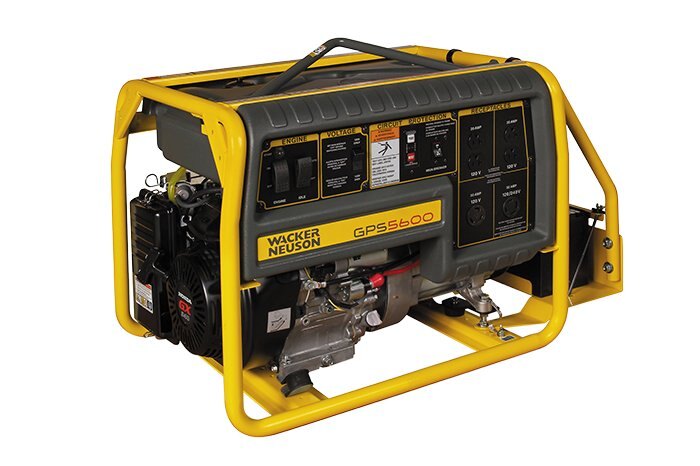

Wacker Neuson GPS 5600A

Call for Price
Overview
Rugged and powerful premium portable power


Designed for construction, rental and other demanding applications, these quiet, high-performance, portable generators deliver unmatched tool starting and voltage regulation in a rugged compact package. Excellent for powering single or multiple tools on an entire job site or as emergency or standby power. Built with heavy-duty frames and premium components to provide long, trouble-free operation even in abusive environments. Ideal for powering high starting amperage tools such as compressors, grinders, fusion welders as well as all your Wacker Neuson electric power tools.

  • Best in class tool starting and voltage regulation due to a unique step-start generator technology with AVR (automatic voltage regulation) and separate excitation winding.
  • Central GFCI (neutral bonded to ground) sensor system eliminates common GFI outlet failures while offering personal protection on all receptacles including 240 Volt. Meets the latest NEC and OSHA jobsite standard.
  • Unique auto-idle control with time delay system automatically reduces the engine to a low speed reducing fuel consumption, noise and wear.
  • Full wrap-around frame with dual cross-member support, high impact polyethylene fuel tank and heavy duty shock-mounting combine to provide outstanding impact protection.
  • Honda engine with low oil shutdown and electric start. Fully compliant with the latest EPA evaporative emissions regulations.

Technical specifications

Portable Premium Generators

Dimensions

L x W x H Overall 870 x 530 x 537 mm
L x W x H Shipping 711 x 686 x 589 mm
Weight Dry 94.8 kg
Shipping weight without Fuel 97.1 kg

Operating data

Operating weight with Fuel 108 kg
Circuit breaker AC - 1 Phase 2 Pole 23 A
Receptacles AC Outlet (2) 125V, 20A Duplex
Receptacles AC Outlet 125/ 250V, 30A Twst Loc
Receptacles AC Outlet 125V, 30A Twist Lock

Electrical system

Electrical power Max. Output 5,600 W
Electrical power Continuous Power 5,000 W
Voltage AC - 1 Phase 120/ 240 V
Current AC - 1 Phase 41.7/ 20.8 A
Frequency  60 Hz
Power factor  1 cos Φ 1~
Generator model  AVR With Brushes
Power Rating Specification  SAE J1349

Engine / Motor

Engine / Motor  Honda
Engine / Motor manufacturer  GX340RT2
Cylinder  1
Displacement  389 cm³
Operating performance  8 kW
RPM / speed Operating 3,600 rpm
Tank capacity Oil 1.1 l
Tank capacity Fuel 18.7 l
Fuel consumption  3.24 l/h
Runtime  5.8 h



Specifications
Model
GPS 5600A
Category Name
Generators
Year
2018
Sale Type
New
Manufacturer
Wacker Neuson
