ID # 13793466

Wacker Neuson BTS

  • Wacker Neuson BTS
  • Wacker Neuson BTS
  • Wacker Neuson BTS
  • Wacker Neuson BTS
  • Wacker Neuson BTS
  • Wacker Neuson BTS
  • Wacker Neuson BTS
  • Wacker Neuson BTS
  • Wacker Neuson BTS
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

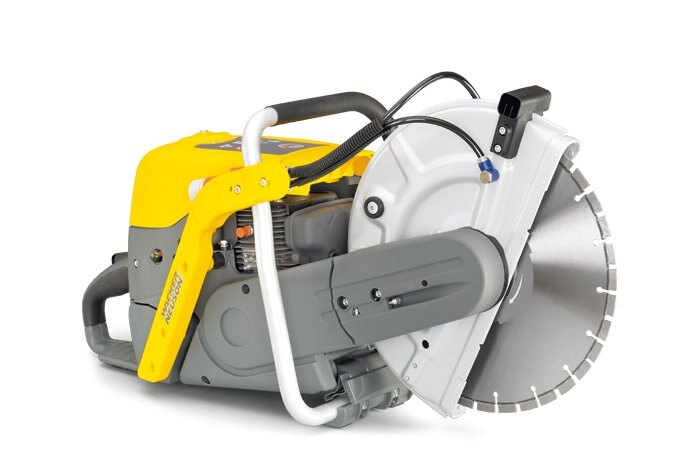

First-class performance with every cut: BTS

The gasoline cut-off saws of the BTS series are your ideal companions on site. They are extremely durable and robust thanks to high quality manufacturing standards of their individual components. The design is perfectly balanced, making for easy and intuitive operation of the saw. The air-cooled two-cycle engine has a high torque with reliable power transmission. This ensures the first-class cutting performance of the BTS range. And they remain easily within all specified emission limits.

  • First-class cutting performance
  • Way above average operating times
  • High performance engine with high torque.
  • Robust high quality construction
  • Hand-arm vibrations below 5m/s²*

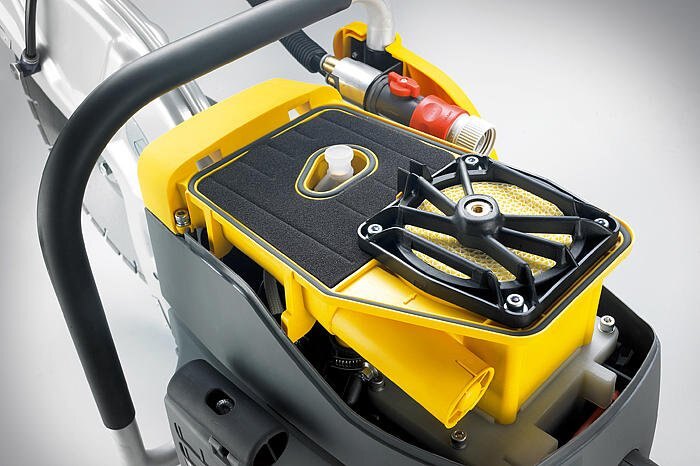

The 3-stage air filter system: saves time and money



The pulled in air passes first through the cyclone filter where the majority of dirt particles are already removed. This is followed by the foam material prefilter. The pre-cleansed air only meets the main filter at the end of the process. This results in a manifold increase of the air filter's service life. In addition, there is only minimal loss of pressure.This ensures a consistently high engine performance.

 BTS D08 340x453

The Soft-Start: no effort recoil starter

An innovative mechanism allows the user to start the device with minimal effort. Less strenuous and faster, ready for action.

 BTS Start E06 340x453

Technical specifications

  BTS 630 BTS 635s
L x W x H  mm 800 x 315 x 400 825 x 315 x 420
Weight  kg 10.9 11.3
Blade diameter max. mm 300 350
Blade diameter min. mm 300 300
Range  mm 4.5 4.5
Blade arbor  mm 20 25.4
RPM / speed of the blade (max.) rpm 4,240 4,240
Cutting depth max. mm 103 128
Engine / Motor  Single-cylinder two-cycle gasoline engine Single-cylinder two-cycle gasoline engine
Displacement  cm³ 85.8 85.8
Power  kW (hp) 4.3 (5.8) 4.3 (5.8)
Fuel consumption  l/h 2.3 2.3
Tank capacity  l 1.1 1.1
Gasoline / oil mixture  50:1 50:1



Specifications
Model
BTS
Category Name
Industrial
Year
2018
Sale Type
New
Manufacturer
Wacker Neuson
