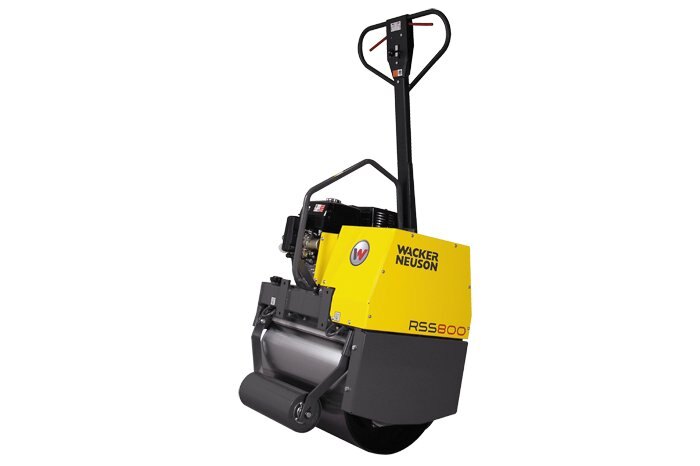

Lightweight and highly maneuverable roller has infinitely variable hydrostatic drive for smooth, even accelerations. Excellent choice for the compaction of sand, gravel, soil and asphalt on roadways, walkways, bridges and parking lots. High curb clearance and close side clearance accommodates work adjacent to curbs and walls.
Beveled edge steel drum has adjustable and reversible polyurethane self-cleaning scrapers to prevent soil and asphalt buildup between the frame and the drum giving smooth and uniform services.
Automatic breaking system in forward and reverse for greater operator safety.
Adjustable, enclosed handle improves operator comfort and folds vertically for convenient transportation and storage.
Transport drive system is fully enclosed, increasing component life for continued operation and higher production.
Large water tank reduces refill stops for continued operation and higher productivity. Snap-out sprinkling system and in-line filter screen are easily cleaned, reducing downtime.
Technical specifications
RS800A
RSS800A
Operating data
Operating weight kg
440
450
L x W x H Overall mm
2135 x 840 x 1270
2170 x 840 x 1270
Drum diameter mm
560
560
Drum width mm
719
719
Side clearance Right mm
24
24
Side clearance Left mm
90
90
Curb clearance Right mm
150
150
Curb clearance Left mm
410
410
Centrifugal force kN
15.2
15.2
Frequency Hz
70
70
Linear force Static N/mm
6
6
Linear force Dynamic N/mm
21
21
Total linear load N/mm
15.2
15.2
Advance travel m/min
62
62
Reverse travel m/min
46
46
Surface capacity Area m²/h
2.63
2.63
Gradeability %
30
30
Engine / Motor
Engine / Motor type
Air-cooled, 4-cycle, single cylinder, gasoline engine
Air-cooled, 4-cycle, single cylinder, gasoline engine
