Brabus

ID # 13791331

Wacker Neuson 3001

Call for Price
Overview

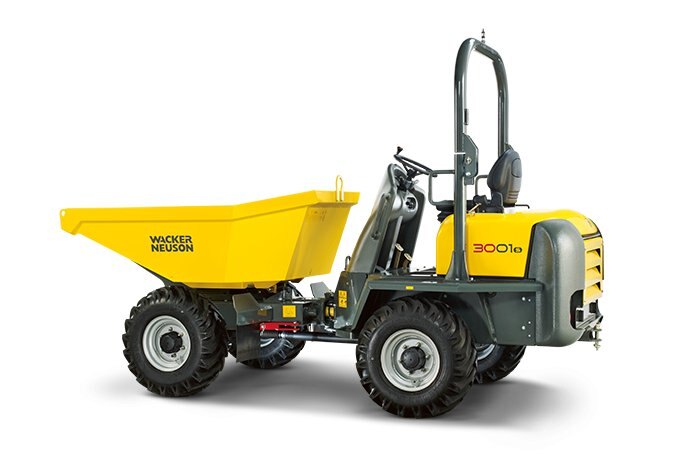

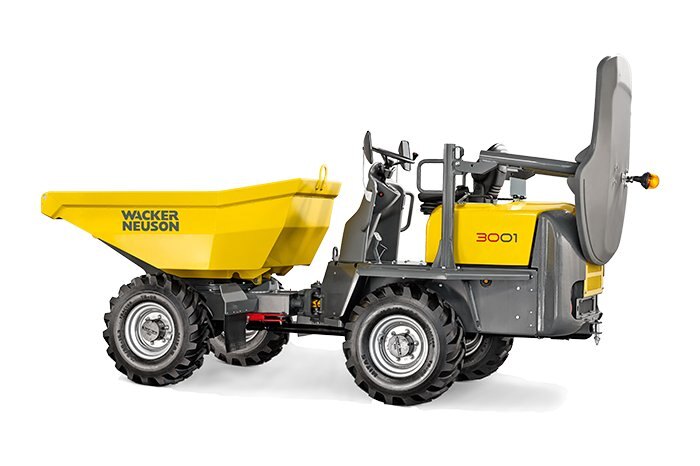

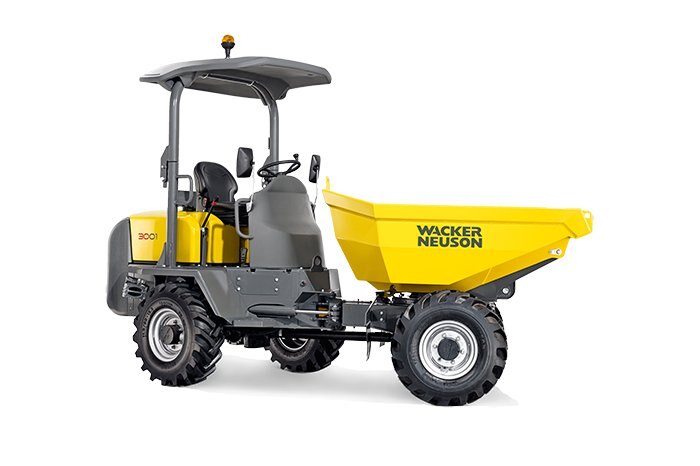

This mid size dumper features a 6,600 lb (3-metric ton) payload capacity, power swivel material handling and hydrostatic permanent four wheel drive as standard. The hydrostatic drive system offers user-friendly controls, eliminating the need to change gears. The 3001 offers superior performance, the drive system automatically provides torque when and where it is needed. With no clutch to wear or gears to grind, hydrostatic drive eliminates the high parts and labor costs associated with replacing these components. ROPS and heated cab versions are available.

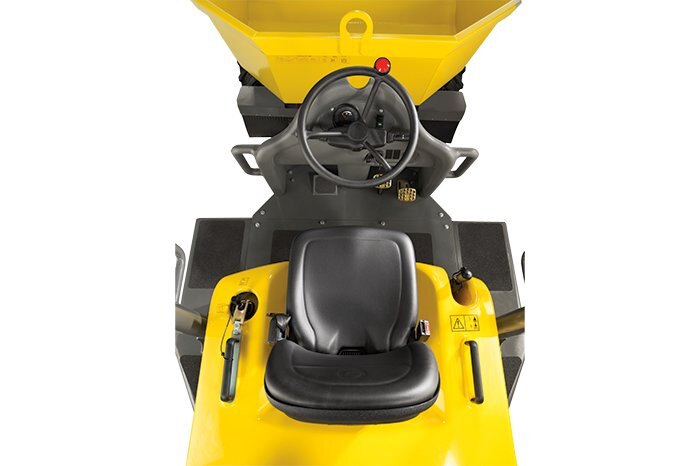

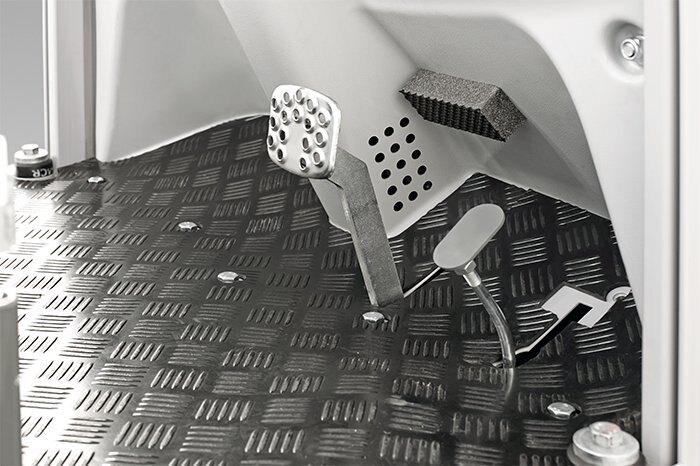

  • Operator station is easily accessible from both sides for added convenience.

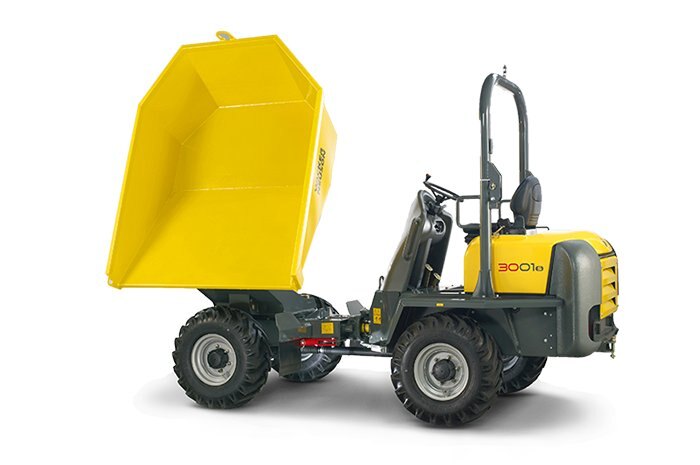

  • Swivel bucket allows material to be unloaded on either side of the unit for ultimate versatility.

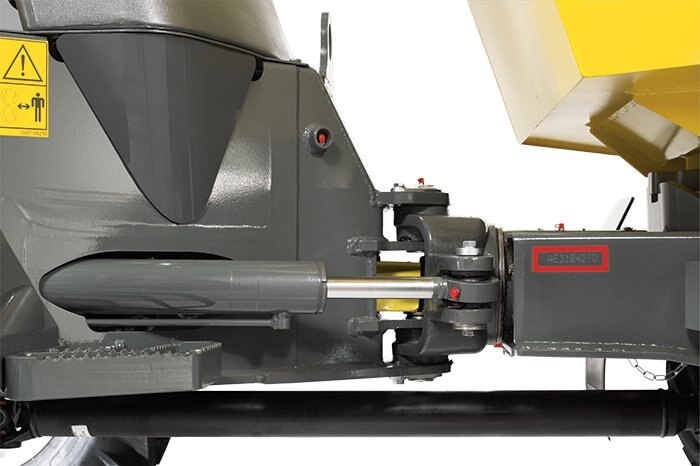

  • Four-wheel drive provides perfect traction in difficult terrain. Articulated steering with central hose routing allows for tight turning radius and protection of the hoses.

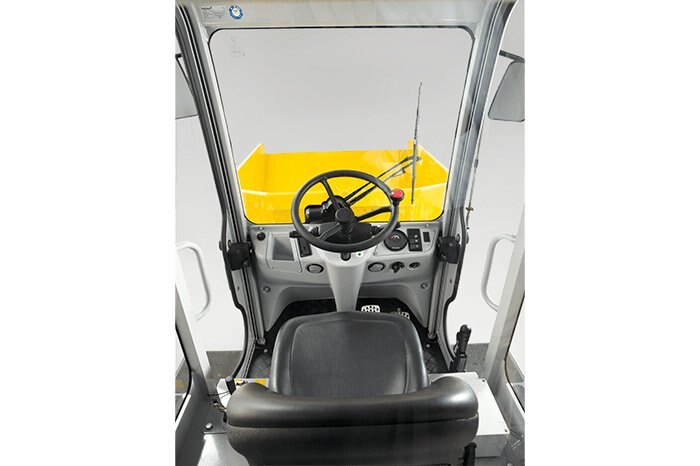

  • Dashboard displays a full range of dials/indicator lights such as fuel gauge, low fuel warning light and parking brake light for operator convenience.

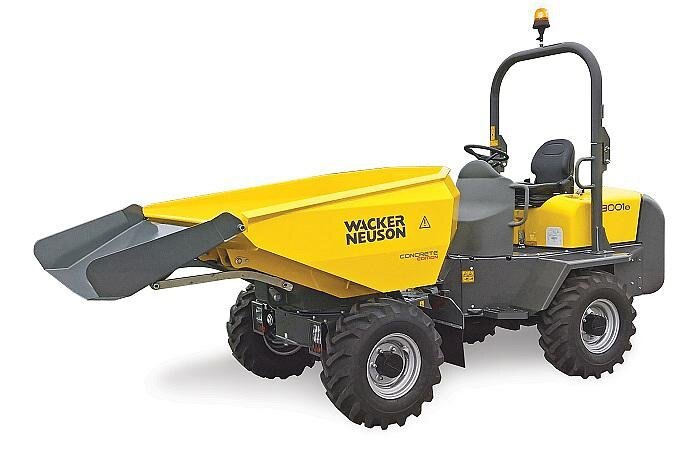

  • Available in Concrete Edition to efficiently transport and place concrete with minimal spillage.
 Technical specifications


  Swivel tip skip Swivel tip skip - Concrete Edition

Operating data

Payload  kg 3,000 3,000
Shipping weight ROPS kg 2,550 2,650
Shipping weight Cabin kg 2,650
Skip capacity - Leveled 1.32 1.61
Skip capacity - Heaped 1.79 1.98
Skip capacity - Water 0.93 1.13

Engine / Motor

Engine / Motor manufacturer  Perkins Perkins
Engine / Motor type  403F-15T 403F-15T
Engine / Motor  Diesel Diesel
Engine performance - ISO 3046/1 kW 27 27
Displacement  cm³ 1,496 1,496
Engine RPM  rpm 2800 2800
Travel speed  km/h 22 22
Articulation angle  ° 37 37
Pendulum angle  ° 15 15
Turning radius  mm 3,850 3,850
Gradeability  % 50 50
Tires  11.5/80 x 15.3, 10PR 11.5/80 x 15.3, 10PR
L x W x H ROPS mm 4240 x 1785 x 2670 4240 x 1785 x 2670
Steering pump  axial piston pump axial piston pump
Flow rate  l/min 126 126
Operating pressure  bar 360 360
Duty pump  gear pump gear pump
Flow rate  l/min 45 45
Operating pressure  bar 220 220
Fuel tank capacity  l 45 45
Hydraulic oil tank  l 33 33
Sound level (LwA)  dB(A) 101 101



Specifications
Model
3001
Category Name
Equipment
Year
2018
Sale Type
New
Manufacturer
Wacker Neuson
