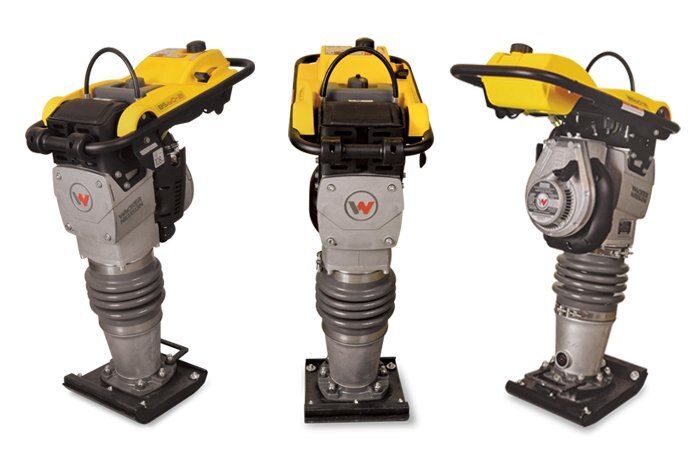

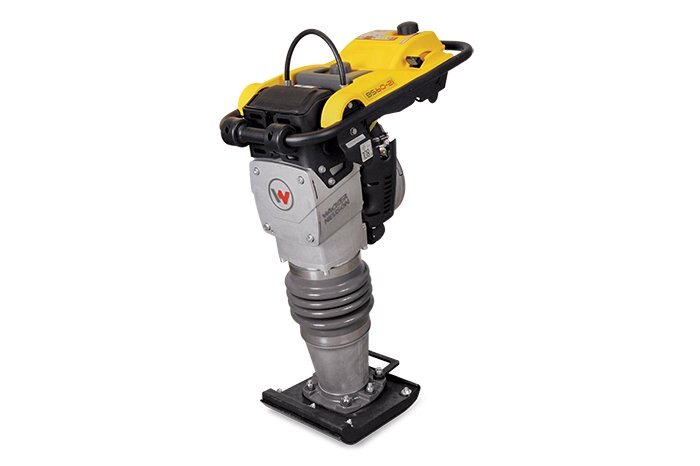

Wacker Neuson BS50-2i BS60-2i BS70-2i

Videos
Call for Price
Overview

Comfort-Plus: Two-cycle rammer with separate oil injection

The patented oil-injected rammers offer the performance of two-cycle rammers with the convenience of a no-mix system. The two separate tanks for fuel and two-cycle oil eliminate premixing, plus an amazing fuel to oil ratio of 120:1 allows for longer and cleaner running times…up to 100 hours on a single tank of oil. The low oil shutdown prevents running the rammer without oil for trouble free operation. The oil-injected rammers come in three weight classes.

  • Powered by Wacker Neuson's exclusive WM 80 engine specifically designed for tough rammer applications and meets all EPA and European emission standards
  • Integrated fuel valve and gas lever provide simple operation and easy starting
  • Unit will shut down if left idling for extended period of time, reduces emssions
  • Optimized guide handle reduces vibration, improving operator comfort
  • A unique four stage air filtration system provides a virtually dust-free engine for longer life and improved durability. The system includes a last chance filter that protects the engine during air filter maintenance.

Technical specifications

  BS 50-2i BS 60-2i BS 70-2i

Operating data

Operating weight  kg 59 66 74
Ramming shoe size (WxL) * mm 280 x 337 280 x 336 280 x 336
L x W x H  mm 673 x 343 x 940 673 x 343 x 965 673 x 343 x 965
Percussion rate max. blows/min 700 700 650
Stroke at the ramming shoe mm 64.3 80 65
Operating speed  m/min 9.5 9.8 8.9
Surface capacity Compaction m²/h 159 164 148

Engine / Motor group extra

Engine / Motor type  air-cooled single-cylinder two-cycle gasoline engine air-cooled single-cylinder two-cycle gasoline engine air-cooled single-cylinder two-cycle gasoline engine
Engine / Motor manufacturer  Wacker Neuson Wacker Neuson Wacker Neuson
Engine / Motor  WM 80 WM 80 WM 80
Displacement  cm³ 80 80 80
Fuel consumption  l/h 1 1.2 1.3
Operating performance Max rated Power ISO 3046-1 kW 1.7 1.8 2
at rpm  rpm 4,400 4,400 4,400
Tank capacity (fuel) l 3 3 3
Tank capacity (oil) l 1.3 1.3 1.3
Gasoline / oil mixture Ratio 120:1 120:1 120:1



Specifications
Model
BS50-2i BS60-2i BS70-2i
Category Name
Industrial
Year
2018
Sale Type
New
Manufacturer
Wacker Neuson
