Unverferth Equipment Rolling Harrow® 1645D

  • Unverferth Equipment Rolling Harrow® 1645D
  • Unverferth Equipment Rolling Harrow® 1645D
  • Unverferth Equipment Rolling Harrow® 1645D
  • Unverferth Equipment Rolling Harrow® 1645D
  • Unverferth Equipment Rolling Harrow® 1645D
  • Unverferth Equipment Rolling Harrow® 1645D
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Unverferth Seedbed Tillage

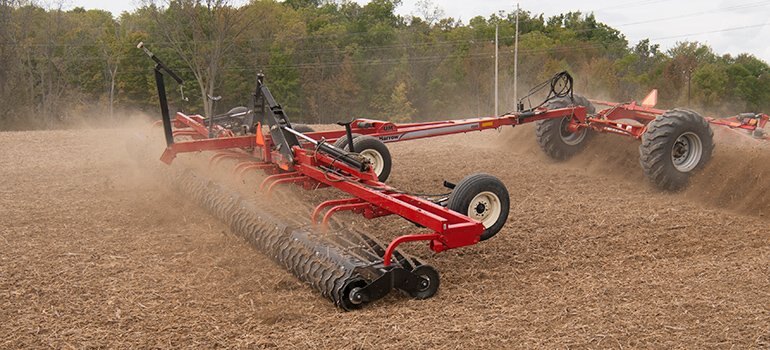

Heavy duty design for high-speed soil finishing in rocky soils!  The model 1645D Rolling Harrow® soil conditioner adds to the three decade long tradition of this timeless tool.

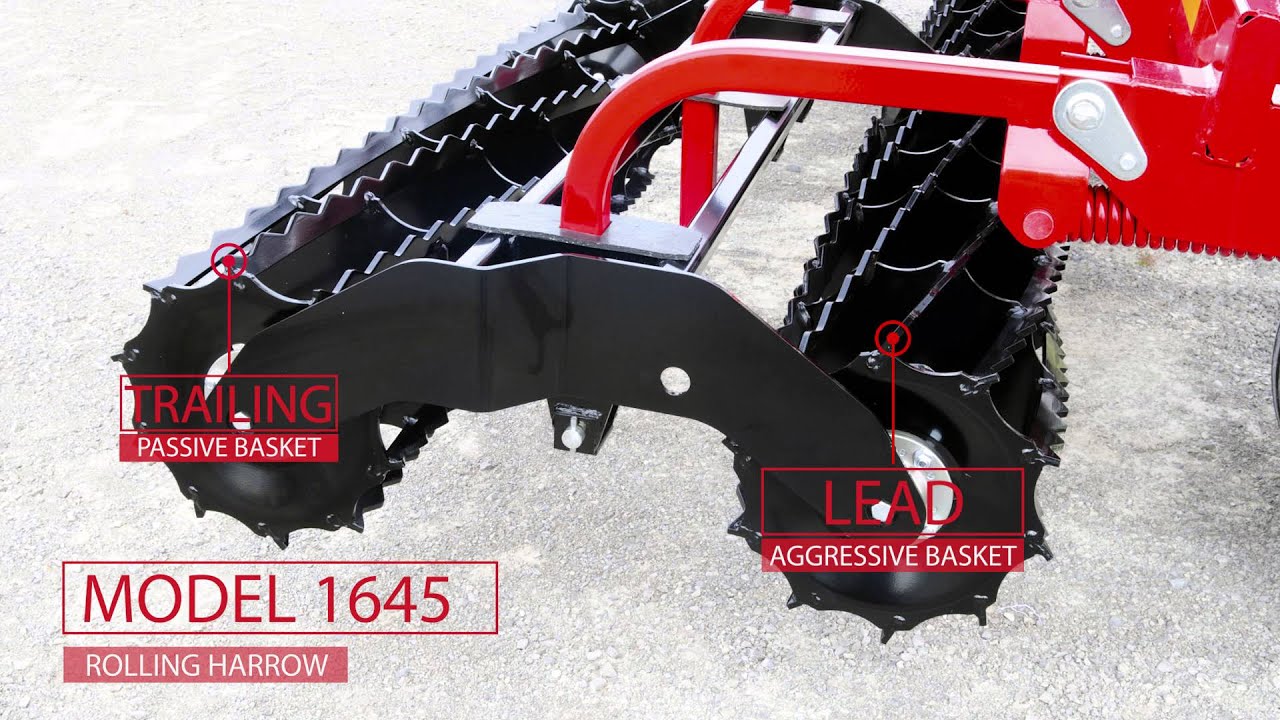

The model 1645D Rolling Harrow® features aggressive 16" diameter front rolling baskets with scalloped and pitched blades for breaking up larger clods.  The 16" diameter rear rolling drum pushes down rocks and enhances soil firming.  The 1645D is specifically designed for high-speed soil finishing behind field cultivators, discs and vertical tillage tools.



Specifications
Model
Rolling Harrow® 1645D
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Unverferth
features

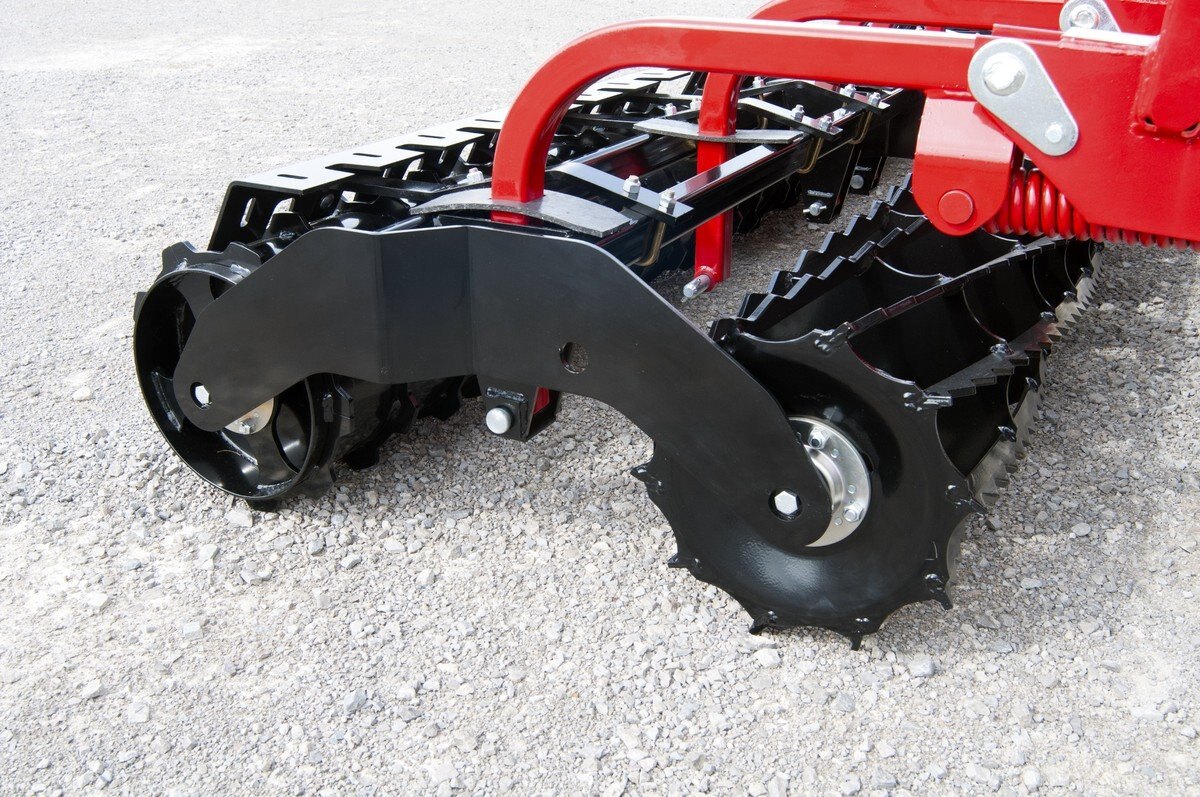

  • The model 1645D features 16" diameter front baskets with a 2 3/8" center shaft providing full-width basket support
    • Baskets are constructed with 10 high-carbon steel 3/8" thick blades for optimum durability
    • Vertical reinforcing disks every 12" provided added strength
    • Reinforced roller end plates extend basket life
  • Exclusive basket design features notched end and center discs for greater depth and soil penetration

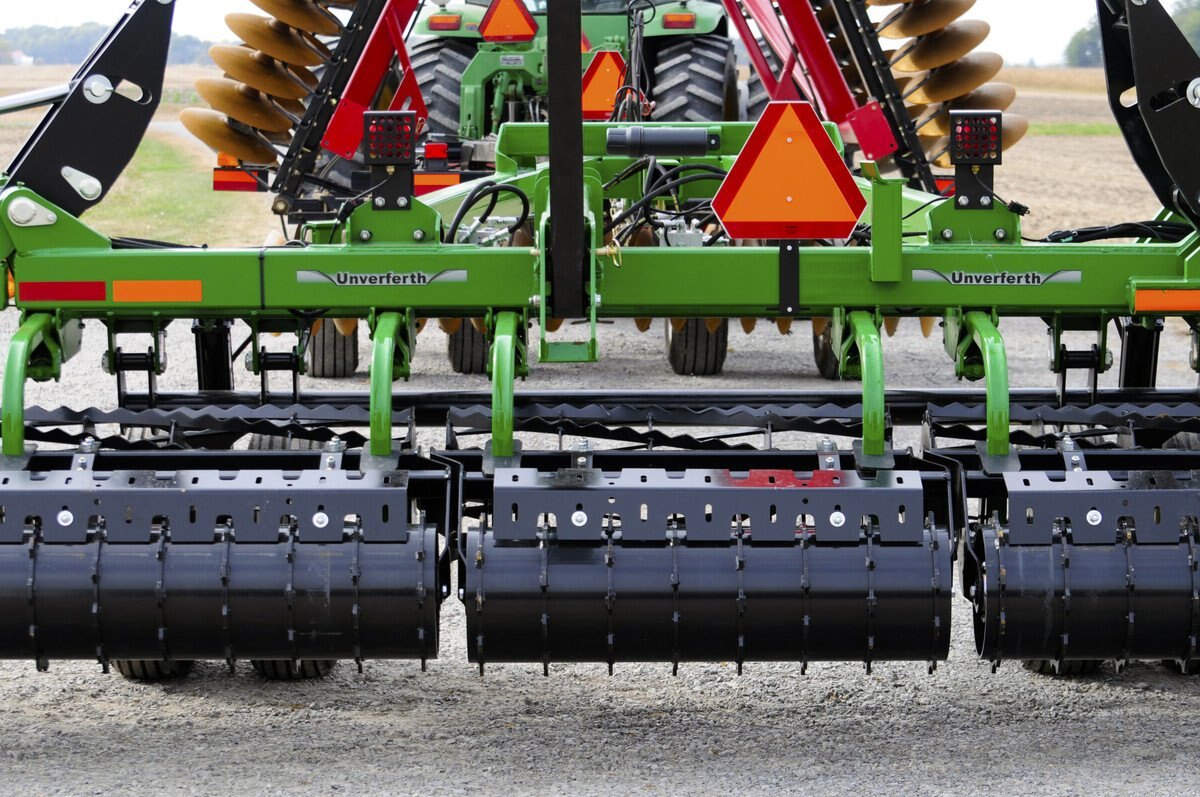

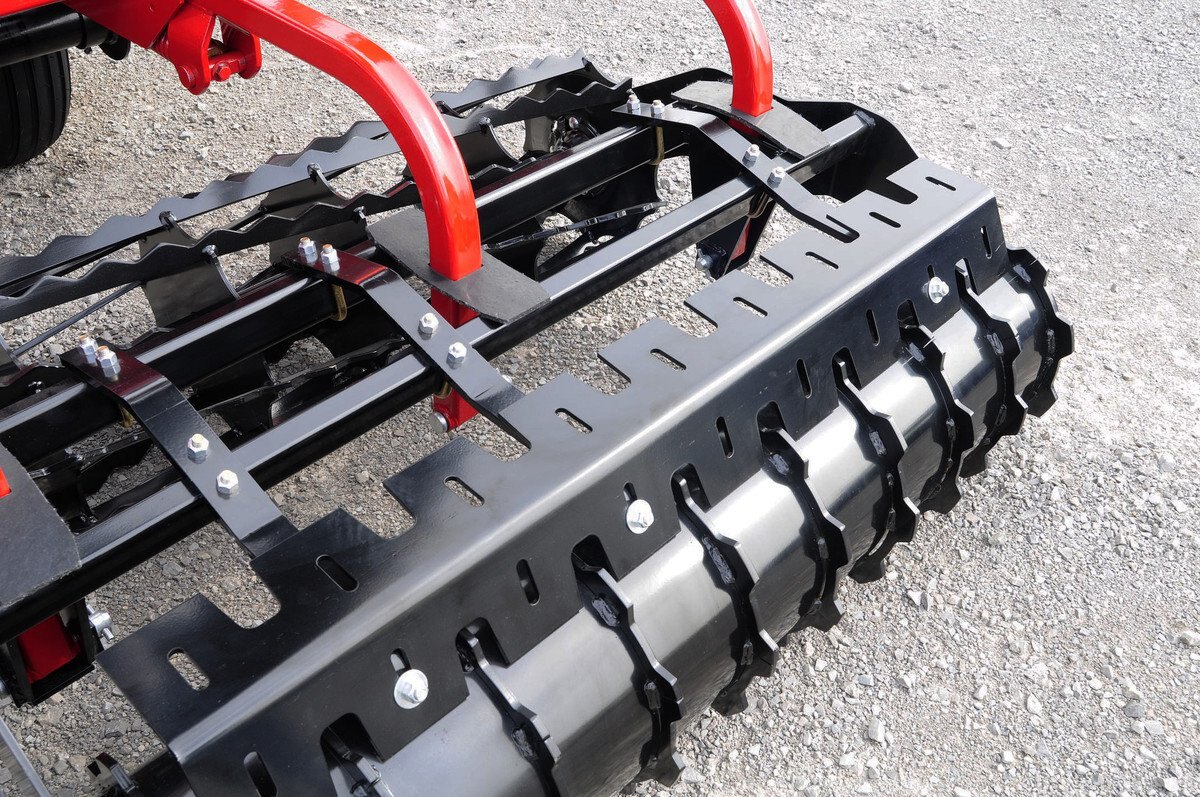

  • The 16" diameter rear rolling drum pushes down rocks and enhances soil firming
    • The 1.5" welded and staggered cleats create channels in the soil for increased water absorption and drive the drum through the field
    • Standard drum scrapers keep dirt from building up on the drum
  • Free-floating basket and drum rollers provide uniform soil conditioning in a wide variety of field terrains and soil types

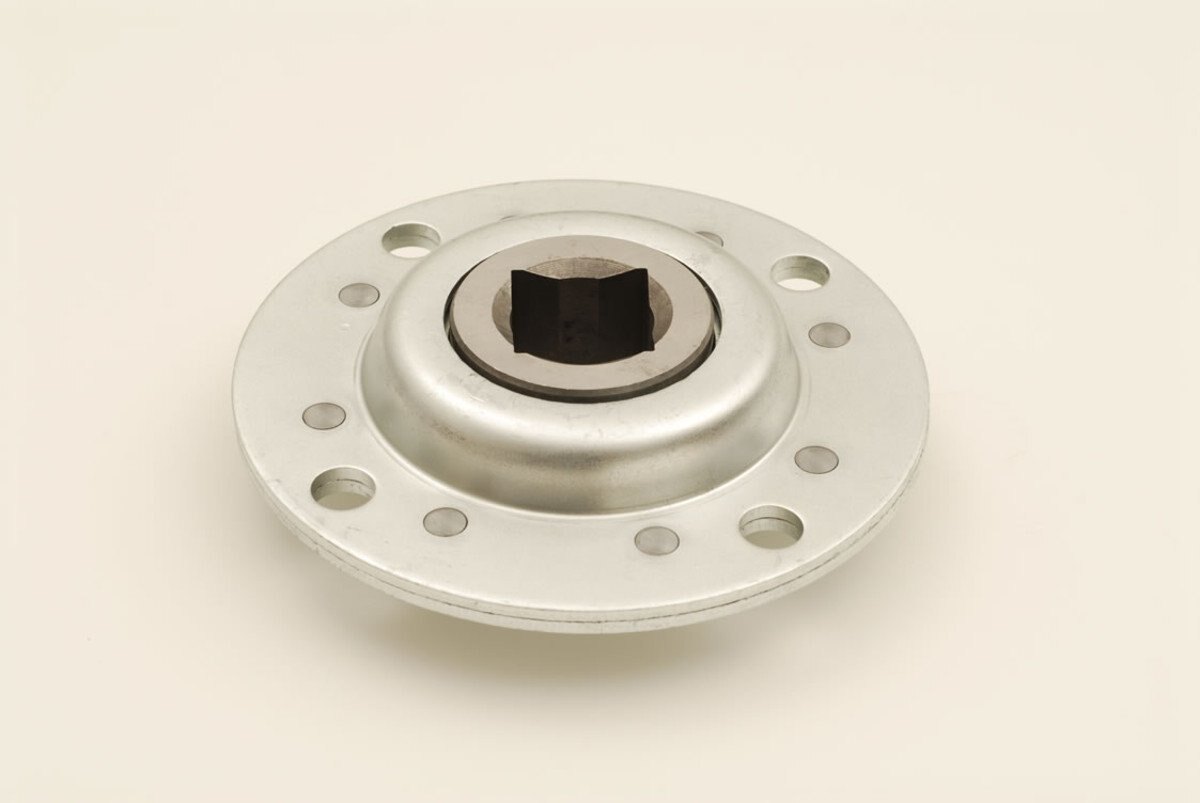

  • Patented shouldered bearings are greaseless and prevent rubber seals from reversing and allowing dirt and debris to enter the bearing chamber
  • Extendible-length tongue for ideal in-field turning
  • Only one set of tractor hydraulic outlets are required

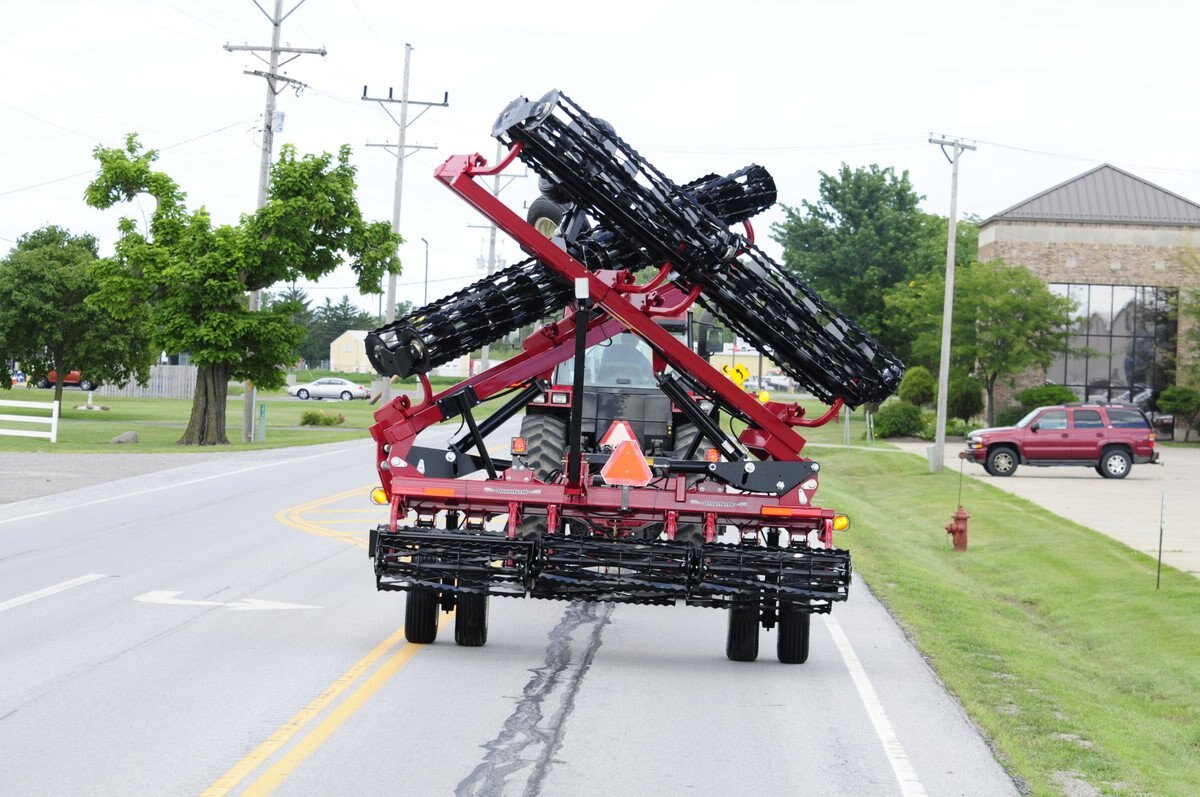

  • 16" of ground transport clearance
  • Choice of durable powder-coat finish in red or green
specifications
Rolling Harrow® Model 1645D
Working Width Fold Type Transport Width Transport Height Minimum Length Maximum Length Base Width Wing Width Tire Size Approx. Weight
26' Cross 14'5" 11'4" 23'2" 31'8" 12' 7' 9.5L x 15 8,450 lbs.
28' Cross 14'5" 11'8" 23'2" 32' 12' 8' 9.5L x 15 8,860 lbs.
30' Cross 14'5" 13'4" 23'2" 32'5" 12' 9' 9.5L x 15 9,040 lbs.
32' Cross 14'5" 13'6" 23'2" 32'11" 12' 10' 9.5L x 15 9,130 lbs.
34' Cross 14'5" 13'6" 23'2" 33'6" 12' 11' 9.5L x 15 9,305 lbs.
36' Cross 14'5" 13'6" 23'2" 33'10" 12' 12' 9.5L x 15 9,485 lbs.
39' Cross 16' 12' 24'2" 32'4" 15' 12' 9.5L x 15 9,995 lbs.
41' Cross 16' 12'6" 24'2" 32'4" 15' 13' 9.5L x 15 10,870 lbs.
43' Cross 16' 12'10" 24'2" 32'4" 15' 14' 9.5L x 15 11,240 lbs.
45' Cross 16' 13'4" 24'2" 32'4" 15' 15' 9.5L x 15 11,610 lbs.
Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
