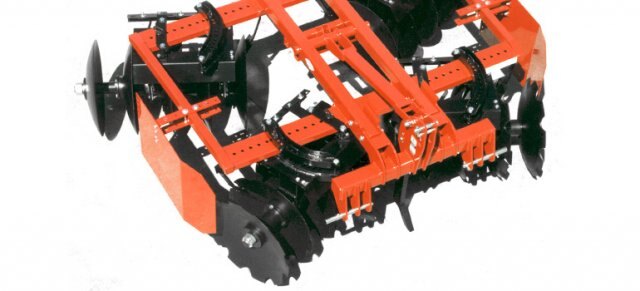

Unverferth Equipment Maximus™ Disk

  • Unverferth Equipment Maximus™ Disk
  • Unverferth Equipment Maximus™ Disk
  • Unverferth Equipment Maximus™ Disk
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Unverferth Seedbed Tillage

The word maximus is Latin for "the greatest", and that's why it was chosen for this unique disk. For maximum disk tillage in a variety of applications, including between orchard and vineyard rows, look to the Unverferth Maximus™ disk.



Specifications
Model
Maximus™ Disk
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Unverferth
features

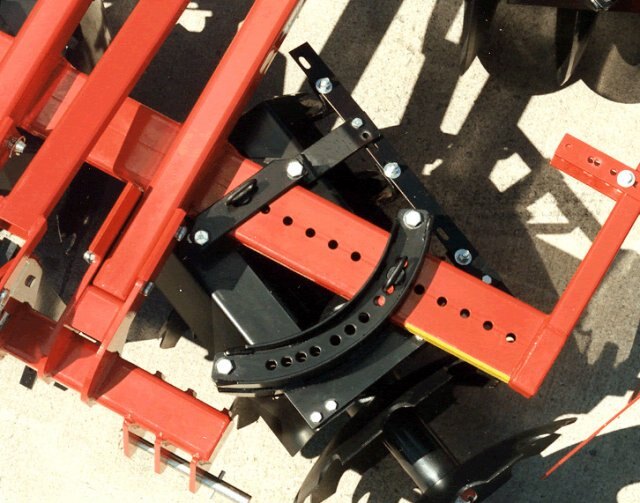

  • Both front and rear gangs feature tool free, gang-positioning adjustability from the traditional X-shape to a diamond-shape to match the desired level of tillage aggressiveness and width
  • Aggressively tills and penetrates soil between rows up to six inches deep for effective, efficient weed control and soil leveling
  • Heavy-Duty 3" x 3" and 2" x 6" welded steel frame provides durability and consistent, uniform penetration
  • Blades feature 9" spacings and are mounted on a 1 3/4" round shaft for maximum durability
  • Triple-lipped greaseable bearings with 10,800 lbs. of dynamic-load rating provide long life
  • Disk blades are available in smooth or notched front/rear combinations to match your needs
  • Tool-free adjustable working width in 2-inch increments
  • Choose from 6' or 7' base with several options to provide the width and tillage agressiveness for your operation
  • Powder-coat finish of implement red to resist corrosion
specifications
Frame Working Width Gang Blade Number Approx. Weight(lbs.)
6' 5'3" - 6'2" Add-a-Blade Capable 8-Front 8-Rear 1805
7' 5'3" - 7'2" Add-a-Blade Capable 8-Front 8-Rear 1805
7' 5'3" - 7'2" Fixed 8-Front 10-Rear 2100
7' 6'8" - 8'7" Fixed 10-Front 10-Rear 2400



Common Specifications

Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
Horsepower required 5 h.p. to 9 h.p. per foot
Blade specifications 24" x 1/4"
Cutting-angle adjustability 11 positions
+29° to -29°
Working depth up to 6"
Hitch types category I, II, & II quick hitch, category IIIN & IIIN quick hitch
