Unvenferth 20-Series Dual-Auger

  • Unvenferth 20 Series Dual Auger
  • Unvenferth 20 Series Dual Auger
  • Unvenferth 20 Series Dual Auger
  • Unvenferth 20 Series Dual Auger
  • Unvenferth 20 Series Dual Auger
  • Unvenferth 20 Series Dual Auger
  • Unvenferth 20 Series Dual Auger
  • Unvenferth 20 Series Dual Auger
  • Unvenferth 20 Series Dual Auger
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Dual-Auger Grain Carts Unverferth Grain Handling

Your time is money, which is why we’ve designed the Unverferth high-capacity, dual-auger grain carts to be some of the largest, fastest and most efficient on the market.  This series of grain carts feature a pivoting vertical auger for unloading flexibility and a rubber-cushioned tongue suspension for a smoother ride.  Get exceptional unloading speed and a lower profile design from a combination of horizontal and vertical augers, plus a variety of innovative features that simplify your hands-on tasks to let you focus on the bigger picture.  Capacities range from 2000 to 1100 bushels and undercarriage options include 42" wide Equalizer tracks, 36" wide tracks, walking tandem duals and high-flotation single wheels and tires depending on model.  Keep your harvest moving smoothly and take fewer trips to the truck with the Unverferth lineup of dual auger grain carts.
Specifications
Model
20-Series Dual-Auger
Category Name
Agriculture
Year
2022
Sale Type
New
Manufacturer
Unverferth
augers

Dual-Auger Harvesting Power

Augers

  • The 20" diameter horizontal floor auger feeds the 24" vertical auger on model 2020 for unloading speeds up to 1,000 bushels per minute or the 22" vertical auger on models 1620, 1320 and 1120 for unloading speeds up to 850 bushels per minute
  • Exclusively designed 3/8” thick max-edge auger flighting features 1/4” thick Abrasion Resistant (AR400) strips added in high volume areas to extend the flighting life for long-term, trouble-free use.
    • AR400 material is a high-carbon alloy steel that is harder and increases the durability of the steel.
    • Electronic balancing of the upper and lower auger flightings provides smooth operation at all speeds.
    • Two-point auger engagement between the upper and lower vertical auger sections ensures a smooth transition of grain and reduces shock during startup.
    • Patented rubber cushion auger connection protects the upper and lower vertical augers from harsh tractor PTO engagements which reduces stress and extends the driveline life.

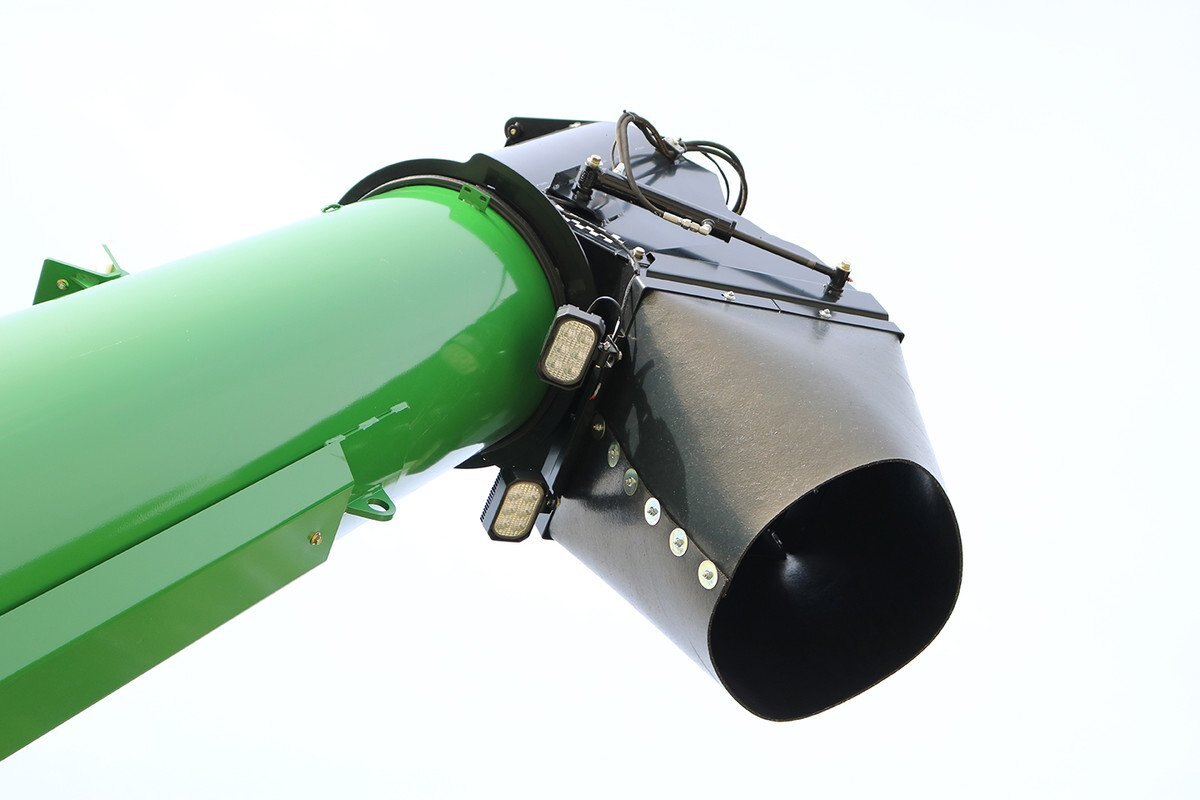

  • Three high-output LED spotlights located on the unloading auger downspout feature a compact design and durable construction for convenient nighttime operation.

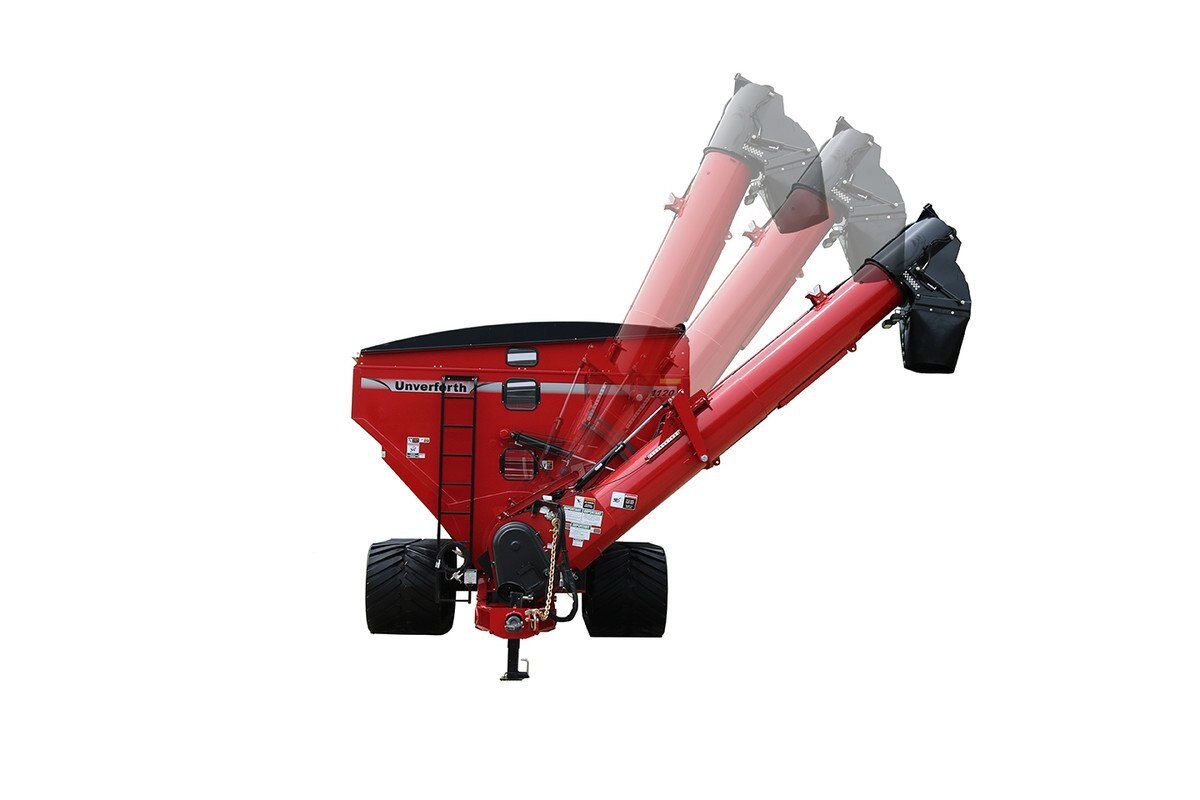

  • Pivoting vertical unloading auger adjusts from 16' 6" to 10' 6" in height which allows the operator to lower the auger to the truck when unloading and raise the auger when pulling away
    • Adjust auger reach up to 8' 11" from the cart for precise grain placement without repositioning the grain cart

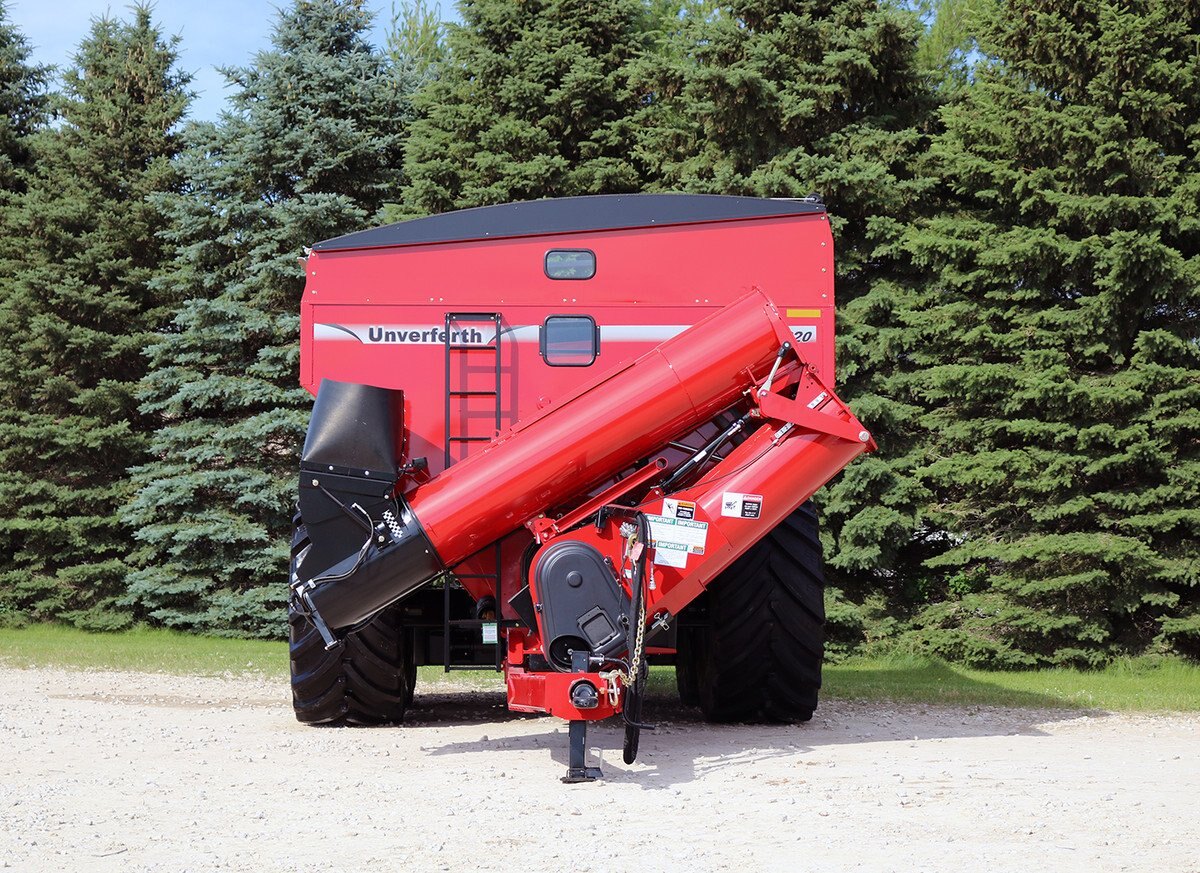

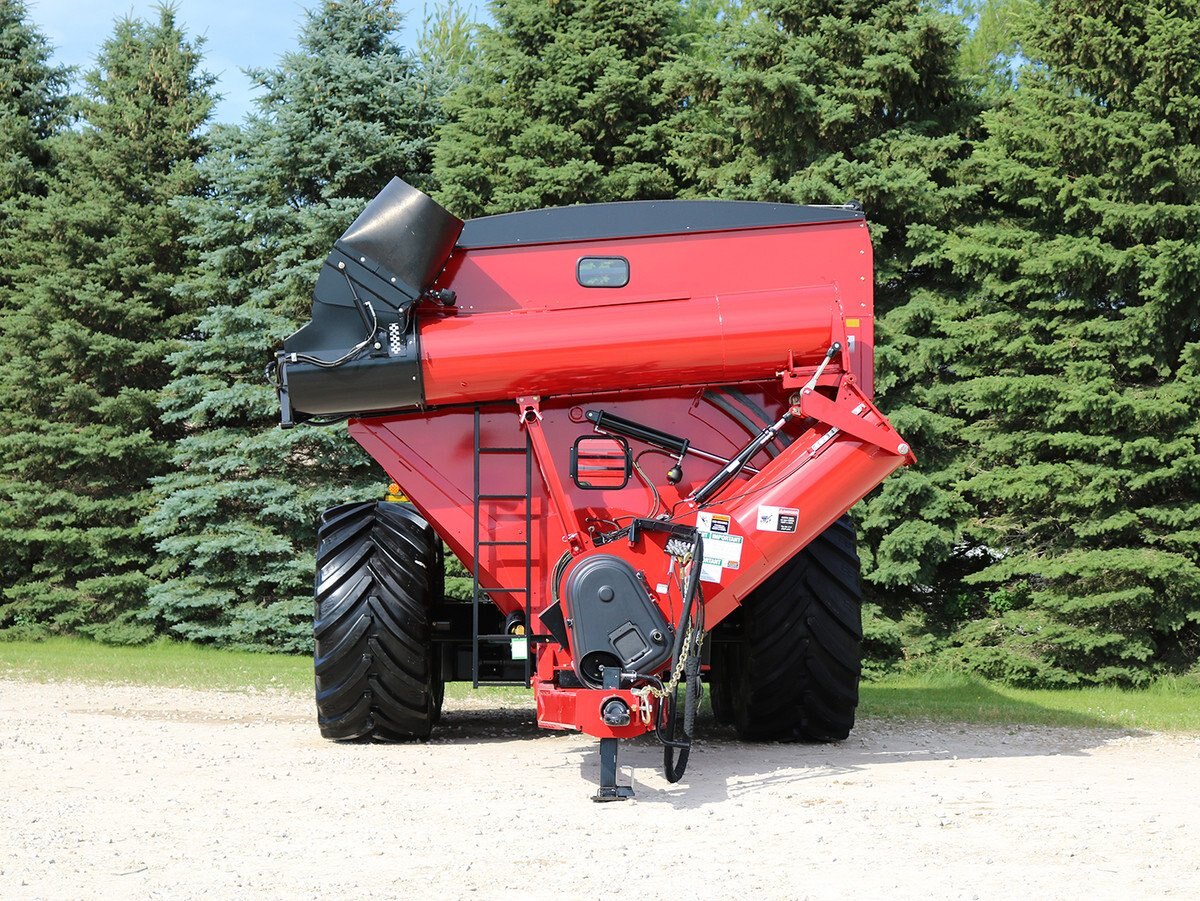

  • The unloading auger fits completely within the cart's width for transport and storage ease
  • Easy-to-operate auger stand provides in-field position for auger, resulting in quicker raising and lowering

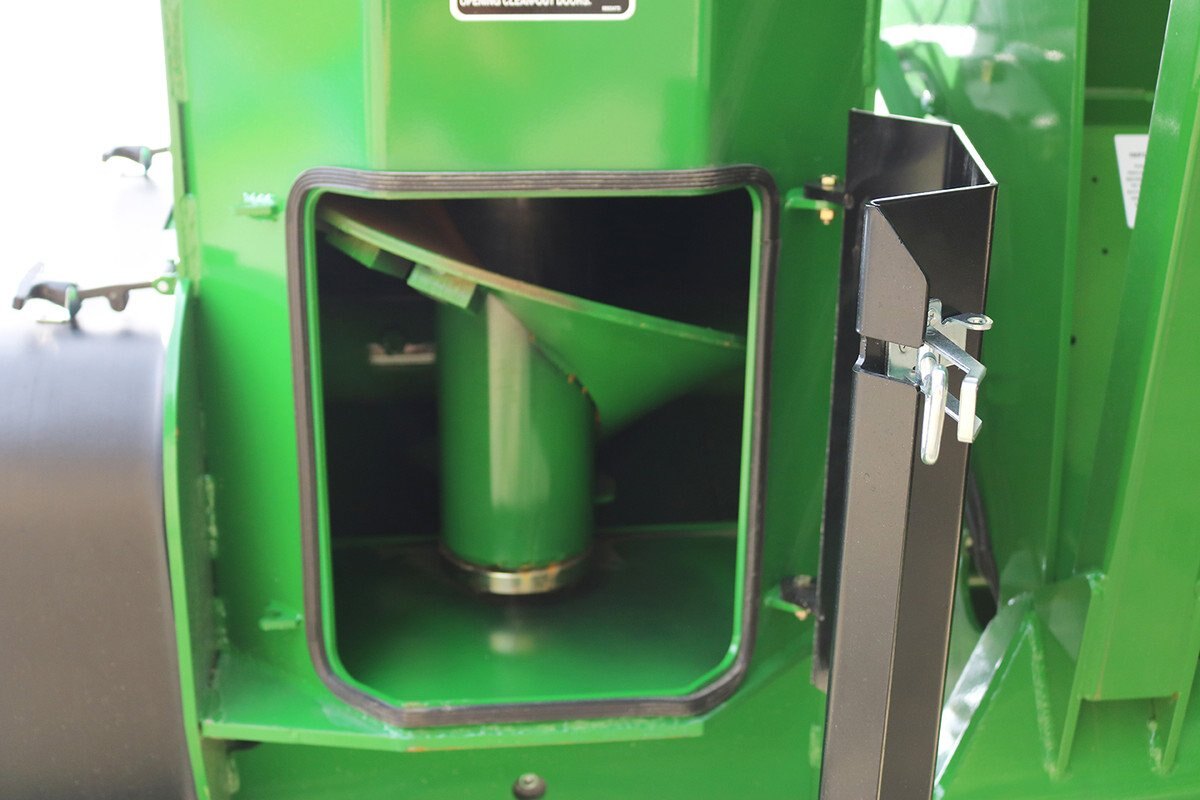

  • The vertical auger's hinged cleanout door features tool free access which allows for convenient pit dumping and cleanout

Downspout

  • Standard bi-directional downspout allows you to easily move the downspout in-and-out for precise grain placement
  • An optional pistol-grip joystick remote provides 4-way downspout operation which allows the operator to move the downspout left/right and in/out for easily topping off trucks
    • The optional joystick also controls the auger pivot up/down, auger raise/lower and flow door open/close

Drivetrain

  • The exclusive drivetrain design on Unverferth dual auger grain carts combines a belt drive for the 20" horizontal auger and a heavy-duty direct-drive 90-degree gearbox for the vertical auger

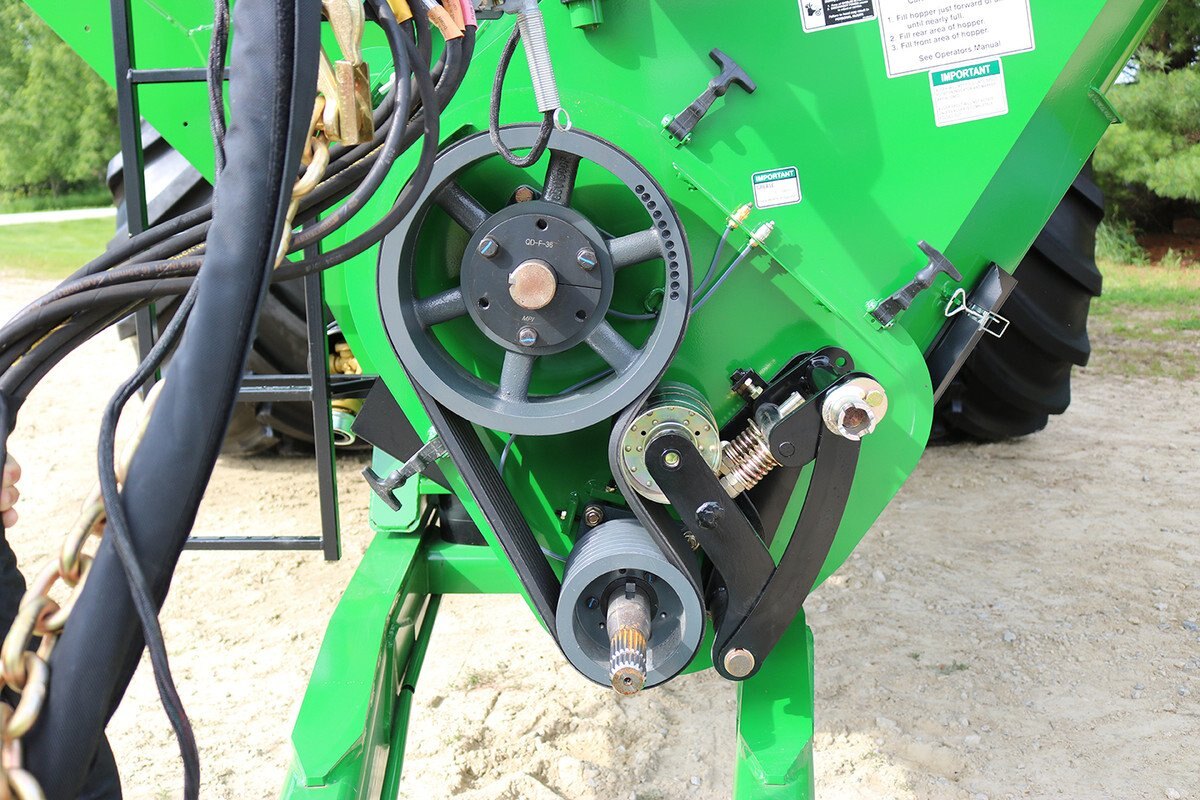

  • Belt-drive features dual, four-strand belts and dual spring-loaded tensioners for long life and easy maintenance
  • Floor auger can be manually disengaged if needed
  • Quick-couple 1000 RPM P.T.O. shaft with overrunning friction clutch helps protect driveline
tank

Large Carrying Capacities

Tank Design

  • Large carrying capacities of 2000, 1600, 1300 and 1100 bushels to meet your operation's needs
  • The 20-Series double auger grain cart design allows the tank to have a lower profile and low center of gravity for in-field stability and easy combine unloading
  • The steep floor slopes, graphite-coated interior and recessed floor auger intake provide quick and clean unloading
  • Standard, 16" hydraulic flow-control gates over the floor auger allow the operator to meter the grain flow
  • Rear, single-point opening floor auger panels permit easy clean out between crops
  • Ergonomic side-mounted ladder extends away from the grain cart for easy access to the top of the tank.
  • Interior tank-mounted LED spotlight allows the operator to easily check the tank’s contents at night.
  • Three front and one rear shatterproof windowsmake for convenient load checking
  • The exclusive manufacturing process crimps sides for added strength and a sleek appearance
  • Exposed seams are silicone sealed for corrosion resistance
  • Flashing L.E.D. amber and red taillights with SMV sign and transport chains for safe road transport
  • Durable top coat of high-grade enamel paint is baked on in tractor red or green for a smooth, automotive-like finish

Weatherguard Tarp

  • Standard Weatherguard rollover tarp protects the tank’s contents and features a custom-design for a sleek appearance and easy operation.
    • Low-profile tarp bows are reinforced to eliminate sagging and the heavy-duty, 18 oz. black canvas can withstand harsh weather conditions.
    • Semi-trailer locking design provides optimum protection from high winds and moisture.
undercarriage

Heavy-Duty Construction

Frame

  • Rubber-cushioned tongue suspension provides a smoother ride over the roughest terrain
  • Tubular steel mainframe, 12-gauge steel shell, reinforced gusset wheel hub design and special alloy, stress-proof spindles contribute to the durability of the grain cart
  • Heavy-duty 12,000 lb. drop-leg jack for safer storage and standard transport chains for added safety

In-Line Fixed Tandems

  • Available on 2020 and 1620 double auger models
  • Oscillating in-line tandems are fixed for an economical design that provides high-flotation for reduced compaction
  • 12-bolt hubs and a heavy-duty frame structure ensure long-term trouble-free use
  • Model 2020 features 1050/50x32 tires and model 1620 features 900/60x32 tires

High-Flotation Single

  • Available on 1320 and 1120 double auger models
  • Choose 76-50.00x32 or 1250/50x32 on models 1320 & 1120 or 35.5x32 or 1050/50x32 tires on model 1120 only

Walking Tandem Duals

  • Available on 1320 and 1120 double auger models
  • Innovative design allows the cart to trail easily through the field and features independent operation from front to rear, allowing the cart to "walk" over obstacles
  • Can be adjusted for 30" or 36" row spacings
  • The entire wheel assembly swings out for easier tire/wheel maintenance

Equalizer™ Track Systems

  • 42" wide industry-exclusive rubber track belt for the greatest compaction-reducing undercarriage and is molded as 1 piece for the greatest strength and durability!
  • Patented design features 8° of side-to-side camber and 20° of front-to-back pivot with independent movement of each track to provide uniform ground contact on uneven terrain for optimum flotation
  • Available on 2020, 1620 and 1320 double auger grain cart models:
    • 42" wide rubber track with 105" of ground contact length provides a footprint greater than 60 square feet!
    • Four cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation
  • Available on 1320 and 1120 double auger models:
    • 42" wide rubber track with 87" of ground contact length provides a footprint of over 50 square feet!
    • Two cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation
  • Shallow tread belt design for greater flotation and traction
  • 40" main end-wheels feature 10-bolt hubs for added durability
  • All end-wheels and mid-rollers feature hubs that are greaseable and triple-lip seals with a steel guard for optimum lubrication
  • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution
  • Standard auto-greaser system for automatic application at more frequent intervals for consistent lubrication

Traditional Track System

  • Exclusive 36" rubber track belt is molded as 1 piece for maximum strength and durability
  • 40" main end-wheels feature 10-bolt hubs for added durability
  • All end-wheels and mid-rollers feature hubs that are greaseable and triple-lip seals with a steel guard for optimum lubrication
  • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution
  • Available on 1620, 1320 and 1120 models:
    • 36" wide rubber track with 105" of ground contact length
    • Four cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation
  • Available on model 1120:
    • 36" wide rubber track with 90" of ground contact length
    • Two cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation

Economical Track Option

  • Available on model 1120 with a 36" wide rubber track belt that is molded as 1 piece for the greatest strength and durability
  • 32" main end-wheels feature 8-bolt hubs for added durability
  • Two cast, pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and give the track 75" of ground contact length
  • All end-wheels and mid-rollers feature hubs that are greaseable and triple-lip seals with a steel guard for optimum lubrication
  • Hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution
uharvest

UHARVEST PRO GRAIN CART SCALE

Your complete ISOBUS grain cart scale and harvest data solution!  By utilizing ISOBUS technology, the user can operate the UHarvest® Pro grain cart scale and data management system on the virtual terminal display in the tractor, eliminating the need for batteries and extra monitors in the cab.  Simply plug into the ISOBUS port and you’re ready to go!  With a free subscription to Slingshot® reporting, you have a complete data management solution that seamlessly integrates with most crop insurance requirements.  Need to send your data to the cloud?  Simply connect your mobile device with cellular data to the Bluetooth signal and open the free UHarvest Pro app to make it happen!

Standard Features

  • The UHarvest Pro grain cart scale and data management system works on any ISOBUS Virtual Terminal display. The easy-to-use platform permits easy setup and operation directly from a monitor that you already have in the tractor cab.  No need for additional monitors, cabling or batteries!
  • The harvest data structure allows you to track each load using a grower, farm and field structure as well as truck, destination and crop variety for complete harvest data reporting.
  • Easily add up to 5 custom crop types along with the included crop types. Plus, with UHarvest Pro, you can setup truck and bin capacities to help monitor your harvest production and storage requirements.
  • Accu-Save automatically records loads using the proximity sensor mounted on the driveshaft of the grain cart for the most accurate and complete harvest record keeping possible.
  • Hitch weight management feature allows the operator to maintain optimum tractor and cart control by keeping the grain load evenly distributed.  This feature not only monitors grain and total cart weight, it also shows real-time hitch weight and a color gauge to avoid overloading the hitch during loading.
  • Use the Combine Verify screen to easily calibrate the combine yield monitor with one touch. This calibration event is saved in the UHarvest Pro system once the verification process is completed.
  • Slingshot cloud reporting is included with every purchase of the UHarvest Pro grain cart scale system.  Slingshot is a secure, first-of-its-kind, web-based system that lets you send, store and share your harvest data.  Using the free UHarvest Pro mobile app, you can easily send files from the field on a mobile device with cellular connection to your Slingshot account.
  • The free UHarvest Pro mobile app allows you to send your harvest data to Slingshot directly from the field.  Once you have connected your mobile device to the Bluetooth connection provided by the GCM, launch the app and you're ready to go.  Upload once a day or once a season. It's easy to use and completely up to you! (available on IOS and Android devices).

Optional Features

  • The optional Accu-Load technology provides quick and easy loading of trucks by closing the grain cart’s flow gate when the desired weight is unloaded.  After you’ve installed the HCV (hydraulic control valve) on the cart, simply push the “Auto” button for precise weight unloading.  Each truck weight is matched to the truck name for easier operation.  The operator can then focus on topping off each truck and proper grain placement.
  • Want to easily send a report to your crop insurance agent that includes the actual dry bushel count? Consider it done with the optional Moisture Sense system. It measures grain moisture as it leaves the cart and averages the content of each load, then converts all grain unloaded to standard dry bushels for the ultimate in harvest record keeping.
specifications
Specification Model 2020 Model 1620 Model 1320 Model 1120
Loaded Tire Ground Pressure - P.S.I. calculated at the 3" penetration level.
For use as a comparative guide in choosing between various tire options.
Capacity (bushels) 2000 1600 1300 1,100
Engine H.P. 400 300 250+ 225+
Loaded Tongue Weight (lbs) 6000 5500 5400 5200
Empty Tongue Weight (lbs) 4000 4000 3550 3400
Auger Diameters (vertical/horizontal) 24" / 20" 22" / 20" 22" / 20" 22" / 20"
Unload Speed (bu./minute). 1000 850 850 850
Flighting Thickness 7/16" 7/16" 7/16" 7/16"
Hub Size / Spindle Diameter - - 12-bolt / 6" 10-bolt / 4 1/2"
Hydraulic Remotes Required 4 4 4 4
Hopper Length 29' 25' 4" 22' 22'
Hopper Width 13' 10" 11' 10" 11' 10" 11' 10"
Auger Side Reach Max - measured to inside edge of spout 8' 2" 8' 5" 9' 1" 9' 1"
Auger Side Reach Min - measured to inside edge of spout 4' 5' 1" 3' 4" 3' 4"
Overall Transport Length 37' 10" 34' 2" 30' 10" 30' 10"
Hitch to Center of Axle

23' 3" Track

19' 6" Front Tandem

21' 10" Track

18' Front Tandem

20' 4" Single

19' 3" Front Tandem

20' 4" Single

19' 3" Front Tandem
Single Wheels and Tires
Measured Undercarriage - - 1250/50x32 Tire 1050/50x32 Tire
Empty Weight (lbs) - - 20860 18960
Hitch Height - - 2' 1' 8"
Hopper Height Low Side - - 11' 11" 10' 9"
Hopper Height High Side - - 12' 11" 11' 9"
Auger Height with Spout Straight Down - - Adj. 15' 3" - 10' 3" Adj. 15' 3" - 10' 3"
Height to Top of Auger in Unload Position - - Adj. 20' 6" - 15' 6" Adj. 20' 6" - 15' 6"
Width Outside of Tires - - 14' 1" 13' 3"
Center of Tire to Center of Tire - - 9' 10" 10'
Under Frame Clearance - - 1' 7" 1' 4"
Walking Tandem Dual Wheels and Tires
Measured Undercarriage - - 650/65x42 Tires 520/85x38 Tires
Empty Weight (lbs) - - 23000 22780
Hitch Height - - 1' 8" 1' 8"
Hopper Height Low Side - - 11' 7" 10' 7"
Hopper Height High Side - - 12' 6" 11' 6"
Auger Height with Spout Straight Down - - Adj. 15' 3" - 10' 3" Adj. 15' 3" - 10' 3"
Height to Top of Auger in Unload Position - - Adj. 20' 6" - 15' 6" Adj. 20' 6" - 15' 6"
Width Outside of Tires - - 14' 8" 13' 10"
Center of Tire to Center of Tire Inner Dual     5' 9" 6' 2"
Under Frame Clearance - - 1' 7" 1' 7"
Center of Tire to Center of Tire Outer Dual - - 12' 7" 12' 7"
Hitch to Center of Tire Rear Dual - - 21' 4" 21' 4"
In-Line Fixed Tandem Dual Wheels and Tires
Measured Undercarriage 1050/50x32 Tires 900/60x32 Tires - -
Empty Weight (lbs) 32200 27340 - -
Hitch Height Adj. 1' 6" - 1' 9" 1' 5" - -
Hopper Height Low Side 11' 11' 1" - -
Hopper Height High Side 12' 12' 1" - -
Auger Height with Spout Straight Down Adj. 16' 6" - 10' 11" Adj. 15' 3" - 10' 3" - -
Height to Top of Auger in Unload Position Adj. 20' 1" - 14' 11" Adj. 20' 9" - 15' 8" - -
Width Outside of Tires 14' 10" 13' 7" - -
Center of Tire to Center of Tire 11' 4" 11'
Under Frame Clearance 1' 4" 1' 3" - -
Hitch to Center of Tire Rear Dual 26' 10" 25' 2 1/2" - -
Tracks
Measured Undercarriage 42"x148" Equalizer 36"x148" Tracks 36"x148" Tracks 36"x131" Tracks
Empty Weight (lbs) 36640 28560 28240 25520
Hitch Height Adj. 1' 6" - 1' 9" 1' 5" 1' 4" 1' 4"
Hopper Height Low Side 11' 11' 11' 2" 10' 4"
Hopper Height High Side 12' 12' 12' 2" 11' 4"
Auger Height with Spout Straight Down Adj. 16' 10" - 10' 11" Adj. 15' - 10' Adj. 15' - 10' Adj. 15' - 10'
Height to Top of Auger in Unload Position Adj. 20' 1" - 14' 11" Adj. 20' 10" - 16' 1" Adj. 20' 10" - 16' 1" Adj. 20' 10" - 16' 1"
Width Outside of Tracks 13' 11" 11' 10" 12' 3" 12' 1"
Center of Track to Center of Track 10' 5" 8' 5" 9' 4" 9' 1"
Under Frame Clearance 1' 9" 1' 2" 11" 11"
Bushel capacities were measured with #2 corn at 15% moisture (56 lb test weight)
Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice .
Loaded Tire Ground PSI Chart
Undercarriage Model 2020 Model 1620 Model 1320 Model 1120
42"x148" Equalizer Tracks 16.25 13.08 11.07
42"x131" Equalizer Tracks     13.06 11.47
36"x148" Traditional Tracks 18.66 14.97 12.63 11.09
36"x131" Traditional Tracks       13.11
36"x112" Economical Tracks       14.66
1050/50x32 In-Line Fixed Tandems (185A8 LI) 22.22
900/60x32 In-Line Fixed Tandems (185A8 LI)   18.17
520/85x38 Walking Tandem Duals (155A8 LI)       20.92
520/85x38 Walking Tandem Duals (173A8 LI)       25.56
520/85x42 Walking Tandem Duals (165A8 LI)     21.13 18.68
650/65x42 Walking Tandem Duals (168A8 LI)     21.08 18.64

IF 1250/50x32 (201A8 LI)

IF 1250/50x32 (188A8 LI)

     16.77 14.60
1250/50x32 Singles (188A8 LI)       16.96
1050/50x32 Singles (178A8 LI)       21.25
35.5x32 Singles (193A8 LI)       26.41
Videos

Videos

Documents
