Unverferth Equipment Seed Runner Model 5000 Bulk Tender

  • Unverferth Equipment Seed Runner Model 5000 Bulk Tender
  • Unverferth Equipment Seed Runner Model 5000 Bulk Tender
  • Unverferth Equipment Seed Runner Model 5000 Bulk Tender
  • Unverferth Equipment Seed Runner Model 5000 Bulk Tender
  • Unverferth Equipment Seed Runner Model 5000 Bulk Tender
  • Unverferth Equipment Seed Runner Model 5000 Bulk Tender
  • Unverferth Equipment Seed Runner Model 5000 Bulk Tender
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Unverferth Seed Tenders

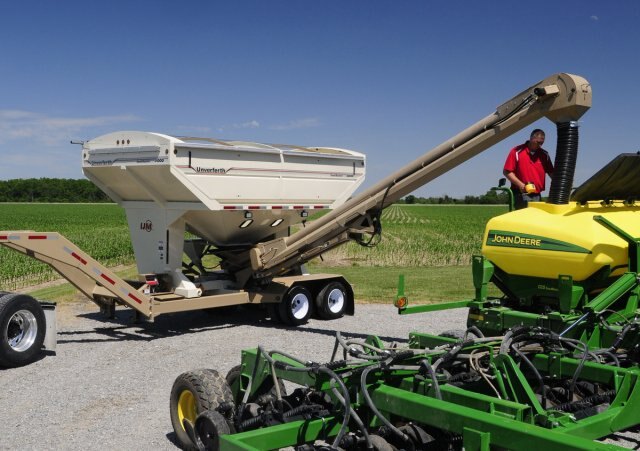

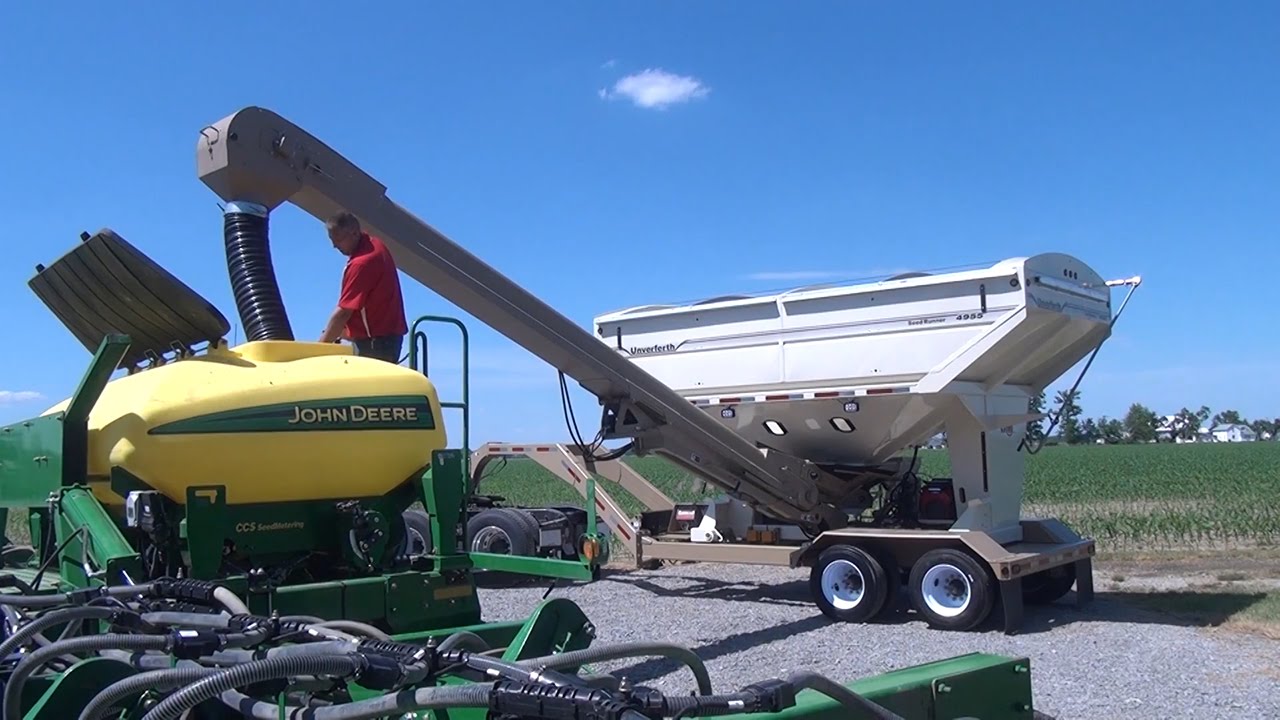

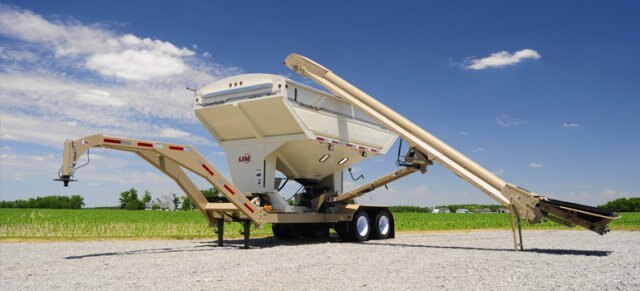

The Seed Runner® model 5000 is designed specifically to keep pace with today’s largest and fastest planters. The model 5000 features a 500-seed-unit capacity and a two-stage conveyor – a low-profile intake coupled with a tubular loading conveyor – for 90 inches of vertical-height adjustment and 24 feet of reach for quick, convenient and gentle unloading.
  Features

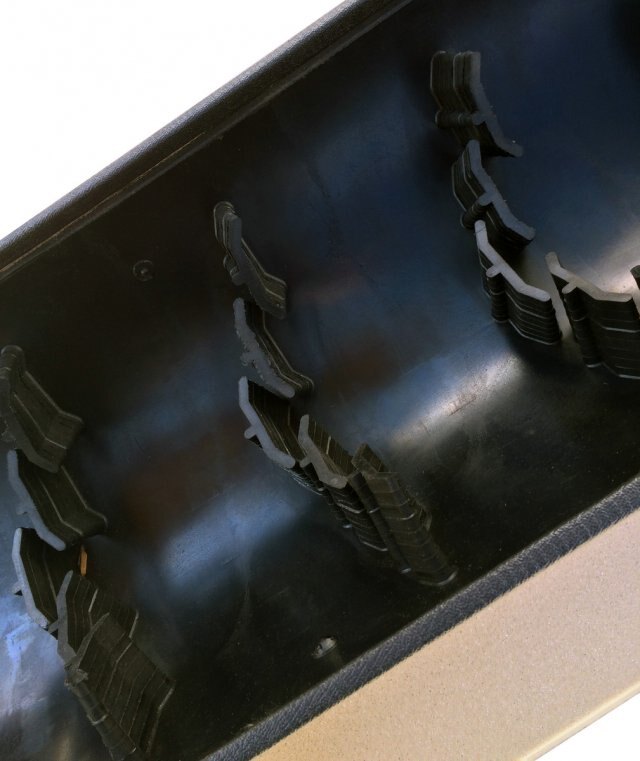

  • Innovative two-stage conveyor design for quick, gentle handling of all seed types; crescent-shaped cleats on intake conveyor belt gently transfers seed from the tank to a 10-inch diameter tube with patent pending 15-inch belt featuring cupped rows of offset cleats

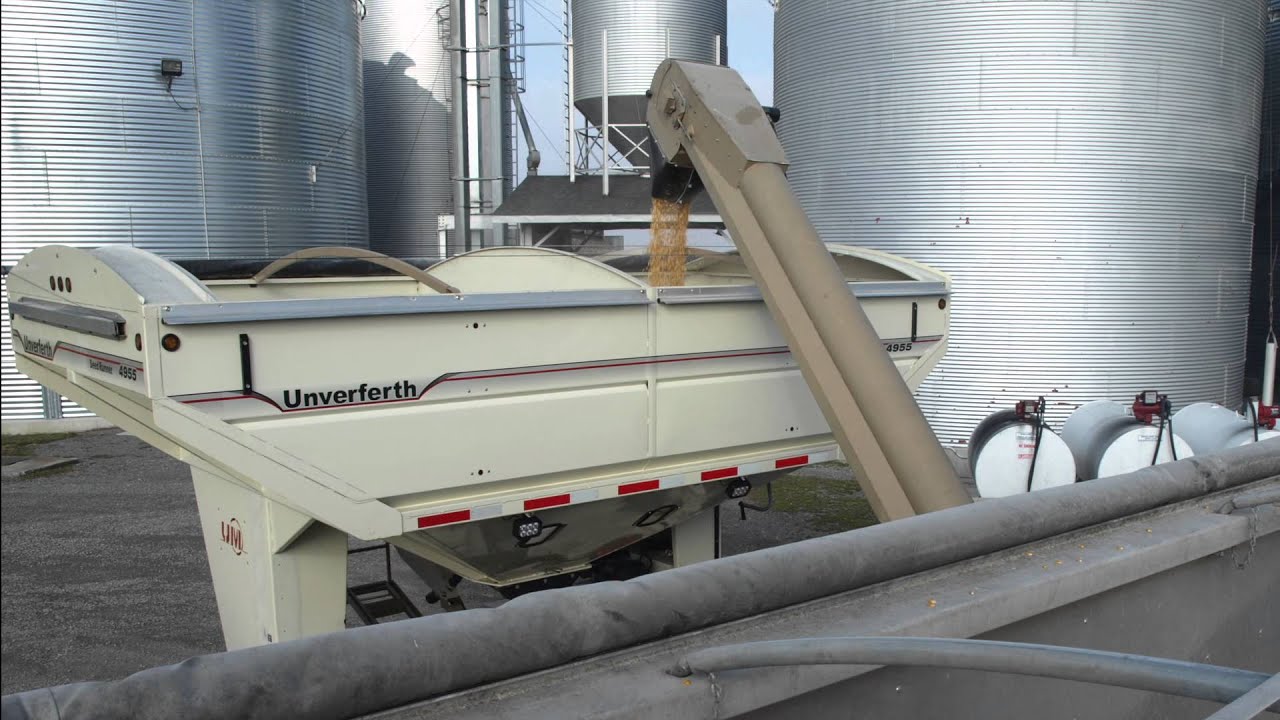

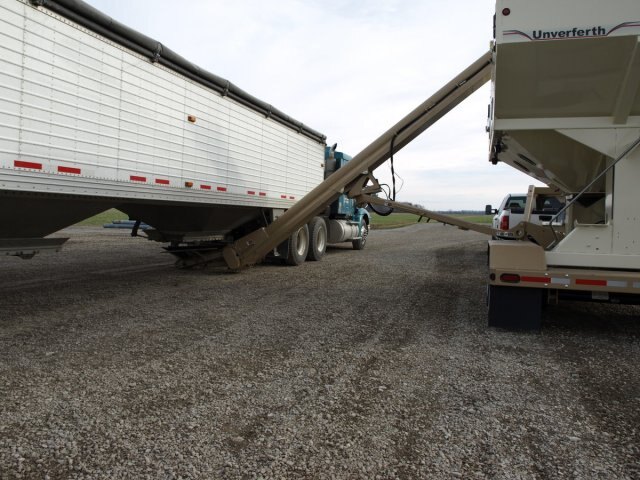

  • Exclusive intake conveyor also provides the ability to self-fill directly from a grain trailer for added convenience
  • Unloading speed up to 45 bushels per minute for a quick return to planting
  • Standard 7-function wireless remote control for one-person loading and unloading convenience.
  • Electronic conveyor engagement delivers gentle starts and quickly accelerates to operating speed for extended belt performance.

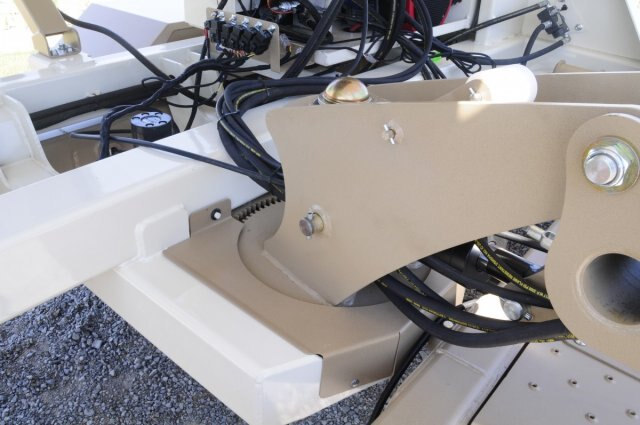

  • Conveyor powered by 6-cubic-inch, top-mounted hydraulic motor to keep the belt tight for smooth operation and longer belt life
  • Rollover tarp made of 18-ounce canvas and features cable tensioning for quick, smooth operation
  • Heavy-duty undercarriage with gooseneck hitch, tandem 16,000 lb. axles, spring-ride suspension and dual wheels for greater maneuverability

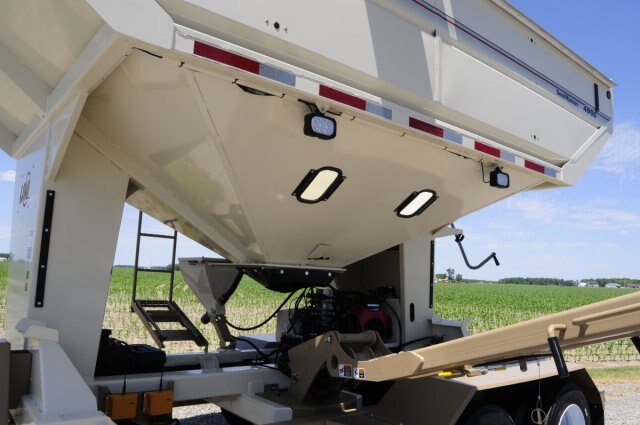

  • 4-wheel electric brakes, transport chains, reflective striping, LED lighting – including clearance lights – for safer road travel
  • Trademarked ivory and tan finish with silicone-sealed seams for long-lasting finish
  • Hydraulics powered by reliable, electric-start Honda engine producing 690 cc (22 gross HP) for optimum performance
Specifications
Model 5000 Specifications
Overall length - transport 32’5”
Overall width - transport 8’6”
Overall height - transport 11’11”
Overall load height 11’
Box length 16’8”
Box width 8’6”
Box height 9’6”
Conveyor length past the hitch 4’
Undercarriage deck height 2’4”
Undercarriage under-frame clearance 1’1”
Conveyor height in transport position 8’10”
Conveyor maximum unload height 16’6”
Conveyor reach at maximum unload height 16’3”
Conveyor reach at minimum unload height 19’9”
Approximate empty weight 11,150 lbs.
Loaded tongue weight 6,700 lbs.
Lighting connector 7-pin flat
Standard downspout reach (4’ flex spout) 40’
Maximum downspout reach (3-stage spout) 50’





Specifications
Model
Seed Runner Model 5000 Bulk Tender
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Unvenferth
