Overview
Unverferth Header Transports

Today's combines, grain wagons and grain carts are designed to help you achieve one key goal - a fast, efficient and timely harvest. The Unverferth® Roadrunner header transport helps deliver exactly that.

Its Innovative design and Quality manufacturing characteristics include tricycle front wheels, tandem rear axles and highway speed-rated tires that get you down the road and into the next field as quickly as possible.
  Features
  • The Roadrunner header transport features total, tool-free patented adjustability for easily changing rest bracket location
  • The upper rest bar allows full width support of the combine head or grain platform, and it contains storage space for extra cutter bars
  • Upper rest bar features four-way adjustability for the greatest flexibility for carrying several different heads and platforms with one unit
  • The tongue is length-adjustable from 57" to 81" to match individual towing needs and telescopes up to 91" for ease of hitching
  • The tricycle front wheels facilitate maneuvering for tight turns, and the tongue rotates fully under the frame so less space is needed during storage
  • Standard-equipment front molded-plastic fenders rotate with the wheels to minimize road damage to combine heads
  • Electric cord with round 7-pin blade-style connector is both length-adjustable and lockable for added life and convenience
  • Front and rear axles feature torsion-flex suspension with highway speed-rated tires keep the Roadrunner smooth and stable when towing
  • Adjustable rear axles for matching your brand or style of head or platform
  • The lower rest bar maintains its rigidity to carry the heaviest headers

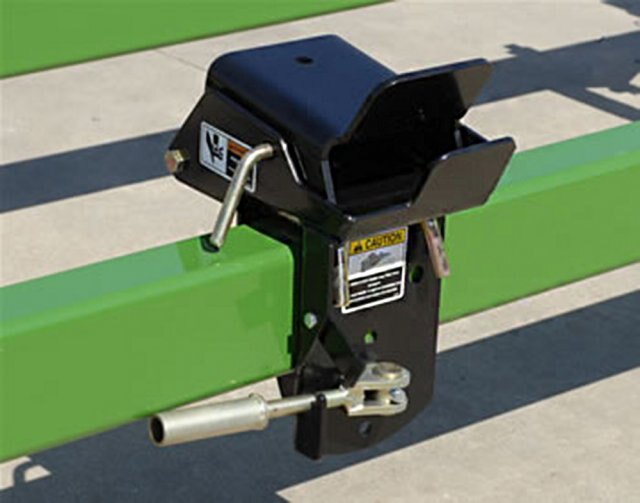

  • 12.5" wide rest brackets feature patented cam-lock handles for complete, tool-free adjustability, and tie downs with easy-operating ratchet for securing the load are standard equipment
  • Standard-equipment safety chain, adjustable-width LED rear light package, reflective striping and optional electric rear and/or front brakes enhance transport safety
  • When equipped with brakes, break-away auto brake engagement kit is standard
  • Available in your choice of a high-gloss finish in tractor red, green or black for optimum durability

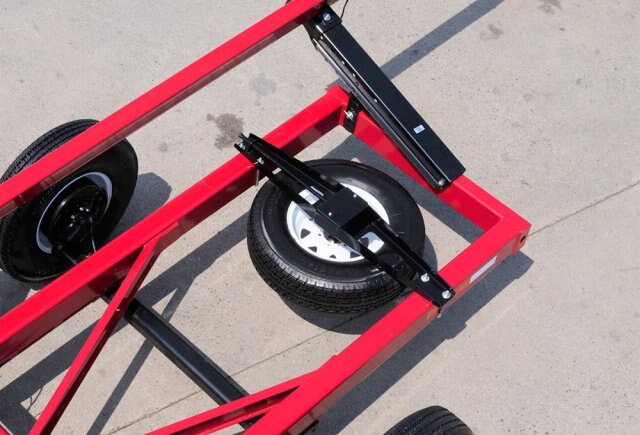

  • Optional undercarriage-mounted spare tire for easy access
Specifications
MODEL Roadrunner with Adjustable Upper RestbarModels with Adjustable Upper Rest Bar
48' MODEL 42' MODEL 36' MODELS 30' MODELS
548 542 536 530

Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice
Wheel / Axle Type Tandem / Truss Rear Axle Tandem / Truss Rear Axle Tandem /TrussRear Axle Tandem / Truss Rear Axle
Fits Grain Platforms: 48' & Smaller 42' & Smaller 35' & Smaller 30' & Smaller
Fits Draper Platforms: 48' & Smaller 42'' & Smaller 36' & Smaller 30' & Smaller
Fits Corn Heads (30" Rows): 16 Row & Smaller For specialty & narrow row heads 12 Row &Smaller 8 Row & Smaller For specialty & narrow row heads 12 Row & Smaller
Rear Wheel Tread Width 6' 6' 6' 6' 6' 6'
Overall length (Approx.) 59'5" 53'5"' 47'5" 47'5"' 41'5"' 41'5"'
Upper support tube, dimensions 6" x 3" x 49' 6" x 3" x 43' 6" x 3" x 37' 6" x 3" x 37' 5" x 3" x 31' 5" x 3" x 31'
Height adjustment, maximum 4' 0" 4' 0" 4' 0" 4' 0" 4' 0" 3' 10"
Height adjustment, minimum 3' 0" 3' 0" 3' 0" 3' 0" 3' 0" 2' 10"
Bracket height adjustment, maximum 2' 8" 2' 8" 2' 6" 2' 8" 2' 8" 2' 6"
Bracket height adjustment, minimum 2' 4" 2' 0" 2'0" 1'10" 2' 0" 1' 10"
Span between upper / lower bar, maximum 4' 4" 4' 4" 4' 4" 4' 4" 4' 4" 4' 4"
Span between upper/lower bar, minimum 2' 11" 2' 11" 2' 11" 2' 11" 2' 11" 2' 11"
Tires (Highway rated) Front & Rear 235/80 x 16 235/80 x 16 235/80 x 16 225/75 x 15 235/80 x 16 225/75 x 15
Approx. weight, with wheels and tires (lbs.) 4,000 3,500 3,220 2,960 3,080 2,820





Specifications
Model
Roadrunner
Category Name
Agriculture
Year
2018
Sale Type
New
Manufacturer
Unvenferth
Documents
