Unverferth Equipment Ripper-Bedder

  • Unverferth Equipment Ripper Bedder
  • Unverferth Equipment Ripper Bedder
  • Unverferth Equipment Ripper Bedder
  • Unverferth Equipment Ripper Bedder
  • Unverferth Equipment Ripper Bedder
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Unverferth Seedbed Tillage

The Unverferth Ripper Bedder uses deep till shanks and offset discs to create an ideal seedbed for peanuts, cotton and other bedded crops, saving you time and fuel by doing both in one pass.
  Features
  • Heavy-duty, double frame, welded construction and 6" x 6" rear bar
  • Steep-sloped, heat-treated deep-till shanks that loosen compaction to a depth of 18 inches and allow plant roots access to soil moisture and nutrients beneath the hardpan
  • Model 410 features economical, shear-bolt shank protection with 7,500 lbs. of shear pressure
  • Model 430 features auto-reset shanks with pivoting shank mounts that trip upward and rearward for avoiding in-field obstacles and quickly reset without the need for shear-bolt replacement; trip pressure of 6,000 lbs. for consistent working depth
  • Bedding disk gangs are fitted with 18" outer- and 20" inner-concave disk blades that till, raise and shape the seedbed for optimum seed germination and vigorous, early plant growth
  • Gang positioning can be staggered for shaping rounded beds that capture and retain more moisture, or opposed for a taller, peaked bed
  • Disk blades are 4-position angle adjustable from 7-degrees to 24 degrees
  • Bedder arms can be mounted offset or in-line (back to back) for a cleaner furrow

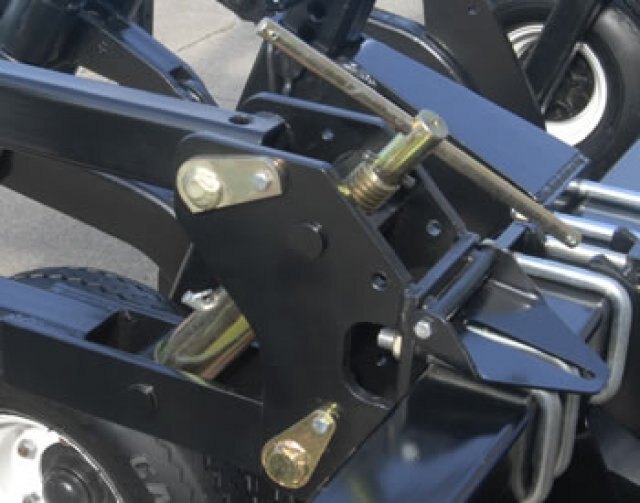

  • Bedder arms feature a parallel link design and are tool-free adjustable to one of three settings:
    • Floating – works best in rolling contours and previously tilled soils
    • Semi-rigid – works well when extra downpressure is needed but arms may still float freely downward to follow uneven soils
    • Rigid – ideal for untilled conditions and standing beds from previous crop where soil penetration is important in level conditions
  • Durable powder-coat finish of tractor red or green
Specifications
MODEL SIZE ROW SPACING Appx. Weight (lbs.) TRANSPORT WIDTH TRANSPORT HEIGHT
MODEL 430 AUTO-RESET MODEL 410 SHEAR-BOLT
With coulter Without coulter With coulter Without coulter

Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
4-row 36" 4,000 3,600 3,400 3,000 15'6" -
38 " 4,000 3,600 3,400 3,000 15'6" -
6-row 36" 5,950 5,350 5,230 4,630 21' -
38" 5,950 5,350 5,230 4,630 21' -
8-row folding 36" 8,970 8,160 8,000 7,200 16'6" 11'6"
38" 8,970 8,160 8,000 7,200 16'6" 11'6"
40" 8,970 8,160 8,000 7,200 16'6" 11'6"
12-row folding 36" 13,875 12,526 12,383 11,063 20'10" 11'9"
38" 13,875 12,526 12,383 11,063 21'3" 12'7"





Specifications
Model
Ripper-Bedder
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Unvenferth
