Unverferth Equipment

ID # 13528693

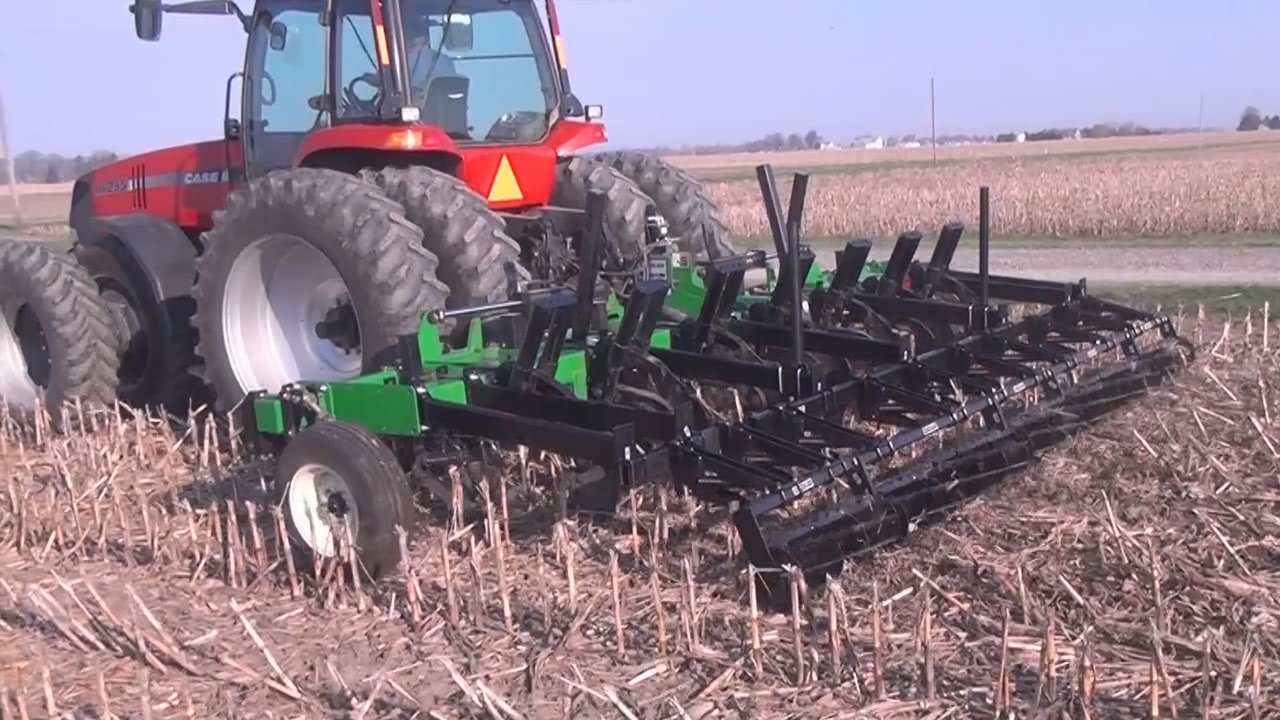

Unverferth Equipment Zone-Builder® Subsoiler

Videos
Call for Price
Overview
Unverferth Primary Tillage

Like roots in a too-small container, your performance would be less than its best if you had to live and work each day in such cramped spaces. Yields suffer when compaction keeps roots from growing freely into the subsoil for optimum nutrient and water uptake. The Zone-Builder® subsoiler from Unverferth lets plants stretch their legs (and their roots) by opening passageways through the hardpan with minimal surface disruption. Long-term university research confirms deep-tilling with tools such as the Zone-Builder implement raise yields and income.
  Features
Specifications
Model Size H.P.
Required
Approximate Weight (lbs.) Transport Width
Model 132 Auto-Reset Model 122 Spring-Cushioned Reset Model 112 Shear-Bolt Protected Stabilizer Wheels Outboard Stabilizer Wheels Inboard

Note: For rigid models with vertical row markers, add 1' 7" to  transport width with stabilizer wheels outboard. Transport width of 8-shank is 21'4" when equipped with bi-fold markers.

* Stabilizer wheels can be mounted on the ends of the mainframe (outboard) or onto the rear mainframe between the shanks (inboard).

Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.

2-shank 60-100 1610 2088 1440 - 8' 2"
3-shank 90-150 2403 2826 2167 - 8' 2"
4-shank* 120-200 2896 3460 2568 11' 4" 8' 4 "
5-shank* 150-250 3393 4098 2983 13' 10" 10' 11"
6-shank* 180-300 4001 4847 3509 16' 6" 13' 6 "
7-shank* 210-350 4553 5540 3978 19' 16'
7-shank folding 210-350 5353 6340 4778 16' 5" -
8-shank* 240-400 5161 6289 4505 21' 6"' 18' 6"
8-shank folding 240-400 5960 7088 5260 15' 6" -
9-shank folding 270-450 6530 7799 5780 16' 5" -
10-shank folding 300-500 7150 8560 6300 15' 6" -
12-shank folding 360-600 8490 10,182 7440 15' 6" -
16-shank folding 480-800 11,730 - 10,680 19' 8" -





Specifications
Model
Zone-Builder® Subsoiler
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Unvenferth
