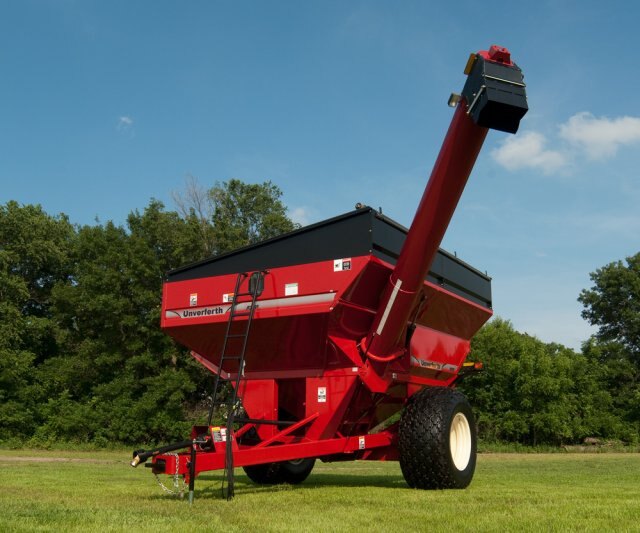

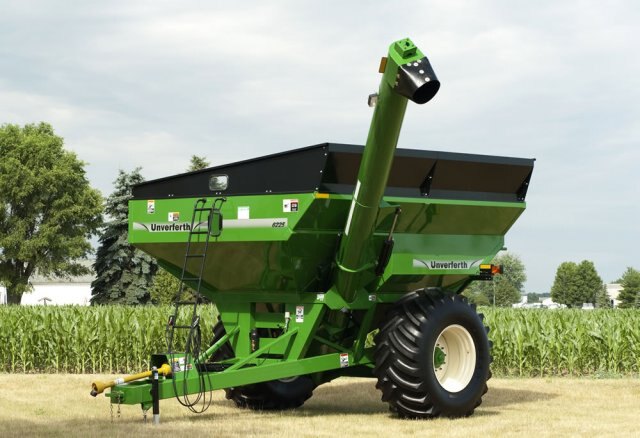

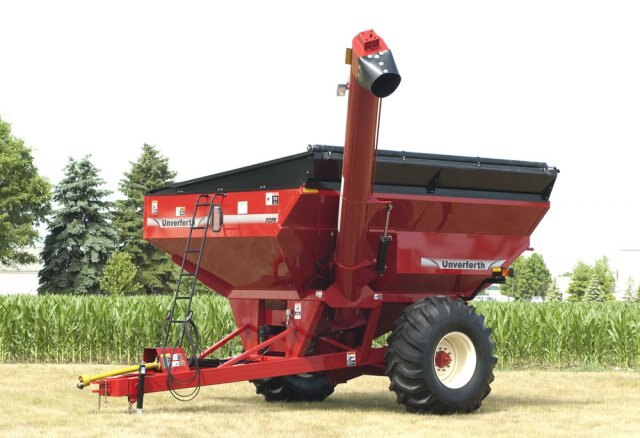

Unverferth Equipment Corner-Auger Grain Carts

  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Unverferth Equipment Corner Auger Grain Carts
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

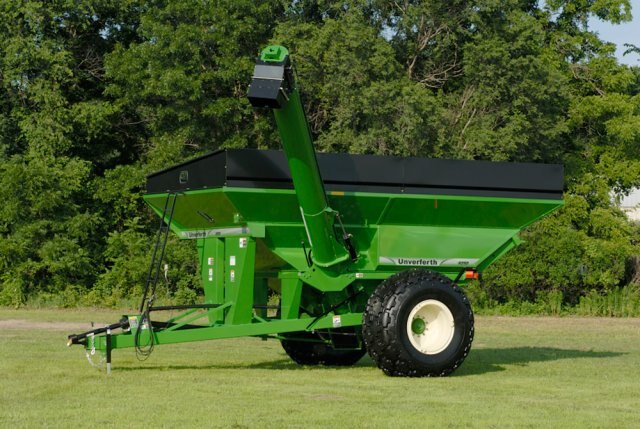

Unverferth Grain Handling

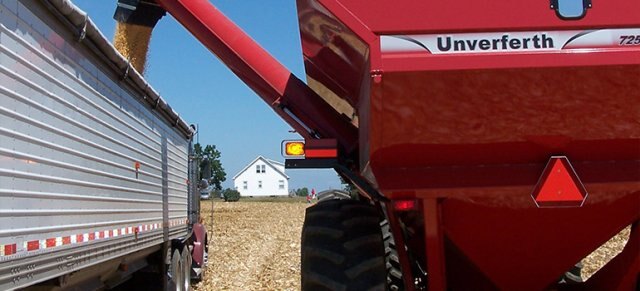

The best part of owning an Unverferth grain cart is you unload the combine on-the-go and increase harvesting efficiency by up to 30%! The patented corner auger design provides 100% unloading visibility with a unique sump design for faster unloading. With the steep-sloped sides, you're assured great clean out, even in high-moisture grain. Plus, only Unverferth grain carts are built with the High IQ characteristics of performance, durability and convenience.
  Features
  • Computer-balanced auger with 5/16" flighting provide fast unloading with enhanced drivetrain life
    • Model 9250, 8250 and 7250 grain carts are equipped with 17"-diameter augers for unloading up to 400 bushels per minute
    • Models 6225 and 5225 unload up to 300 bushels per minute with their 14"-diameter augers

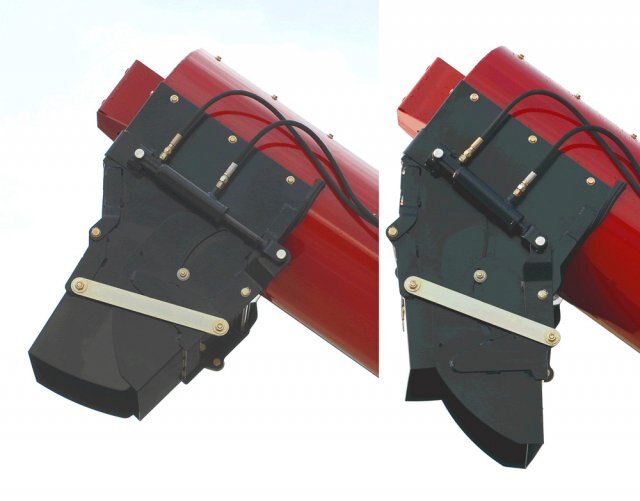

  • The auger downspout on the 50 series grain carts is hydraulically adjustable for ease of aim when unloading
  • The high-intensity halogen auger light facilitates nighttime unloading

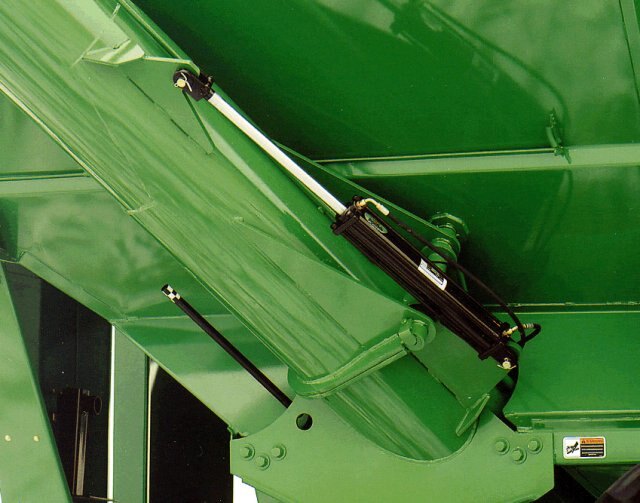

  • The hydraulic auger lock-valve ensures leak-free fitment during unloading while a solid-steel rest support keeps the auger tight and snug to the cart during transport and for convenient and efficient storage
  • The oversized gears and bearings, encased in a reinforced aluminum gearbox housing, are static-rated at 330 h.p. and dynamic-rated at 153 h.p. for long-term, trouble-free use

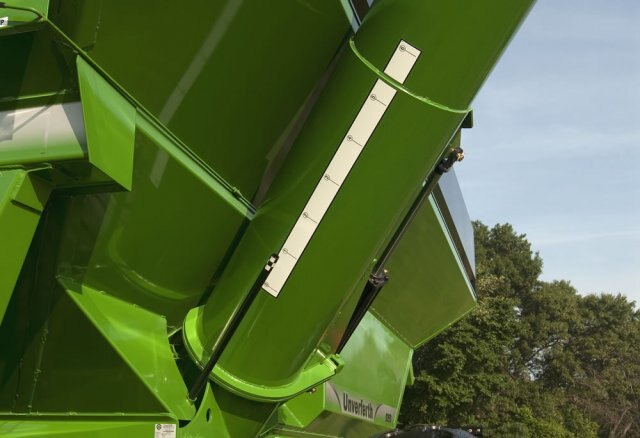

  • A highly visible flow-control position indicator is easily seen from the tractor cab

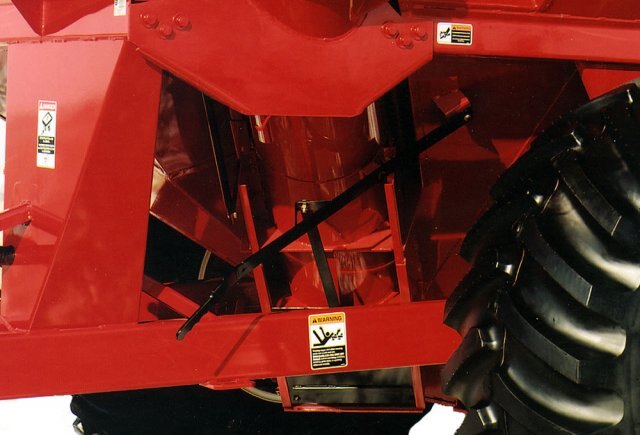

  • Easy-to-use, gravity-flow unloading door is lever-operated and can be locked open for easy clean out
  • Undercarriage options, depending on model
    • Compaction fighting
    • High-floatation single wheels
  • 50 series grain carts feature slip-clutch protected PTO, 6225 and 5225 feature shear-bolt protected as standard

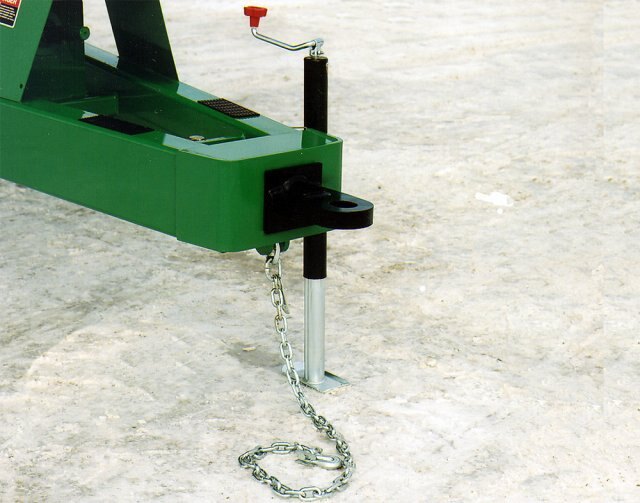

  • A Single-Tang Hitch with elongated pin opening reduces drawbar stress when traveling over uneven terrain
  • Available with a baked-on finish in choice of red or green with all seams silicone sealed for optimum corrosion resistance
UHarvest

A complete harvest data management solution, UHarvest is the first ever system offered on either a tablet or ISO screen for a complete touchscreen interface that's easy to use for anyone in your operation!  Not only can you record your grain cart load weights, you can track every detail regarding your crops, trucks, destinations and even DRY bushel count.

  • Complete Touch-Screen Operation — Easy-to-use operation from your tractor’s ISOBUS virtual terminal screen or touch-screen tablet, or both
  • Accu-Save Data Recording — Automatically records data for each load
  • Grower, Farm, Field Information — Log your harvest by grower, farm and field for detailed reporting
  • Truck And Destination Site Identification — Easily log bushels by trucks and destinations
  • Combine Verify — Easily use grain cart to assist in calibrating the combine yield monitor with one touch
  • Hitch Weight Management — Monitor load distribution during cart loading
  • USB Data Management — Easily copy UHarvest data for use in your home computer
  • Multiple User Access — Full data access available to multiple users within 400 feet of UHarvest processor
  • UHarvest Cloud Solution Powered By Slingshot® — Slingshot is a secure, web-based data management system that enables you to save and see your harvest data from anywhere

UHarvest system optional features

  • Moisture Sense Technology — Convert grain weight to dry bushels for precise harvest record keeping
  • Accu-Load Technology — Automatic grain cart unloading and shutoff at desired off-load weight
Specifications
Model Number 9250 8250 7250 6225 5225

U.S. patent #5,374,082

*Bushel capacities were measured with #2 corn at 15% moisture (56 lb. test weight)

Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
Capacity*(bushels) 1000+ 850 740 600 500
Auger Size 17" 17" 17" 14" 14"
Flighting Thickness 5/16" 5/16" 5/16" 5/16" 5/16"
Output Shaft Dia. 1-3/4" 1-3/4" 1-3/4" 1-3/4" 1-3/4"
Appr. Empty Weight (lbs) 12,330 (18,330 with tracks) 9,200 8,790 6,300 6,100
Est. Loaded Tongue Wt. (lbs) 6,100 5,200 3,820 3,600 3.200
Unload Time (bu/min) 400 400 400 350 350
Auger Reach 7'11" 7'6" 7'6" 7'3" 7'3"
Tractor H.P. Req. 200+ 180+ 150+ 140+ 130+
Tire Size 900/60x32 30.5x32 24.5x32 24.5x32 20.8x38
  A 18'3" 15'3" 15'3" 13'9" 13'9"
B 1'4" 3'9" 3'9" 7'3" 7'3"
C 21'6" 16' 16' 13'9" 13'9"
D 27'7" 24'6" 24'6" 19'5" 19'5"
E 13'7" 13'7" 13'5" 13'2" 13'2"
F 7'11" 7'6" 7'6" 7'3" 7'3"
G 12'6" 12'8" 12'1" 11'6" 11'
H 11'6" 11'1" 10'7" 10'2" 9'8"
I 1'4" 1'6" 1'6" 1'6" 1'6"
J 11'4" 10' 10' 10' 10'
K 14'4" 12'7" 12'7" 12'1" 11'9"
L 12'1" 12'1" 12'1" 12' 12'
M 11'11" 11'11" 11'11" 11'1" 11'10"
N 15' 15' 15' 15' -
O 16'6" 16'6" 16'6" 16'6" -
Loaded Tire Ground Pressure - P.S.I. Specifications calculated at the 3" penetration level.
420/80x46 Duals   17.92 16.12
520/85x42 Duals   12.80
480/80x42 Duals   15.36 13.81
20.8x38     24.40
1050/50x32 16.25
35.5x32 (20 ply) 18.52 15.36 13.81
900/60x32 25.09 20.81 18.71
30.5x32   22.89 20.59 16.11 13.71
24.5x32   27.57 24.79 19.39 16.51
23.1x26         18.39
