FEATURES

• 3500 LB and 5200 LB axles
• All axles with electric brakes
• 205/75R15, 225/75R15 wheels
• Radial tires
• Easy lube hubs
• Hinge pins zinc plated
• 7 ton telescopic cylinders
• Dump at a minimum of 46 degrees
• 4” drop axles standard
• 7k drop down jack
• All Hinges, pins have grease fittings
• Deep cycle battery

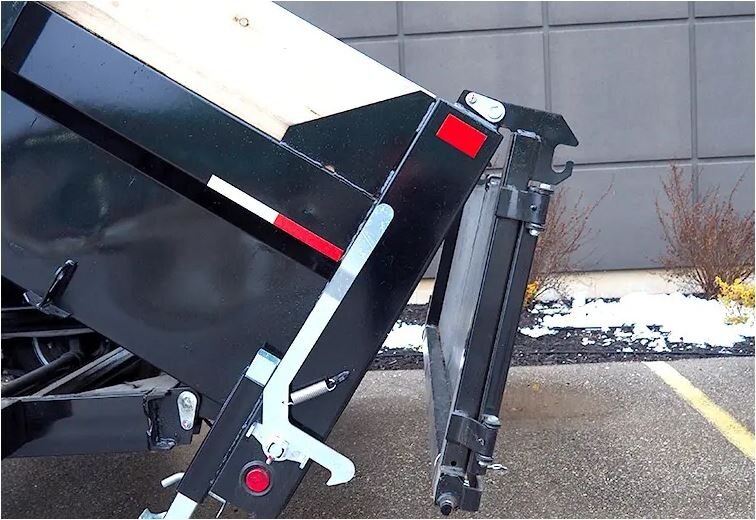

• Barn door/spreader gate
• Steel tool box with lid stay and locking latch
• Power up gravity down pump
• 5" and 6" C Channel frame
• 3" C channel floor 16" centers
• Double wall for strength and no damage on exterior wall
• 11 gauge (.125) inner wall 14 gauge (.083) outer wall
• 7 gauge (.188) floor
• 2 5/16" adjustable coupler
• LED lights
• Galvanized finish (paint on request)
• 6 heavy duty D-rings recessed inside of dump
• 28" deep sides
• 7 gauge floor

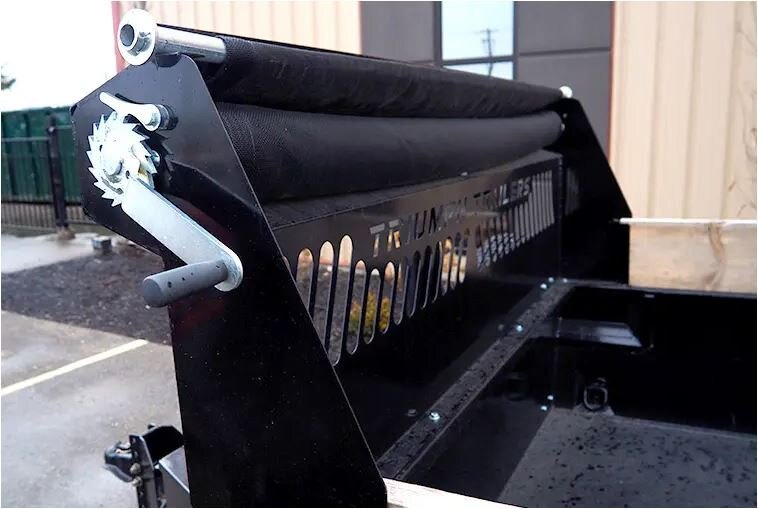

• Tarp kit built in house, fitted with bearings
• Dump prop

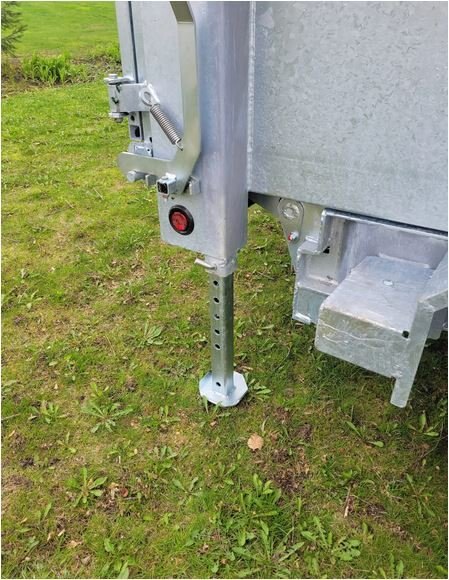

• Drop legs
• Board extension
