ID # 13239985

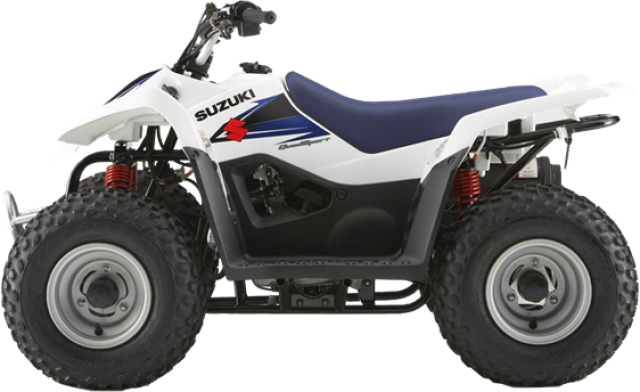

2013 QuadSport LT-Z50

  • 2013 QuadSport LT Z50
  • Video Button Maxresdefault
Videos
Retail: $2,499 CAD
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
With the QuadSport LT-Z50, there's another great way to get the whole family involved in the off-road fun. With a smooth and torquey four-stroke engine, it offers performance that's ideal for beginning riders just developing their skills. As a small and lightweight ATV, it's designed for adult-supervised beginning riders ages 6 year and older. And it has a variety of features, such as smooth running CVT automatic transmission which provides easy operation allowing the rider to focus on riding instead of shifting. Plus an electric starting system to help your youngster spend time learning to ride right and that's sure to put a parent's mind at ease.

  Features

Key Features

4-stroke youth ATV that combines modern sport styling inspired by the championship-winning QuadSport Z400 and a quiet, smooth-running engine.
Electric starting system with a keyed ignition switch, plus standard recoil backup starter.
QuadSport Z50 is designed for adult-supervised riders age 6 and older - includes many features that make learning to ride a safe and fun experience.

Engine Features

An easy-to-operate CVT automatic transmission provides easy operation and ample torque and low speeds for easy control.
Compact 49cc 4-stroke, single-cylinder, air-cooled engine designed for durability, quiet operation and low maintenance.
Simple screw-type throttle limiter allows maximum power-delivery to be adjusted to suit the rider's ability.
Three-quarter-gallon fuel tank for long operating range, as well as compact size and low weight.

Chassis Features

Single A-arm front suspension with twin independent shock absorbers, and single-shock rear suspension provide long wheel travel for a comfortable ride.
Child-size (Y-6) controls for easy operation.
Full-size floorboards keep the rider comfortable and steady.
Large diameter front drum brakes and single rear drum brake provide strong braking performance.
One-piece 7-inch wheels with tubeless tires provide a smooth comfortable ride.
Strong, high-rigidity steel frame.
Suzuki T-shaped seat similar to the QuadRacer R450 for smooth weight transition and a comfortable ride.

Utility/Convenience Features

A tether-type remote engine stop switch allows an adult supervisor to shutdown the ATV's engine when necessary.

Special

Minimum Age: 6 Years Old



Specifications
Model
2013 QuadSport LT-Z50
Category Name
ATVs
Year
2013
Sale Type
New
Manufacturer
Suzuki
Color
White
Bore Stroke
36.0 mm (1.417 in) x 48.6 mm (1.913 in)
Compression Ratio
8.4 : 1
Engine
4-stroke, air-cooled
Fuel System
MIKUNI VM13, single
Ignition
Electronic ignition (CDI)
Lubrication
Splash
Starter
Electric and recoil
Brakes Front
Drum brake
Brakes Rear
Drum brake
Curb Weight
78 kg (171 lbs)
Final Drive
D.I.D 415. 82 links
Fuel Tank Capacity
2.6 L (0.7/0.6 US/Imp gal)
Ground Clearance
120 mm (4.7 in)
Overall Length
1270 mm (50.0 in)
Overall Width
760 mm (29.9 in)
Seat Height
535 mm (21.1 in)
Suspension Front
Independent, swing axle, coil spring, oil damped
Suspension Rear
Swingarm type, coil spring, oil damped
Tires Front
AT16 × 8-7 tubeless
Tires Rear
AT16 × 8-7 tubeless
Transmission
Automatic
Wheelbase
830 mm (32.7 in)
Dry Weight
171
