Suzuki

ID # 10407660

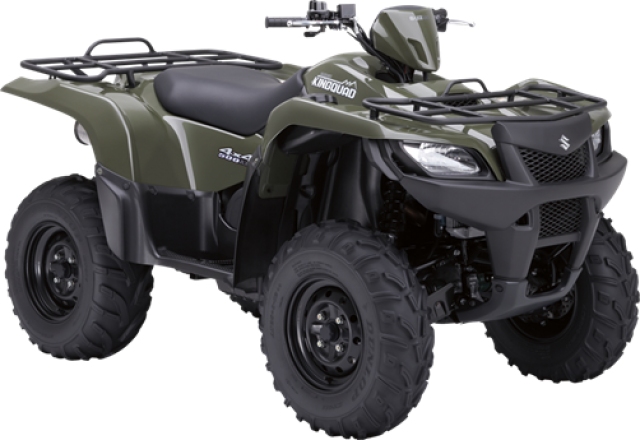

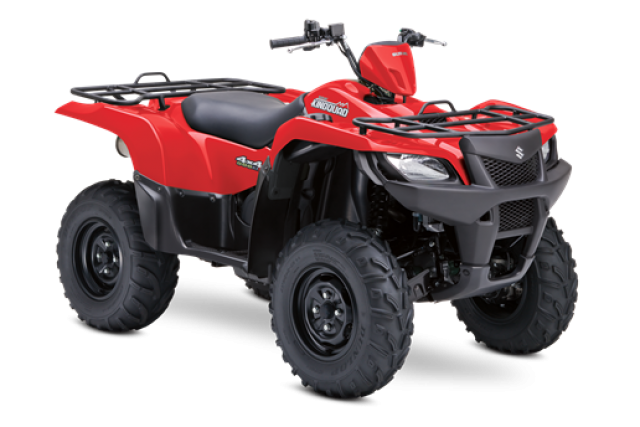

KingQuad 500AXi Power Steering

Retail: $9,499 CAD
Call for Price
Overview
Boasting the same advanced technology as the extraordinary KingQuad 750AXi, the 2011 Suzuki KingQuad 500AXi Power Steering is engineered to help you cut the work day down to size – or conquer the toughest trails. The 500AXi offers plenty of class-leading features: advanced power steering provides lighter steering and more responsive handling, while its fuel-injected 493cc engine gives the 500AXi exceptional performance. Independent rear suspension, a locking front differential and a host of other valuable features place the KingQuad 500AXi at the front of the pack.
Specifications
Model
KingQuad 500AXi Power Steering
Category Name
ATVs
Year
2012
Sale Type
New
Manufacturer
Suzuki
Color
Green, Red
Overall Length
2115 mm (83.3 in)
Overall Width
1210 mm (47.6 in)
Wheelbase
1285 mm (50.6in)
Ground Clearance
280 mm (11.0 in)
Seat Height
920 mm (36.2 in)
Curb Weight
300 kg (661 lbs)
Transmission
Automatic variable ratio (V-belt), with high-/low-range, and reverse
Final Drive
Shaft drive
Suspension Front
Independent, double wishbone, coil spring, oil damped
Brakes Front
Disc brake, twin
Brakes Rear
Sealed oil-bathed multi-disc
Tires Front
AT25 x 8-12, tubeless
Tires Rear
AT25 x 10-12, tubeless
Fuel Tank Capacity
17.5 L (4.6/3.8 US/Imp gal)
Suspension Rear
Independent, double wishbone, coil spring, oil damped
Bore Stroke
87.5 mm x 82.0 mm (3.228 in)
Engine
493cc (30 cu. in.), 4-stroke, liquid-cooled, SOHC
Compression Ratio
10.0 : 1
Starter
Electric
Lubrication
Wet Sump
Ignition
Electronic ignition (CDI)
Fuel System
Fuel injection
Warranty
12 month limited warranty.
