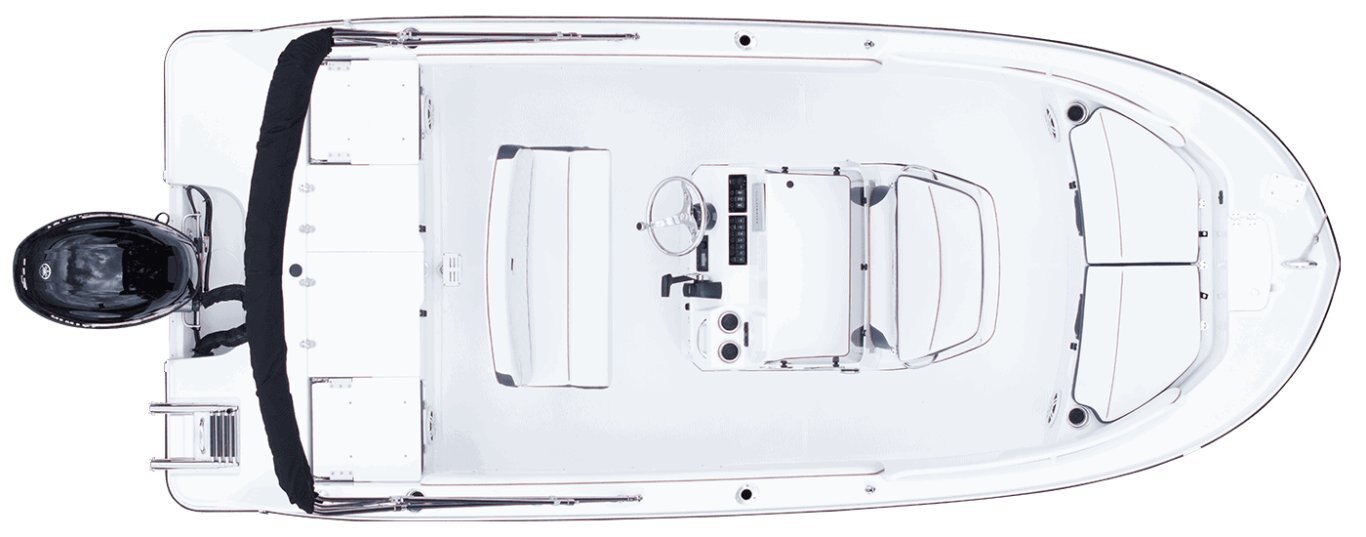

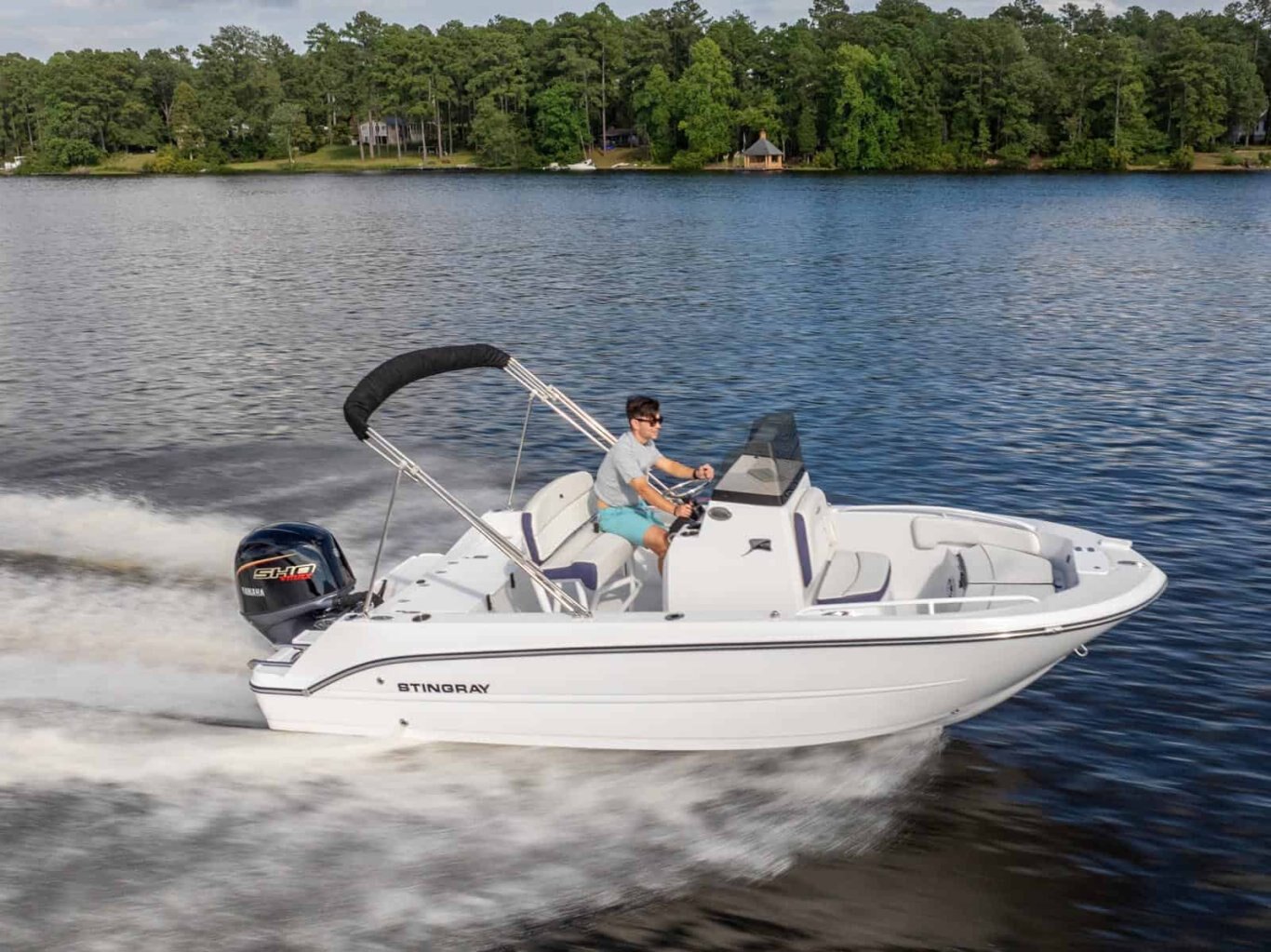

2026 Stingray 173CC

  • 2026 Stingray 173CC
  • 2026 Stingray 173CC
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault

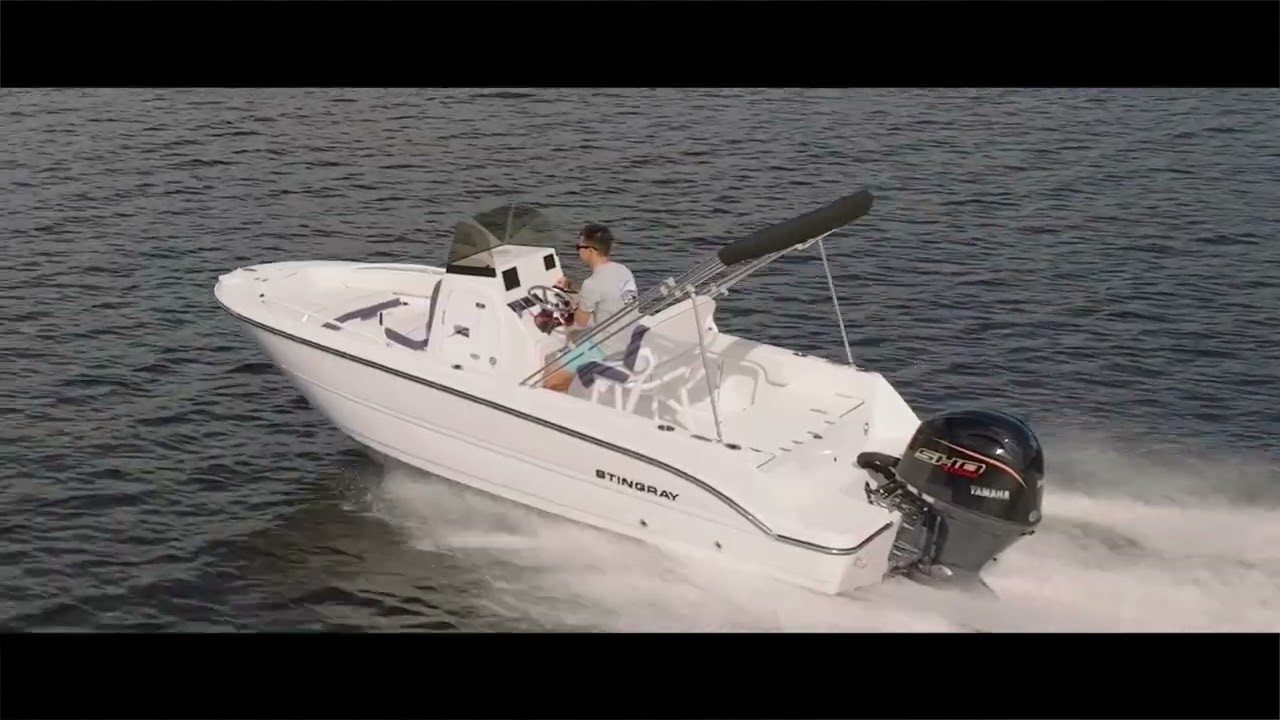

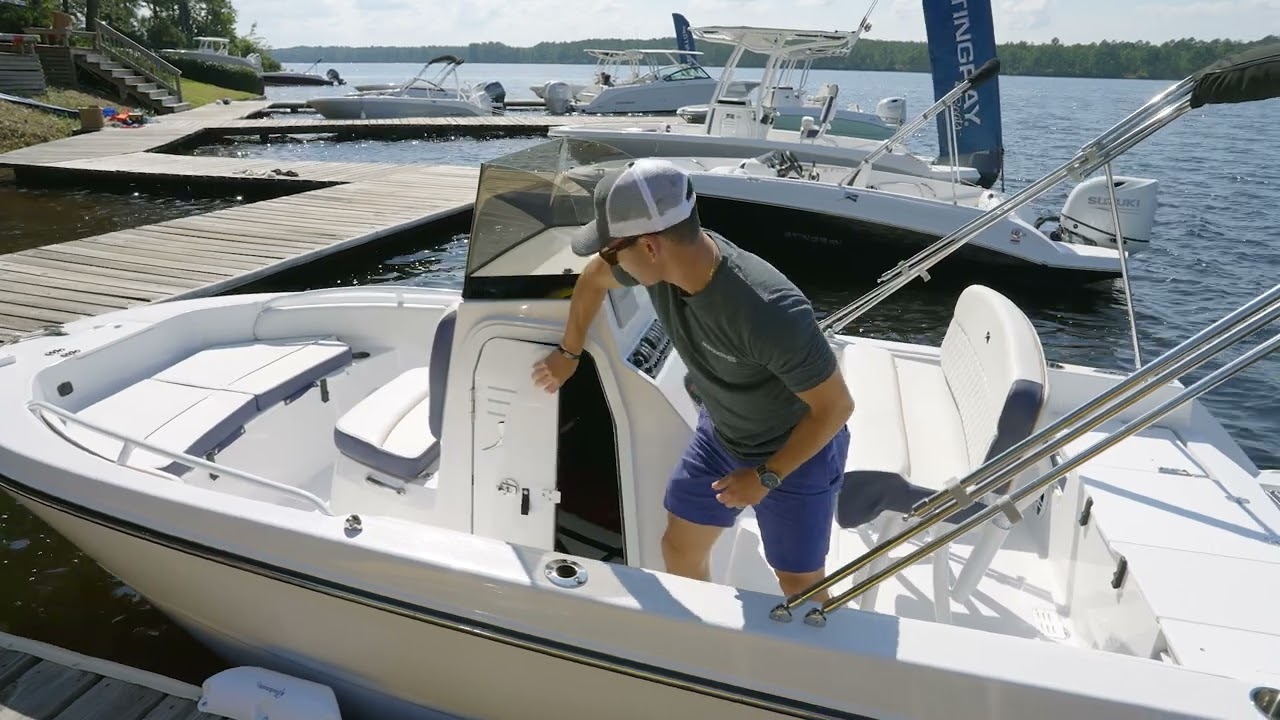

Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Our 173CC center console is an exciting new model built with our revolutionary Z-Plane hull ideal for all of your on the water adventures. There’s plenty of room for crew and gear onboard, including a cooler/storage box with overboard drain, under-seat bow storage, and an aerated livewell aft. At the helm, there’s a wide leaning post with comfortable seating, a 12V plug and dual USB ports at the dash, power trim and tilt, and a deluxe stainless steel steering wheel. The 173 also has SS rod holders, aft ladder, pull-up cleats and optional ski tow cage. And for assistance with storage, the windshield is completely removable.
Specifications
Model
173CC
Category Name
Boat
Year
2026
Sale Type
New
Manufacturer
Stingray
Beam
90" / 228.6 cm
Deadrise
18 degrees
Engine Type
O/B
Max Capacity
7 people / 2000 lb / 907 kg
Max Bow Depth
20.5" / 52.1 cm
Transom Angle
15 degrees
AVG Dry Weight
2,100 lbs / 90 HP Engine
Length Overall
17'3" / 5.3 m
Max Bow Length
23.0" / 58.4 cm
Max Engine Power
90 HP
Livewell Capacity
12+17 gal / 45+64 liter
Max Draft (Drive Up)
11.5" / 29.2 cm
Usable Fuel Capacity
30 gal / 114 liter
Max Draft (Drive Down)
28" / 71.1 cm
Cockpit Depth (At Helm)
23.0" / 58.4 cm
Ice Box / Cooler Capacity
48+68 qt / 45+64 liter
Cockpit Width (Max Molded)
74.5" / 189.2 cm
Cockpit Length (Max Molded)
162.0" / 411.5 cm
Bow Depth (Bow To Cushion Top)
8.5" / 21.6 cm
Max Depth (With Standard Windshield)
70.0" / 177.8 cm
Molded Depth (Windshield Base To Keel)
63.8" / 162.1 cm
Bridge Clearance (T-Top/Hardtop W/o External Options)
59.0" / 149.9 cm
standard features

2026 Stingray 173CCStandard Features

  • 3-Year Hull Blister Protection Plan
  • Limited Lifetime Hull Protection Plan
  • Backlit Instruments & Circuit Breakers
  • Bilge Pump 1100 GPH Auto/Man
  • Certifications: NMMA, USCG
  • Cooler/Storage Box with Overboard Drain
  • Bow Storage
  • Dash Accessory Plug 12V w/ Dual USB Ports
  • Exclusive Z-Plane Hull
  • Integrated Electric Horn
  • Stain Resistant Vinyl
  • Deluxe Stainless Steel Steering Wheel
  • Oversized Cup Holders
  • Fuel System EPA Compliant
  • Stainless Steel Package
  • Stainless Steel Multi-Step Aft Ladder
  • Stainless Steel Pull-Up Cleats
  • Self Bailing Cockpit
  • Fusion RA-60 Stereo BT-APP w/ Speakers
  • Livewell Rear
  • Removable Windshield



optional features

ENGINES

  • Suzuki DF90 20 Inch
  • Suzuki DF115 20 Inch
  • Yamaha VF90LB SHO 20 Inch
  • Yamaha VF115LB SHO 20 Inch
  • Mercury Mechanical Pre-Rig
  • Suzuki Mechanical Pre-Rig
  • Yamaha Mechanical Pre-Rig

EXTERIOR COLORS

  • Emerald Tide
  • Black
  • Oyster
  • Indigo Blue
  • Sky Blue
  • Black Cherry
  • Standard White

COCKPIT UPHOLSTERY

  • Filler Cushion- Bow

CANVAS OPTIONS

  • Bimini Top w/ SS Frame
  • Cover - Console and Seat

ELECTRICAL DISPLAY

  • Mercury Digital Display
  • Suzuki Digital Display
  • Yamaha Command Link Gauges

ELECTRICAL - GPS

  • Garmin 743 & Transducer

UPHOLSTERY COLORS

  • White/Brown
  • White/Blue
  • White/Black

COCKPIT ACCESSORIES

  • Backrest Support For Leaning Post
  • Ski Tow Cage
  • Engel Cooler Under Leaning Post
  • Fishing Package (Raw Water Washdown, Trolling Motor Harness & Recirculating Rear Well)
  • Forward Aerated Livewell Center Console
  • Reflex on Flooring
  • Reflex on Sponsons

HULL OPTIONS

  • Battery Charger
  • Dual Battery System w/ VSR & Switch
  • Battery Switch
