Stihl

ID # 15495129

Stihl Cut-off Machines

Call for Price
Overview
Cut-off Machines
Cut-off saws
Built tough

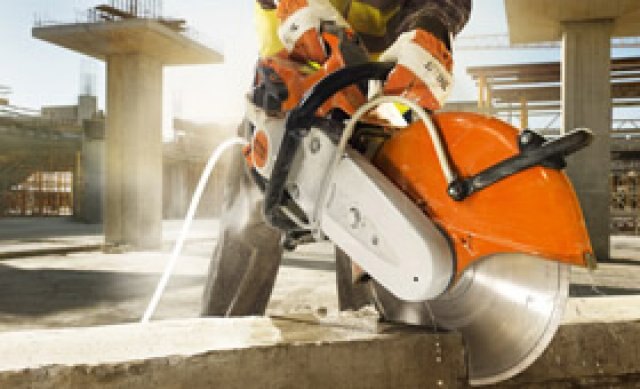

STIHL cut-off machines are indispensable wherever steel, concrete, stone, cast pipes, asphalt and similar materials have to be cut. Thanks to their robust engineering, there is no questioning why they are the number one selling brand of cut-off machines in the world. STIHL cut-off machines cope effortlessly with the toughest demands and stand out through their reliability and distinctly reduced maintenance and service intervals, thus significantly lowering running costs.
   Specifications



Model
Displacement
(cc)
Performance kW
Weight (kg / lbs) 1) Cutting wheel ­(in/mm) Cutting wheel mm Image
TS 410
66.7
3.2 9.5 / 20.9 12 / 300 300
TS 410
TS 420
66.7
3.2 9.7 / 21.4
14 / 350
350
TS 420
TS 440 66.7 3.2 11.1 / 24.5 14 / 350 350
TS 440
TS 500i 72.2      3.9 10.2 / 22.5      14 / 350 350
TS 500i
TS 800 98.5 5.0 12.7 / 28.0
16 / 416
400
TS 800
TS 700 98.5 5.0 11.7 / 25.8 14 / 350 - TS 700

Model : TS 410

Compact and powerful cut-off machine with 12" cutting wheel

The TS 410 is a low-vibration, high-performance cut-off machine with a 12’’ cutting wheel powered by STIHL’s stratified charge engine technology that cuts fuel consumption by 20% and exhaust emissions by 50%. It features the revolutionary X2 low maintenance air filtration system, and a newly designed anti-vibration system that reduces vibration up to 43% over previous models. Lightweight and well-balanced for excellent cutting and guide characteristics, this saw can be hand operated or mounted on the FW 20 cart (sold separately) for improved precision and comfort.

Model : TS 420

Powerful cut-off machine with 14" cutting wheel

The TS 420 cut-off machine delivers a unique blend of performance and efficiency, helping you work longer and more comfortably with a 14’’ cutting wheel. It features stratified charge engine technology that cuts fuel consumption by 20% and exhaust emissions by 50%, lightweight assembly, newly designed anti-vibration system and the new long-life X2 air filtration system to reduce maintenance. This unit can be hand-operated or mounted on the FW 20 cart (sold separately) for improved precision and comfort.

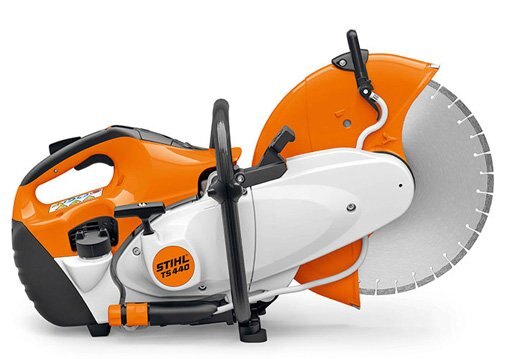

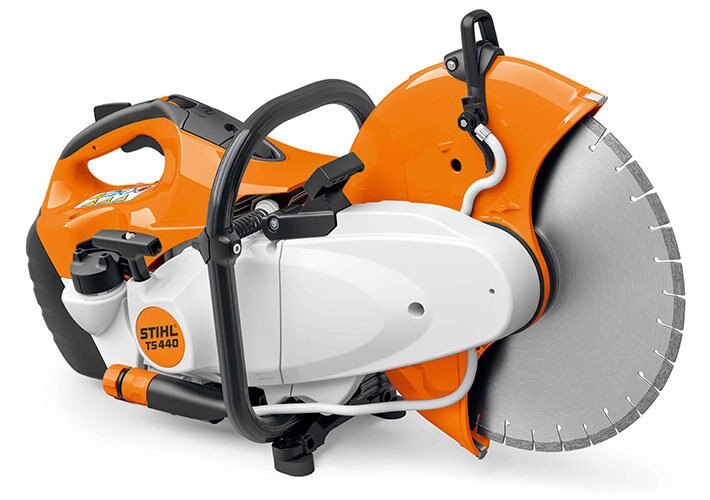

 Model : TS 440

The Powerful Choice for Limited Access Cuts

A tool for working in confined spaces. The expanded guard adjustment range of the TS 440 allows greater access in challenging cuts such as the bottom portions of walls, cutting in corners and cutting the underside of in-ground pipes. This expanded guard adjustability is made possible due to the sensor-activated STIHL Quickstop® wheel brake technology. The first cut-off machine in the world equipped with the technology capable of stopping the rotation of the cutting wheel in fractions of a second if kickback occurs. Only available at specially trained dealers.

Model : TS 800

Powerful cut-off machine with 16" cutting wheel

The TS 800 cut-off machine features a comfortable, ergonomic design with plenty of power. This saw easily takes care of asphalt, concrete, reinforcement bars and other metal support pieces. Designed for extended operation with a 16” abrasive wheel for deeper cutting, this machine does the job of other large walk-behind machines, and can be hand-operated or mounted on the FW 20 cart (sold separately) for improved precision and operator comfort.

Model : TS 500i

The world's first fuel injected cut-off machine with a 14" cutting wheel

The STIHL TS 500i is designed for superior handling during the toughest jobs. Featuring the handheld outdoor power equipment industry’s first electronically controlled fuel injection system, the TS 500i increases power by 17% and cutting speed by 15%, as compared to the STIHL TS 420. The low-emission fuel injected cut-off saw provides optimal torque throughout the rpm range. No carburetor means no choke needed – just purge and pull the start cord!

Model : TS 700

Extremely powerful cut-off machine with 14" cutting wheel

The TS 700 cut-off machine, with a powerful high-speed engine in a lightweight ergonomic design, offers a five-point dual-element vibration control feature, along with a long-life air filtration system. It includes an ElastoStart™ handle and decompression valve for easy starting, compensator carb for optimal engine performance, as well as a water attachment. This unit comes with a 14” cutting wheel and can be hand-operated or mounted on the FW 20 cart (sold separately) for improved precision and operator comfort.

Specifications
Model
Cut-off Machines
Category Name
Lawn / Garden
Sale Type
New
Manufacturer
Stihl
