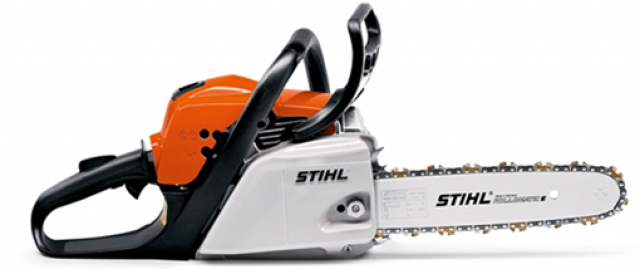

| The MS 211, a low vibration chain saw powered by a low emission and fuel-efficient stratified scavenging engine, features a pre-separation air filtration system that moderates upkeep by extending the cleaning life of the air filter. It comes equipped with a carburetor preheat shutter for summer/winter operation. This saw is perfect for felling small trees, sawing firewood around the home or farm, and is part of STIHL’s new generation of fuel-efficient, environmentally friendly chain saws. |
|
Features |
|
|
Reduced-emission engine technology Zoom Reduced-emission engine technology 2-stroke engine with stratified charge. A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle. This results in more power with a lower weight, up to 20% lower fuel consumption than regular 2-stroke engines and significantly reduced exhaust emissions |
Advanced combustion technology Four overflow channels swirl the fuel-air mix before ignition, allowing for optimum combustion and highly efficient performance. The result is lower fuel consumption and high torque across a broad rpm range. |
Pre-separation air filtration system STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems. Air drawn in is swirled. The larger, heavier particles are ejected. The pre-cleaned air is routed to the air filter via the pre-separator duct. |
Tool free filler caps
Special catches on the fuel and oil tanks for easy opening and locking without the need for tools |
Compensator This controller in the carburettor prevents the fuel-air mixture getting richer as the air filter becomes clogged. The correct quantity of fuel is delivered to the carburettor depending on the quantity of air passing through the air filter. This keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn't need to be cleaned until an appreciable drop in power occurs. |
Ematic chain lubrication system
The Ematic chain lubrication system ensures pinpoint lubrication of the saw chain links and guide bar rails. When used with STIHL OILOMATIC saw chain, it will provide maximum lubrication, longer wear and less oil consumption than conventional methods of chain lubrication. The Ematic system can reduce bar oil consumption by up to 50% |
Side chain tensioner The tensioning screw can be found on the side of chain saw through the sprocket cover. This removes the need for contact with the sharp saw chain. |
Single-lever master control All important functions such as start, choke, throttle and stop are operated via a single lever. |
|
Additional features |
Quick Chain Adjuster (B) After releasing the sprocket cover the chain can be adjusted using a thumb wheel without the need for tools. |
STIHL ElastoStart STIHL ElastoStart reduces the shock caused by the compression of the engine during starting. The compression shock is taken away from the user's joints and muscles through a spring or rubber element in the starter handle. |
