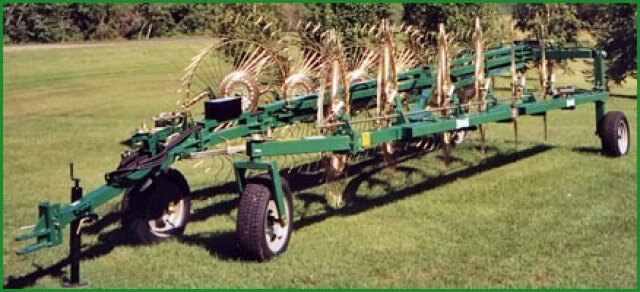

CROPMASTER Series.
Available with 10 - 12 and 14 raking wheels. Reinforced frame for extra durability.
Zinc plated raking wheel. High speed operation. All finger wheels are independent
and spring loaded to adapt to the contours of the fields.
40 tines per raking wheel. Tine diameter 7mm. 4 and 6 ground wheels.
Rear tandem wheels available. |
| Mod. | Rotors | Working Width | HP | Weigth | ||
| no. | cm - ft. | range | kg - Ibs. | |||
| CROPMASTER 10-H | 10 | 735 - 24 ft 6" | 30 - 50 | 1478 - 3252 | ||
| CROPMASTER 12-H | 12 | 830 - 27 ft 8" | 30 - 50 | 1620 - 3564 | ||
| CROPMASTER 14-H | 14 | 945 - 31 ft 8" | 30 - 50 | 1880 - 4136 |
