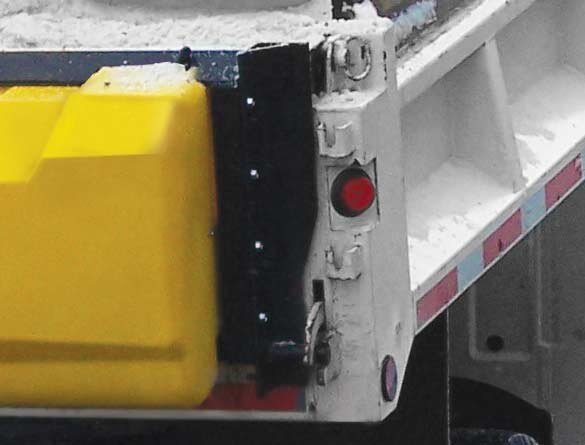

V-Maxx™ SP-2400 Turn your dump body into a winter workhorse with the V-Maxx™ SP-2400 replacement tailgate spreader. This units allows you to combine the large capacity of a dump box with the efficiency of a SnowEx® auger system, providing a cost-effective solution for year-round truck use. |
|
Keep It Flowing and Going
A compact, weather-resistant direct drive transmission delivers efficient flow to the spinner by reducing potential binding and bridging of materials. The unit’s heavy-duty solid steel construction provides maximum torque. |
|
Right On The Mark Universal Mounting // A standard universal mounting kit allows the spreaders to fit on the existing attachment points on a wide range of dump bodies. // Convert dump boxes for spreading quickly, since the electric spreaders don’t require hoses, pumps or other hydraulic components. // The SP-2400 replaces the tailgate, while the SP-2200 mounts underneath the rear gate of dump bodies. |
|
Features |
|
A direct drive transmission transfers power to the auger efficiently and effectively to reduce material bridging. |
|
Universal mounting kit allows spreaders to easily attach to dump bodies. |
|
Attached vibrator reduces material clumping for continuous material flow. |
|
Dual variable-speed control allows independent adjustment of spread pattern and material flow, and features auto reverse. |
|
Standard work light offers better visibility in dark or snowy conditions. |
| SP-2400 | |
|---|---|
| Approx. Weight (Empty) | 326 lb |
| Overall Length | 14" |
| Overall Height | 24" |
| Overall Width | 84" |
| Hopper Length | 17" |
| Hopper Width | 84" |
| SP-2400 | |
|---|---|
| Spreading Width | Up to 40' |
| SP-2400 | |
|---|---|
| Frame | Powder coated steel |
| Hopper | One-piece LLDPE safety yellow poly |
| Motors | Dual 12-volt DC motor mounted in weather resistant enclosure |

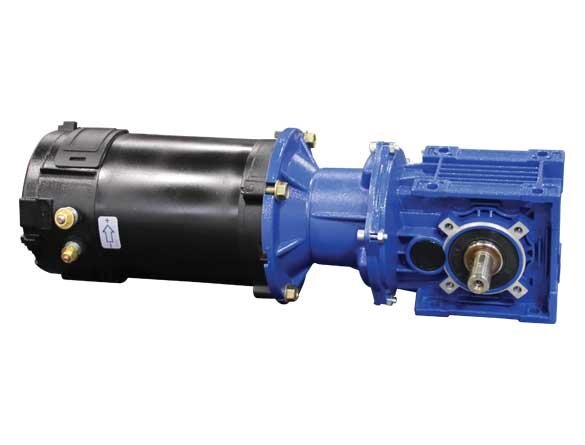

| Spinner Drive Assembly | Compact, independent weather-tight patented motor transmission |
| Spinner | 12" heavy-duty urethane spinner with integral hub assembly |
| Auger Drive Assembly | Heavy-duty solid steel construction with maximum-torque motor transmission drive |
| Auger | 5" heavy-duty variable pitch steel flighting |
| Mounting | Universal mounting kit to fit most dump bodies (some fabrication required) |
