SnowEx® SPEEDWING™
Call for Price
Overview
Specifications
features
dimensions
construction
Videos
Documents
|

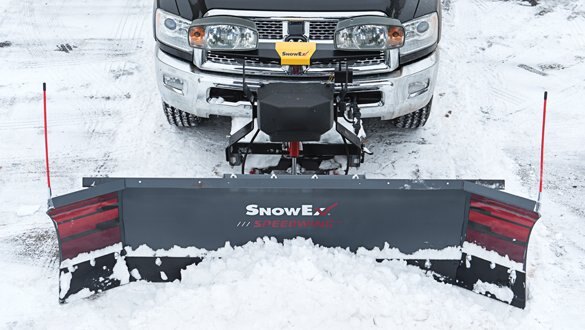

SPEEDWING™ Move more snow with a snow plow that thinks for itself – the SPEEDWING 8600 from SnowEx®. Intuitive mechanical wings automatically adjust from scoop mode to windrow position as you angle the plow. By combining the ease of straight blade operation with the productivity of a winged snow plow, SPEEDWING clears big jobs fast to enhance your profits. |
|
Scoop and Windrow Positions
The SPEEDWING is engineered for efficiency, allowing you to shift the plow blade from scoop mode to an optimum windrowing position with the simple push of a button. Scoop mode can carry up to 30% more snow than a straight blade, while a windrowing angle helps complete the job in fewer passes. |
|
Wings Automatically Adjust
// The intuitive SPEEDWING features mechanical wings that automatically adjust from scoop mode to windrow position as you angle the plow. // Combines the ease of straight blade operation with the efficiency and productivity of a winged plow. |
Model
SPEEDWING™
Category Name
Snow Equipment
Year
2021
Sale Type
New
Manufacturer
SnowEx
Features
|
Features |
|
Available in both LED and Dual Halogen models, STORM SEEKER™ headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the storm. |
|

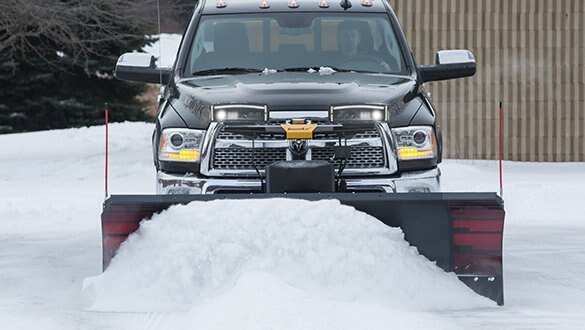

When the SPEEDWING blade is facing forward, the wings automatically default to scoop mode and carry up to 30% more snow per pass. |
|

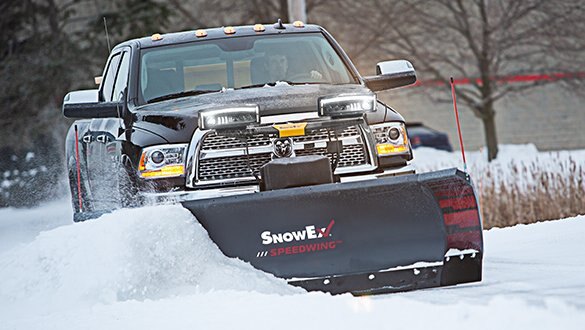

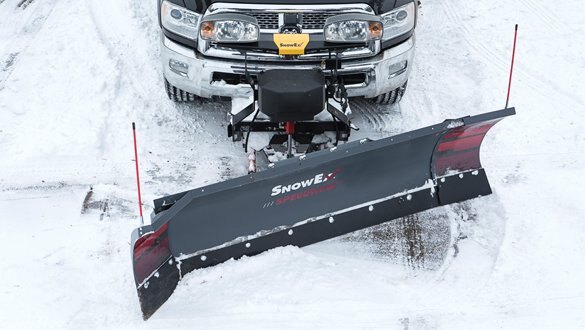

When angled for windrowing, the leading wing directs more snow into the moldboard to allow a full pass with minimal spill-off. |
|
Mechanical wings automatically adjust from scoop mode to windrow position as you angle the plow. |
|
For a wider straight blade, the wings can be easily pinned back. |
|
A formed torque box with four welded vertical reinforcement ribs provide unmatched torsional strength to prevent blade twisting. |
|
A full-trip moldboard with four coil springs helps protect you, your plow and your truck when striking obstacles. |
|
A 6" hardened steel cutting edge provides long-lasting performance and delivers a clean scraping action. |
|
Hydraulic components are protected with a durable poly cover that is easy to remove for quick maintenance access. |
|
Plow wings give on impact. They are spring loaded and retract when hitting an obstacle. |
|
Intuitive hand-held control allows independent or simultaneous wing adjustment for maximum efficiency. |
|
The Automatixx attachment system provides fast and easy plow hook-up that can all be handled from one side of the truck. |
|
Direct lift system gives the plow a responsive full range of motion for efficient stacking and transport. |
|
Our high-performance, multi-stage powder coat system provides a long lasting, maintenance-free finish. |
|
The SECURITY GUARD anti-theft system electronically secures your plow from unauthorized use when detached from the truck. |
|
The FLEET FLEX electrical system provides simple, common programmable controls for true fleet interchangeability. |
Dimensions
| 8600SW | |
|---|---|
| Blade Width | 8' 7" |
| Blade Height | 29½" |
| Angle Cylinders | 1½" |
| Plowing Width (Straight) | 103" - Scoop |
| Plowing Width (Full Angle) | 93.4" - Windrow |
| Approx. Weight* | 892 lb |
| Cutting Edge | 1/2" x 6" blade 1/2" x 8" wing |
Construction
| 8600SW | |
|---|---|
| Blade/Wing Thickness | 12 ga |
| Reinforcement Ribs | 4 |
| Trip Springs | 4 steel |
