SnowEx® Super Maxx™ II

  • SnowEx® Super Maxx™ II
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

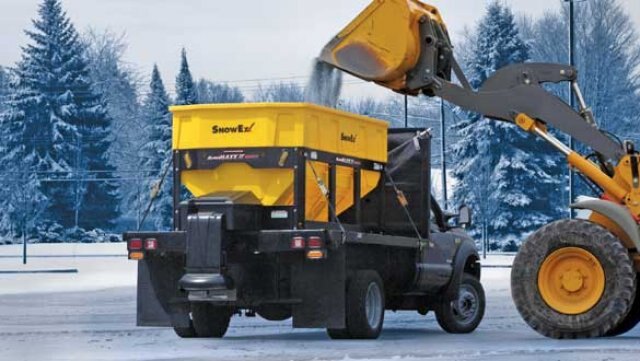

Super Maxx™ II

Offering huge capacities up to 6 cubic yards, Super Maxx™ II Series spreaders keep you out on the road for longer application intervals on the largest jobs. Super Maxx II models are equipped with a wide variety of original features that contribute to a simplified user experience, from setup and maintenance to operational efficiency.

Wet/Dry Delivery System

The Super Maxx II Series sets itself apart from other designs with an innovative wet/dry delivery system. Inside a stainless steel trough, brine and salt are mixed before being delivered to the spinner. This feature maximizes the effectiveness of pre-wetting applications by ensuring a precise, even coating of brine.
Cab Forward Design
  • The unique cab forward hopper achieves better payload distribution.
  • In combination with the spreader hoppers that are made from lightweight, corrosion-resistant poly, the cab forward configuration results in improved safety and reduced stress on your truck.
Features

Full-Trip MoldboardWet/Dry Delivery

Within a unique wet/dry chamber, the auger feed system mixes brine with the spreading material before delivering it to the spinner.



Full-Trip MoldboardCab Forward Design

The cab forward hopper delivers better payload distribution to reduce stress on the truck.



Full-Trip MoldboardStowable Spinner Housing

When not in use, the low-profile spinner assembly can be flipped into the upright position for easy storage, providing full hitch access for towing.



Full-Trip MoldboardAdjustable Spinner

The 12-inch stainless steel spinner contains adjustable cups and a deflector for maximum control over spread pattern.



Full-Trip MoldboardDigital Speed Control

The integrated pendant-style control has a digital readout and dials for independently adjusting the variable-speed spinner and auger.



Full-Trip MoldboardHeavy-Duty Auger Transmission

Each spreader’s heavy-duty auger transmission powers material through the spreader easily and efficiently.



Full-Trip MoldboardPre-Wet Integration

Users can choose to have the spreaders equipped with an optional pre-wet liquid tank system.



Full-Trip MoldboardFrame Coating

Durable steel frame includes enhanced corrosion control finish with 6-part organic top coat process.



Full-Trip MoldboardFitted Tarp

A tarp fitted to the spreader’s dimensions protects material from outside weather elements.



Full-Trip MoldboardTop Screen

A top screen effectively retains material while allowing visibility into the hopper.



Full-Trip MoldboardVibrator

Attached vibrator reduces material clumping for continuous material flow.



Full-Trip MoldboardInverted “V”

Patented vibrating baffle configuration maximizes material flow.



Full-Trip MoldboardLighting

FMVSS 108 rated brake light and LED safety strobe work light offer better equipment visibility in dark or snowy conditions.


Specifications
Imperial SP-9300X SP-9500X SP-9800X SP-9300XH SP-9500XH SP-9800XH
Empty Weight 989 lb 1,044 lb 1,100 lb 989 lb 1,044 lb 1,100 lb
Overall Length 144" 155" 155" 144" 155" 155"
Overall Height 43" 45" 55" 43" 45" 55"
Overall Width 54" 54" 66" 54" 54" 66"
Floor Length 113" 122" 122" 144" 155" 155"
Floor Width 54" 54" 66" 54" 54" 66"
Hopper Length 108" 120" 120" 108" 120" 120"
Hopper Width 54" 54" 66" 54" 54" 66"
Capacity (Volume) Struck 3.2 cu yd
Rounded 3.5 cu yd		 Struck 3.2 cu yd
Rounded 3.5 cu yd		 Struck 3.2 cu yd
Rounded 3.5 cu yd		 Struck 3.2 cu yd
Rounded 3.5 cu yd		 Struck 3.2 cu yd
Rounded 3.5 cu yd		 Struck 3.2 cu yd
Rounded 3.5 cu yd
Capacity (Weight) 7,700 lb 7,700 lb 7,700 lb 7,700 lb 7,700 lb 7,700 lb
Spreading Width Up to 40' Up to 40' Up to 40' Up to 40' Up to 40' Up to 40'
Speed Control Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse
Spreading Width Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors
Frame Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process
Hopper One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors Dual, 12-volt DC motor mounted in weather resistant enclosure Dual, 12-volt DC motor mounted in weather resistant enclosure Dual, 12-volt DC motor mounted in weather resistant enclosure Hydraulic Hydraulic Hydraulic
Spinner Drive Assembly Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport
Spinner 12" heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 12" heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 12" heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 12" heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 12" heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 12" heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern)
Auger Drive Assembly Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger 7" heavy-duty variable pitch steel flighting 7" heavy-duty variable pitch steel flighting 7" heavy-duty variable pitch steel flighting 7" heavy-duty variable pitch steel flighting 7" heavy-duty variable pitch steel flighting 7" heavy-duty variable pitch steel flighting
Mounting Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls
Top Screen Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern
Cover Fitted tarp Fitted tarp Fitted tarp Fitted tarp Fitted tarp Fitted tarp
Vibrator Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC
Inverted Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow
Brake Light Yes Yes Yes Yes Yes Yes
Work Light Yes Yes Yes Yes Yes Yes
Metric SP-9300X SP-9500X SP-9800X SP-9300XH SP-9500XH SP-9800XH
Empty Weight 448.6 kg 473.6 kg 499.0 kg 448.6 kg 473.6 kg 499.0 kg
Overall Length 365.6 cm 393.6 cm 393.6 cm 365.6 cm 393.6 cm 393.6 cm
Overall Height 109.2 cm 114.3 cm 139.6 cm 109.2 cm 114.3 cm 139.6 cm
Overall Width 137.1 cm 137.1 cm 167.6 cm 137.1 cm 137.1 cm 167.6 cm
Floor Length 287.0 cm 309.9 cm 309.9 cm 365.6 cm 393.6 cm 393.6 cm
Floor Width 137.1 cm 137.1 cm 167.6 cm 137.1 cm 137.1 cm 167.6 cm
Hopper Length 274.3 cm 304.8 cm 304.8 cm 274.3 cm 304.8 cm 304.8 cm
Hopper Width 137.1 cm 137.1 cm 167.6 cm 137.1 cm 137.1 cm 167.6 cm
Capacity (Volume) Struck 2.6 cu m
Rounded 2.8 cu m		 Struck 3.4 cu m
Rounded 3.6 cu m		 Struck 4.8 cu m
Rounded 5.2 cu m		 Struck 2.6 cu m
Rounded 2.8 cu m		 Struck 3.4 cu m
Rounded 3.6 cu m		 Struck 4.8 cu m
Rounded 5.2 cu m
Capacity (Weight) 3,493 kg 4,536 kg 6,804 kg 3,493 kg 4,536 kg 6,804 kg
Spreading Width Up to 12.2 m Up to 12.2 m Up to 12.2 m Up to 12.2 m Up to 12.2 m Up to 12.2 m
Speed Control Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse
Wiring Harness Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors
Spreading Width Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors Multiple gauge wiring harness with weather-tight plugs and connectors
Frame Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process
Hopper One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors Dual, 12-volt DC motor mounted in weather resistant enclosure Dual, 12-volt DC motor mounted in weather resistant enclosure Dual, 12-volt DC motor mounted in weather resistant enclosure Hydraulic Hydraulic Hydraulic
Spinner Drive Assembly Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport Compact, independent weather-resistant (spinner assembly is stowable for transport
Spinner 30.5 cm heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 30.5 cm heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 30.5 cm heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 30.5 cm heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 30.5 cm heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern) 30.5 cm heavy-duty stainless steel adjustable cupped fin spinner (for varying spread pattern)
Auger Drive Assembly Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger 17.8 cm heavy-duty variable pitch steel flighting 17.8 cm heavy-duty variable pitch steel flighting 17.8 cm heavy-duty variable pitch steel flighting 17.8 cm heavy-duty variable pitch steel flighting 17.8 cm heavy-duty variable pitch steel flighting 17.8 cm heavy-duty variable pitch steel flighting
Mounting Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls Truck bed mounted with tie-down straps and controls
Top Screen Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern
Cover Fitted tarp Fitted tarp Fitted tarp Fitted tarp Fitted tarp Fitted tarp
Vibrator Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC
Inverted Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow
Brake Light Yes Yes Yes Yes Yes Yes
Work Light Yes Yes Yes Yes Yes Yes



Specifications
Model
Super Maxx™ II
Category Name
Snow Equipment
Year
2016
Sale Type
New
Manufacturer
SnowEx
