SnowEx® Ground Drive

  • SnowEx® Ground Drive
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Ground Drive

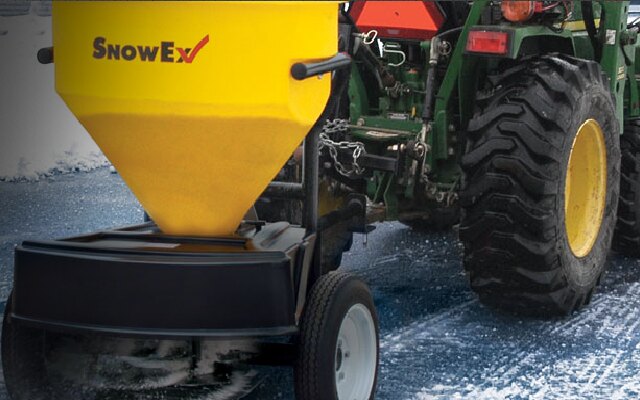

The SnowEx® SP-1225G is a ground-drive spreader designed for sidewalks, parking lots and other off-road specialty applications. The unit spreads bagged rock salt and chloride pellets, and is equipped with a lawn-and-garden style hitch for towing behind compact tractors, ATVs and utility vehicles.

Hit The Ground Running

Simple and efficient, the SP-1225G ground drive system is comprised of a heavy-duty transmission and large, narrow pneumatic tires that will maintain maximum traction on snow and ice.
Sidewalk Deflector
  • An available deflector skirt kit adjusts the spread width for sidewalk applications, narrowing the spreader’s focus to the target area only.
  • Limiting the spread pattern keeps material from being wasted off the edges of a sidewalk or driving path.
Features

Full-Trip MoldboardGround Drive

The SP-1225G is a ground-driven spreader that operates as it’s pulled by a towing vehicle.



Full-Trip MoldboardSidewalk Deflector

Sidewalk deflector kit limits the spread pattern width for sidewalk applications.



Full-Trip MoldboardManual Flow Gate

Aided by a positive locking feature, the manual flow gate allows precise calibration and spreading control. It opens and closes via a 14-foot cable.



Full-Trip Moldboard

Adjustable Spinner

The spreader’s adjustable spinner fine tunes the spread pattern and is constructed of stainless steel to resist corrosion.



Full-Trip Moldboard

Hopper Cover

A clear, fitted poly cover provides weather protection for the hopper’s contents.


Specifications
Imperial SP-1225G
Empty Weight 190 lb
Overall Length 30" excl. trailer tongue
Overall Height 30""
Overall Width 44"
Capacity (Volume) 12.0 cu ft
Capacity (Weight) 960 lb
Spreading Width Up to 40' @ 5 mph
Speed Control Controlled by tow vehicle ground speed
Frame Powder coated steel
Hopper One-piece LLDPE safety yellow poly
Spinner Drive Assembly Ground-driven transmission
Spinner 12" adjustable stainless steel spinner
Mounting Integral trailer
Cover Standard
Metric    SP-1225G
Empty Weight 86.2 kg
Overall Length 76.2 cm excl. trailer tongue
Overall Height 76.2 cm
Overall Width 111.8 cm
Hopper Length 198.1 cm
Hopper Width 124.5 cm
Capacity (Volume) 0.3 cu m
Capacity (Weight) 435.5 kg
Spreading Width 12.2 m @ 8 km/h
Speed Control Controlled by tow vehicle ground speed
Wiring Harness Completely loomed with molded plugs
Frame Powder coated steel
Hopper One-piece LLDPE safety yellow poly
Motors Dual 12-volt DC direct-drive motors mounted in weather resistant enclosure
Spinner Drive Assembly Ground-driven transmission
Spinner 30.5 cm adjustable stainless steel spinner
Auger Drive Assembly Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger 12.7 cm heavy-duty variable pitch steel flighting transverse auger
Mounting Integral trailer
Top Screen 0.8 cm steel rod construction with grid pattern
Cover Standard
Vibrator Standard
Inverted "V" Patented vibrating inverted "V" to maximize material flow




Specifications
Model
Ground Drive
Category Name
Snow Equipment
Year
2016
Sale Type
New
Manufacturer
SnowEx
