SnowEx® Utility

  • SnowEx® Utility
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Utility

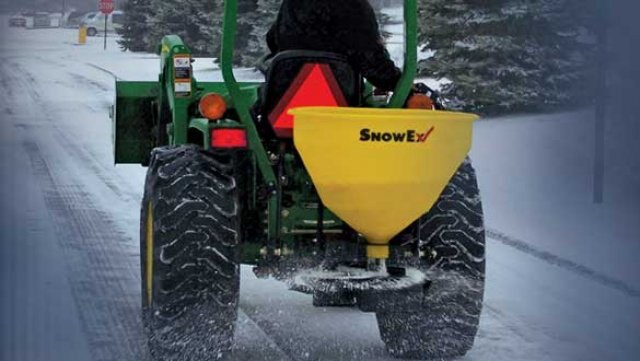

Don’t let their size fool you. The SP-100, SP-125 and SP-225 tailgate spreaders offer big performance for smaller application needs. The SP-100 and SP-125 are designed to spread bagged ice melters and calcium chloride pellets up to 20 feet wide, while the SP-225 can spread bagged rock salt. All three units are loaded with features that offer a level of sophistication that’s fit for snow and ice pros.

Electric Gate

The SP-100 comes standard with an electric gate. Just flip a switch to open and close the spreader throat to start and stop material flow to the spinner. (Model SP-125 only available with manual gate.)


Variable Speed Control
  • Adjusts spinner speed from 1-10.
  • Helps manage spread width.
  • Weather resistant.
  • Easy cab mounting.
  • Standard with model SP-100 (optional for SP-125 & SP-225).
Features

Full-Trip MoldboardWeather-Resistant Control

This weather-resistant, cab-mounted control adjusts spinner speed to help manage spread width.



Full-Trip MoldboardSpinner Motor

The spinner motor transmission is completely electric powered. It draws electricity from the vehicle and offers plenty of power to the spreader. Also, it’s protected from the elements by a sealed drive enclosure.



Full-Trip MoldboardReceiver Mount

Spreaders come standard with a 2-inch (51mm) receiver mount for convenient attachment to a variety of vehicles.



Full-Trip MoldboardElectric Gate

An electric-powered gate starts and stops material flow to the spinner.



Full-Trip MoldboardWeather Cover

Keep the spreading material safe from outside moisture with the clear, fitted weather cover.


Specifications
Imperial SP-100 SP-125 SP-225
Empty Weight 75 lb 65 lb 79 lb
Overall Length 22" 22" 18"
Overall Height 30" 30" 32"
Overall Width 30" 30" 33"
Hopper Length 22" 22" 16.5"
Hopper Width 30" 30" 33"
Capacity (Volume) 3.0 cu ft 3.0 cu ft 3.0 cu ft
Capacity (Weight) 240 lb 240 lb 240 lb
Spreading Width Up to 20' Up to 20' Up to 25'
Speed Control Weather-resistant variable speed control On/off switch On/off switch
Wiring Harness 12-gauge with molded plugs and connectors Multiple gauge harness with plug-ends and finished connectors Automotive style with plug-ends and finished connectors
Frame Powder coated steel Powder coated steel Powder coated steel
Hopper One-piece LLDPE safety yellow poly One-piece LLDPE safety yellow poly One-piece LLDPE safety yellow poly
Motors 12-volt DC motor mounted in weather resistant enclosure 12-volt DC motor mounted in weather resistant enclosure 12-volt DC motor mounted in weather resistant enclosure
Spinner Drive Assembly Maximum torque transmission with hardened-steel worm and bronze gear Maximum torque transmission with hardened-steel worm and bronze gear Maximum torque transmission with hardened-steel worm and bronze gear
Spinner 10" nylon/glass reinforced resin 10" nylon/glass reinforced resin 10" nylon/glass reinforced resin
Auger N/A N/A 3" vertical high-flow auger
Mounting 2" receiver hitch is standard 2" receiver hitch is standard 2" receiver hitch is standard
Cover Standard Optional Optional
Metric    SP-100 SP-125 SP-225
Empty Weight 34.0 kg 29.5 kg 30.8 kg
Overall Length 55.9 cm 55.9 cm 55.9 cm
Overall Height 76.2 cm 76.2 cm 81.3 cm
Overall Width 76.2 cm 76.2 cm 76.2 cm
Hopper Length 55.9 cm 55.9 cm 55.9 cm
Hopper Width 76.2 cm 76.2 cm 76.2 cm
Capacity (Volume) 0.085 cu m 0.085 cu m 0.085 cu m
Capacity (Weight) 108.9 kg 108.9 kg 108.9 kg
Spreading Width Up to 6.0 m Up to 6.0 m Up to 7.6 m
Speed Control Weather-resistant variable speed control On/off switch On/off switch
Wiring Harness 12-gauge with molded plugs and connectors Multiple gauge harness with plug-ends and finished connectors Automotive style with plug-ends and finished connectors
Frame Powder coated steel Powder coated steel Powder coated steel
Hopper One-piece LLDPE safety yellow poly One-piece LLDPE safety yellow poly One-piece LLDPE safety yellow poly
Motors 12-volt DC motor mounted in weather resistant enclosure 12-volt DC motor mounted in weather resistant enclosure 12-volt DC motor mounted in weather resistant enclosure
Spinner Drive Assembly Maximum torque transmission with hardened-steel worm and bronze gear Maximum torque transmission with hardened-steel worm and bronze gear Maximum torque transmission with hardened-steel worm and bronze gear
Spinner 25.4 cm nylon/glass reinforced resin 25.4 cm nylon/glass reinforced resin 25.4 cm nylon/glass reinforced resin
Auger N/A N/A 7.6 cm vertical high-flow auger
Mounting 5.1 cm receiver hitch is standard 5.1 cm receiver hitch is standard 5.1 cm receiver hitch is standard
Cover Standard Optional Optional
