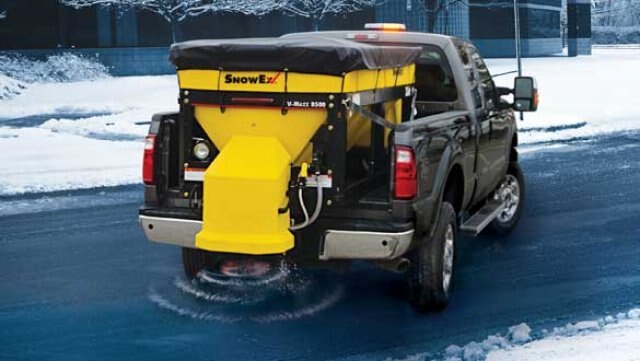

SnowEx® V-Maxx™ SP-8500/SP-8550

  • SnowEx® V Maxx™ SP 8500/SP 8550
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

V-Maxx™
SP-8500/SP-8550

The SnowEx® 8500 Series brings two different approaches to attacking ice. The SP-8500 efficiently spreads any combination of salt and sand, while the SP-8550 is specifically designed for higher material output for contractors who need to spread high volumes of sand in one pass.

Spinner and Auger Control

SnowEx V-box spreaders feature a unique independent spinner and auger control that offers independent adjustment of the spread pattern and the rate of material flow. This includes a digital LED display with status monitoring, along with an auto-reverse function in the event of auger jams.


Quick Connect Spinner Assembly
  • Fast and easy spinner assembly removal in just a matter of seconds.
  • Unlike competitive units, no need to unbolt the assembly or remove the entire spreader from the truck bed before being able to tow.
  • Keeps service vehicle useful for other functions, and simplifies off-season spreader storage.
Features

Full-Trip MoldboardSpeed Control

Dual variable-speed digital control allows independent adjustment of spread pattern and material flow, and features auto reverse.



Full-Trip MoldboardSpinner Assembly

Quick-connect spinner drive assembly provides easy hitch access.



Full-Trip MoldboardAuger Transmission

Direct drive transmission transfers power to the auger efficiently and effectively.



Full-Trip MoldboardHigh Volume

The high volume transmission features a gear ratio of 40:1, allowing the unit to spread 295 to 680 pounds of material per minute.



Full-Trip MoldboardVibrator

Attached vibrator reduces material clumping for continuous material flow.



Full-Trip MoldboardInverted “V”

Patented vibrating baffle configuration maximizes material flow.



Full-Trip MoldboardFitted Trap

A tarp fitted to the spreader’s dimensions protects material from outside weather elements.



Full-Trip MoldboardTop Screen

A top screen effectively retains material while allowing visibility into the hopper.



Full-Trip MoldboardLighting

Auxiliary LED brake light and work light offer better equipment visibility in dark or snowy conditions.



Full-Trip MoldboardPre-Wet Integration

Users can choose to have the spreaders equipped with an optional pre-wet liquid tank system.



Full-Trip MoldboardHydraulic

The hydraulic-powered SP-8500H is also available as an alternative to the electric powered units.



Specifications
Imperial SP-8500 SP-8550 SP-8500H
Empty Weight 780 lb 780 lb 780 lb
Overall Length 105½" 105½" 105½"
Overall Height 39" 39" 39"
Overall Width 48" 48" 48"
Floor Length 84" 84" 84"
Floor Width 44" 44" 44"
Hopper Length 96" 96" 96"
Hopper Width 48" 48" 48"
Capacity (Volume) Struck 2.2 cu yd
Rounded 2.5 cu yd		 Struck 2.2 cu yd
Rounded 2.5 cu yd		 Struck 2.2 cu yd
Rounded 2.5 cu yd
Capacity (Weight) 4,320 lb 4,320 lb 4,320 lb
Spreading Width Up to 40' Up to 40' Up to 40'
Speed Control Digital, self-diagnosing dual variable-speed controller with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse
Wiring Harness Completely loomed with molded plugs and spare circuit Completely loomed with molded plugs and spare circuit Completely loomed with molded plugs and spare circuit
Frame Powder coated steel Powder coated steel Powder coated steel
Hopper One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors Dual, 12-volt DC motor mounted in weather resistant enclosure Dual, 12-volt DC motor mounted in weather resistant enclosure Hydraulic
Spinner Drive Assembly Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect) Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect) Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect)
Spinner 12" heavy-duty urethane spinner with integral hub assembly 12" heavy-duty urethane spinner with integral hub assembly 12" heavy-duty urethane spinner with integral hub assembly
Auger Drive Assembly Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger 5" heavy-duty variable pitch steel flighting 5" heavy-duty variable pitch steel flighting 5" heavy-duty variable pitch steel flighting
Mounting Positive locking mount with bolt-down kit and ratchet-strap assist Positive locking mount with bolt-down kit and ratchet-strap assist Positive locking mount with bolt-down kit and ratchet-strap assist
Top Screen Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern
Cover Fitted tarp Fitted tarp Fitted tarp
Vibrator Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC
Inverted "V" Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow
Brake Light Yes Yes Yes
Work Light Yes Yes Yes
Metric    SP-8500 SP-8550 SP-8500H
Empty Weight 353.8 kg 353.8 kg 353.8 kg
Overall Length 268.0 cm 268.0 cm 268.0 cm
Overall Height 99.1 cm 99.1 cm 99.1 cm
Overall Width 121.9 cm 121.9 cm 121.9 cm
Floor Length 213.4 cm 213.4 cm 213.4 cm
Floor Width 111.8 cm 111.8 cm 111.8 cm
Hopper Length 243.8 cm 243.8 cm 243.8 cm
Hopper Width 121.9 cm 121.9 cm 121.9 cm
Capacity (Volume) Struck 1.8 cu m
Rounded 2 cu m		 Struck 1.8 cu m
Rounded 2 cu m		 Struck 1.8 cu m
Rounded 2 cu m
Capacity (Weight) 1,959.5 kg 1,959.5 kg 1,959.5 kg
Spreading Width Up to 12.2 m Up to 12.2 m Up to 12.2 m
Speed Control Digital, self-diagnosing dual variable-speed controller with auto reverse Digital, self-diagnosing dual variable-speed controller with auto reverse Digital, self-diagnosing dual variable-speed control with auto reverse
Wiring Harness Completely loomed with molded plugs and spare circuit Completely loomed with molded plugs and spare circuit Completely loomed with molded plugs and spare circuit
Frame Powder coated steel Powder coated steel Powder coated steel
Hopper One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors Dual, 12-volt DC motor mounted in weather resistant enclosure Dual, 12-volt DC motor mounted in weather resistant enclosure Hydraulic
Spinner Drive Assembly Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect) Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect) Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect)
Spinner 30.5 cm heavy-duty urethane spinner with integral hub assembly 30.5 cm heavy-duty urethane spinner with integral hub assembly 30.5 cm heavy-duty urethane spinner with integral hub assembly
Auger Drive Assembly Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger 112.7 cm heavy-duty variable pitch steel flighting 112.7 cm heavy-duty variable pitch steel flighting 112.7 cm heavy-duty variable pitch steel flighting
Mounting Positive locking mount with bolt-down kit and ratchet-strap assist Positive locking mount with bolt-down kit and ratchet-strap assist Positive locking mount with bolt-down kit and ratchet-strap assist
Top Screen Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern
Cover Fitted tarp Fitted tarp Fitted tarp
Vibrator Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC
Inverted "V" Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow
Brake Light Yes Yes Yes
Work Light Yes Yes Yes
