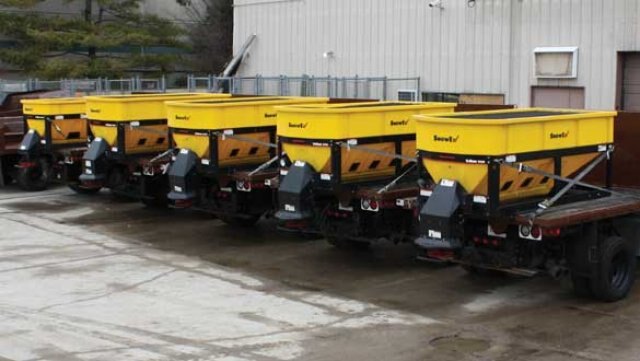

SnowEx® V-Maxx™ SP-9300/SP-9500

  • SnowEx® V Maxx™ SP 9300/SP 9500
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

V-Maxx™
SP-9300/SP-9500

Get the big jobs done with the high performance SP-9300 and SP-9500 SnowEx® spreaders. With large capacities of 3.2 and 4.2 cubic yards to spread any combination of bulk salt and sand, these spreaders are perfect for large trucks and contractors who want to cut down on extra trips to the yard for reloading.

Pre-Wet Integration

Make your SnowEx an even more powerful and efficient de-icing machine by adding a pre-wet system. Pre-wetting salt before it hits the spinner accelerates melting and expedites ice penetration. This means you’ll get the job done faster while using less material, saving time and money in the process.


Efficient Direct Drive Transmission
  • Encourages efficient flow throughout the hopper to the spinner by reducing potential binding and bridging of materials.
  • Compact, independent weather-resistant patented motor transmission.
  • Heavy-duty solid steel construction, providing maximum torque.
Features

Full-Trip MoldboardPre-Wet Integration

Users can choose to have the spreaders equipped with an optional pre-wet liquid tank system.



Full-Trip MoldboardAuger Transmission

Direct drive transmission transfers power to the auger efficiently and effectively.



Full-Trip MoldboardSpeed Control

Dual variable-speed control allows independent adjustment of spread pattern and material flow, and features auto reverse.



Full-Trip MoldboardVibrator

Attached vibrator reduces material clumping for continuous material flow.



Full-Trip MoldboardInverted “V”

Patented vibrating baffle configuration maximizes material flow.



Full-Trip MoldboardLighting

Auxiliary LED brake light and work light offer better equipment visibility in dark or snowy conditions. The SP-9500 also features strobe lighting.



Full-Trip MoldboardSpinner Assembly

Quick-connect spinner drive assembly provides easy hitch access.


Specifications
Imperial SP-9300 SP-9500
Empty Weight 939 lb 994 lb
Overall Length 108" 130"
Overall Height 45" 45.5"
Overall Width 54" 52"
Floor Length 100" 106"
Floor Width 49.5" 49"
Hopper Length 107½" 118½"
Hopper Width 54" 52"
Capacity (Volume) 3.2 cu yd 4.2 cu yd
Capacity (Weight) 6,480 lb 8,640 lb
Spreading Width Up to 40' Up to 40'
Speed Control Digital, self-diagnosing dual variable-speed controller with auto reverse Digital, self-diagnosing dual variable-speed controller with auto reverse
Wiring Harness Completely loomed with molded plugs and spare circuit Completely loomed with molded plugs and spare circuit
Frame Powder coated steel Powder coated steel
Hopper One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors Dual, 12-volt DC motor mounted in weather resistant enclosure Dual, 12-volt DC motor mounted in weather resistant enclosure
Spinner Drive Assembly Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect) Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect)
Spinner 12" heavy-duty urethane spinner with integral hub assembly 12" heavy-duty urethane spinner with integral hub assembly
Auger Drive Assembly Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger 7" heavy-duty variable pitch steel flighting 7" heavy-duty variable pitch steel flighting
Mounting Positive locking mount with bolt-down kit and ratchet-strap assist Positive locking mount with bolt-down kit and ratchet-strap assist
Top Screen Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern
Cover Fitted tarp Fitted tarp
Vibrator Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC
Inverted "V" Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow
Brake Light Yes Yes
Work Light Yes Yes
Metric    SP-9300 SP-9500
Empty Weight 425.9 kg 450.8 kg
Overall Length 274.3 cm 330.2 cm
Overall Height 109.2 cm 115.6 cm
Overall Width 137.2 cm 132.1 cm
Floor Length 254.0 cm 269.2 cm
Floor Width 125.7 cm 124.5 cm
Hopper Length 273.1 cm 301.0 cm
Hopper Width 137.2 cm 132.1 cm
Capacity (Volume) 2.6 cu m 3.4 cu m
Capacity (Weight) 2,939.3 kg 3,919 kg
Spreading Width Up to 12.2 m Up to 12.2 m
Speed Control Digital, self-diagnosing dual variable-speed controller with auto reverse Digital, self-diagnosing dual variable-speed controller with auto reverse
Wiring Harness Completely loomed with molded plugs and spare circuit Completely loomed with molded plugs and spare circuit
Frame Powder coated steel Powder coated steel
Hopper One-piece LLDPE safety yellow poly with integral vertical rib construction One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors Dual, 12-volt DC motor mounted in weather resistant enclosure Dual, 12-volt DC motor mounted in weather resistant enclosure
Spinner Drive Assembly Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect) Compact, independent weather-tight patented motor transmission (spinner assembly is modular for quick connect)
Spinner 30.5 cm heavy-duty urethane spinner with integral hub assembly 30.5 cm heavy-duty urethane spinner with integral hub assembly
Auger Drive Assembly Heavy-duty solid steel construction with maximum-torque motor transmission drive Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger 17.8 cm heavy-duty variable pitch steel flighting 17.8 cm heavy-duty variable pitch steel flighting
Mounting Positive locking mount with bolt-down kit and ratchet-strap assist Positive locking mount with bolt-down kit and ratchet-strap assist
Top Screen Hinged heavy-duty steel rod construction with grid pattern Hinged heavy-duty steel rod construction with grid pattern
Cover Fitted tarp Fitted tarp
Vibrator Standard heavy-duty 12-volt DC Standard heavy-duty 12-volt DC
Inverted "V" Patented vibrating inverted "V" to maximize material flow Patented vibrating inverted "V" to maximize material flow
Brake Light Yes Yes
Work Light Yes Yes




Specifications
Model
V-Maxx™ SP-9300/SP-9500
Category Name
Snow Equipment
Year
2016
Sale Type
New
Manufacturer
SnowEx
