SnowEx® Liqui Maxx™

  • SnowEx® Liqui Maxx™
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Liqui Maxx™

With a wide range of tank sizes available, the Liqui Maxx™ spray system is fit for use on many types of vehicles — large or small. This purpose built system can handle most standard commercial applications, making it a versatile and valuable tool in your winter maintenance toolbox.

Optional Advanced Control

When you upgrade to the optional advanced control, the Liqui Maxx can automatically set and adjust the application. Using the optional GPS ground speed sensors, it automatically adjust the flow according to the vehicle speed, reducing the chance of operator error.


Modular Design
  • Interchangeable tank, pump and boom assemblies.
  • Customizable for operation size and truck type.
  • Allows for individual component upgrades.
  • Easy to assemble and operate.

Full-Trip MoldboardModular Design

The tank, pump and boom assemblies are interchangeable. Users can customize the system according to their needs, and then upgrade individual components later.



Full-Trip MoldboardOptional Advanced Control

With the advanced control option, the Liqui Maxx can use optional GPS speed sensors to calculate the ideal application rate and then automatically adjust the flow rate as needed.



Full-Trip MoldboardElliptical Tanks

The elliptical tanks have a low center of gravity for improved vehicle control.



Full-Trip Moldboard3-Zone Control

The left wing, right wing and center boom nozzles can be managed independently with the 3-zone control. This helps to apply liquid exactly where it’s needed without wasting material.

(HFD Pump Platform only)



Full-Trip MoldboardAdjustable Nozzles

The boom offers three nozzle sizes on a rotating assembly, and the wing nozzles can be manually adjusted for direction and flow control.



Full-Trip MoldboardFiltered Pump System

Engineered specifically to handle brine in harsh conditions, the wet-seal pump is properly filtered for reliable performance. It’s powered by a dependable HONDA® engine.

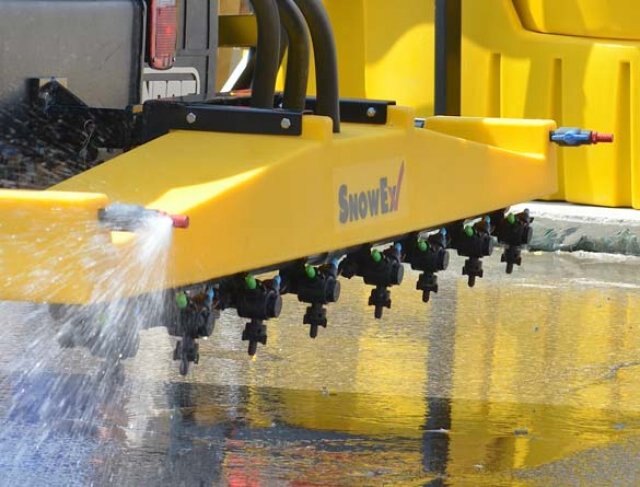

Full-Trip MoldboardPoly Boom

The all-poly boom offers superior rust resistance against highly corrosive materials.


Imperial TSA-300 TSA-500 TSA-750 TSA-1250
Empty Weight 320 lb 475 lb 740 lb 860 lb
Overall Length 101" 112" 118" 119"
Overall Height 24" 48" 55" 73"
Overall Width 48" 59" 75" 85"
Capacity 300 gal. 500 gal. 750 gal. 1250 gal.
Tank LLPDE safety yellow poly LLPDE safety yellow poly LLPDE safety yellow poly LLPDE safety yellow poly
Frame Powder coated steel with 2-way fork pockets Powder coated steel with 2-way fork pockets Powder coated steel with 2-way fork pockets Powder coated steel with 2-way fork pockets
Pump Frame Powder coated steel with fork pockets Powder coated steel with fork pockets Powder coated steel with fork pockets Powder coated steel with fork pockets
Pump Wet-Seal 210 gpm centrifugal circulation pump Wet-Seal 210 gpm centrifugal circulation pump Wet-Seal 210 gpm centrifugal circulation pump Wet-Seal 210 gpm centrifugal circulation pump
Motor Sealed 5.5 hp HONDA Sealed 5.5 hp HONDA Sealed 5.5 hp HONDA Sealed 5.5 hp HONDA
Standard Control (HFS-100) On/Off 3-zone control On/Off 3-zone control On/Off 3-zone control On/Off 3-zone control
Deluxe Control (HFD-200) Automatic 3-zone controller flow (GPS optional) Automatic 3-zone controller flow (GPS optional) Automatic 3-zone controller flow (GPS optional) Automatic 3-zone controller flow (GPS optional)
Primary Valves Electric ball valves Electric ball valves Electric ball valves Electric ball valves
Overall Width 98" 98" 98" 98"
Spray Width (boom only) 8' 8' 8' 8'
Spray Width (w/ wing sprayer) 24' 24' 24' 24'
Nozzles TeeJet acetal resin; 3 nozzle sizes TeeJet acetal resin; 3 nozzle sizes TeeJet acetal resin; 3 nozzle sizes TeeJet acetal resin; 3 nozzle sizes
Mounting Standard with adjustable-height mounting bars Standard with adjustable-height mounting bars Standard with adjustable-height mounting bars Standard with adjustable-height mounting bars
Imperial TSA-300 TSA-500 TSA-750 TSA-1250
Empty Weight 145.2 kg 215.5 kg 335.7 kg 390.1 kg
Overall Length 256.5 cm 284.5 cm 299.7 cm 302.3 cm
Overall Height 60.9 cm 121.9 cm 139.7 cm 185.4 cm
Overall Width 121.9 cm 149.9 cm 190.5 cm 215.9 cm
Capacity 1,135.6 L 1,892.7 L 2,839.1 L 4,731.7 L
Tank LLPDE safety yellow poly LLPDE safety yellow poly LLPDE safety yellow poly LLPDE safety yellow poly
Frame Powder coated steel with 2-way fork pockets Powder coated steel with 2-way fork pockets Powder coated steel with 2-way fork pockets Powder coated steel with 2-way fork pockets
Pump Frame Powder coated steel with fork pockets Powder coated steel with fork pockets Powder coated steel with fork pockets Powder coated steel with fork pockets
Pump Wet-Seal 794.9 L/min centrifugal circulation pump Wet-Seal 794.9 L/min centrifugal circulation pump Wet-Seal 794.9 L/min centrifugal circulation pump Wet-Seal 794.9 L/min centrifugal circulation pump
Motor Sealed 5.5 hp HONDA Sealed 5.5 hp HONDA Sealed 5.5 hp HONDA Sealed 5.5 hp HONDA
Standard Control (HFS-100) On/Off 3-zone control On/Off 3-zone control On/Off 3-zone control On/Off 3-zone control
Deluxe Control (HFD-200) Automatic 3-zone controller flow (GPS optional) Automatic 3-zone controller flow (GPS optional) Automatic 3-zone controller flow (GPS optional) Automatic 3-zone controller flow (GPS optional)
Primary Valves Electric ball valves Electric ball valves Electric ball valves Electric ball valves
Overall Width 248.9 cm 248.9 cm 248.9 cm 248.9 cm
Spray Width (boom only) 0.305 m 0.305 m 0.305 m 0.305 m
Spray Width (w/ wing sprayer) 7.32 m 7.32 m 7.32 m 7.32 m
Nozzles TeeJet acetal resin; 3 nozzle sizes TeeJet acetal resin; 3 nozzle sizes TeeJet acetal resin; 3 nozzle sizes TeeJet acetal resin; 3 nozzle sizes
Mounting Standard with adjustable-height mounting bars Standard with adjustable-height mounting bars Standard with adjustable-height mounting bars Standard with adjustable-height mounting bars



Specifications
Model
Liqui Maxx™
Category Name
Snow Equipment
Year
2016
Sale Type
New
Manufacturer
SnowEx
