Snowex SP-9300X Super-MAXXII Spreaders

  • Snowex SP 9300X Super MAXXII Spreaders
  • Snowex SP 9300X Super MAXXII Spreaders
  • Snowex SP 9300X Super MAXXII Spreaders
  • Snowex SP 9300X Super MAXXII Spreaders
  • Snowex SP 9300X Super MAXXII Spreaders
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

SnowEx's Super-MAXXII spreaders lead the industry in every way. Featuring extra-large capacities, redesigned auger transmissions and innovative flow control tubes, the spreaders offer a more precise application than other units on the market.

  • Cab-forward design for up to 33% better payload distribution
  • 3.2 cu. yd. (Struck) and 3.5 cu. yd. (Rounded) capacity polyethelene hopper
  • Communication cable with direct connection
  • Enhanced corrosion control finish with unique 6-part organic top coat process
  • Optional integrated pre-wet system with patented wet/dry mixing chamber
  • Low maintenance – no pulleys, sprockets, chains or belts
  • 2-year warranty
Specifications
Model
SP-9300X
Category Name
Equipment
Year
2014
Sale Type
New
Manufacturer
SnowEx
Weight Empty
989 lbs. (448.6 kg)
Overall Length
143
Overall Height
43
Overall Width
54
Floor Length
113
Floor Width
54
Hopper Length
108
Hopper Width
54
Capacity Volume
3.2 cu. yd. (2.6 cu. m) Struck, 3.5 cu. yd. (2.8 cu. m) Rounded
Spreading Width
Up to 40 ft.
Spreading Material
50/50 sand/salt mix Bagged ice melters Bagged rock salt Bulk salt Calcium flakes Calcium chloride pellets Sand

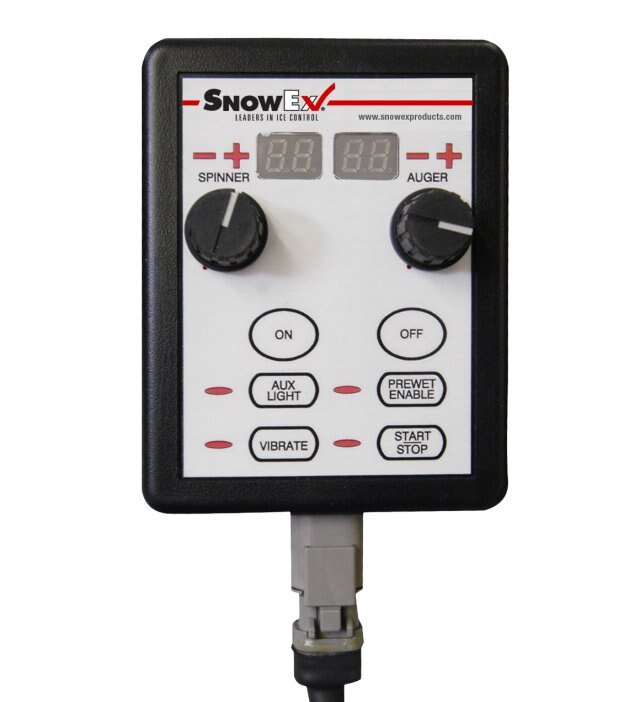

Speed Control
Fully integrated pendant-style digital variable-speed control unit
Wiring Harness
Non-combustible automotive style multiple gauge wiring harness with weather-tight plugs and connecters
Frame
Heavy-duty steel with enhanced corrosion control finish with unique 6-part organic top coat process
Hopper
Patented multi-angular design to maximize material flow, one piece L.L.D.P.E. safety yellow polyethylene.
Motors
1.6 HP heavy-duty 12 volt DC, semi-sealed mounted in a weather-resistant enclosure, fully modular design for quick disconnect, storage and transport

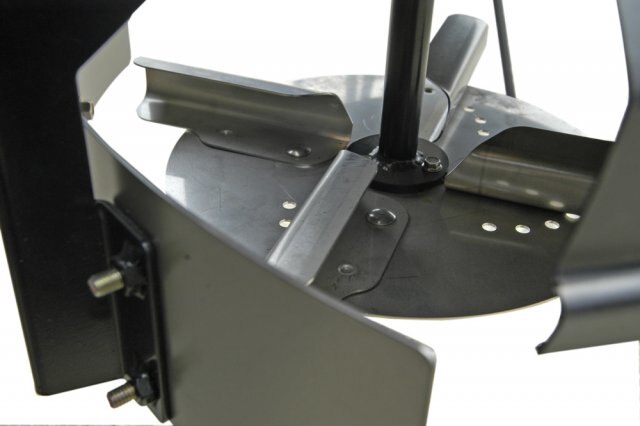

Spinner
12

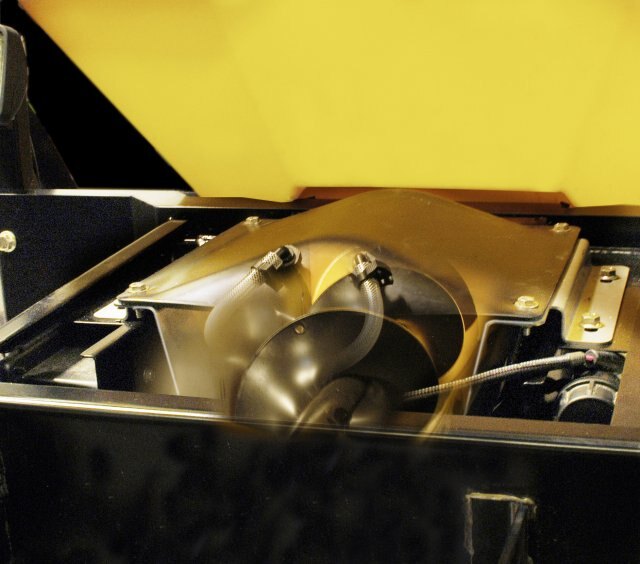

Auger
7
Mounting
Mount holes located in the corners of the frame used in conjunction with heavy-duty ratchet straps and adjustable stop brackets. See owner's manual for mounting & installation instructions.
Top Screen
Heavy-duty steel rod construction with grid pattern, hinged in the middle
Cover
Heavy-duty poly-vinyl material with reinforced corners and a set of bungee tie downs
Vibrator
Patented system consists of an inverted V assembly and vibrator coupled together to maximize vibrator output for maximum material flow. Vibrator produces 400 pounds of force.
Truck Compatibility
19,000 GVWR 1 Ton Dump Truck
Required Bed Length:
113
Brake Light:
FMVSS 108 rated CHMSL with lead for vehicle installation
Work Light:
2 light spreading operation (harness included)
