Snowex SP-2200 Dump Box Spreader

  • Snowex SP 2200 Dump Box Spreader
  • Snowex SP 2200 Dump Box Spreader
  • Snowex SP 2200 Dump Box Spreader
  • Snowex SP 2200 Dump Box Spreader
  • Snowex SP 2200 Dump Box Spreader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

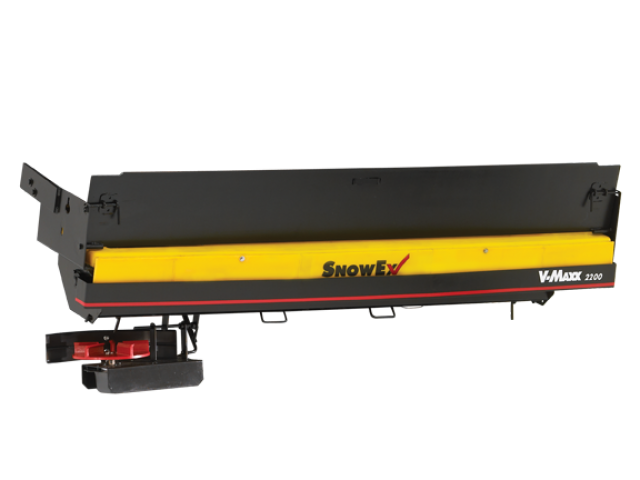

The V-Maxx 2200 dump box spreader installs below the tailgate of dump beds. This allows a dump truck to spread material without having to remove the tailgate. The V-Maxx 2200 dump box spreader comes with a hinged clean-out tray, polyethylene construction, and independent spinner and auger controls.

  • Rugged polyethylene hopper — eliminates corrosion
  • Totally self-contained patented 12-volt electric drive/transmission sealed unit
  • Low maintenance – no pulleys, sprockets, chains or belts
  • Heavy-duty non-combustible automotive-style wiring harness
  • Work light and universal mount kit are standard
  • Independent spinner and auger control
  • Available electric or hydraulic
  • 2-year warranty
Specifications
Model
SP-2200
Category Name
Equipment
Year
2014
Sale Type
New
Manufacturer
SnowEx
Weight Empty
353 lbs. (160.1 kg)
Overall Length
96
Overall Height
20
Overall Width
18
Hopper Length
95.5
Hopper Width
17
Spreading Width
Up to 40' (12.2 m)
Spreading Material
50/50 sand/salt mix Sand
Speed Control
Digital, self-diagnosing dual variable speed controllers with auto reverse
Wiring Harness
Completely loomed automotive style, non-combustible with molded plugs
Frame
Powder coated steel
Hopper
One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors
Dual, 12-volt DC sealed direct-drive motors in weather resistant enclosures
Spinner Drive Assembly
Compact, independent weather-resistant patented motor transmission (spinner assembly is modular for quick connect)
Spinner
12

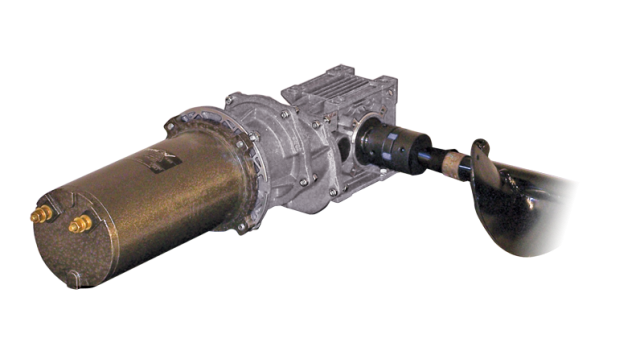

Auger Drive Assembly
Heavy-duty solid steel construction with maximum-torque motor transmission drive
Mounting
Universal mounting kit to fit most dump bodies (some fabrication required). See owner's manual for mounting & installation instructions.

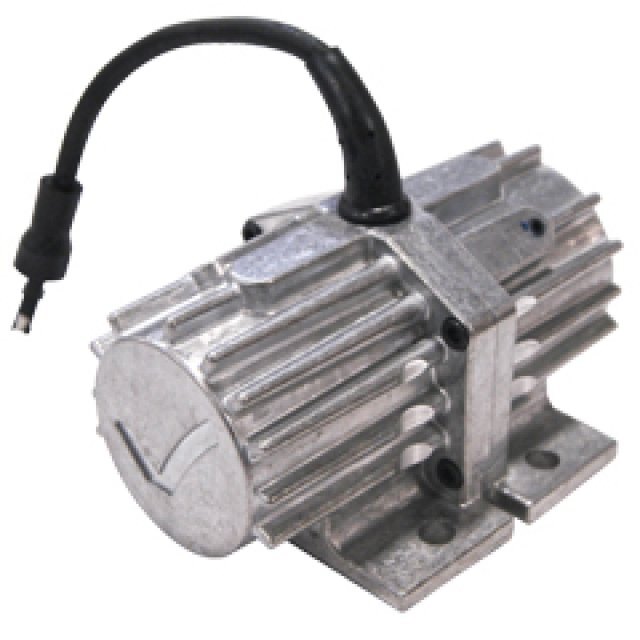

Vibrator
Standard heavy-duty 12-volt DC
Truck Compatibility
2-2.5 Ton Dump Truck (No Low Profile) 26,001 lb. GVW minimum, Distance of overhang from hinge pins cannot exceed 18 inches
