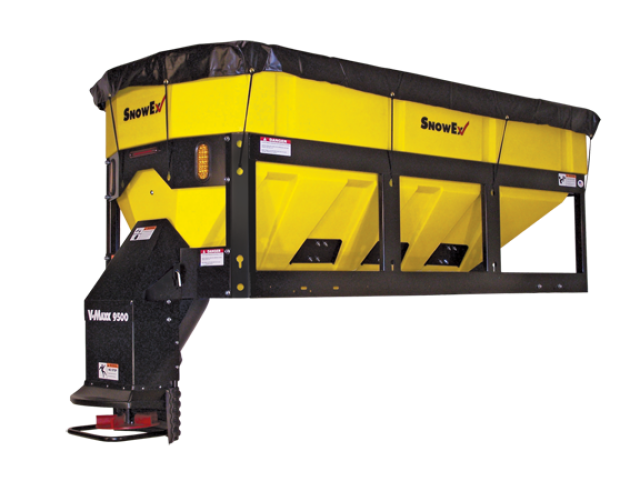

Snowex SP-9500 V-Box In-Bed Spreader

  • Snowex SP 9500 V Box In Bed Spreader
  • Snowex SP 9500 V Box In Bed Spreader
  • Snowex SP 9500 V Box In Bed Spreader
  • Snowex SP 9500 V Box In Bed Spreader
  • Snowex SP 9500 V Box In Bed Spreader
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The V-Maxx 9500 offers the highest capacity (4 cubic yards) of any SnowEx spreader. It accurately spreads bulk salt, sand, or any combination of the two. This makes it perfect for large contractors and municipalities looking to minimize material waste, as well as trips to the salt yard.

  • Patented polyethylene hopper — eliminates corrosion
  • Transverse and longitudinal auger system
  • Patented 12-volt electric drive/transmission sealed unit
  • Heavy-duty non-combustible automotive-style wiring harness
  • Quick-connect spinner drive assembly for hitch access
  • Top screen
  • 2-year warranty
Specifications
Model
SP-9500
Category Name
Equipment
Year
2014
Sale Type
New
Manufacturer
SnowEx
Weight Empty
994 lbs. (450.8 kg)
Overall Length
130
Overall Height
45.5
Overall Width
52
Floor Length
106
Floor Width
49
Hopper Length
118.5
Hopper Width
52
Capacity Volume
4.0 cu. yd. (3.1 cu. m)
Capacity Weight
8,640 lbs. (3,919 kg)
Spreading Width
Up to 40' (12.2 m)
Spreading Material
50/50 sand/salt mix Bulk salt Sand

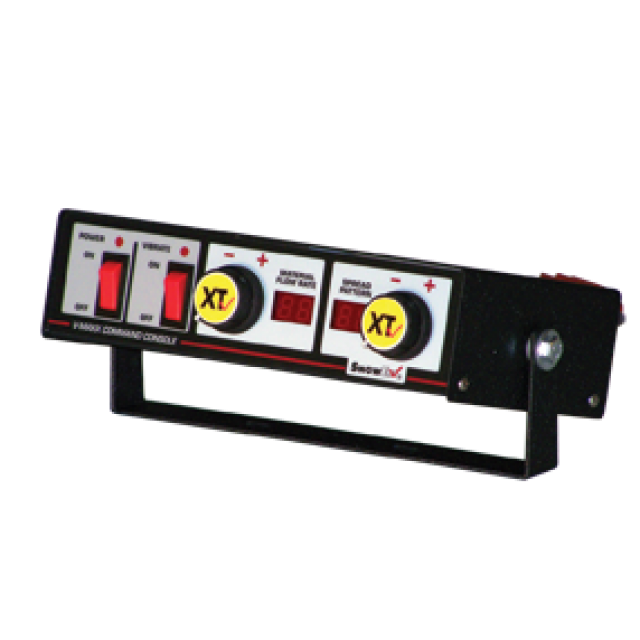

Speed Control
Digital, self-diagnosing dual variable speed controllers with auto reverse
Wiring Harness
Completely loomed automotive-style, non-combustible with molded plugs with spare circuit
Frame
Powder coated steel
Hopper
One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors
Dual, 12-volt DC sealed direct-drive motors in weather resistant enclosures
Spinner Drive Assembly
Compact, independent weather-resistant patented motor transmission (spinner assembly is modular for quick connect)
Spinner
12

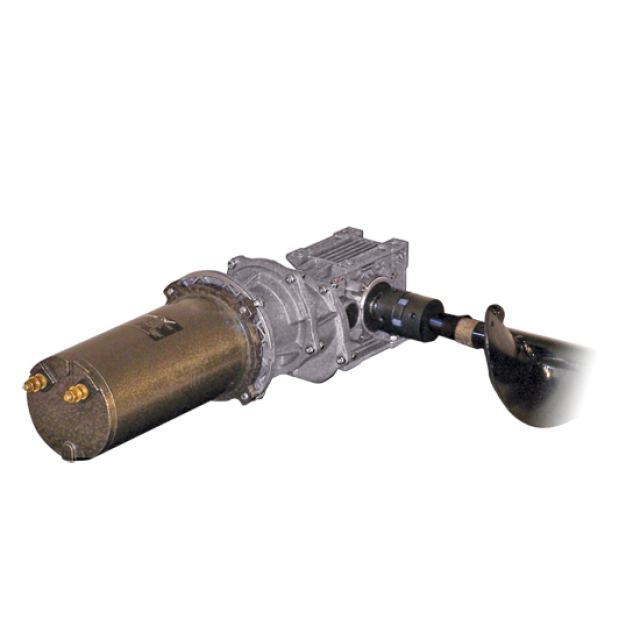

Auger Drive Assembly
Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger
7
Mounting
Positive locking mount with bolt-down kit and ratchet-strap assist. See owner's manual for mounting & installation instructions.
Top Screen
Hinged heavy-duty steel rod construction with grid pattern
Cover
Fitted Tarp

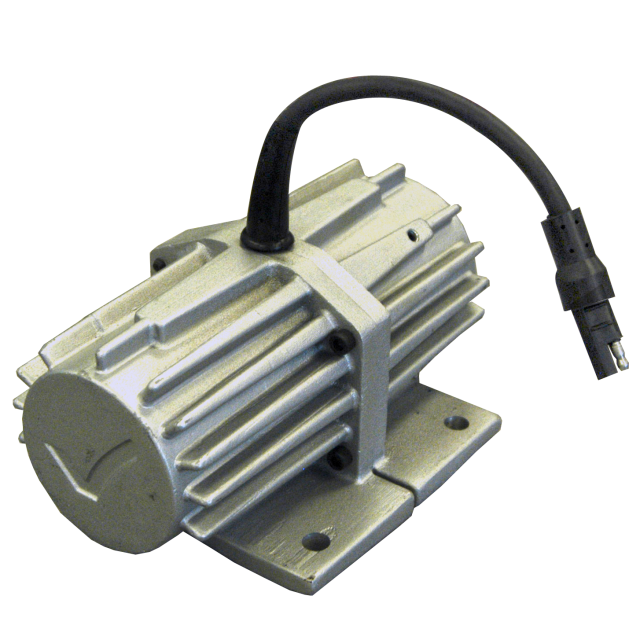

Vibrator
Standard heavy-duty 12-volt DC
Inverted V
Patented vibrating inverted
Truck Compatibility
19,000 GVWR
