Snowex

ID # 13233523

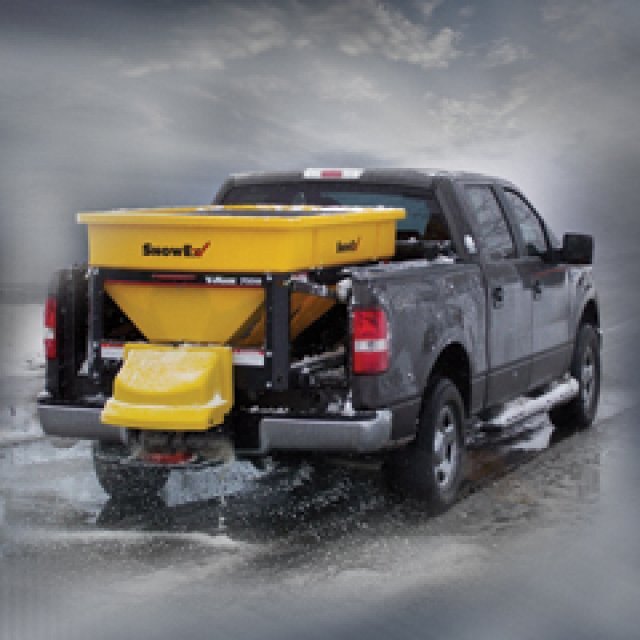

Snowex SP-7550 V-Box In-Bed Spreader

Call for Price
Overview

The SP-7550 is the smallest V-Maxx series spreader available for truck bed mounting. It still comes with all the innovative V-Maxx features, such as poly construction, electric power, and independent auger and spinner control. This makes the spreader ideal for any snow and ice professional with a three-quarter ton pickup or larger.

  • Patented polyethylene hopper — eliminates corrosion
  • Transverse and longitudinal auger system
  • Patented 12-volt electric drive/transmission sealed unit
  • Heavy-duty non-combustible automotive-style wiring harness

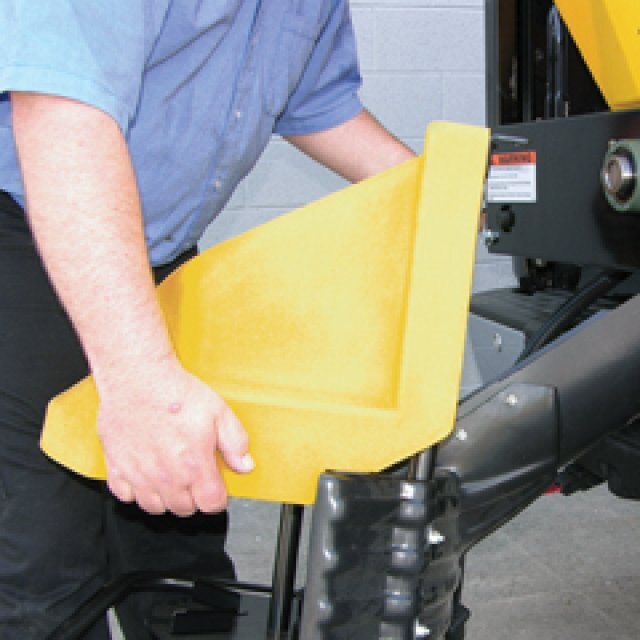

  • Quick-connect spinner drive assembly for hitch access
  • Top screen
  • 2-year warranty
Specifications
Model
SP-7550
Category Name
Equipment
Year
2014
Sale Type
New
Manufacturer
SnowEx
Weight Empty
550 lbs. (249.5 kg)
Overall Length
89.5
Overall Height
34
Overall Width
49
Floor Length
71
Floor Width
44
Hopper Length
78
Hopper Width
49
Capacity Volume
1.5 cu. yd. (1.2 cu. m) Struck, 1.8 cu. yd. (1.4 cu. m) Rounded
Capacity Weight
3,240 lbs. (1,469.6 kg)
Spreading Width
Up to 40' (12.2 m)
Spreading Material
50/50 sand/salt mix Bulk salt Sand

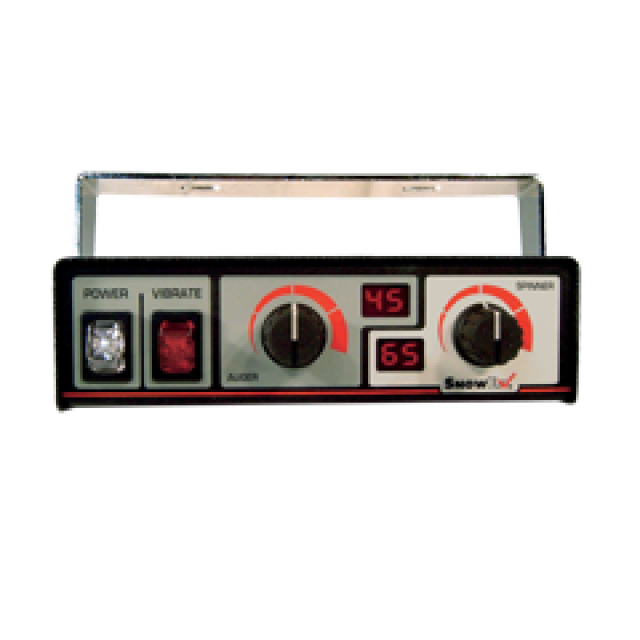

Speed Control
Digital, self-diagnosing dual variable speed controllers (except for hydraulic models)
Wiring Harness
Completely loomed automotive style, non-combustible with molded plugs
Frame
Powder coated steel
Hopper
One-piece LLDPE safety yellow poly with integral vertical rib construction
Motors
Dual, 12-volt DC sealed direct-drive motors in weather resistant enclosures
Spinner Drive Assembly
Compact, independent weather-resistant patented motor transmission (spinner assembly is modular for quick connect)
Spinner
12

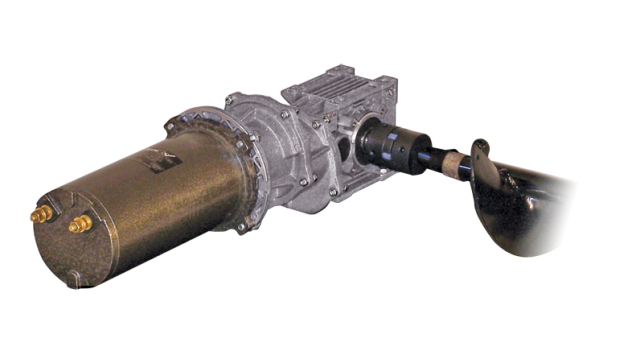

Auger Drive Assembly
Heavy-duty solid steel construction with maximum-torque motor transmission drive
Auger
5
Mounting
Positive locking mount with bolt-down kit and ratchet-strap assist. See owner's manual for mounting & installation instructions.
Top Screen
5/16
Cover
Fitted Tarp

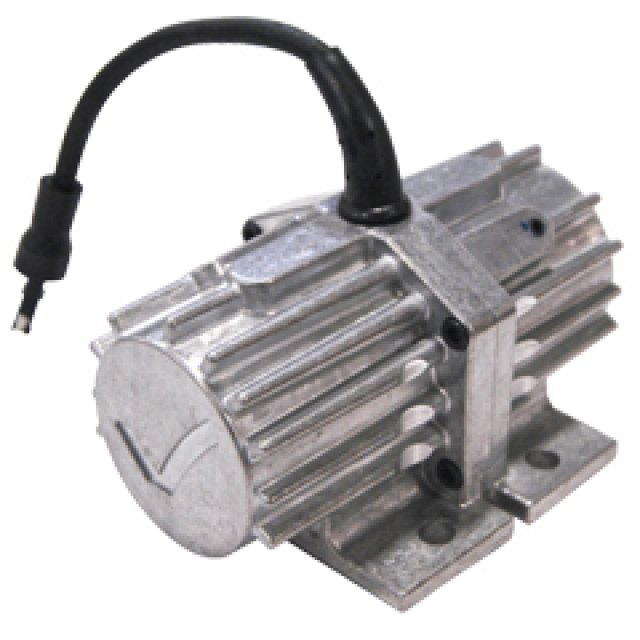

Vibrator
Standard heavy-duty 12-volt DC
Inverted V
Patented vibrating inverted
Truck Compatibility
3/4 Ton Pickup Truck 1 Ton Pickup Truck (13,000 GVWR) 19,000 GVWR 1 Ton Dump Truck
