Snapper S40

  • Snapper S40
  • Snapper S40
  • Snapper S40
  • Snapper S40
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

S40

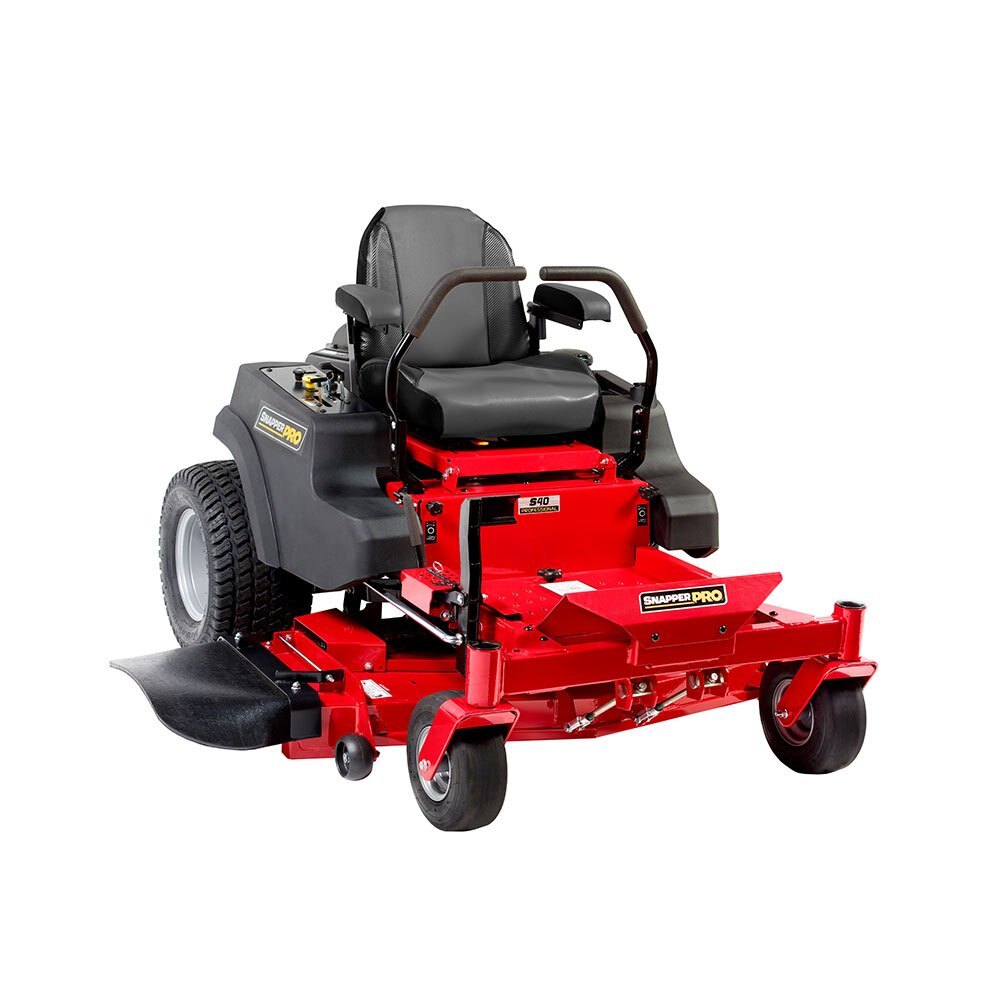

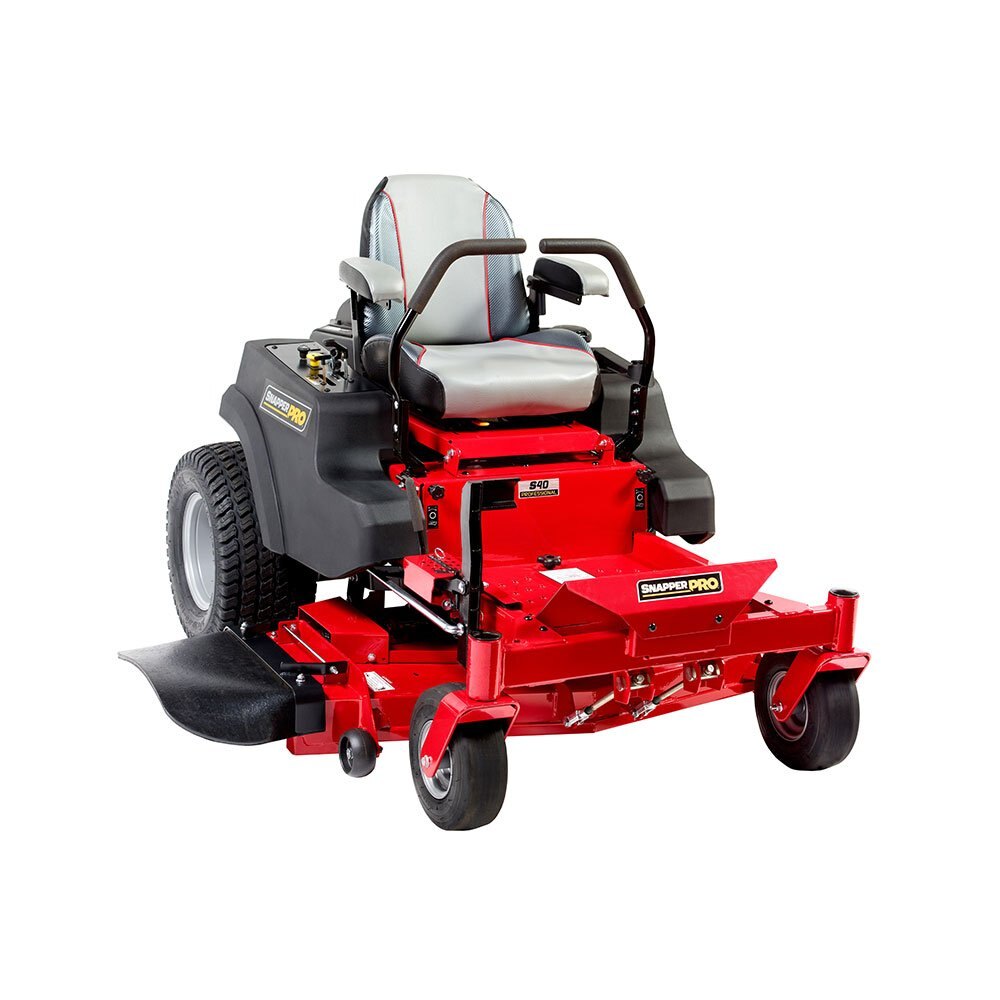

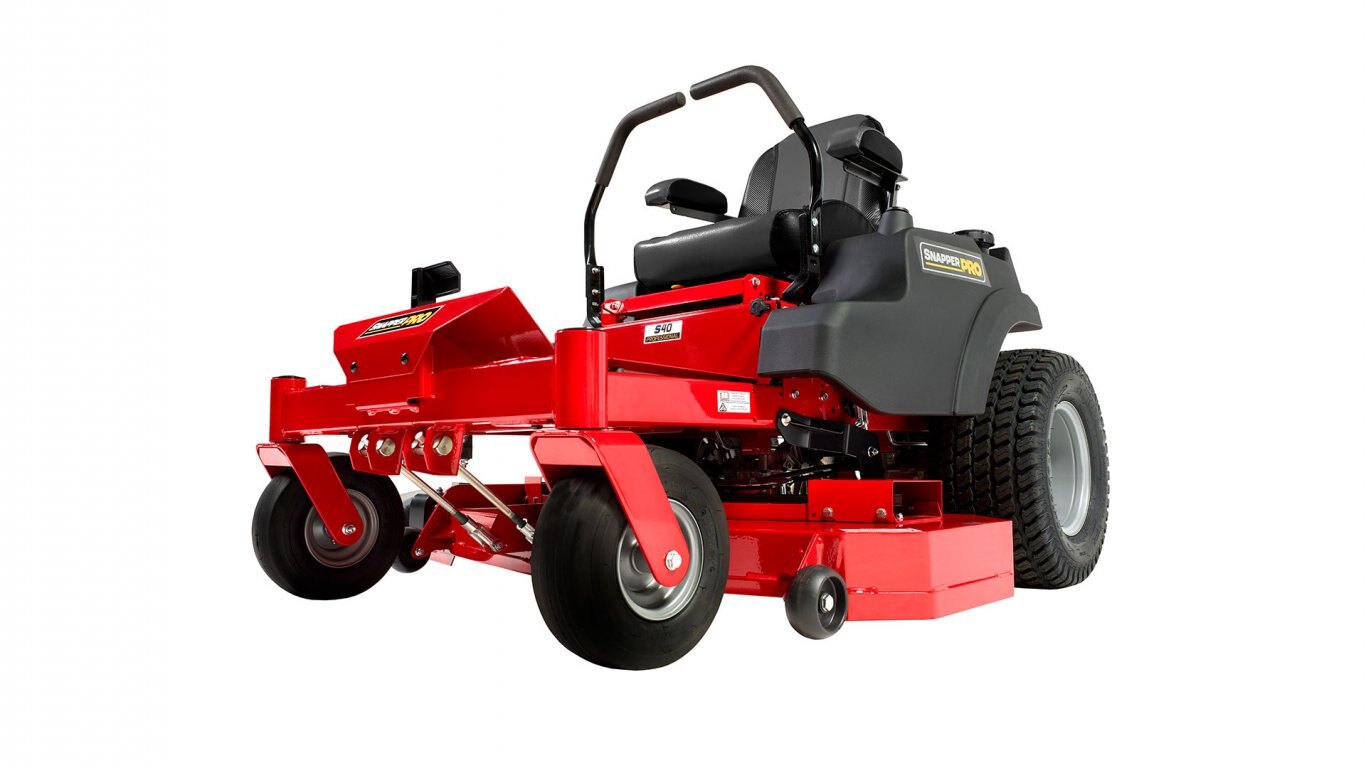

The Snapper Pro S40 is compact and easy-to-use, yet built with commercial-grade components for a long life. A compact size allows it to navigate tight areas with ease and a large fuel capacity allows more mowing between fill ups. This unit is a perfect match of commercial-grade quality and value.



Specifications
Model
S40
Category Name
Lawn / Garden
Year
2021
Sale Type
New
Manufacturer
Snapper
models
Model

5901738

 5901739
Engine Brand Kawasaki® FR651V Briggs & Stratton® Commercial Series
HP (gross) * 21.5 25
Displacement (cc) 726 724
Number of Cylinders 2 2
Starting Type Electric Electric
Fuel Tank Capacity (gal) 5.5 5.5
Transmission Commercial Hydro-Gear® ZT-2800® Transaxles Commercial Hydro-Gear® ZT-2800® Transaxles
Ground Speed-Fwd (mph) 0-8 0-8
Ground Speed-Rev (mph) 0-4 0-4
Cutting Width (in) 48 48
Height-of-Cut (in) 1.5 - 4.5 1.5 - 4.5
Belts TBD TBD
Deck Construction 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners
PTO Electric Electric
Spindles Aluminum, greaseable Aluminum, greaseable
Frame Rail TBD TBD
Finish Powdura® super durable power coat, a high gloss powder coat with excellent impact and resistance and outstanding salt and U.V. protection Powdura® super durable power coat, a high gloss powder coat with excellent impact and resistance and outstanding salt and U.V. protection
Drive Axles 1.125 1.125
Drive Tires (in) 20 x 10-10 20 x 10-10
Caster Tires (in) 11 x 4-5 Pneumatic 11 x 4-5 Pneumatic
Overall Length (in) 80 80
Overall Width (in.) deflector down / deflector up (model) 62.5/59.5 62.5/59.5
Seat Package Mid-back seat with armrests Mid-back seat with armrests
Instrumentation Hour meter, Fuel level gauge Hour meter, Fuel level gauge
Controls/Safety Group Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake/Safety Circuit Internal Transaxle Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies. 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coverage on other components varies.




features
Original

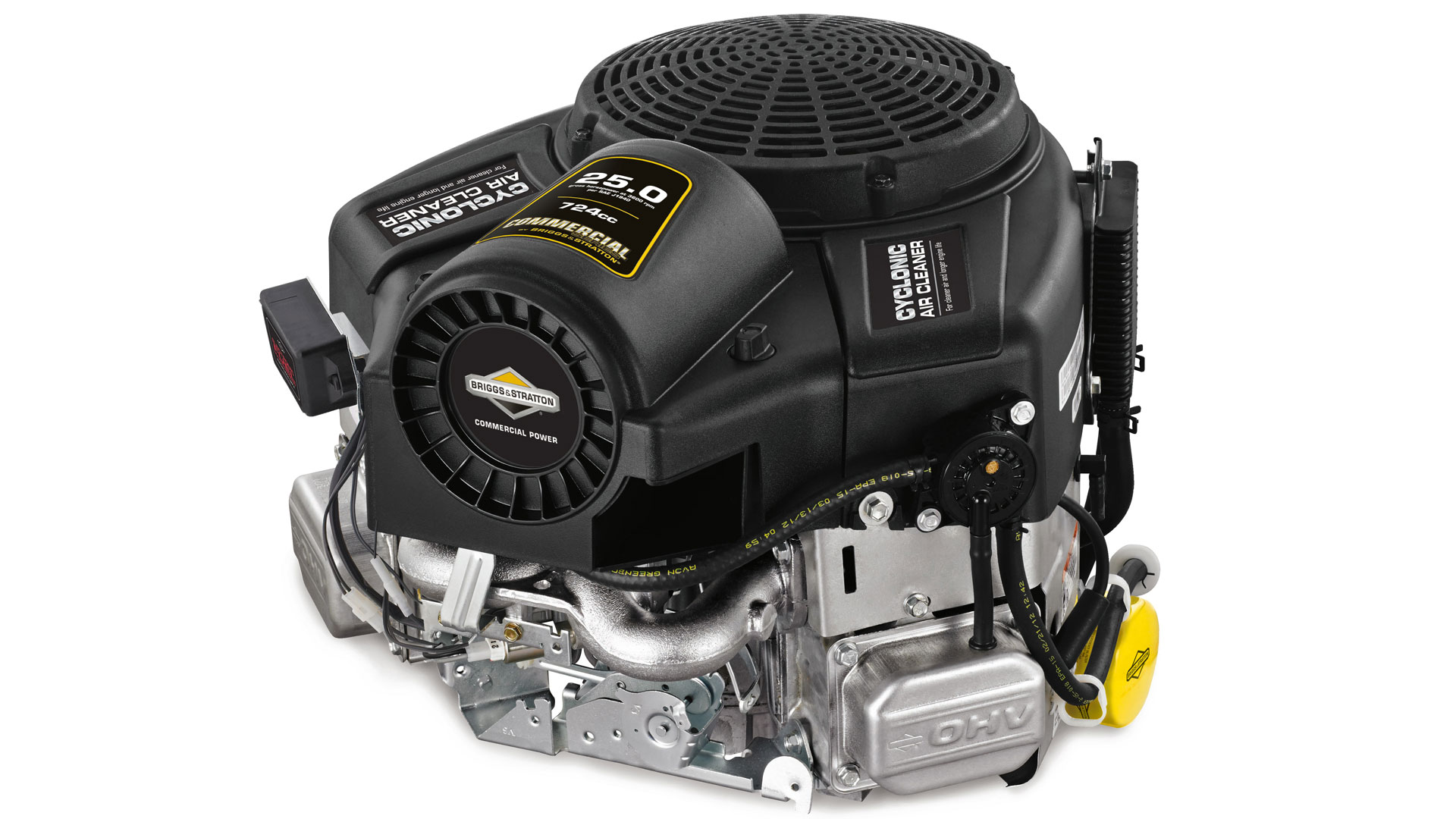

Designed for Commercial Use

The Briggs & Stratton® Commercial Series engine features a patented advanced debris management system which deflects dirt and debris from the engine and any remaining debris is trapped in the high-capacity, dual-sealing air cleaner cartridge.

Original

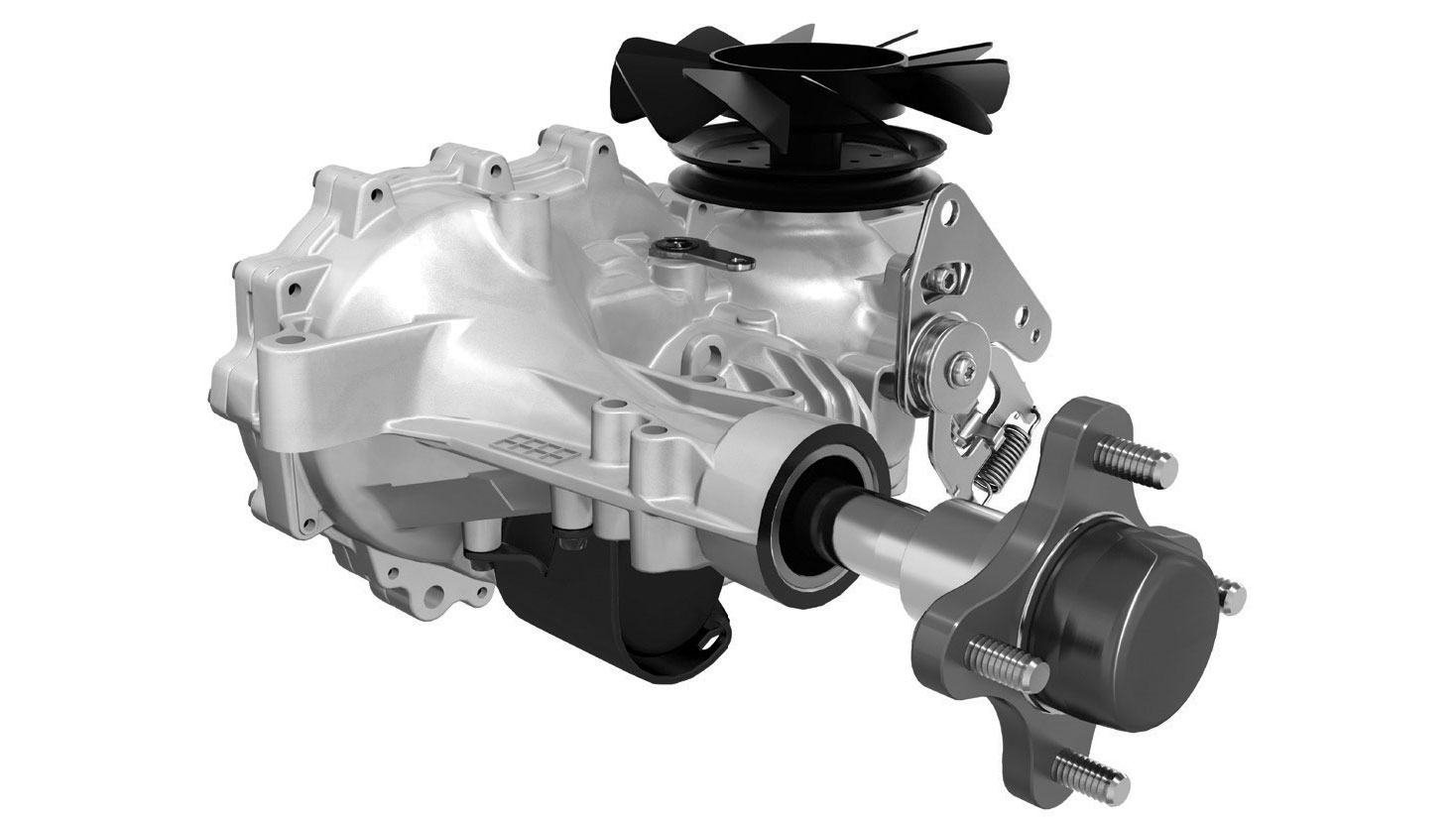

Integrated Transmission

Independent, commercial Hydro-Gear® ZT-2800® transaxles deliver unmatched power and durability.
Original
Heavy-Duty Spindles

Features greaseable, cast-aluminum spindles with commercial, oversized double row bearings for longer usable life.
