ID # 25912158

Scag SWZ HYDRO-DRIVE

  • Scag SWZ HYDRO DRIVE
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

HYDRO-DRIVE WALK BEHIND

Hydraulic power and simple design combine to make the SWZ the most efficient and easy-to-handle walk-behind you can buy. The SWZ has all the features Scag® mowers are famous for: tough, durable components for long life and heavy-duty cutter decks that deliver an unmatched cut.
Specifications
Model
SWZ HYDRO-DRIVE
Category Name
Lawn Care
Year
2023
Sale Type
New
Manufacturer
Scag
features

Scag SWZ HYDRO DRIVE

The envy of the neighborhood

36", 48", 52" OR 61" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks (48″, 52″ and 61″ widths) deliver an amazing quality-of-cut and a wide, even discharge. A 36″ Advantage Cutter Deck option is also available.

Scag SWZ HYDRO DRIVE

Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.

Scag SWZ HYDRO DRIVE

Heavy-Duty Construction

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Full commercial-grade construction ensures years of productive use.

Scag SWZ HYDRO DRIVE

Heavy-Duty Drive System

SPEEDS UP TO 7.4 MPH

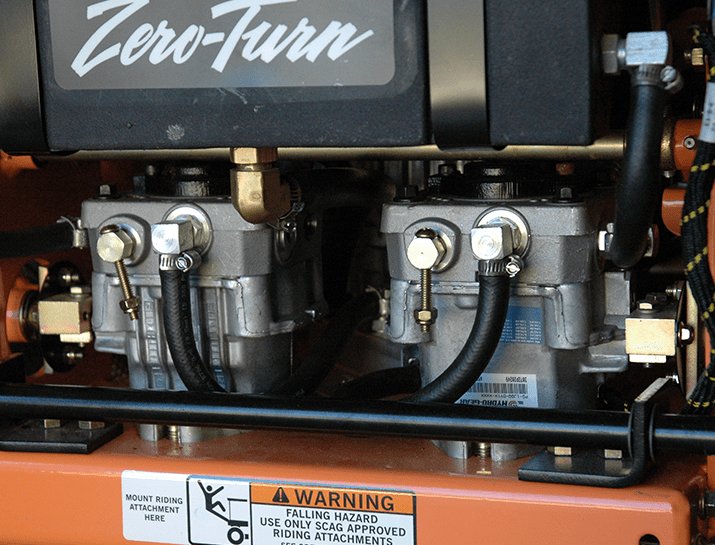

Hydraulic drive system includes dual 10 cc Hydro-Gear pumps and 12 ci Parker hydraulic motors.

Scag SWZ HYDRO DRIVE

Adjust-A-Trac

STRAIGHT AHEAD

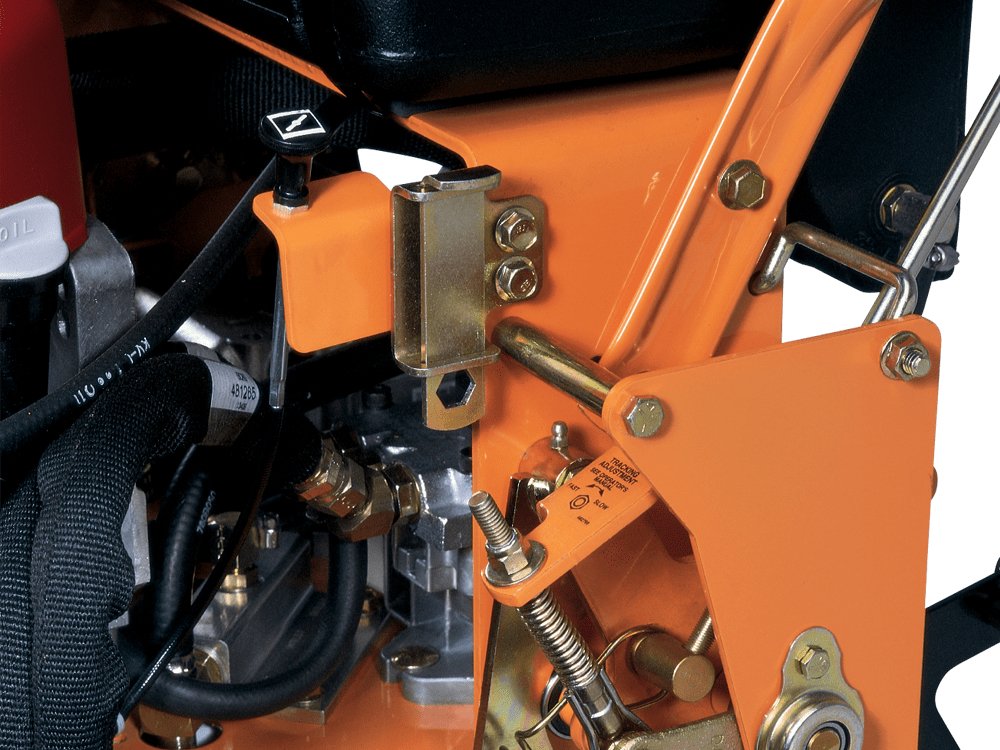

Adjust-A-Trac tool is conveniently mounted on the engine deck for quick and easy neutral and tracking adjustments in the field.

Scag SWZ HYDRO DRIVE

Ease of Maintenance

MORE UPTIME

Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SWZ simple, so you can be in the shop less and on the job more.

Scag SWZ HYDRO DRIVE

Proven "Pistol" Grips

EZ-GRIP DESIGN

Spring-assisted EZ-Grip design reduces hand force required to operate drive controls for maximum operator comfort and simple machine operation.
Scag SWZ HYDRO DRIVE
Adjustable Handlebars

3 POSITIONS TO ACCOMMODATE ALL OPERATORS

Handlebars adjust to three (3) different positions to enhance operator comfort.
Scag SWZ HYDRO DRIVE
Powerful and Efficient Engine Options

RELIABLE POWER, UP TO 22 HP

Proven and dependable Kawasaki® FS V-twin engine delivers efficient power.
battery & deck combinations
Model Description
SWZ-36A-14FS 36" Advantage Cutter Deck, 14 HP Kawasaki® 481FS
SWZ-48V-15FSE 48" Velocity Plus™ Cutter Deck, 15 HP Kawasaki® 541FSE (electric start)
SWZ-52V-18FSE 52" Velocity Plus™ Cutter Deck, 18 HP Kawasaki® 600FSE (electric start)
SWZL-52V-22FSE 52" Velocity Plus™ Cutter Deck, 22 HP Kawasaki® 651FSE (large frame, electric start)
SWZL-61V-22FSE 61" Velocity Plus™ Cutter Deck, 22 HP Kawasaki® 651FSE (large frame, electric start)
product dimensions
Product Dimensions 36" SWZ 48" SWZ 52" SWZ 61" SWZ
Length 72" 74" 76" 78"
Width (chute down) 47" 60.5" 64.5" 73.5"
Width (chute in transport position) 37" 49" 53" 62"
Weight 515 lb 565 lb 585-660 lb 717 lb
general
Seat
n/a
Drive Tires
16" x 6.5"-8"
Caster Tires
9" x 3.5"
Total Fuel Capacity
5.5 gallons
drive system
Motors
Parker 11 ci
Pumps
Hydro-Gear: 10 cc
Parking Brake
Hand lever
Drive System Type
Dual Pump and Motor
Forward Ground Speed
Up to 7.4 mph
Reverse Ground Speed
3 mph
deck
Type
Advantage (36")
Spindles
Cast-iron housing with tapered roller bearings.
Deck Lift
n/a
Construction
Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
Cutting Height
1.75" to 4.5" in .25" increments
Cutting Widths
36", 48", 52" and 61"
Blade Engagement
Adjustable air-gap for extended life.
