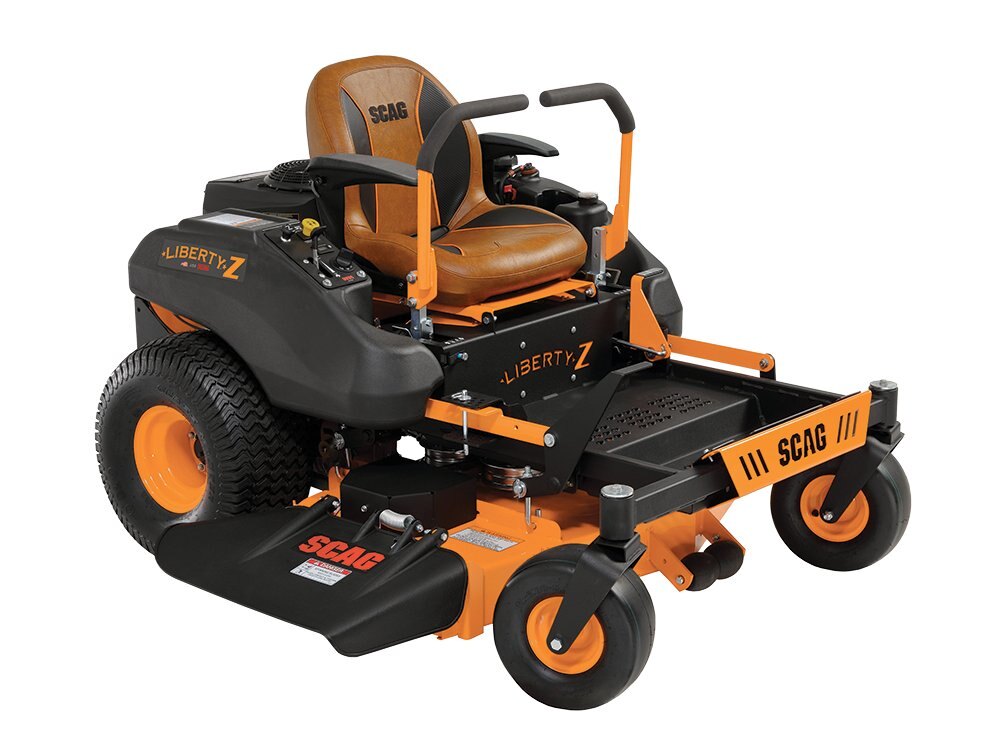

Scag LIBERTY Z

  • Scag LIBERTY Z
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

COME HOME TO THE BEST

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.
Specifications
Model
LIBERTY Z
Category Name
Lawn Care
Year
2023
Sale Type
New
Manufacturer
Scag
features

Scag LIBERTY Z

Command perfection

DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

Scag LIBERTY Z

Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT3.5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 250 ft. lb. of holding strength, and an adjustable air gap for long life.

Scag LIBERTY Z

High-Strength Steel Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Tubular-steel main frame delivers unmatched strength and longevity.

Scag LIBERTY Z

Low-Maintenance Mower Design

MORE UPTIME

Fewer grease points increase operator convenience and ease-of-ownership.

Scag LIBERTY Z

Proven Transaxles

SPEEDS UP TO 7 MPH

The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels (36″, 42″, 52″ and 61″ models). The 48″ model features proven Tuff Torq transaxles.

Scag LIBERTY Z

Contoured, Bolstered, High-Back Seat

RIDE IN COMFORT

This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.

Scag LIBERTY Z

Easy Foot-Pedal Deck Lift

EASY UP, EASY DOWN

Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.
Scag LIBERTY Z
Powerful and Efficient Engine Options

RELIABLE POWER, UP TO 24 HP

Choose from a Kawasaki® FR or Kohler® 7000 Series engine.
battery & deck combinations
Model Description
SZL-36H-18FR 36" Hero Cutter Deck, 18 HP Kawasaki® FR600V – V-twin
SZL-36H-20KT 36" Hero Cutter Deck, 20 HP Kohler® 7000 Series™ PRO – 725 cc displacement
SZL-36H-20PX 36" Hero Cutter Deck, 20 HP Briggs PXi Series™ – V-twin
SZL-42H-22KT 42" Hero Cutter Deck, 22 HP Kohler® 7000 Series™ PRO – 725 cc displacement
SZL-42H-22PX 42" Hero Cutter Deck, 22 HP Briggs PXi Series™ – V-twin
SZL-42H-21FR 42" Hero Cutter Deck, 21 HP Kawasaki® FR651V – V-twin
SZL-48H-22KT 48" Hero Cutter Deck, 22 HP Kohler® 7000 Series™ PRO – 725 cc displacement
SZL-48H-24SR 48" Hero Cutter Deck, 24 HP Scag SR Series – 708 cc displacement
SZL-48H-22PX 48" Hero Cutter Deck, 22 HP Briggs PXi Series™ – V-twin
SZL-52H-24SR 52" Hero Cutter Deck, 24 HP Scag SR Series – 708 cc displacement
SZL-52H-24KT 52" Hero Cutter Deck, 24 HP Kohler® 7000 Series™ PRO – 725 cc displacement
SZL-52H-24PX 52" Hero Cutter Deck, 24 HP Briggs PXi Series™ – V-twin
SZL-61H-27SR 61" Hero Cutter Deck, 27 HP Scag SR Series – 803 cc displacement
SZL-61H-26KT 61" Hero Cutter Deck, 26 HP Kohler® 7000 Series™ PRO – 747 cc displacement
SZL-61H-27PX 61" Hero Cutter Deck, 27 HP Briggs PXi Series™ – V-twin
product dimensions
Product Dimensions 36" Liberty Z 42" Liberty Z 48" Liberty Z 52" Liberty Z 61" Liberty Z
Length 68.5" 68.5" 67.5" 67.5" 73.5"
Width (chute down) 48.5" 54.5" 60.5" 64.5" 73.5"
Width (chute in transport position) 37" 43" 49" 53" 62"
Height 40" 41" 41" 41" 41"
Weight 555 lb 595 lb 612 lb 646 lb 695 lb
general
Seat
Padded with arm rests, adjustment forward and back (tools required)
Drive Tires
20" x 8"-10" (36")
Caster Tires
11" x 4"-5" (36" and 42")
Total Fuel Capacity
3.5 gallons (36" and 42")
drive system
Pumps
Internal Pump: 10 cc
Motors
Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
Parking Brake
Hand lever
Drive System Type
Hydro-Gear ZT2800 Transaxle (36", 42" and 52")
Forward Ground Speed
7 mph
Reverse Ground Speed
5 mph
deck
Type
Heavy-Duty Hero Cutter Deck
Spindles
Aluminum housing with sealed ball bearings.
Deck Lift
Foot-operated pedal
Construction
Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Cutting Height
1.5" to 4.5" in .25" increments
Cutting Widths
36", 42", 48", 52" and 61"
Blade Engagement
Ogura GT1 (74 ft lb) – (36", 42", 48" and 52")
