Overview

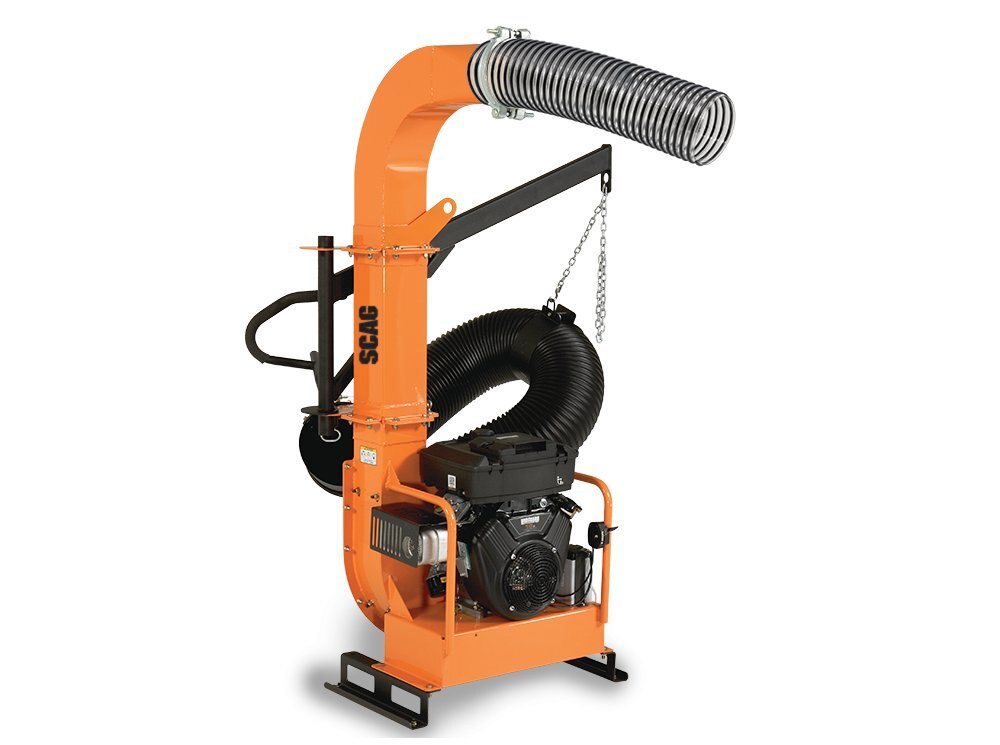

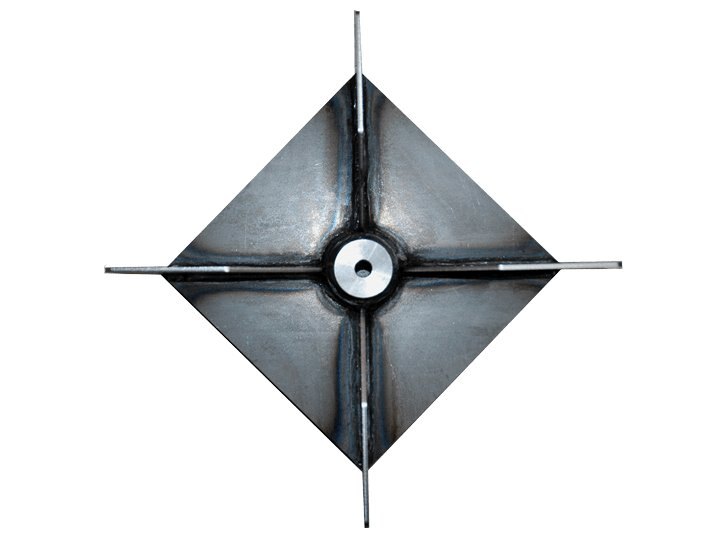

Scag Skid Mount 4-Blade Impeller
Fabricated and Balanced, 20-Inch, 4-Blade Impeller

Within the unit’s 6″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 3,075 CFM), debris-reducing design.


Specifications
Model
Skid-Mount
Category Name
Lawn Care
Year
2022
Sale Type
New
Manufacturer
Scag
features

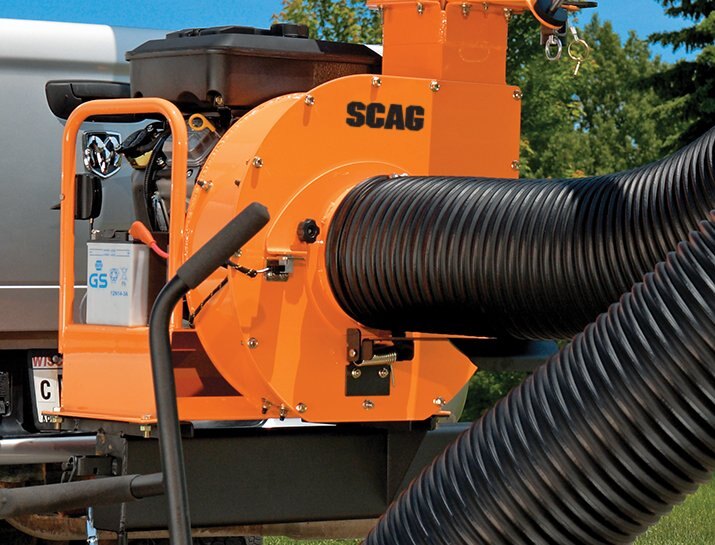

Scag Skid Mount Smart Construction and Convenient Serviceability
Easy Access for Wear Plate and Impeller Service

1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.

Scag Skid Mount Locking Boom Arm and Intake Nozzle

Safe and Convenient Transport

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.  Quick-detach hose also allows for quick and easy transport, storage and cleaning.

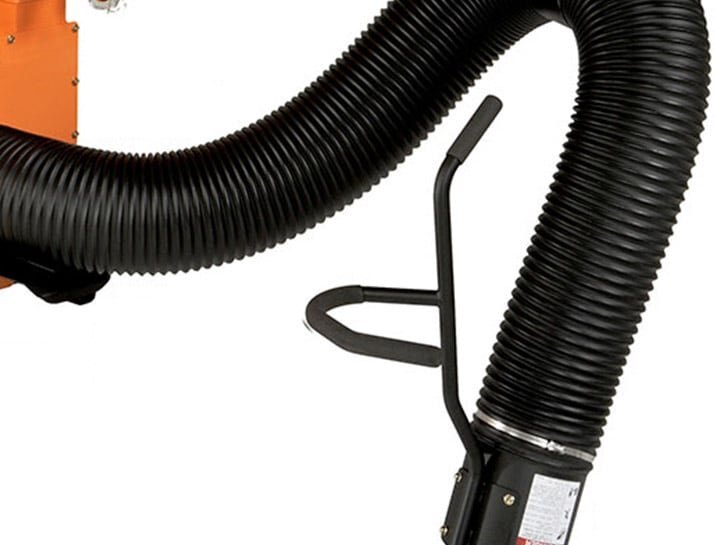

Scag Skid Mount Ambidextrous Nozzle Handle
Easy Handling From Either Side: The Choice Is Yours

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

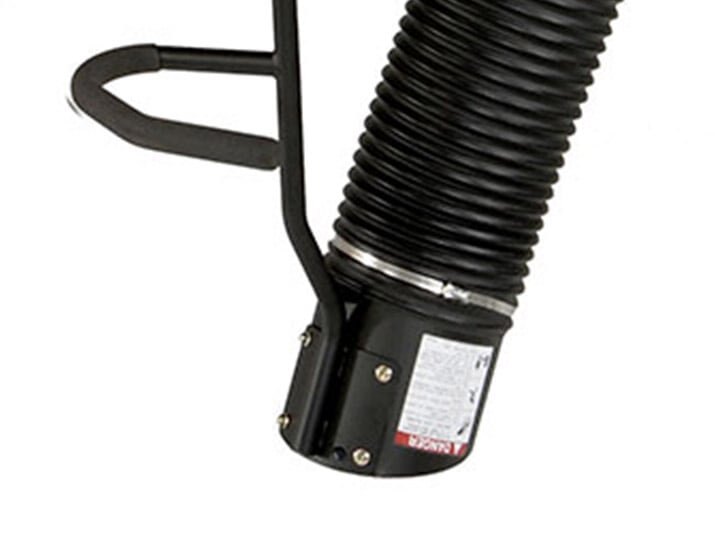

Scag Skid Mount 10" Steel Intake Nozzle

Take It All In

Large, replaceable intake nozzle is beveled to make debris pickup easy.

Scag Skid Mount Skid-Mount
Standard 4" Skid Risers

Four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed.

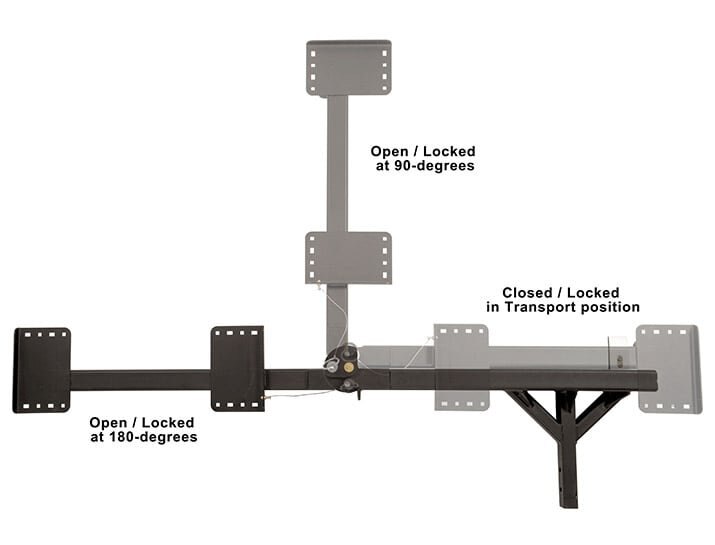

Scag Skid Mount Hitch-Mount (Optional)

Optional Swing-Away Hitch-Mount Accessory

Swing-away design allows the loader to move for dumping/removing debris from the truck. There are three (3) locking positions for exceptional versatility. Fits TLS20-18BV model only.

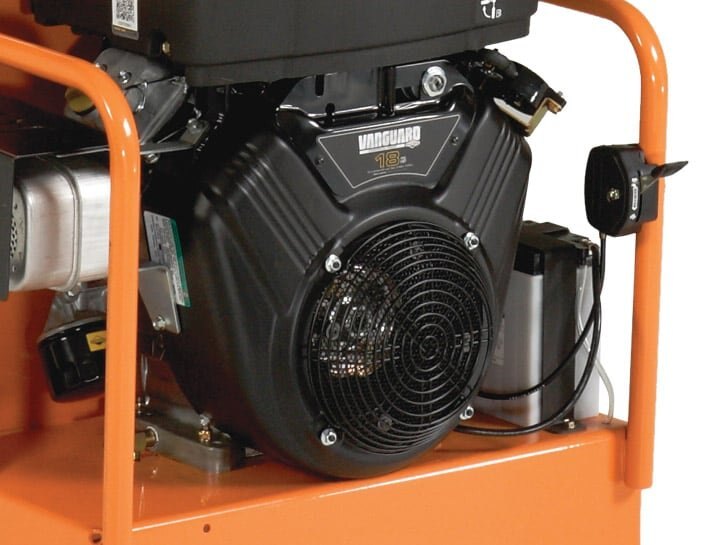

Scag Skid Mount Powerful Engine

18 HP Vanguard V-Twin

Powered by an 18 hp Vanguard® gasoline, V-twin engine with electric start.
specifications
Product Specification Skid-Mount
Fuel Capacity / Tank 1.75 gallons – engine-mounted metal tank
CFM Output 3,075
Frame Construction All-steel, welded
Impeller Construction 4-blade, 3/8"-thick blades, all-steel, welded
Impeller Mounting Tapered locking hub
Impeller Diameter / Width 20" / 5.25"
Blower Housing Construction Removable back panel for easy impeller and wear plate access
Blower Housing Width 6"
Blower Housing Wear Plates Standard: 1/4"-steel, replaceable
Hose Specifications 120" length, 10"-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip
Unit Mounting 4" steel skid risers
Discharge Tube Clear thermoplastic, 7" diameter
Throttle Control Commercial-grade, all-steel mechanicals, plastic debris cover
Highway Ready n/a
Axle n/a
Tires n/a
Trailer Width n/a
Height 74.25" (without skid or hitch mount attached)
Weight 437 lb
Warranty 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
