Scag Industrial Tow-Behind

  • Scag Industrial Tow Behind
  • Scag Industrial Tow Behind
  • Scag Industrial Tow Behind
  • Scag Industrial Tow Behind
  • Scag Industrial Tow Behind
  • Scag Industrial Tow Behind
  • Scag Industrial Tow Behind
  • Scag Industrial Tow Behind
  • Scag Industrial Tow Behind
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

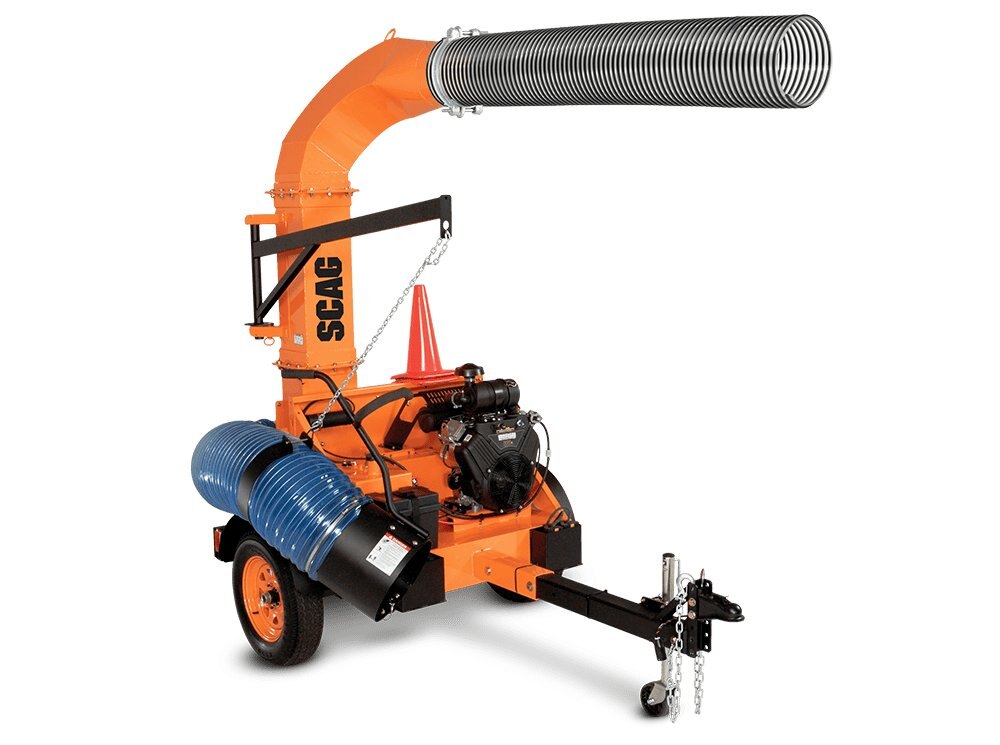

Scag Industrial Tow Behind 4-Blade Impeller
Fabricated and Balanced, 25-Inch, 4-Blade Impeller

Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.


Specifications
Model
Industrial Tow-Behind
Category Name
Lawn Care
Year
2022
Sale Type
New
Manufacturer
Scag
features

Scag Industrial Tow Behind Smart Construction and Convenient Serviceability

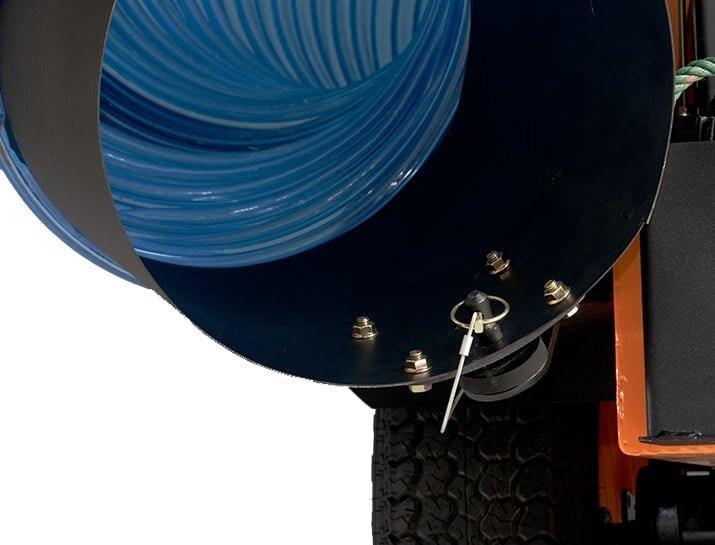

Easy Access for Wear Plate and Impeller Service

1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.

https://www.scag.com/wp-content/uploads/2020/04/scag-industrial-tow-Locking-Boom-Arm-Intake-Nozzle.jpg Locking Boom Arm and Intake Nozzle

Safe and Convenient Transport

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.

Scag Industrial Tow Behind Ambidextrous Nozzle Handle
Easy Handling From Either Side: The Choice Is Yours

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

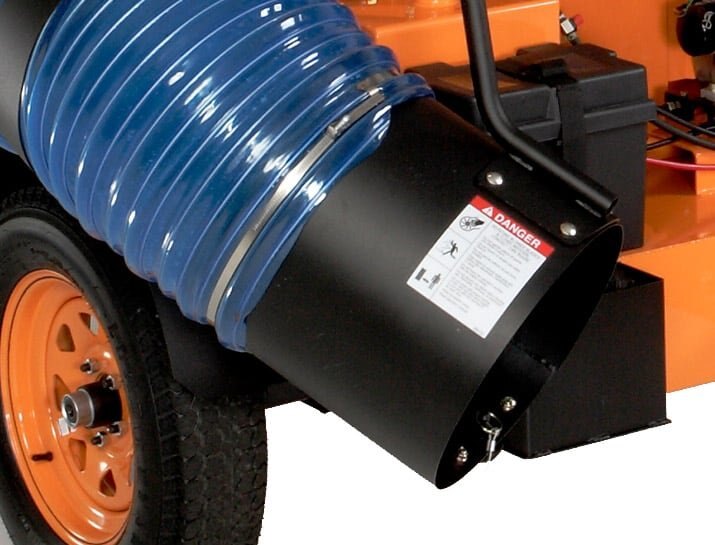

Scag Industrial Tow Behind 16" Steel Intake Nozzle

Take It All In

HUGE, replaceable intake nozzle makes debris pickup easy.

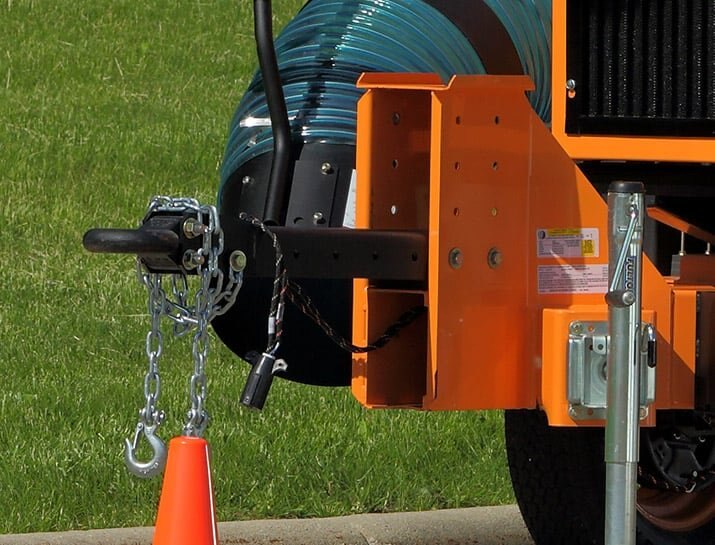

Scag Industrial Tow Behind Adjustable Tongue and Hitch
Fit to Your Truck – Long or Short, High or Low

Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit your truck. A 2 5/16″ ball coupler comes standard on gas-powered units, but will accept a pintle hitch. Diesel-powered unit comes with standard pintle hitch, but will accept a 2 5/16″ ball coupler.

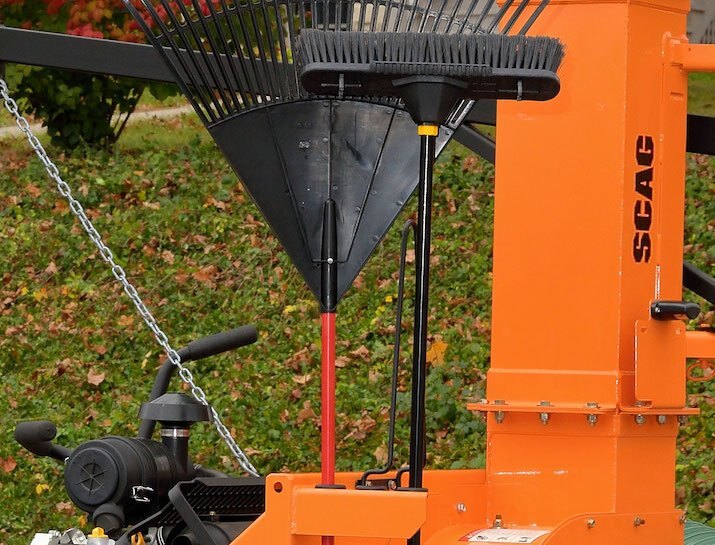

Scag Industrial Tow Behind Built-In Tool Holder

Keep Your Rakes, Brooms and Shovels Within Easy Reach

Built-in, 3-hole tool holder with rubber rings protects handles from damage.

Scag Industrial Tow Behind Large-Capacity Fuel Tank With Built-In Gauge

Hours and Hours of Run Time

High-capacity, 8.5-gallon, steel fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

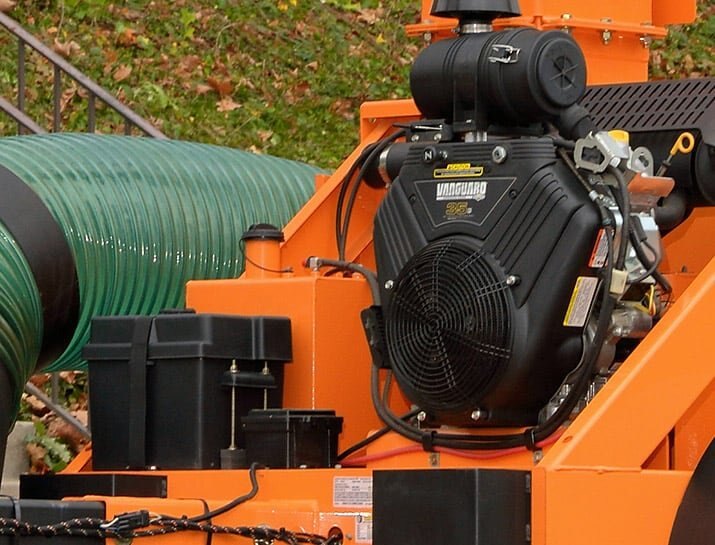

Scag Industrial Tow Behind Ultra-Powerful Engine Options

Huge Power, Up To 49 HP

Choose from a 35 hp Vanguard® BIG BLOCK™ or a 37 hp Kohler® Command PRO® EFI gasoline engine, or a 49 hp Kubota® diesel engine.
specifications
Specification Industrial Tow-Behind
Model TLB25-35BV TLB25-37CH TLB25-49KBD
Engine Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin, electric start Kohler® Command PRO®, V-Twin, electric start Tier 4 Compliant Kubota®, 4-cylinder, liquid-cooled, electric start
HP* 35 37 49
Fuel Capacity / Tank 8.5 gallons – plastic tank with built-in fuel gauge 8.5 gallons – plastic tank with built-in fuel gauge 8.5 gallons – plastic tank with built-in fuel gauge
CFM Output 6,781 6,909 7,318
Frame Construction All-steel, welded All-steel, welded All-steel, welded
Impeller Construction 4-blade, 1/2"-thick blades, all-steel, welded 4-blade, 1/2"-thick blades, all-steel, welded 4-blade, 1/2"-thick blades, all-steel, welded
Impeller Mounting Straight bore Straight bore Straight bore
Impeller Diameter / Width 25" / 9" 25" / 9" 25" / 9"
Blower Housing Construction Removable back panel for easy impeller and wear plate access Removable back panel for easy impeller and wear plate access Removable back panel for easy impeller and wear plate access
Blower Housing Width 10.5" 10.5" 10.5"
Blower Housing Wear Plates Standard: 1/4"-steel, replaceable Standard: 1/4"-steel, replaceable Standard: 1/4"-steel, replaceable
Intake Hose Specifications 84" length, 16"-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip 84" length, 16"-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip 84" length, 16"-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip
Unit Mounting Hitch: at least 10,000 lb rating Hitch: at least 10,000 lb rating Hitch: at least 10,000 lb rating
Discharge Tube Clear thermoplastic, 12" diameter, 84" length Clear thermoplastic, 12" diameter, 84" length Clear thermoplastic, 12" diameter, 84" length
Throttle Control Commercial-grade, all-steel mechanicals Commercial-grade, all-steel mechanicals Commercial-grade, all-steel mechanicals
Highway Ready** Yes – standard roadside package, including wheel chocks and cones Yes – standard roadside package, including wheel chocks and cones Yes – standard roadside package, including wheel chocks and cones
Axle Heavy-duty Dexter Torflex® axle (3,500 lb) Heavy-duty Dexter Torflex® axle (3,500 lb) Heavy-duty Dexter Torflex® axle (3,500 lb)
Tires 205 / 75 D15 highway tires with steel wheels 205 / 75 D15 highway tires with steel wheels 205 / 75 D15 highway tires with steel wheels
Trailer Width 66.75" 66.75" 66.75"
Accessories Light Kit, Brake Kit Light Kit, Brake Kit Light Kit, Brake Kit
Height 121.25" 121.25" 121.25"
Weight 1,700 lb 1,700 lb 2,300 lb
Warranty 2-Year Commercial; 90-Day Rental 2-Year Commercial; 90-Day Rental 2-Year Commercial; 90-Day Rental
*Engine power levels as rated by the manufacturer. All models subject to availability.
**Reference your local regulations to ensure compliance.
