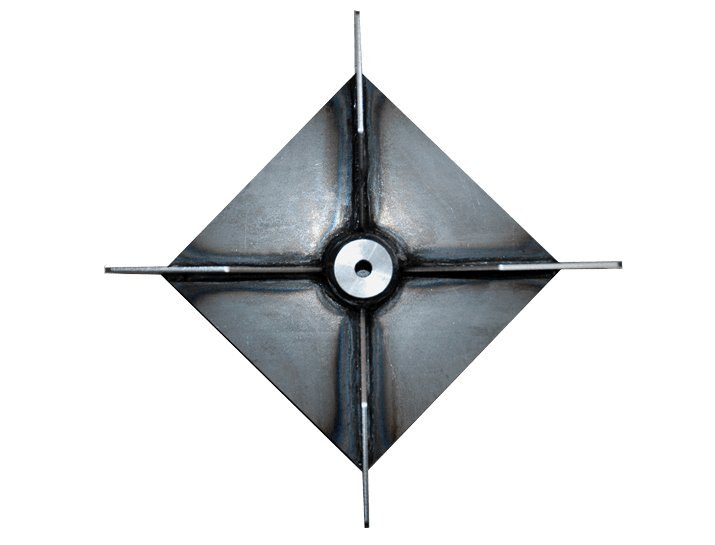

Fabricated and Balanced, 15-Inch, 4-Blade ImpellerHeavy-duty blower construction ensures years of dependable service and worry-free performance. The 15″ steel, 4-blade impeller is dynamically balanced for smooth operation. The impeller mounting utilizes a keyed crankshaft, bolt with tread-lock. |
|
|
4" X 4" Discharge OpeningLarge outlet enhances high-CFM output. Downward deflector focuses airflow where it’s needed. |
|
|
Commercial-Grade Throttle and Comfort-Foam GripCommercial-grade, all-steel, mechanical throttle control features a plastic debris cover for worry-free performance. Comfortable Sure-Grip foam wraps around the tubular-steel, iso-mounted handle. |
|

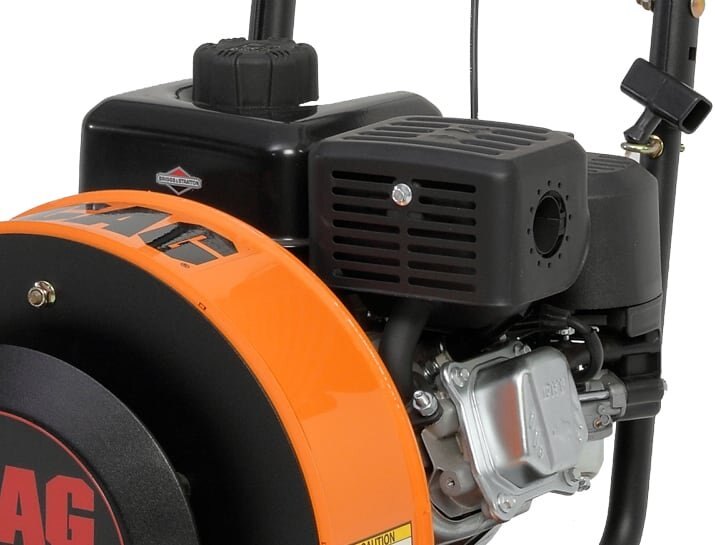

Briggs & Stratton 6.5 HP EngineA proven and powerful 6.5 hp Briggs & Stratton® engine provides years of smooth and reliable performance. |
| Product Specification | Classic |
|---|---|
| Model | LBC15-BS950 |
| Engine | Briggs & Stratton® BS950 |
| Total Fuel Capacity | 0.260 Gallons |
| Horsepower | 6.5 HP |
| CFM Output | 1,392 |
| Electric Clutch | n/a |
| Frame Construction | All-steel, welded 10-gauge |
| Impeller Construction | All-steel, welded, 4-blade, dynamically balanced |
| Impeller Mounting | Keyed crankshaft, bolt with thread-lock |
| Impeller Diameter / Width | 15" / 3.5" |
| Blower Housing Construction | All-steel, welded, 10-gauge front and back housing plates; 12-gauge skirt |
| Blower Housing Width | 4.5" |
| Blower Tilt Angle | 2-degree tilt at discharge; allows blower to more effectively get under wet, heavy debris |
| Handlebar | Tubular steel with thick, comfortable foam grip; 3-position, adjustable height |

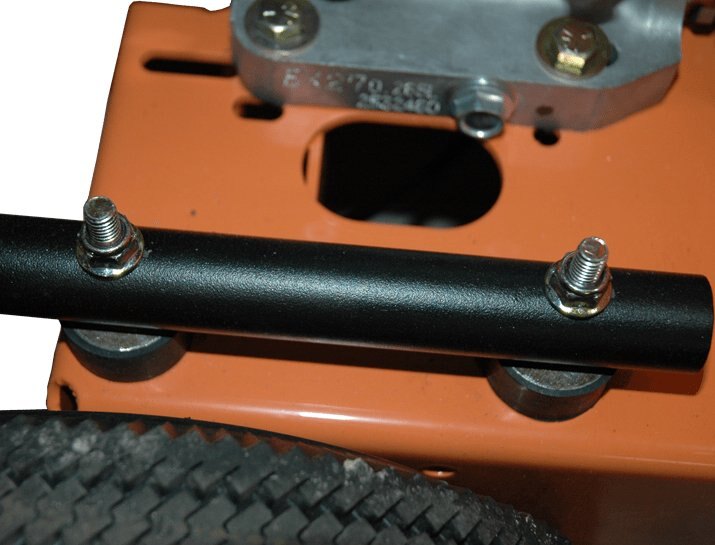

| Vibration Control | 4-point iso-mount handlebar |
| Discharge Opening | 16 square inches |
| Discharge Control | Quick-lever located near discharge |
| Discharge Angle Control | n/a |
| Axle | 3/4"-diameter steel |
| Front Wheel(s) | 1.5" x 6" tire |
| Rear Wheels | 4.10" x 3.5" pneumatic Turf Sale tires |
| Accessories | n/a |
| Length | 43" |
| Width | 27" |
| Height | 40" |
| Weight | 105 lb |
| Warranty | 1-Year Commercial; 2-Year Non-Commercial; 90-Day Rental |
