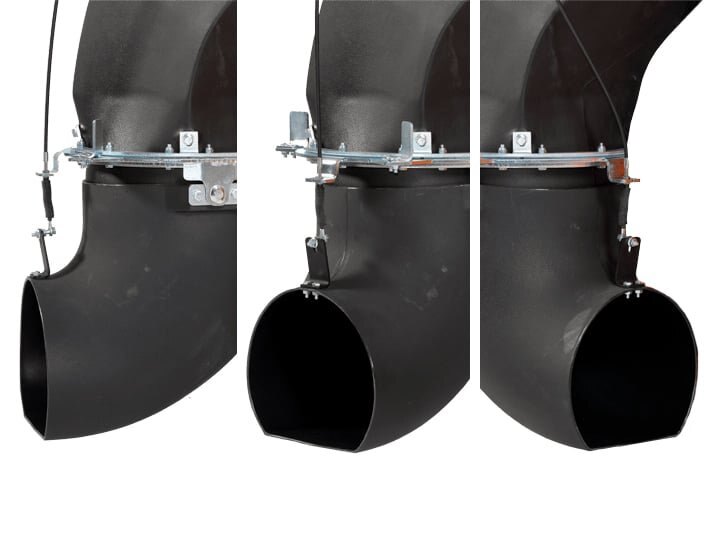

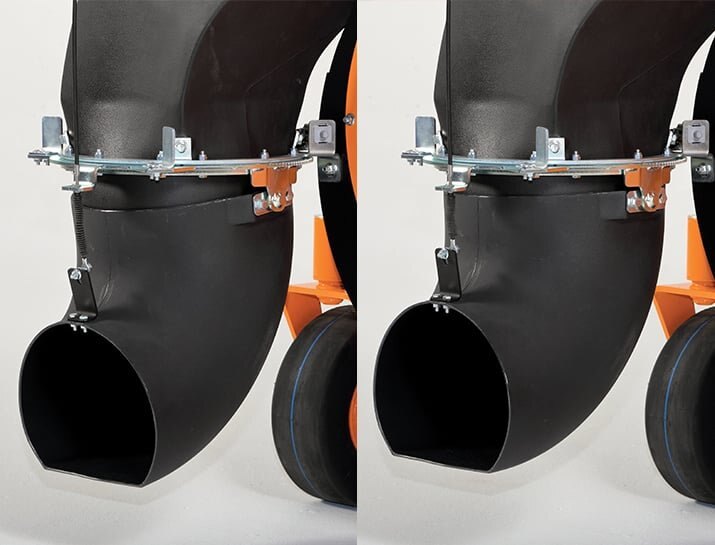

Vertical-Tilt ControlAdjust the tilt of the discharge nozzle up to 16 degrees: lower to help loosen and blast stubborn debris or higher to prevent blowback. |
|
|

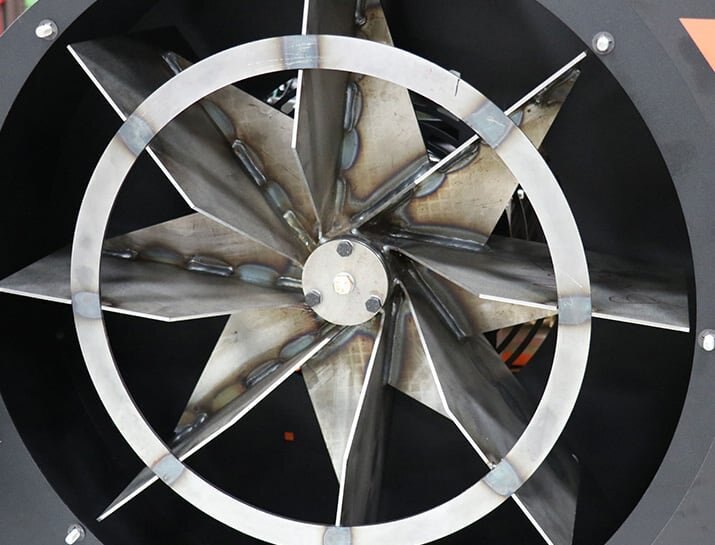

Reliable Performance and Smooth OperationHeavy-duty blower construction ensures years of dependable service and worry-free performance. The 23″ steel, 8-blade impeller is dynamically balanced for smooth operation. The impeller mounting utilizes a tapered locking hub. |
|
|
You're in CommandProven, ergonomic drive-control lever’s design provides incredible ease-of-use. Instrument panel features NDS, ignition switch, PTO switch, throttle control, choke control and Scag’s exclusive Tiger Eye™ Advanced Monitoring System. |
|
Extra-Large Comfort Cushion and Suspension PlatformWith an extra-thick cushion for operator comfort, the coil-suspension operator platform delivers an unmatched, ultra-comfortable ride. Tie-down points are built in to quickly secure to a trailer. Removable cushion and lower panel allow for quick and easy service access. Convenient engine and hydraulic oil drains are located underneath. |
|
| Product Specification | Windstorm |
|---|---|
| Model | WS23-37BV-EFI |
| Total Fuel Capacity | 8 Gallons |

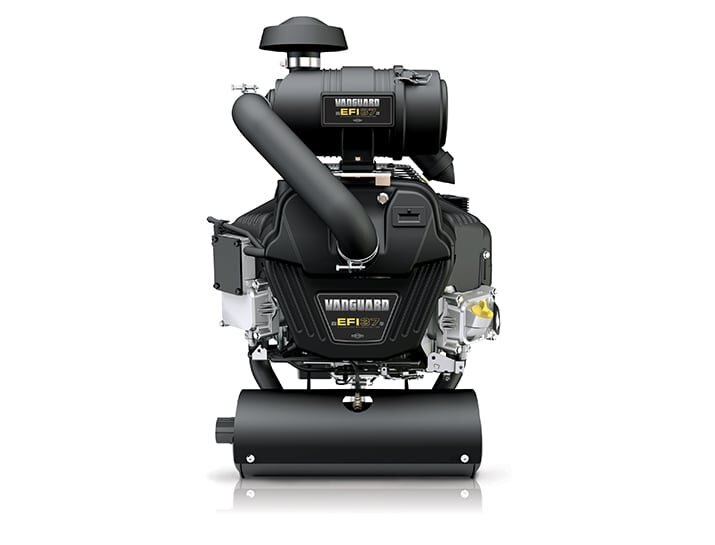

| Engine | Briggs Vanguard™ BIG BLOCK™ – electronic fuel injection |
| Horsepower | 37 HP |
| CFM Output | Effective CFM – 6,000 Theoretical Peak CFM – 7,500 |
| Electric Clutch | Ogura GT3.5 (250 ft lb) with Softstart Electric Clutch Control |
| Frame Construction | All-steel, welded 10-gauge |
| Impeller Construction | All-steel, welded, 8-blade, dynamically balanced |
| Impeller Mounting | Tapered locking hub |
| Impeller Diameter / Width | 23" / 8.5" |
| Blower Housing Construction | All-steel, welded, 12-gauge front and side housing plate and 10-gauge back housing plate |
| Blower Housing Width | 10" |
| Blower Tilt Angle | 16 degrees of total vertical tilt; 180 degrees of left/right horizontal rotation |
| Handlebar | n/a |
| Vibration Control | n/a |
| Discharge Opening | 69 square inches |
| Left / Right Discharge Control | Nozzle Direction System offers up to 180 degrees of rotation. |
| Discharge Angle Control | Yes – mechanical lever |
| Axle | n/a |
| Front Wheel(s) | 13" x 5"-6", flat-free |
| Rear Wheels | 24" x 12"-12", 4-ply |
| Accessories | Light Kit, Chrome Wheel Covers, Air Filter Monitor |
| Length | 71.5" |
| Width | 51" |
| Height | 47.25" |
| Weight | 943 lb |
| Warranty | 2-Year Commercial; 2-Year Residential; 90-day Rental |
