ID # 19376172

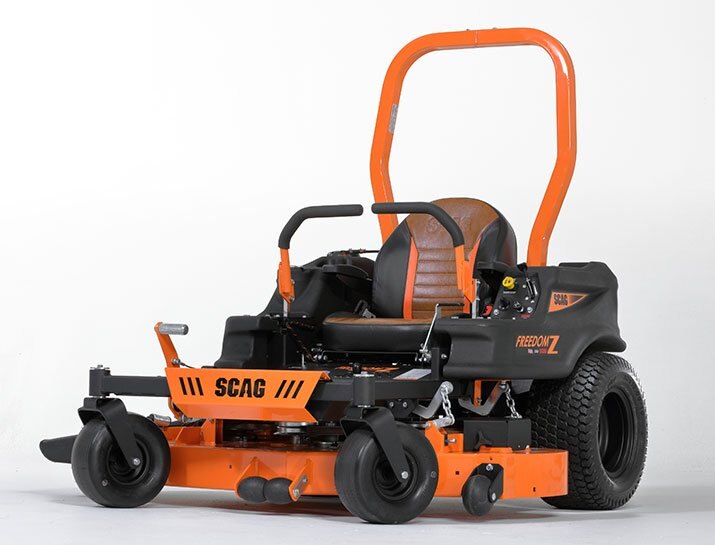

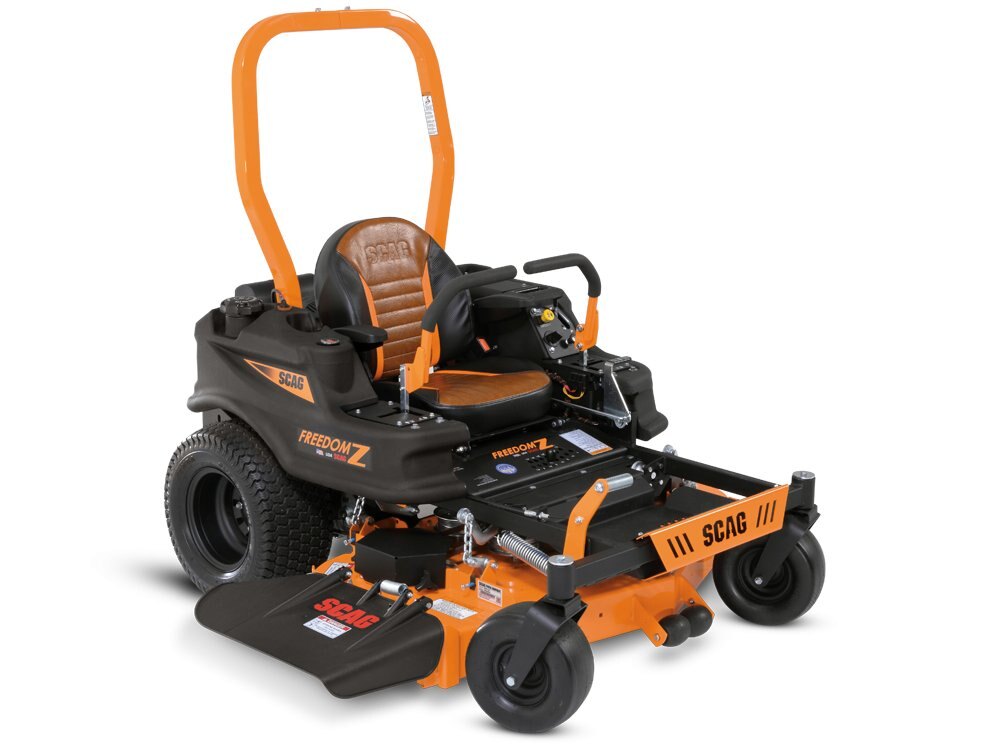

Scag Freedom Z

  • Scag Freedom Z
  • Scag Freedom Z
  • Scag Freedom Z
  • Scag Freedom Z
  • Scag Freedom Z
  • Scag Freedom Z
  • Scag Freedom Z
  • Scag Freedom Z
  • Scag Freedom Z
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

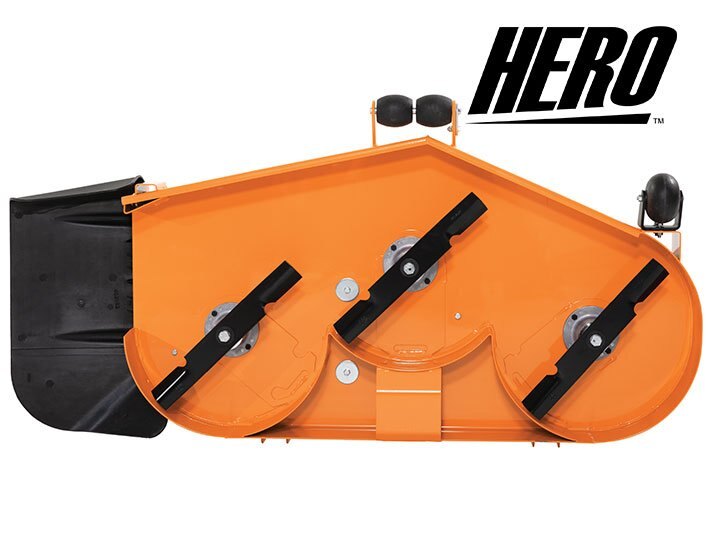

Scag Freedom Z Hero™ Cutter Deck
Deep, Fabricated, and Welded Cutter Decks

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.


Specifications
Model
Freedom Z
Category Name
Lawn Care
Year
2022
Sale Type
New
Manufacturer
Scag
features

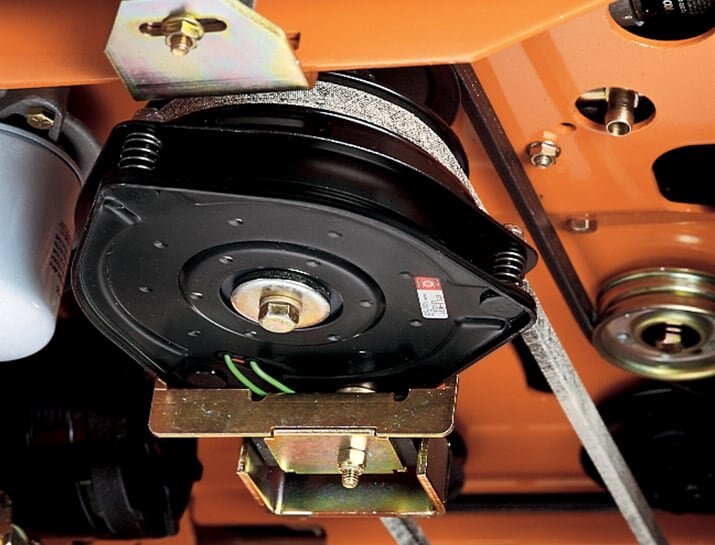

Scag Freedom Z Ogura PTO Clutch Brake
Strong, Adjustable Clutch for Long Life

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Scag Freedom Z High-Strength Steel Frame

Solid Design for Years of Dependable Service

Tubular-steel main frame delivers unmatched strength and longevity.

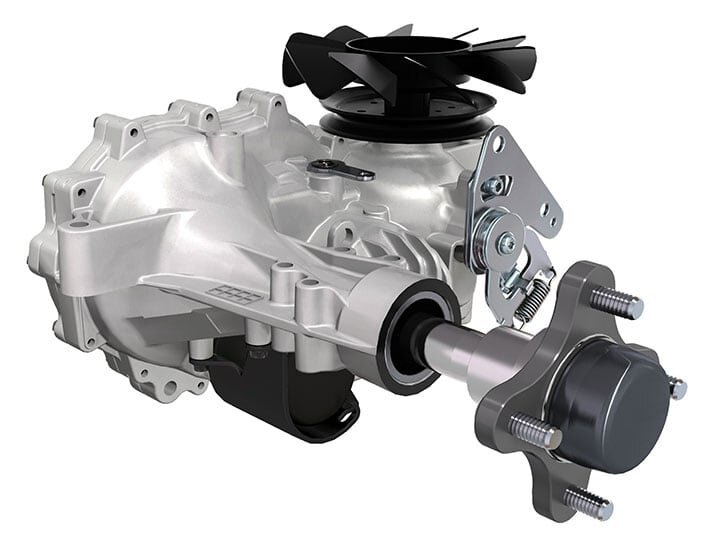

Scag Freedom Z Hydro-Gear ZT-2800 Transaxles
Speeds Up To 8 MPH

The ZT drive system’s dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.

Scag Freedom Z Low-Maintenance Mower Design
More Uptime

Fewer grease points increase operator convenience and ease-of-ownership.

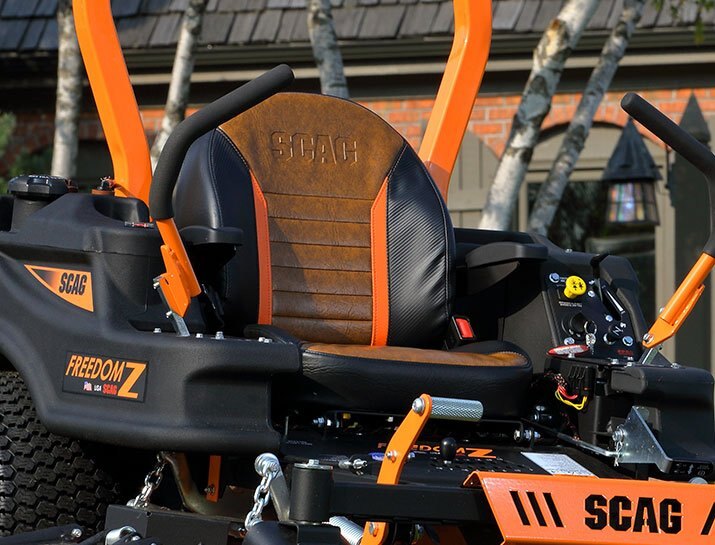

Scag Freedom Z Contoured, Bolstered, High-Back Seat
Ride in Comfort

This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.

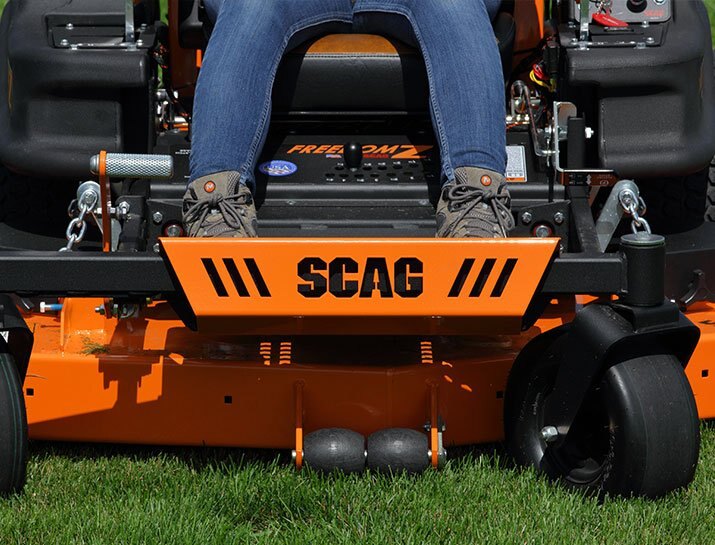

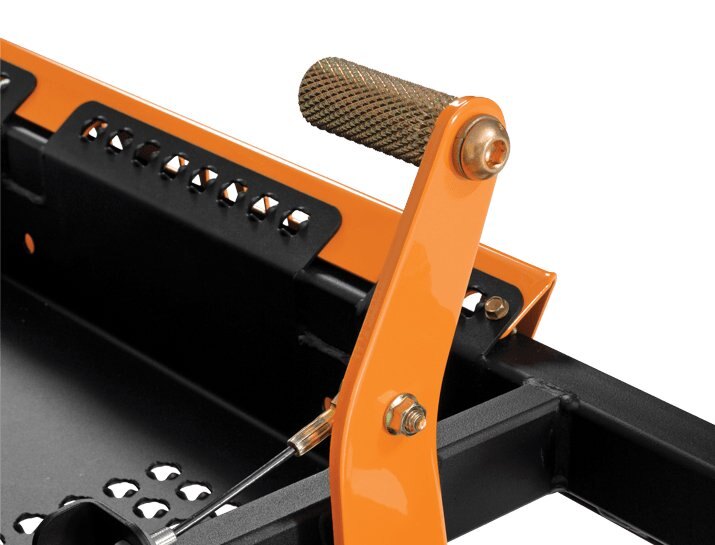

Scag Freedom Z Easy Foot-Pedal Deck Lift
Easy Up, Easy Down

Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.

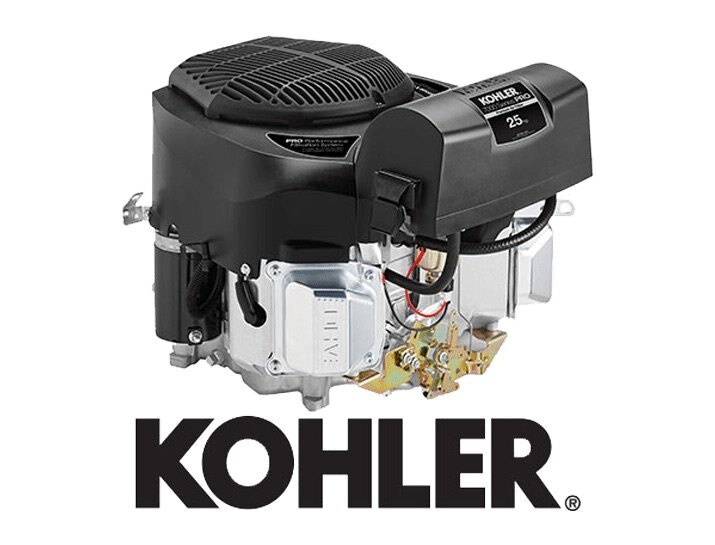

Scag Freedom Z Powerful and Efficient Engine Options
Reliable Power, Up To 24 HP

The 22 hp and 24 hp Kohler® 7000 Series engines with PRO Performance filtration provide smooth, reliable power.
engine & deck combinations
Model Description
SFZ48H-24KT 48" Hero Cutter Deck, 24 HP Kohler® 7000 Series™ PRO – V-Twin, air-cooled engine
SFZ52H-26KT 52" Hero Cutter Deck, 26 HP Kohler® 7000 Series™ PRO – V-Twin, air-cooled engine
product dimensions
specifications
  Specification Freedom Z
General Total Fuel Capacity 6.5 gallons
  Drive Tires 20" x 10"-10"
  Caster Tires 11" x 6"-5"
  Seat Padded with arm rests, adjustment forward and back (tools required)
Drive System Drive System Type Hydro-Gear ZT2800 Transaxle
  Pumps Internal Pump: 10 cc
  Motors Internal Motor: 16 cc
  Forward Ground Speed 8 mph
  Reverse Ground Speed 5 mph
  Parking Brake Hand-activated lever
Deck Cutting Widths 48" and 52"
  Type Hero Cutter Deck
  Cutting Height 1.5" to 4.5" in .25" increments
  Deck Lift Foot-operated pedal
  Construction Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
  Spindles Aluminum housing with sealed ball bearings.
  Blade Engagement Ogura GT1 (74 ft lb)

Adjustable air-gap for extended life.
