Scag

ID # 19376171

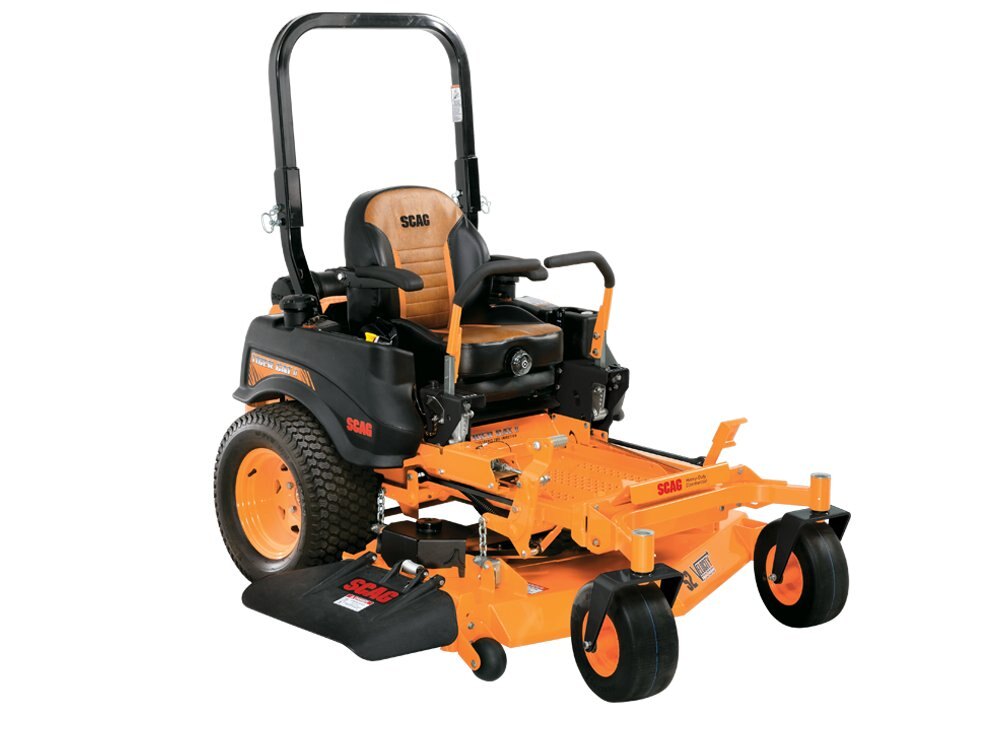

Scag Tiger Cat

Videos
Call for Price
Overview

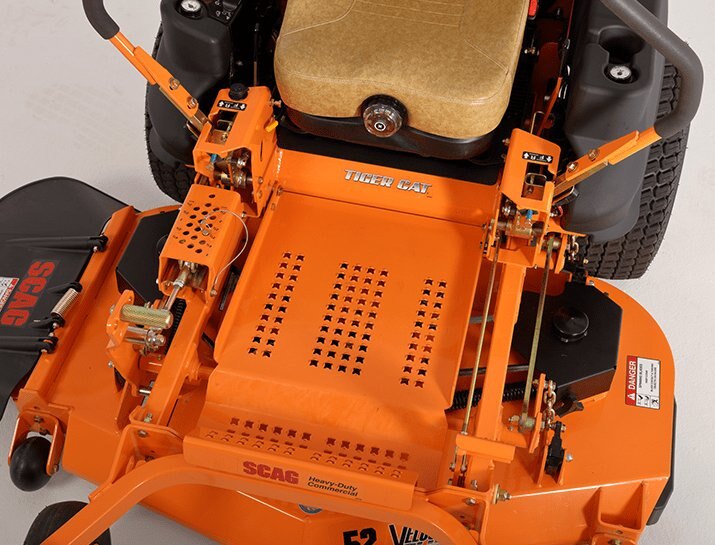

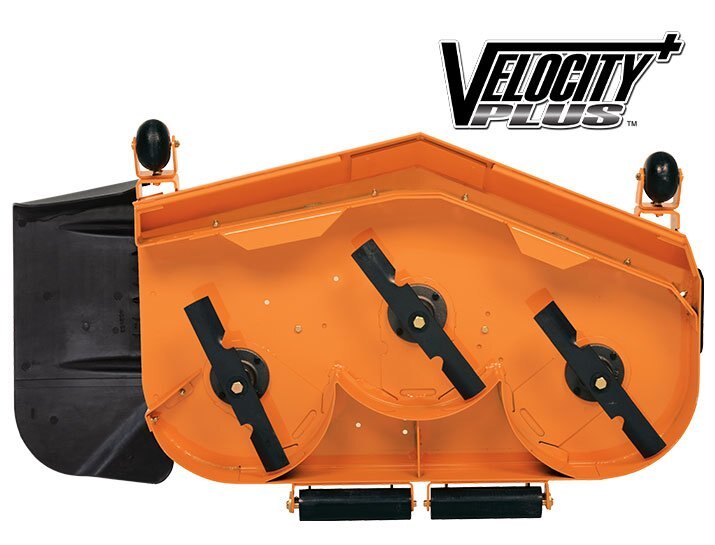

Scag Tiger Cat Velocity Plus Cutter Decks
48", 52" or 61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.


Specifications
Model
Tiger Cat
Category Name
Lawn Care
Year
2022
Sale Type
New
Manufacturer
Scag
features

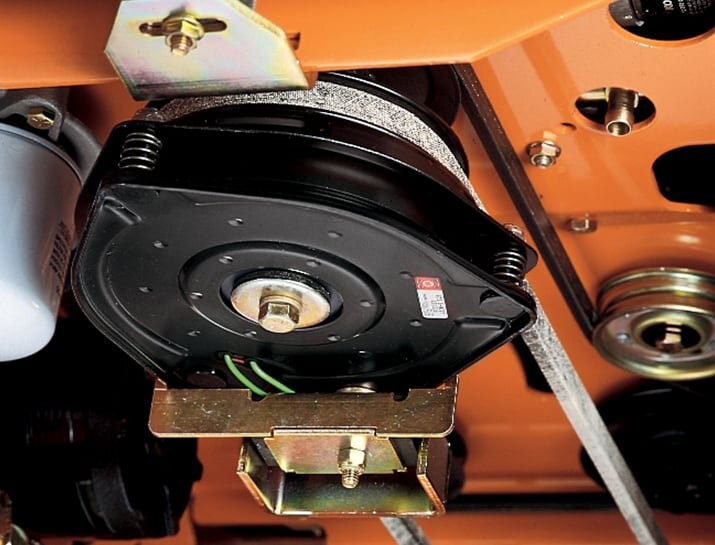

Scag Tiger Cat Ogura PTO Clutch Brake
Strong, Adjustable Clutch for Long Life

The Ogura GT3.5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 250 ft. lb. of holding strength, and an adjustable air gap for long life.

Scag Tiger Cat High-Strength Steel Frame
Solid Design for Years of Dependable Service

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

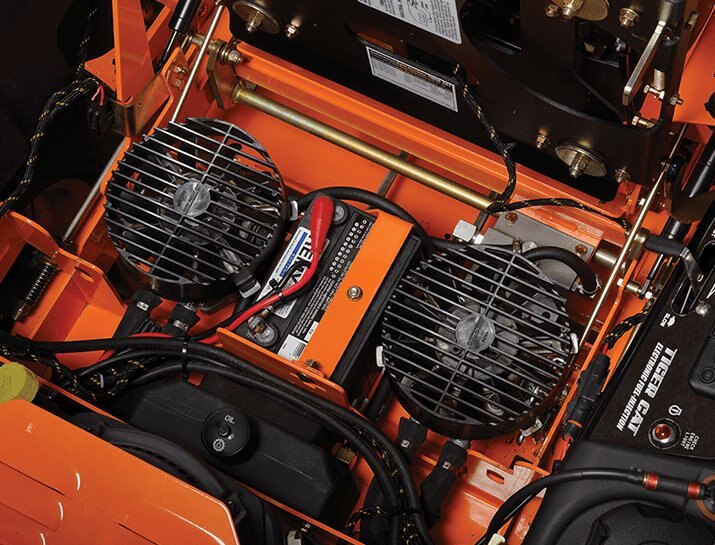

Scag Tiger Cat Industrial-Grade Hydraulic System

Speeds Up To 12 MPH

Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14.5 ci) deliver dependable power. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.

Scag Tiger Cat Ease of Maintenance
More Uptime

Flip-up access panels, an unrestricted engine compartment, easy-to-reach grease zerks and many more features make servicing the Tiger Cat® simple, so you can be in the shop less and on the job more.

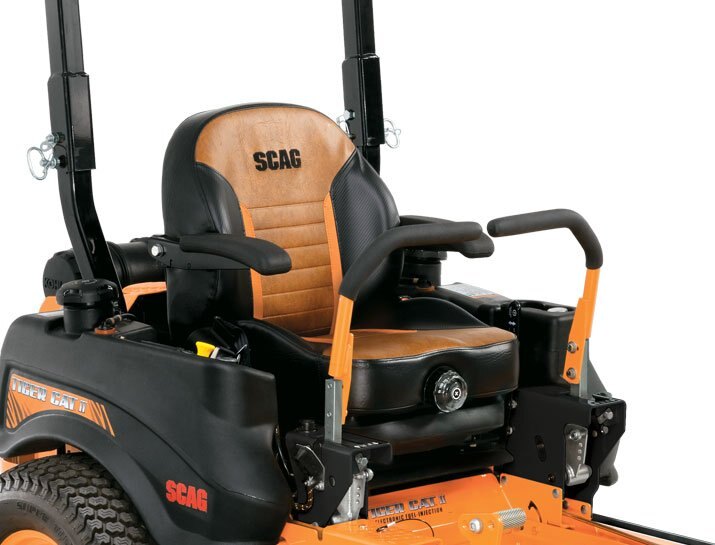

Scag Tiger Cat Suspension Seat
Ride in Comfort

Torsion-spring suspension seat adjusts to each operator’s weight to provide superior comfort. Seat features full padding, forward/rearward adjustment, a high back, adjustable armrests and an adjustable back angle. The 4-point, rubber iso-mounting provides even more shock absorption, maximizing your comfort, hour after hour.

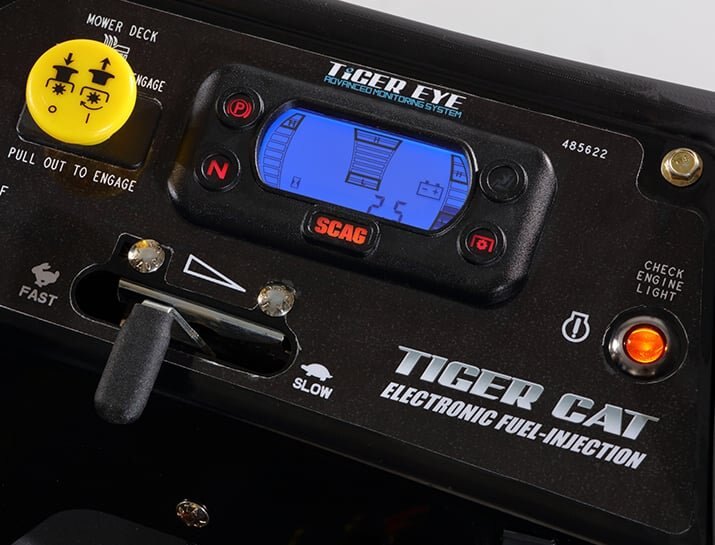

Scag Tiger Cat Tiger Eye Advanced Monitoring System
Keep a Real-Time "Eye" on Important System Functions

Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.

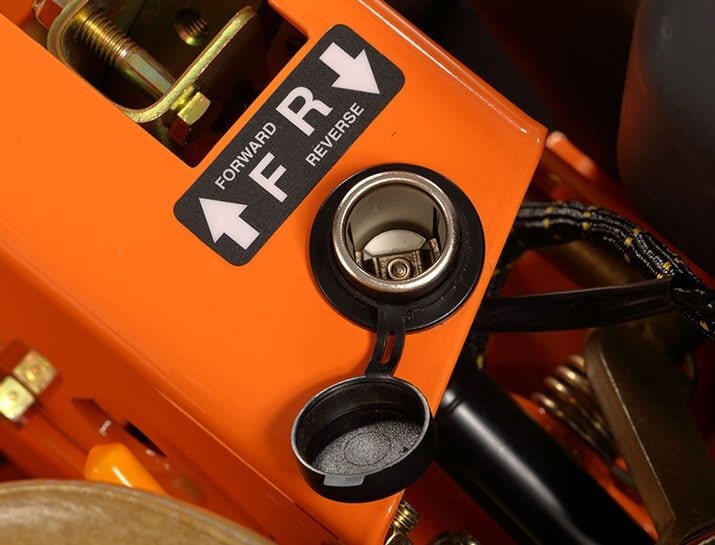

Scag Tiger Cat 12-Volt Outlet
Keep Your Device Charged and Ready

12-volt outlet for added convenience allows operators to plug in small accessories or keep their phones at full charge.

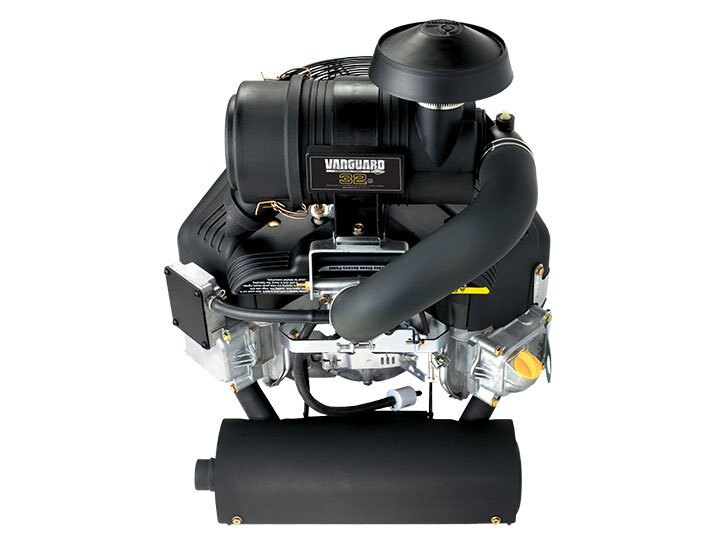

Scag Tiger Cat Powerful and Efficient Engine Options
Big Power, Up To 32 HP

Choose from a Kawasaki®, Briggs Vanguard™ or Kohler® air-cooled engine; electronic fuel injection (EFI) options are available.

engine & deck combinations
Model Description
STCII-48V-22FX 48" Velocity Plus™ Cutter Deck, 22 HP Kawasaki®691FX
STCII-52V-26FT-EFI 52" Velocity Plus™ Cutter Deck, 26 HP Kawasaki®730FT – electronic fuel injection
STCII-52V-28BV-EFI 52" Velocity Plus™ Cutter Deck, 28 HP Briggs Vanguard™ 810 – electronic fuel injection
STCII-61V-26FT-EFI 61" Velocity Plus™ Cutter Deck, 26 HP Kawasaki®730FT – electronic fuel injection
STCII-61V-32BV 61" Velocity Plus™ Cutter Deck, 32 HP Briggs Vanguard™ BIG BLOCK™
product dimensions
specifications
  Specification Tiger Cat
General Total Fuel Capacity 9.5 gallons
  Drive Tires 24" x 9.5"-12" (48" and 52")

24" x 12"-12" (61")
  Caster Tires 13" x 6.5"-6", flat-free
  Seat 4-point iso-mounted mid-back mounted on operator-suspension platform
Drive System Drive System Type Dual Pump and Motor
  Pumps Hydro-Gear 12 cc
  Motors Parker 14.5 ci
  Forward Ground Speed 12 mph
  Reverse Ground Speed 5 mph
  Parking Brake Foot-operated pedal
Deck Cutting Widths 48", 52" and 61"
  Type Velocity Plus™
  Cutting Height 1" to 5" in .25" increments
  Deck Lift Adjustable foot-operated pedal
  Construction Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
  Spindles Cast-iron housing with tapered roller bearings.
  Blade Engagement Ogura GT3.5 (250 ft lb)

Adjustable air-gap for extended life.
